3-60 — BRAKE PIPING; VACUUM (#166242) — 53 parça

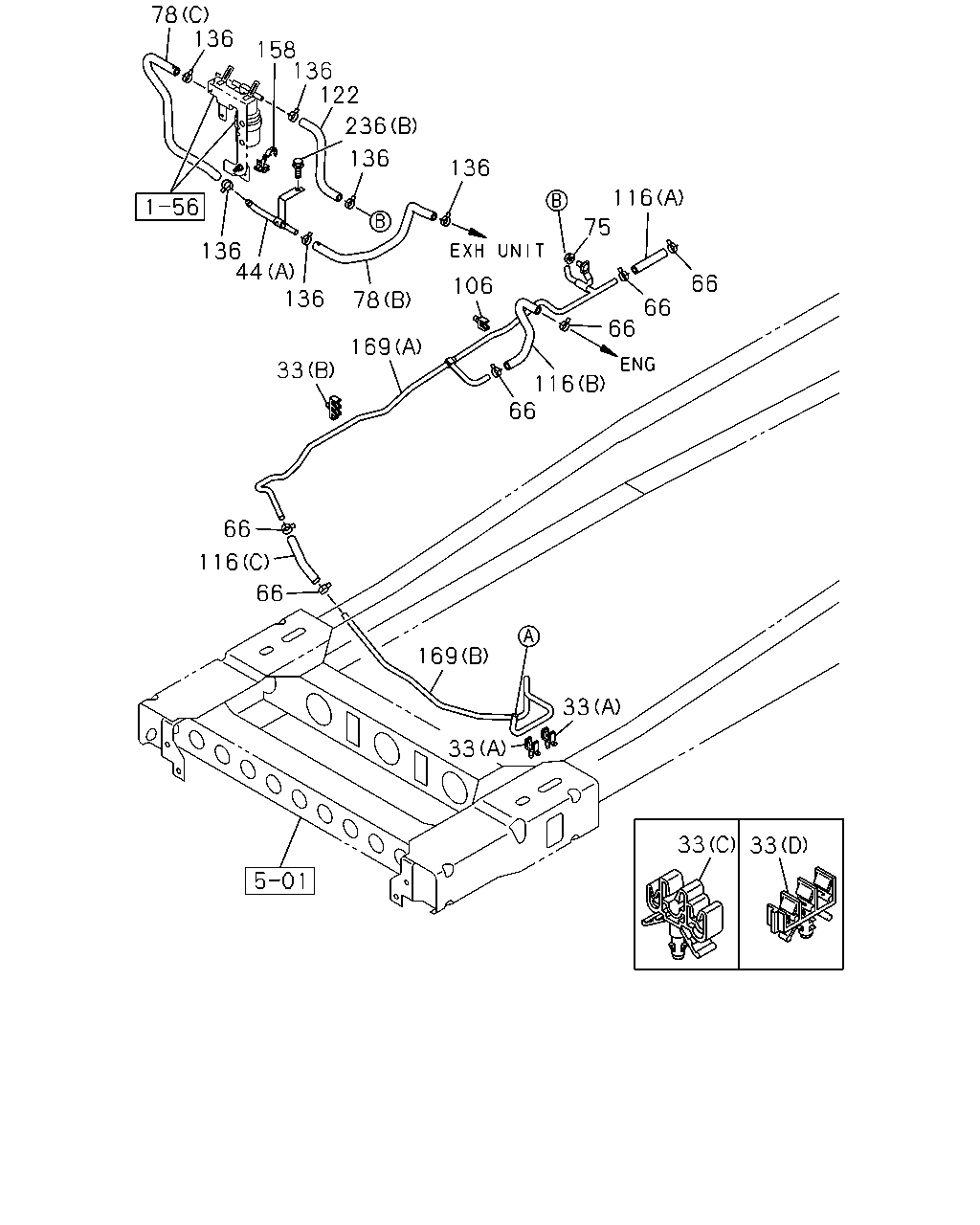

78 136 158 236 122 136 136 136 44 78 136 169 33 106 136 75 116 66 66 66 116 66 66 66 116 169 33 33 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1509-
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1509-
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1509-
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1509-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1509-
44	04.930 PIPE; VAC,MAG VLV (B)	8-98040-807-1	01	1	1509-
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	06	1	1509-
66	04.930 CLIP; VAC HOSE,M/VAC EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	04	1	1509-
75	04.930 NUT; CLIP,VAC HOSE 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98182-129-1	01	1	1509-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1509-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98197-253-0	01	1	1509-
106	04.930 CLIP; PIPE ID=10 H=40	8-94462-219-0	03	1	1509-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1509-
116	04.931 HOSE; VAC,M/VAC 03.630 (A) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1509-
116	04.931 HOSE; VAC,M/VAC (B)	8-98178-956-0	01	1	1509-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98179-179-1	01	1	1509-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1509-
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1509-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98179-003-4	01	1	1509-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98180-911-2	01	1	1509-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98180-965-4	01	1	1509-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-
236	04.930 BOLT; PIPE 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1509-

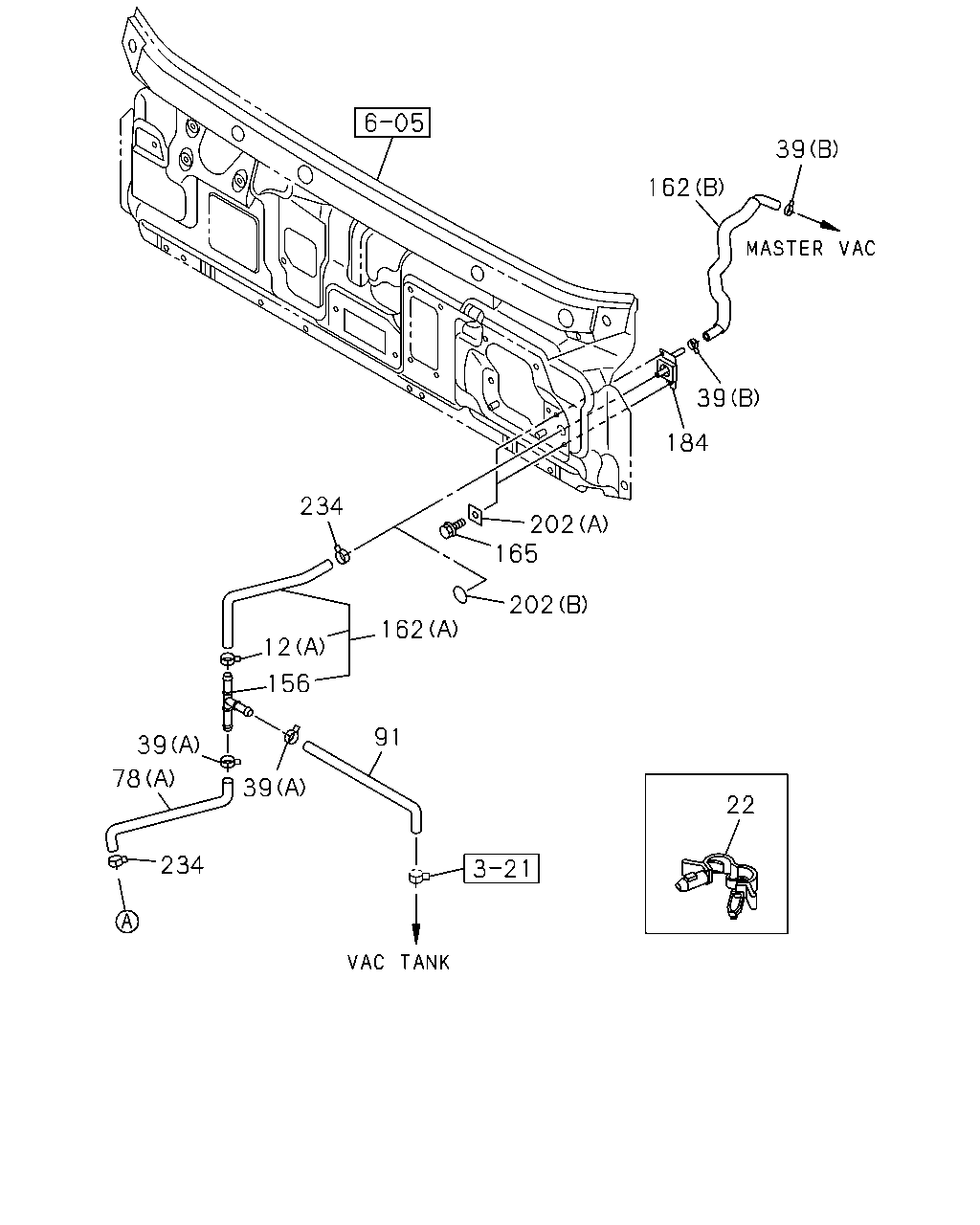

39 162 39 184 202 165 202 162 234 12 156 91 22 39 39 78 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	01	1	1509-
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	06	1	1509-
22	04.681 CLIP; HOSE,VAC TANK POWER ASSIST CLUTCH(S2T) 02.559 ID=13-18 L=18	1-09709-291-0	01	1	1509-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (A) ID=16	8-97329-628-0	02	1	1509-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1509-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98182-129-1	01	1	1509-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1509-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98197-253-0	01	1	1509-
91	04.931 HOSE; VAC,RESERVE TANK POWER ASSIST CLUTCH(S2T)	8-98186-036-1	01	1	1509-
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	01	1	1509-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (B)	8-98169-697-0	01	1	1509-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98182-127-1	01	1	1509-
165	04.686 BOLT; BRKT POWER ASSIST CLUTCH(S2T) 02.762 M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1509-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T)	8-98169-731-1	01	1	1509-
202	04.686 SEAL POWER ASSIST CLUTCH(S2T) 08.845 (A)	8-97856-616-0	02	1	1509-
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98201-038-0	01	1	1509-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	02	1	1509-

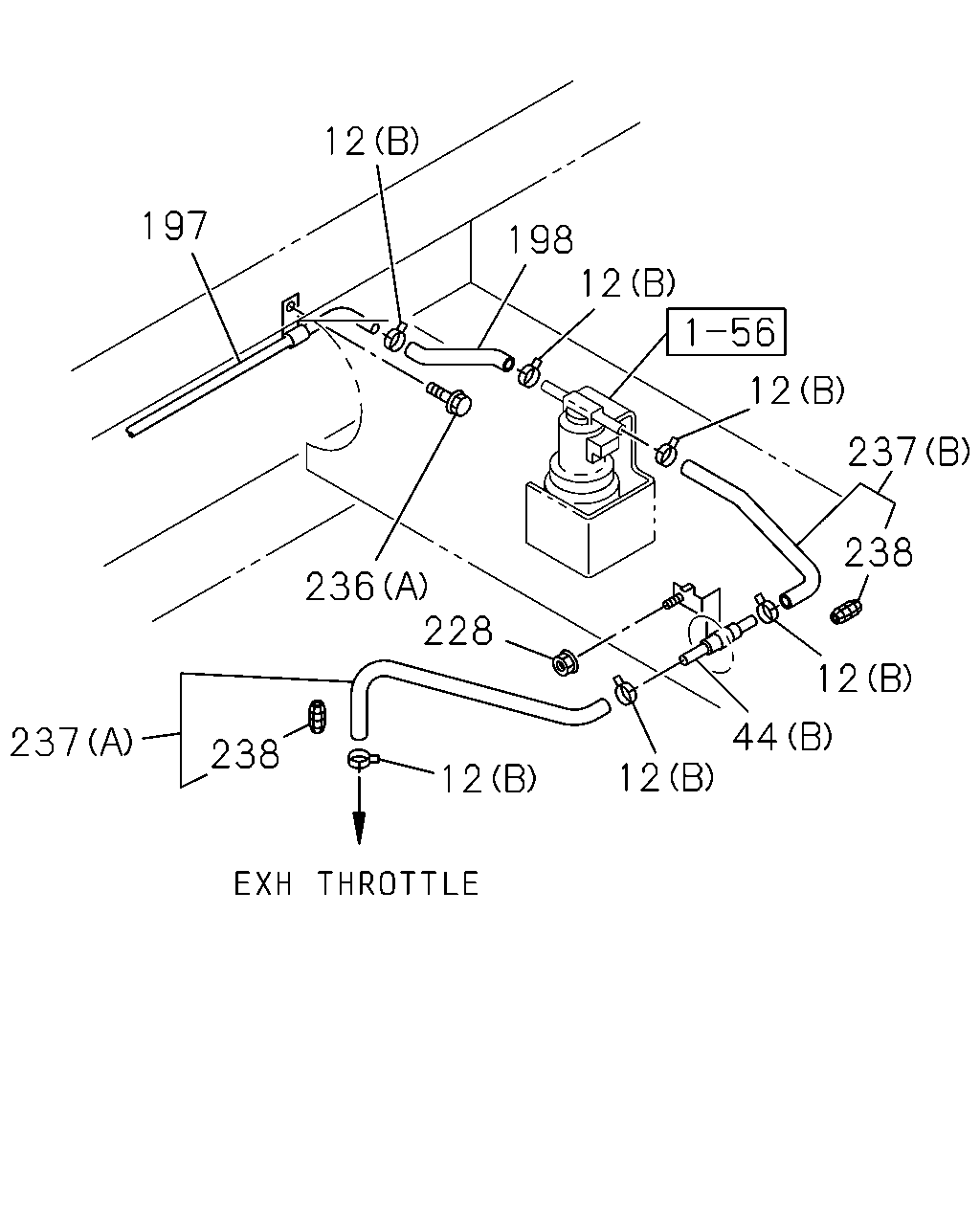

197 12 198 12 12 237 238 12 44 12 12 228 236 238 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	01	1	1509-
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	06	1	1509-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1509-
44	04.930 PIPE; VAC,MAG VLV (B)	8-98040-807-1	01	1	1509-
197	04.930 PIPE; VAC,PIPE TO MAG VLV	8-98179-118-4	01	1	1509-
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-98206-671-0	01	1	1509-
228	04.930 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-
236	04.930 BOLT; PIPE 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1509-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-97378-771-0	01	1	1509-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (B)	8-98040-785-1	01	1	1509-
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	02	1	1509-
