◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#16624) — 19 parça

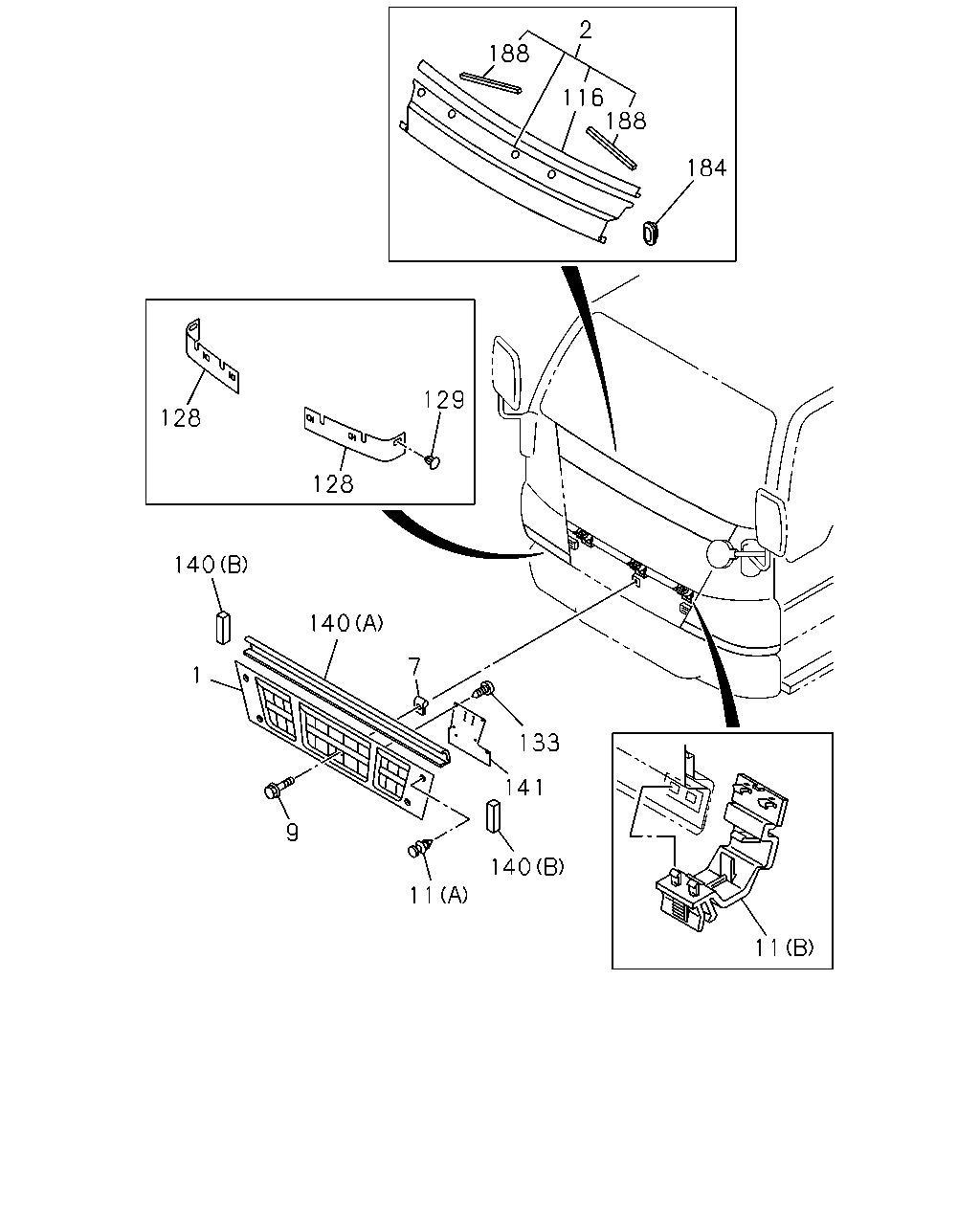

çizim 118988
2 188 116 188 184 129 128 128 140 140 7 1 133 141 9 140 11 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GRILLE; RAD
BODY COLOR MARINE BLUE<890> BLUE 		8-97582-418-4 01 1 0508- ● ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE<951> WHITE 		8-97404-572-4 01 1 0508- ● ● ●
2 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97585-545-2 01 1 0508- ● ● ●
2 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97581-679-5 01 1 0508- ● ● ●
7 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0508- ● ● ●
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0508-0805 ● ● ●
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806- ● ● ●
11 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0508- ● ● ●
11 CLIP; RAD GRILLE
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> (A) 		8-97581-651-2 04 1 0508- ● ● ●
116 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-655-1 01 1 0508- ● ● ●
128 COVER; HEADLAMP GRILLE 8-97581-653-3 02 1 0508- ● ● ●
129 CLIP; COVER HEADLAMP GRILLE
D=6.5 THA 		8-97855-279-0 02 1 0508- ● ● ●
133 SCREW; COVER
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> M5X12 W/PL WASHER 		8-94385-565-0 06 1 0508-0704 ● ● ●
140 SEAL; RAD GRILLE
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> (A) 		8-97581-664-0 01 1 0508- ● ● ●
140 SEAL; RAD GRILLE
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> (B) 		8-97583-411-1 02 1 0508- ● ● ●
141 COVER; RAD GRILLE
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97581-648-1 01 1 0508-0704 ● ● ●
184 GROMMET; ORNAMENT 8-97581-668-0 03 1 0508-0602 ● ● ●
184 GROMMET; ORNAMENT 8-97581-668-0 02 1 0603- ● ● ●
188 SEAL; ORNAMENT 8-97584-800-0 02 1 0508- ● ● ●
