Isuzu WW
▶
TRUCKS
▶
NQR
▶
51636 - NQR BUS A/BRAKE LHD
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶

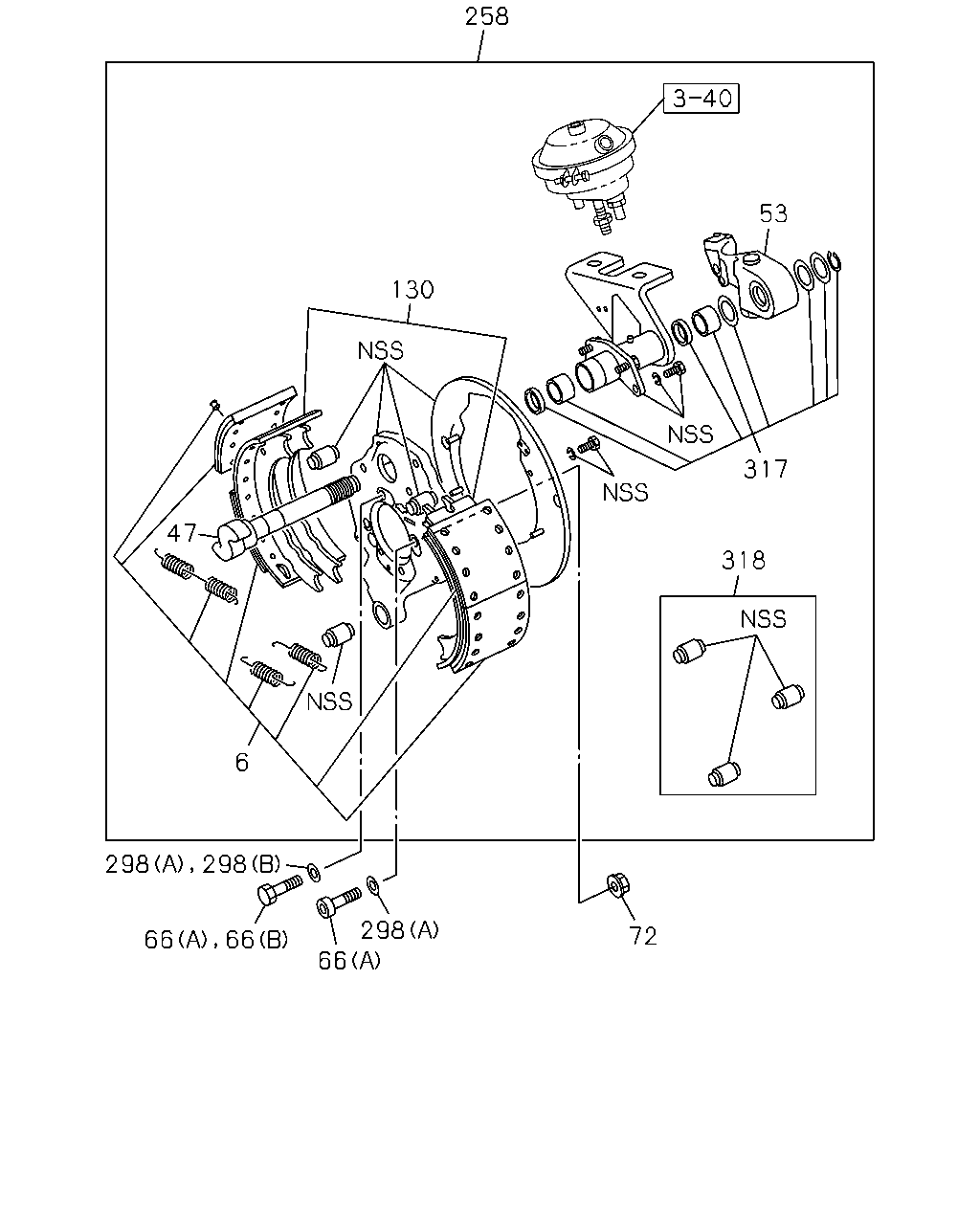

3-01 — FRONT WHEEL BRAKE
(#166227) — 20 parça
53
317
318
130
258
47
6
72
66
66
298
298
66
298
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
05.018 LINING KIT; FRT BRK
8-98241-912-0
01
1
1509-
47
05.130 CAMSHAFT; FRT BRK
8-98205-474-0
01
1
1509-1603
47
05.130 CAMSHAFT; FRT BRK
8-98328-822-0
01
1
1604-
47
05.130 CAMSHAFT; FRT BRK
8-98205-475-0
01
1
1509-1603
47
05.130 CAMSHAFT; FRT BRK
8-98328-823-0
01
1
1604-
53
05.125 ADJUSTER ASM; SLACK
8-98229-019-0
02
1
1509-
66
05.815 BOLT; OIL SHIELD COVER
05.002 (B)
8-98203-694-0
02
1
1509-1603
66
05.815 BOLT; OIL SHIELD COVER
(A)
8-98215-505-0
06
1
1509-1603
66
05.815 BOLT; OIL SHIELD COVER
(A)
8-98215-505-0
08
1
1604-
72
05.815 NUT; OIL SHIELD COVER
M14 FLANGE
8-98149-153-0
08
1
1509-
130
05.017 SHOE KIT; BRK,FRT
8-98241-913-1
02
1
1509-
258
05.017 BRAKE ASM; FRONT
8-98241-666-1
01
1
1509-1603
258
05.017 BRAKE ASM; FRONT
8-98299-764-0
01
1
1604-
258
05.017 BRAKE ASM; FRONT
8-98241-667-1
01
1
1509-1603
258
05.017 BRAKE ASM; FRONT
8-98299-763-0
01
1
1604-
298
05.130 WASHER; PL
(B) ID=15 OD=26
1-09530-007-0
02
1
1509-1603
298
05.130 WASHER; PL
(A) ID=15
8-98010-627-1
06
1
1509-1603
298
05.130 WASHER; PL
(A) ID=15
8-98010-627-1
08
1
1604-
317
04.667 REPAIR KIT; S CAM BRACKET
8-98239-348-0
02
1
1509-
318
04.667 REPAIR KIT; ROLLER AND ANCHOR PI
8-98205-456-0
02
1
1509-
