2-26 — MANUAL TRANSMISSION GEAR (#166222) — 76 parça

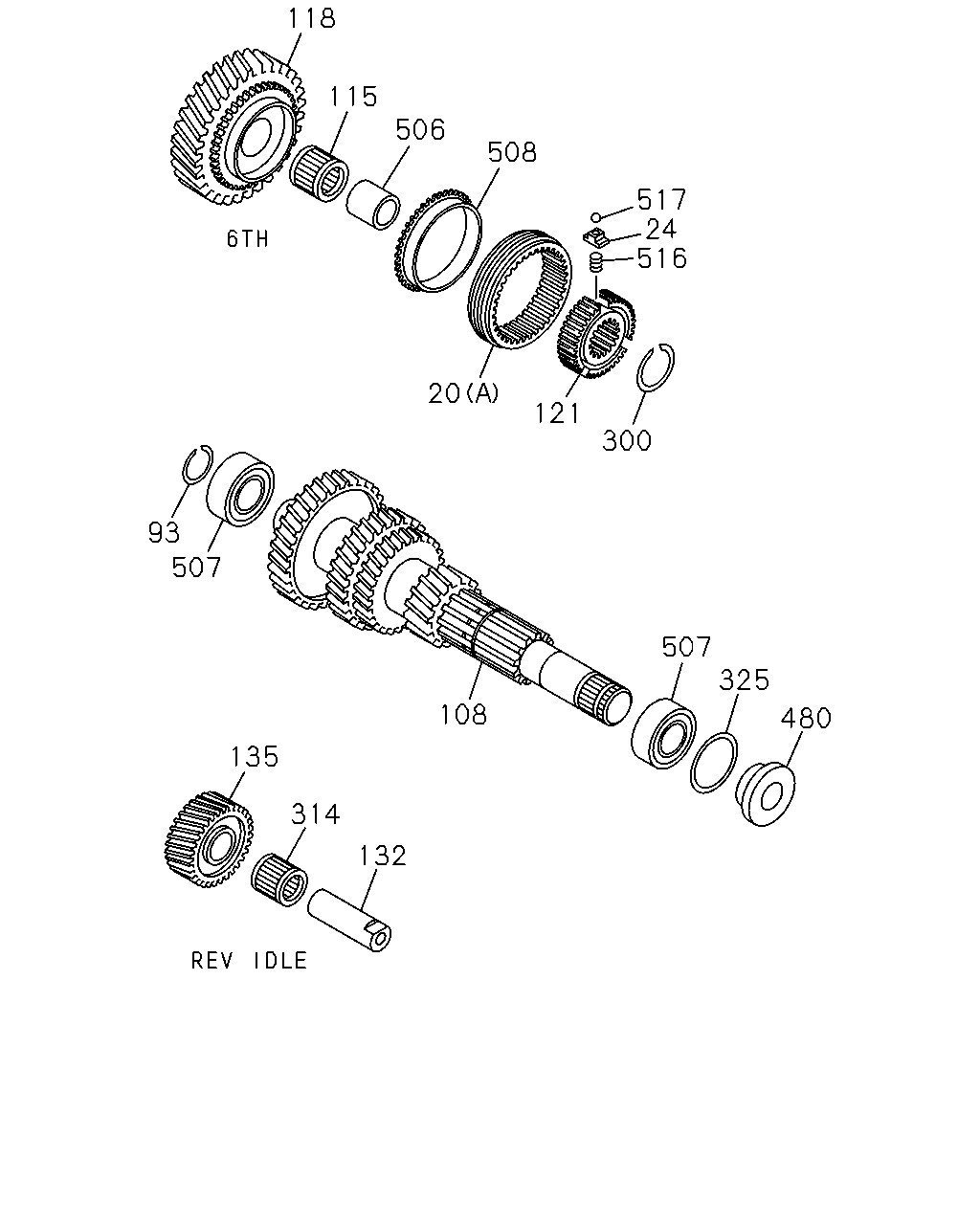

çizim 492369
118 115 506 508 517 24 516 20 121 300 93 507 108 507 325 480 135 314 132
BalonParca AdiParca NoAdetTipApplied Date
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 02 1 1509-
20 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1509-
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 12 1 1509-
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 1509-
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 1509-
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 1509-
108 04.428 SHAFT; COUNTER
Z=46-37-28-21 		8-98249-484-0 01 1 1509-
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 1509-
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1509-
118 04.421 GEAR; 6TH,COUNTER
Z=47 		8-97241-246-0 01 1 1509-
121 04.384 HUB; CLU,6TH 8-97241-301-2 01 1 1509-
132 04.433 SHAFT; REV 8-97252-655-0 01 1 1509-
135 04.430 GEAR; REV IDLER
Z=26 		8-97241-292-2 01 1 1509-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.7 		8-97288-618-0 01 1 1509-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.8 		8-97288-619-0 01 1 1509-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.9 		8-97288-620-0 01 1 1509-
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.6 		8-97365-616-0 01 1 1509-
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 1509-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 1509-
480 04.419 WASHER; THRUST,6TH 8-97253-122-1 01 1 1509-
506 04.419 COLLAR; 6TH,COUNTER 8-97253-120-1 01 1 1509-
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 1509-
508 04.383 RING; BLOCK,6TH
Z=45 		8-97241-306-1 01 1 1509-
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 12 1 1509-
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 12 1 1509-

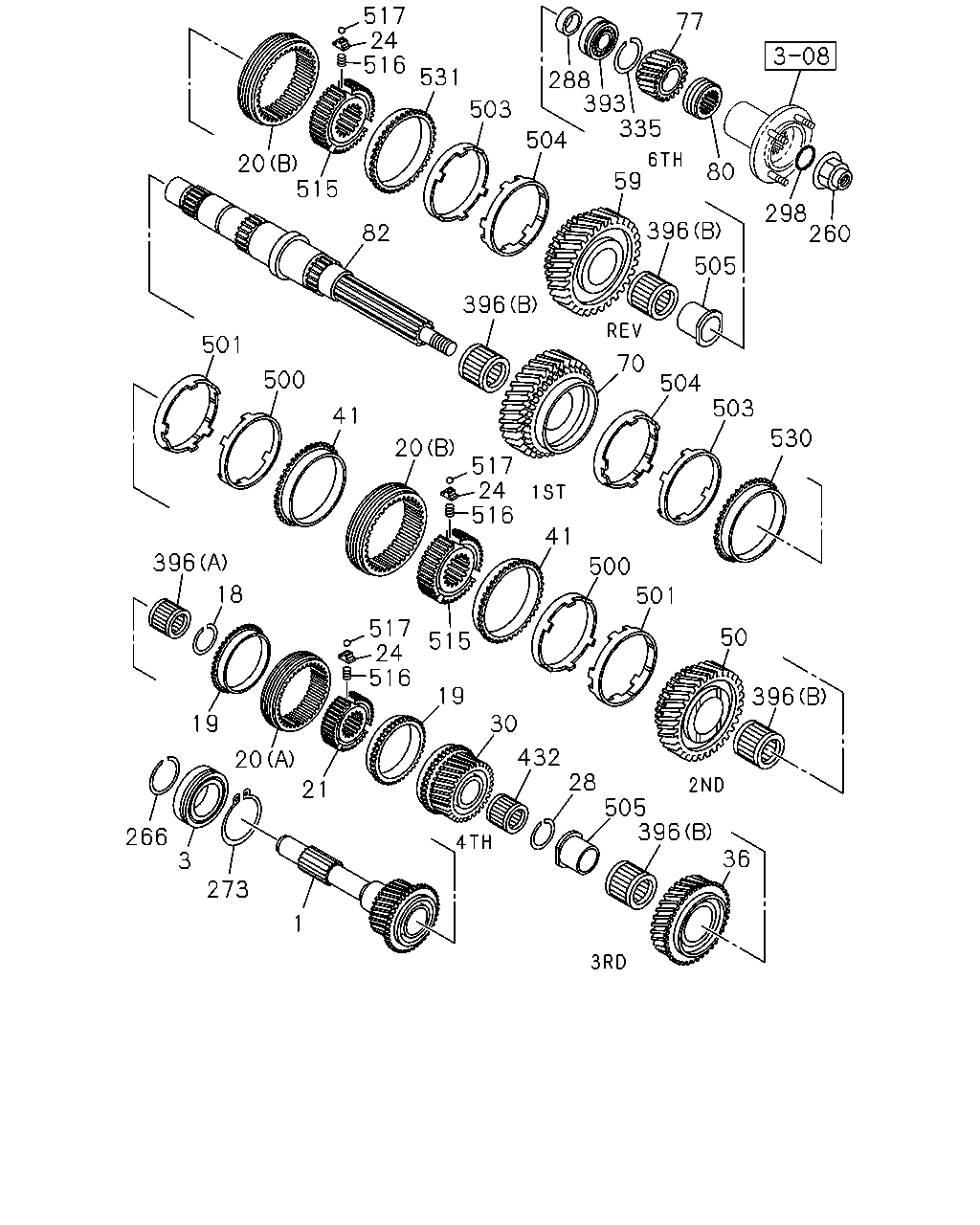

çizim 493447
77 80 298 260 335 393 288 503 504 59 396 505 531 516 24 517 20 515 82 396 70 504 503 530 517 24 516 41 500 501 50 396 20 41 500 501 396 18 19 20 21 266 3 517 515 24 516 19 30 432 28 505 396 36 1 273
BalonParca AdiParca NoAdetTipApplied Date
1 04.351 SHAFT; TOP GEAR,TRANS
Z=25 		8-97371-090-0 01 1 1509-
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 1509-
18 04.384 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1509-
19 04.383 RING; BLOCK,4TH & 5TH
Z=45 		8-97241-306-1 02 1 1509-
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 02 1 1509-
20 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1509-
21 04.384 HUB; CLU,4TH & 5TH 8-97241-299-3 01 1 1509-
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 12 1 1509-
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1509-
30 04.415 GEAR; 4TH,MAINSHAFT
Z=29 		8-97241-228-0 01 1 1509-
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-233-1 01 1 1509-
41 04.383 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 1509-
50 04.395 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 1509-
59 04.417 GEAR; REV MAINSHAFT
Z=45 		8-97241-243-0 01 1 1509-
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97241-241-0 01 1 1509-
77 04.421 GEAR; 6TH,MAINSHAFT
Z=20 		8-97252-634-0 01 1 1509-
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-555-0 01 1 1509-
82 04.403 SHAFT; MAIN,TRANS
Z=26-42-23 		8-97253-115-3 01 1 1509-
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 1509-
266 04.525 RING; SNAP,BRG INNER 8-97286-915-0 01 1 1509-
273 04.525 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 1509-
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 1509-
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 1509-
335 04.383 RING; SNAP,BEARING 8-97254-720-0 01 1 1509-
393 04.352 BEARING; MAINSHAFT END 8-97253-104-0 01 1 1509-
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 1509-
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1509-
432 04.419 BEARING; NEEDLE,4TH
NSK 		8-97253-111-0 01 1 1509-
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 1509-
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 1509-
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-307-1 02 1 1509-
504 04.383 RING; INSIDE,LOW & REV 8-97241-311-1 02 1 1509-
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 1509-
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 02 1 1509-
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 12 1 1509-
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 12 1 1509-
530 04.383 RING; BLOCK,LOW
Z=54 		8-97241-305-2 01 1 1509-
531 04.383 RING; BLOCK,REV
Z=54 		8-97241-305-2 01 1 1509-
