Sayfa 2-25 - Isuzu EPC

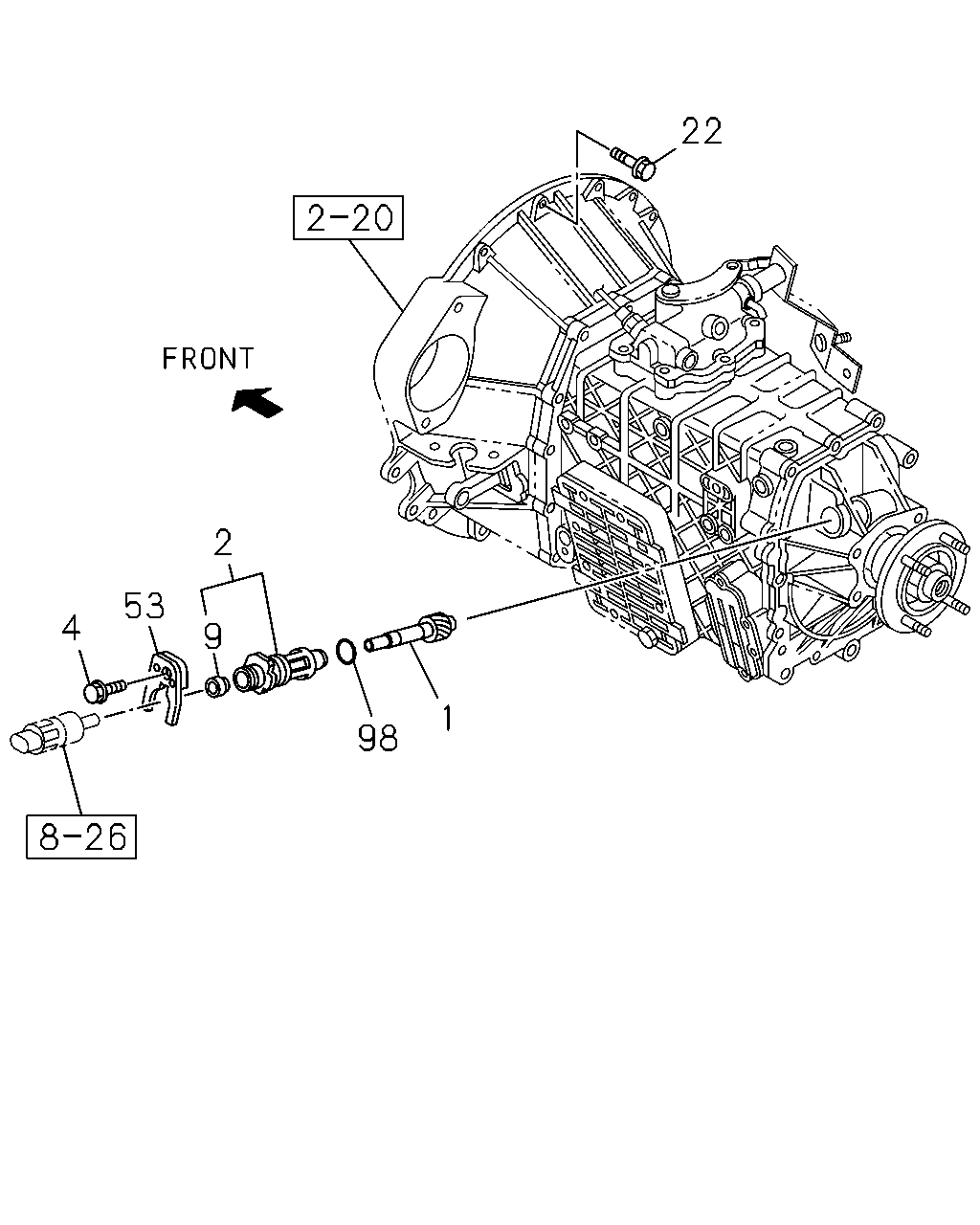

2-25 — SPEEDOMETER DRIVEN GEAR (#166221) — 9 parça

22 1 98 2 9 53 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.337 GEAR; DRIVEN,SPD Z=12	8-97253-563-1	01	1	1509-
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER MARK "12,13,14,15"	8-97253-125-0	01	1	1509-
4	04.338 BOLT; RET,DRIVEN GEAR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1509-
9	04.338 SEAL; OIL,DRIVEN GEAR NOK	8-97131-328-1	01	1	1509-
22	00.685 BOLT; TRANS CASE TO ENG 09.171 M10X30 FLANGE	0-28151-030-0	04	1	1509-
22	00.685 BOLT; TRANS CASE TO ENG 03.670 M10X35 FLANGE	0-28151-035-0	03	1	1509-
22	00.685 BOLT; TRANS CASE TO ENG 00.683 M10X55 FLANGE	8-97365-449-0	02	1	1509-
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	1509-
98	04.338 SEAL; OIL,BUSH 04.439	9-09561-324-0	01	1	1509-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
