2-05 — CLUTCH PIPING (#166215) — 23 parça

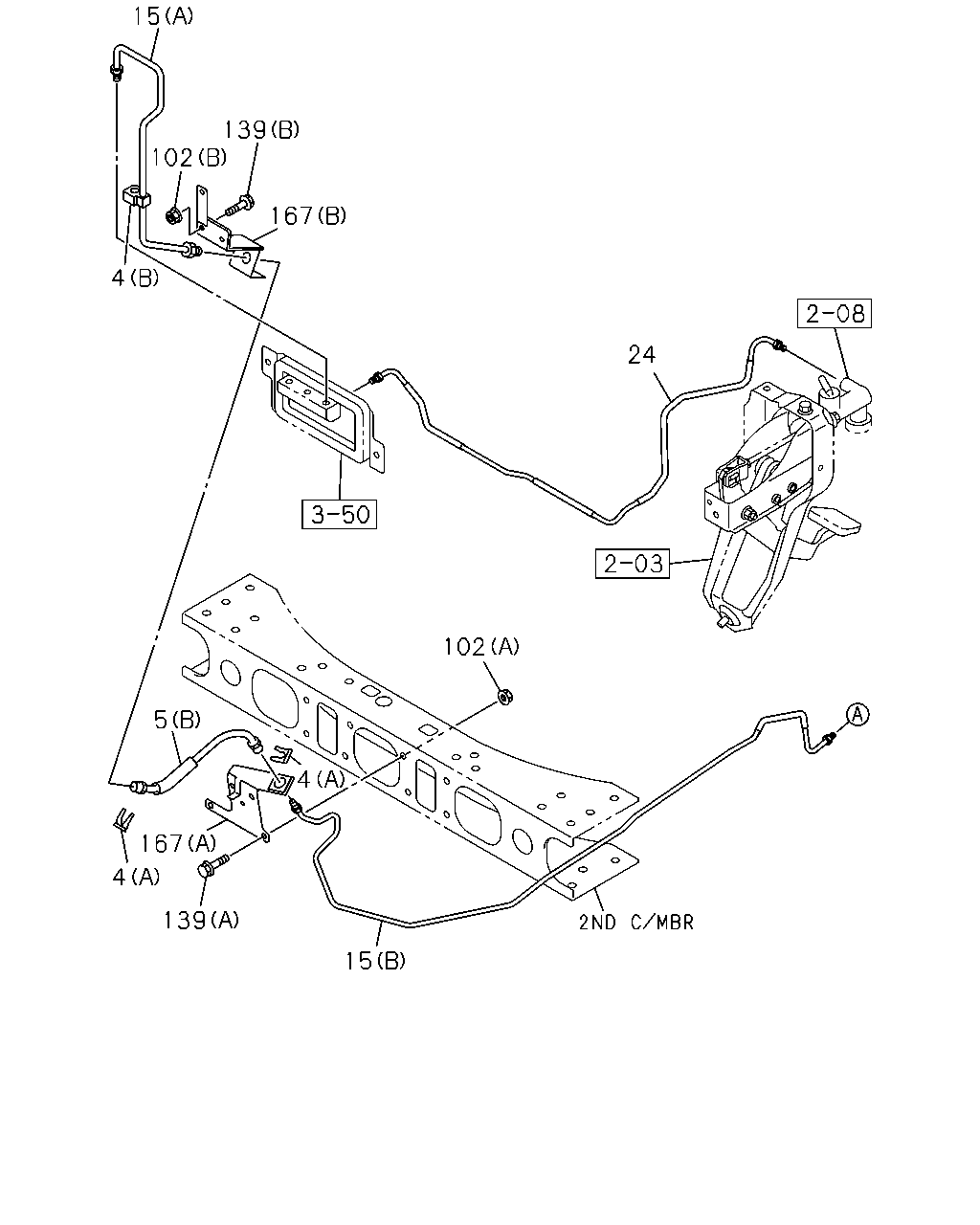

çizim 492345
15 139 102 167 4 24 102 15 139 4 167 5 4
BalonParca AdiParca NoAdetTipApplied Date
4 00.785 CLIP; FLEX HOSE,CLU CONT
03.162 (B) ID=12 & 6.35 		8-97215-437-0 01 1 1509-
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 (A) 		8-97365-304-0 02 1 1509-
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98077-611-2 01 1 1509-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1509-
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-98182-124-0 01 1 1509-
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-98234-990-0 01 1 1509-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98169-695-1 01 1 1509-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98173-608-1 01 1 1509-
102 00.785 NUT; FLEX HOSE,CLU CONT
01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 1509-
102 00.785 NUT; FLEX HOSE,CLU CONT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1509-
139 00.785 BOLT; BRKT
03.162 (B) M6X20 FLANGE 		0-28650-620-0 02 1 1509-
139 00.785 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1509-
167 00.785 BRACKET; UNION
04.686 (A) 		8-97389-845-2 01 1 1509-
167 00.785 BRACKET; UNION
(B) 		8-98182-134-1 01 1 1509-

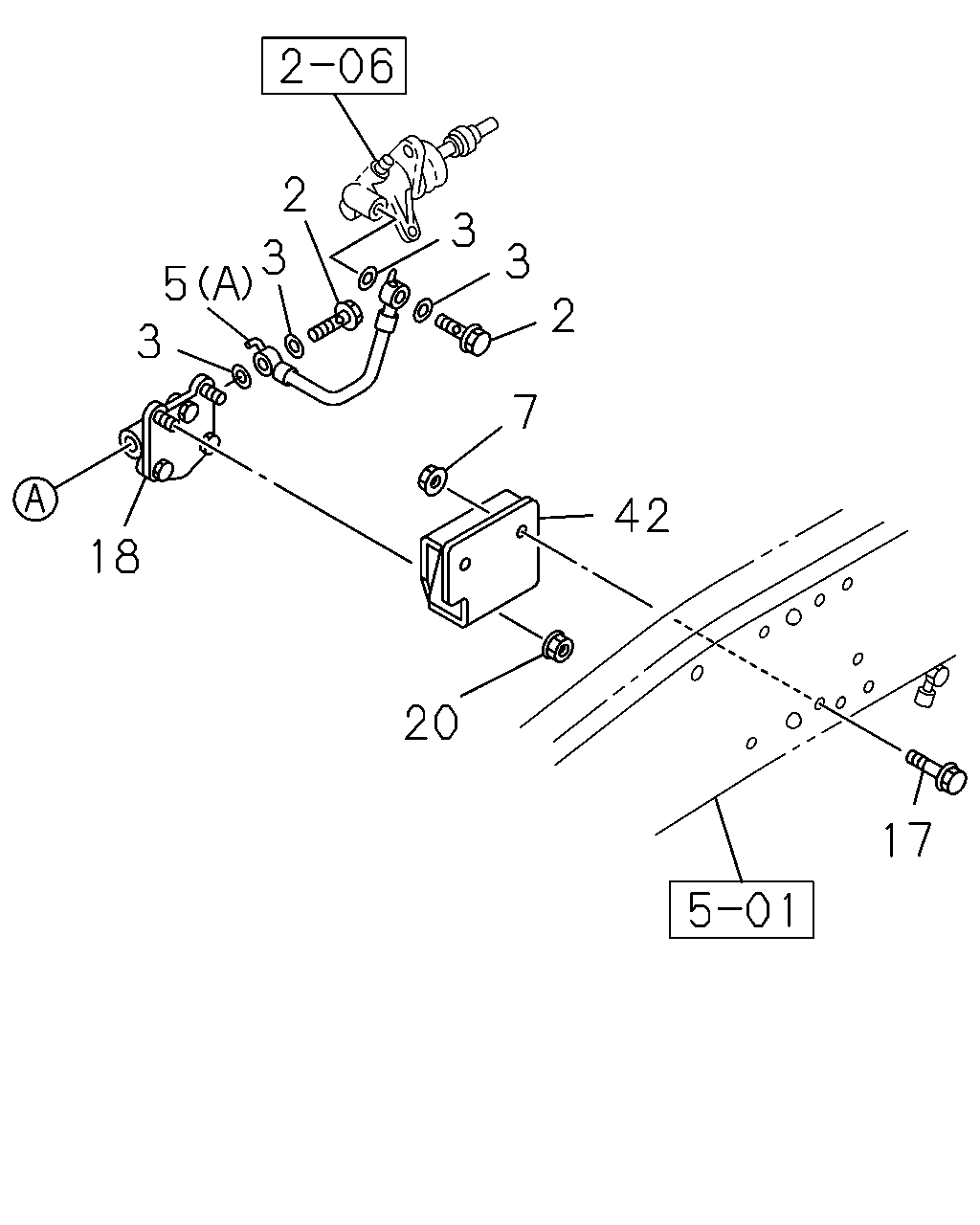

çizim 492390
17 20 18 3 5 3 2 3 3 2 7 42
BalonParca AdiParca NoAdetTipApplied Date
2 00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22 		8-98014-005-0 02 1 1509-
3 00.785 GASKET; FLEX HOSE,CLU
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1509-
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98077-611-2 01 1 1509-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1509-
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1509-
17 00.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509-
18 00.830 DAMPER ASM; CLU OIL 8-98077-610-1 01 1 1509-
20 00.837 NUT; CLU OIL DAMPER
01.062 M8 FLANGE 		0-91180-108-0 02 1 1509-
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-98082-472-2 01 1 1509-
