◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51636 - NQR BUS A/BRAKE LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#166210) — 92 parça

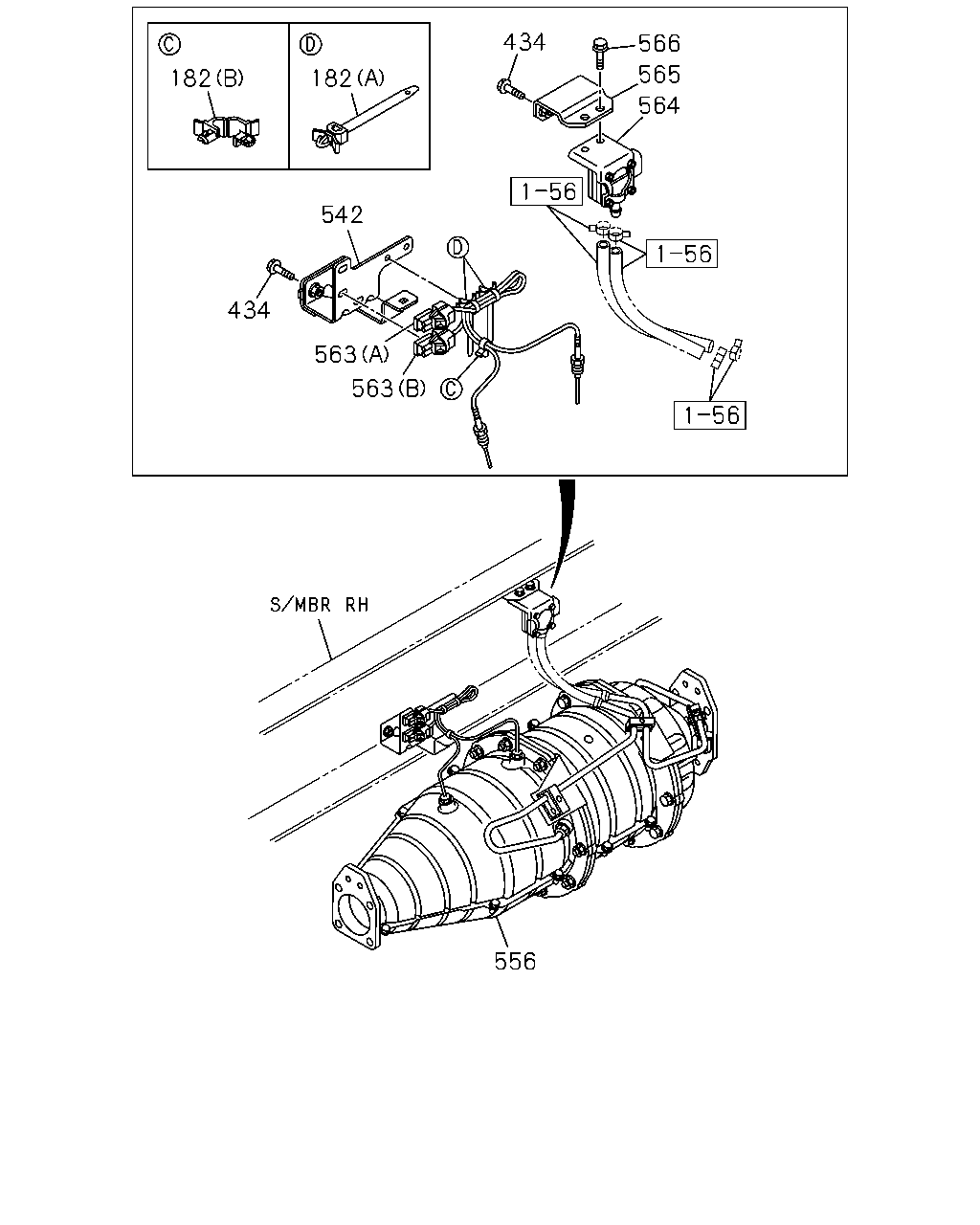

çizim 492282
434 566 564 565 182 182 542 434 563 563 556
BalonParca AdiParca NoAdetTipApplied Date
182 03.682 CLIP; HARNESS
02.587 (A) L=112 		8-94232-618-0 02 1 1509-
182 03.682 CLIP; HARNESS
(B) ID=7 L=7.5 		8-97369-561-0 01 1 1509-
434 03.613 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 03 1 1509-
542 03.704 BRACKET 8-98039-602-0 01 1 1509-
556 03.701 DPD ASM 8-98084-602-4 01 1 1509-
563 01.150 SENSOR; TEMPERATURE,DPD
(A) 		8-98004-329-0 01 1 1509-
563 01.150 SENSOR; TEMPERATURE,DPD
(B) 		8-98004-330-0 01 1 1509-
564 01.150 SENSOR; PRESSURE,DPD 8-97359-985-2 01 1 1509-
565 03.706 BRACKET; SENSOR,PRESSURE 8-98029-348-0 01 1 1509-
566 03.706 BOLT; SENSOR
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1509-

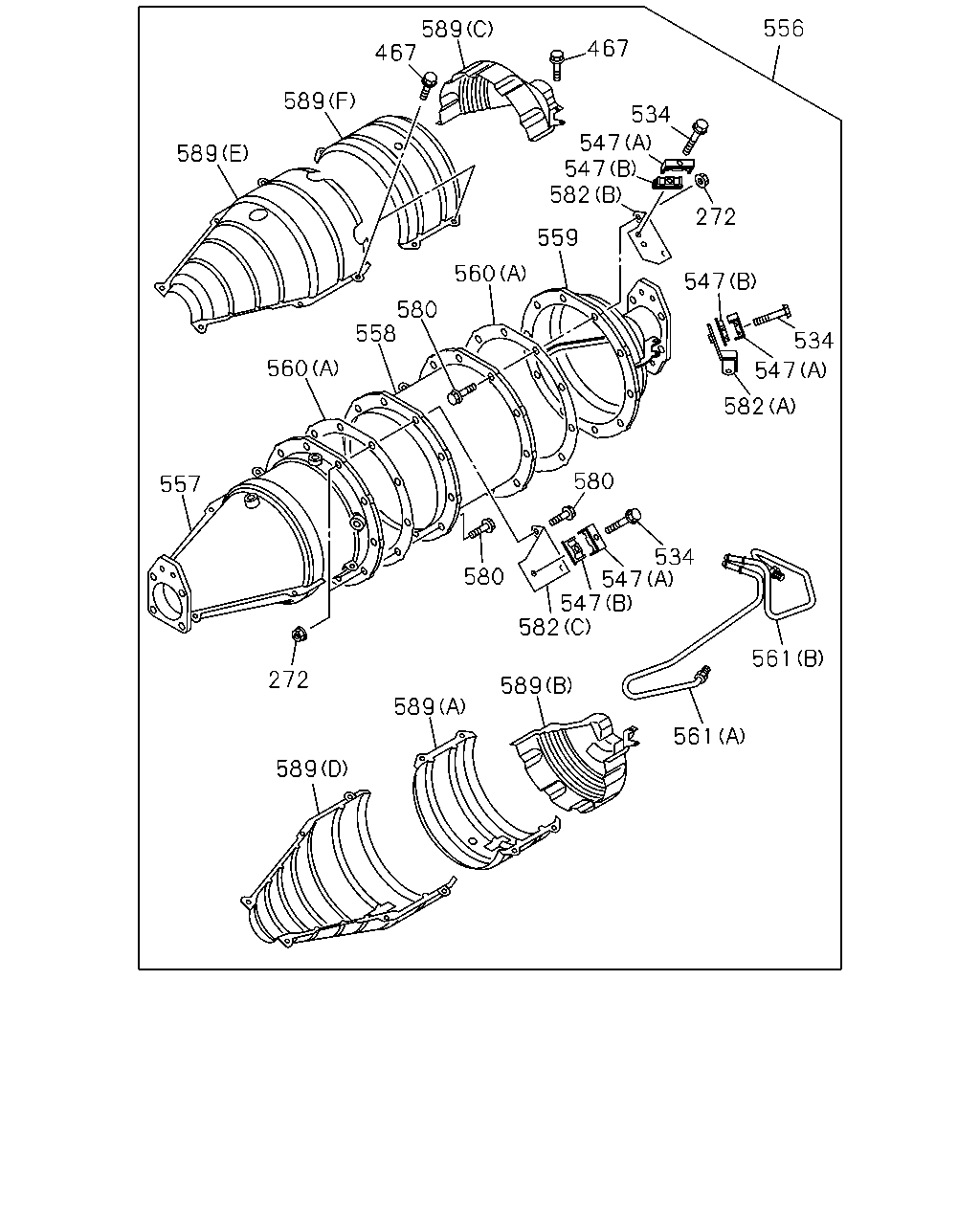

çizim 493142
589 467 589 589 558 580 560 559 582 547 547 534 467 556 272 547 534 547 582 580 534 547 547 582 589 589 561 561 272 589 557 560 580
BalonParca AdiParca NoAdetTipApplied Date
272 03.685 NUT; FLANGE
01.062 M8 FLANGE 		0-91180-108-0 20 1 1509-
467 03.685 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1509-
534 03.704 BOLT; CLIP
03.162 M6X35 FLANGE 		0-28650-635-0 03 1 1509-
547 03.682 CLIP; PIPE
(A) 		8-97381-635-0 03 1 1509-
547 03.682 CLIP; PIPE
(B) 		8-97381-636-0 03 1 1509-
556 03.701 DPD ASM 8-98084-602-4 01 1 1509-
557 03.701 CATALYST ASM 8-97608-055-8 01 1 1509-
558 03.634 FILTER ASM 8-97608-057-3 01 1 1509-
559 03.602 COVER; RR 8-97622-887-0 01 1 1509-
560 03.611 GASKET; DPD
(B) 		1-22116-040-0 01 1 1509-
560 03.611 GASKET; DPD
(A) 		8-97611-080-0 02 1 1509-
561 03.609 PIPE; DPD
(A) 		8-98084-603-0 01 1 1509-
561 03.609 PIPE; DPD
(B) 		8-98084-604-0 01 1 1509-
580 03.704 BOLT; FLANGE
01.060 M8X35 FLANGE 		0-28650-835-0 20 1 1509-
582 03.706 BRACKET; PIPE
(C) 		8-97611-083-0 01 1 1509-
582 03.706 BRACKET; PIPE
(B) 		8-97611-084-0 01 1 1509-
582 03.706 BRACKET; PIPE
(A) 		8-97611-085-0 01 1 1509-
589 03.609 PROTECTOR; HEAT,DPD
(F) 		8-97605-172-0 01 1 1509-
589 03.609 PROTECTOR; HEAT,DPD
(E) 		8-97611-086-0 01 1 1509-
589 03.609 PROTECTOR; HEAT,DPD
(D) 		8-97611-087-0 01 1 1509-
589 03.609 PROTECTOR; HEAT,DPD
(C) 		8-97611-088-0 01 1 1509-
589 03.609 PROTECTOR; HEAT,DPD
(B) 		8-97611-089-0 01 1 1509-
589 03.609 PROTECTOR; HEAT,DPD
(A) 		8-97613-390-0 01 1 1509-

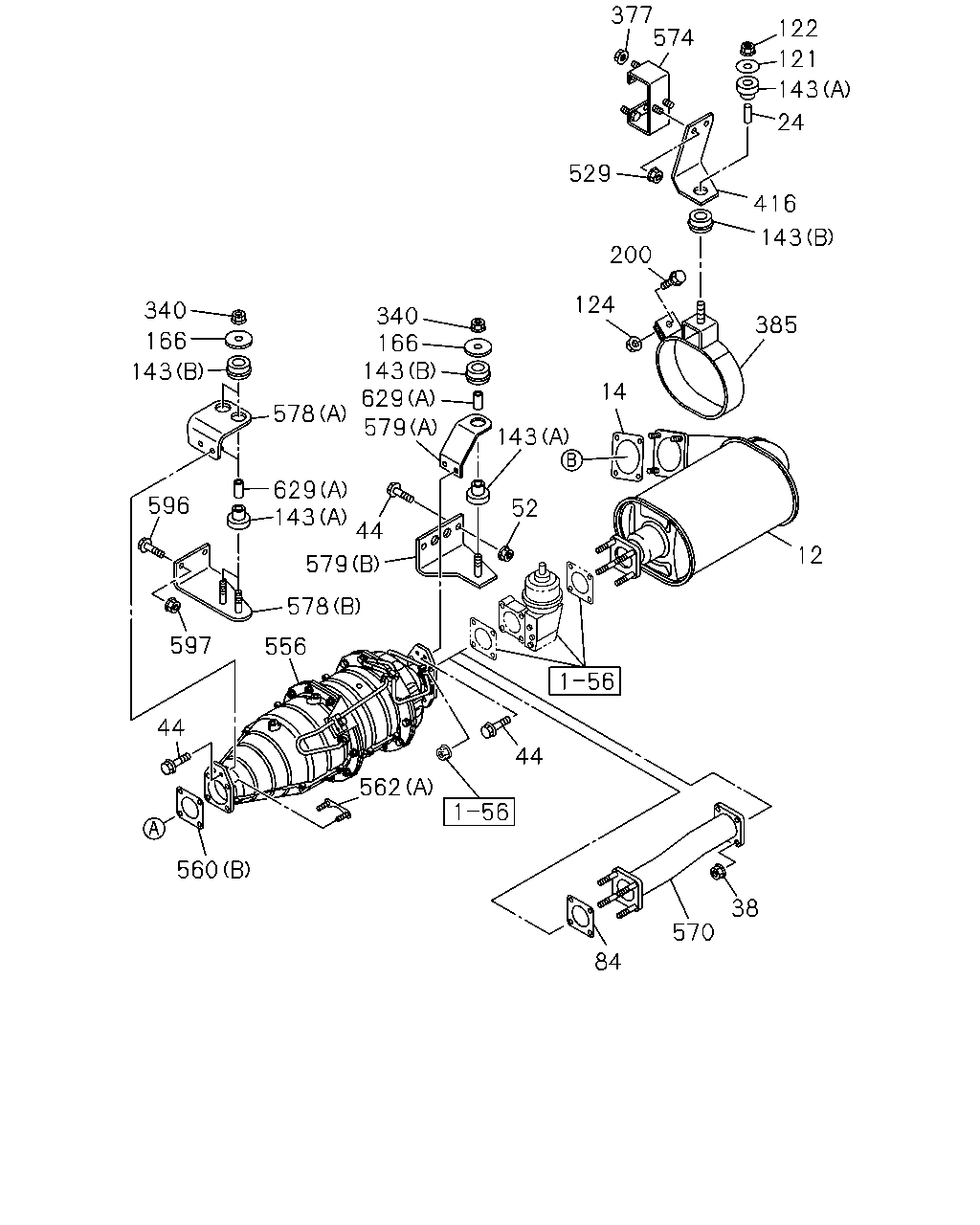

çizim 493270
377 574 122 121 143 24 416 143 385 12 14 124 143 52 44 562 38 570 84 560 44 597 556 578 579 143 629 596 143 166 340 340 166 143 629 579 578 200 529 44
BalonParca AdiParca NoAdetTipApplied Date
12 03.701 SILENCER ASM; EXH 8-98181-935-0 01 1 1509-
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=85.8 		1-22116-043-0 01 1 1509-
24 03.613 COLLAR; DIST,CLAMP
03.706 L=37.5 		9-22151-217-0 01 1 1509-
38 00.002 NUT; SILENCER
03.162 M10 FLANGE 		0-91180-110-0 04 1 1509-
44 03.613 BOLT; BRKT
02.277 M10X35 FLANGE 		0-28651-035-0 02 1 1509-
44 03.613 BOLT; BRKT
02.277 M10X35 FLANGE 		0-28651-035-0 04 1 1509-
52 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1509-
84 03.611 GASKET; EXH PIPE
03.704 ID=85.8 		1-22116-043-0 01 1 1509-
121 03.704 WASHER; PL,BRKT
OD=55 		9-09852-169-0 01 1 1509-
122 03.275 NUT; HANGER BRKT
07.874 M10 FLANGE 		5-09440-006-0 01 1 1509-
124 03.704 NUT; SUPPORT RUBBER
03.162 M10 FLANGE 		0-91180-110-0 01 1 1509-
143 03.704 RUBBER; SUPPORT
(A) 		8-94457-277-1 04 1 1509-
143 03.704 RUBBER; SUPPORT
(B) 		8-94457-278-1 04 1 1509-
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
03.704 OD=55 		9-09852-169-0 03 1 1509-
200 03.704 BOLT; SUPPORT RUBBER
00.685 M10X40 FLANGE 		0-28051-040-0 01 1 1509-
340 03.706 NUT; RUBBER,SUPPORT
07.874 M10 FLANGE 		5-09440-006-0 03 1 1509-
377 03.704 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1509-
385 03.704 BRACKET; SILENCER MTG 8-98006-776-1 01 1 1509-
416 03.706 BRACKET; RR EXH PIPE
03.704 		8-98073-376-0 01 1 1509-
529 03.704 NUT; BRKT,EXH PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1509-
556 03.701 DPD ASM 8-98084-602-4 01 1 1509-
560 03.611 GASKET; DPD
(B) 		1-22116-040-0 01 1 1509-
560 03.611 GASKET; DPD
(A) 		8-97611-080-0 02 1 1509-
562 03.690 PLATE; STUD,BOLT
03.613 (A) 		1-22131-962-0 02 1 1509-
562 03.690 PLATE; STUD,BOLT
(B) 		8-98030-175-0 01 1 1509-
570 03.704 ADAPTER; EXH PIPE 8-98073-373-0 01 1 1509-
574 03.706 SPACER; DPD 8-98044-774-0 01 1 1509-
578 03.706 BRACKET; DPD FRT
(B) 		8-98006-770-0 01 1 1509-
578 03.706 BRACKET; DPD FRT
(A) 		8-98048-296-0 01 1 1509-
579 03.704 BRACKET; DPD RR
03.706 (B) 		8-98048-292-1 01 1 1509-
579 03.704 BRACKET; DPD RR
(A) 		8-98048-300-1 01 1 1509-
596 03.704 BOLT; BRKT,DPD
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509-
597 03.704 NUT; BRKT,DPD
03.162 M10 FLANGE 		0-91180-110-0 02 1 1509-
629 03.706 SPACER; HANGER
(B) L=23 		8-98006-011-0 01 1 1509-
629 03.706 SPACER; HANGER
(A) L=37.5 		9-22151-217-0 03 1 1509-

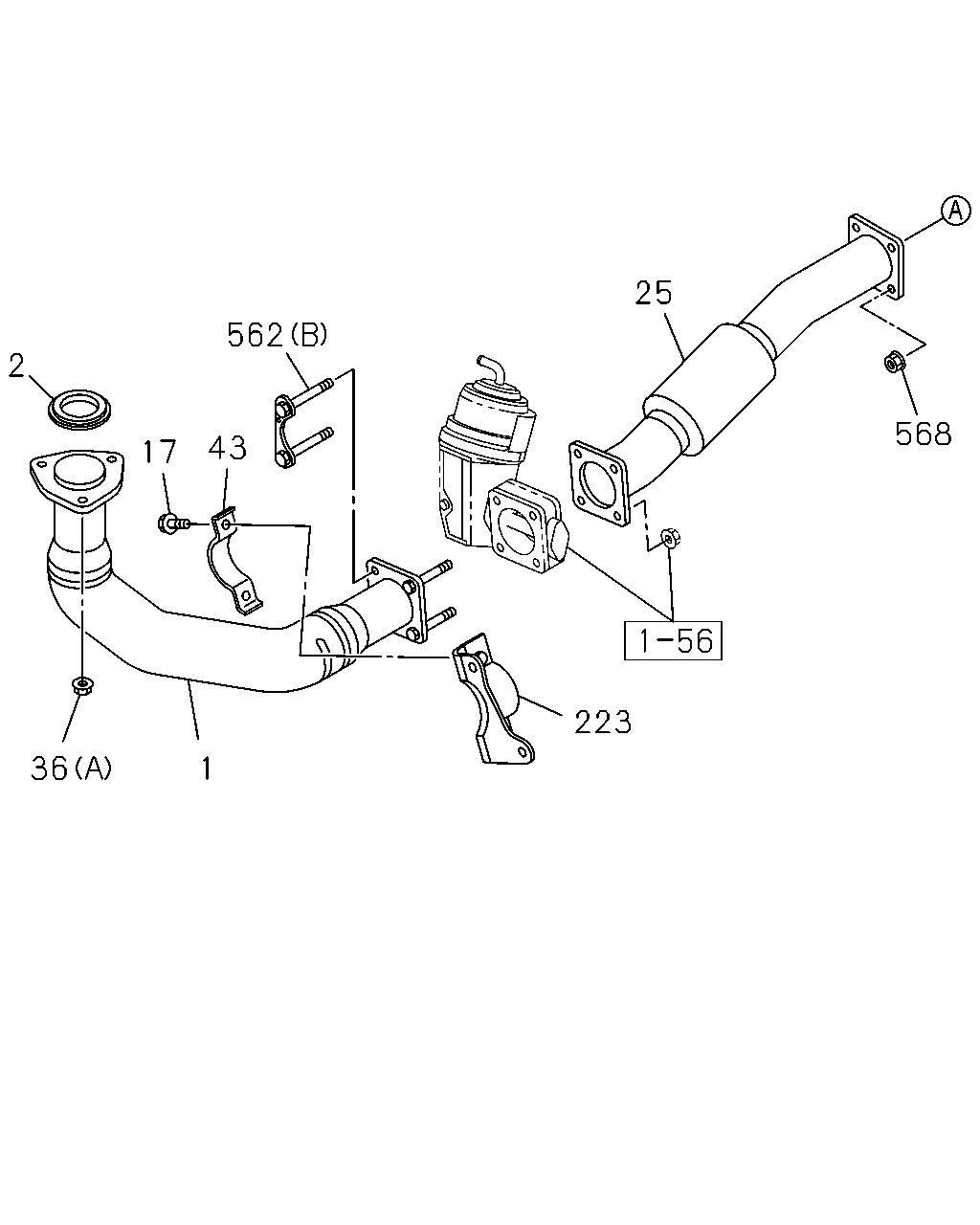

çizim 493413
562 17 2 43 1 36 223 25 568
BalonParca AdiParca NoAdetTipApplied Date
1 03.609 PIPE; EXH 8-98006-765-2 01 1 1509-
2 03.611 GASKET; PIPE TO MANIF 8-97381-455-0 01 1 1509-
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509-
25 03.609 PIPE; EXH,BRK VLV TO SILENCER 8-98006-766-0 01 1 1509-
36 03.613 NUT; EXH PIPE
03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 1509-
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1509-
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1509-
223 03.706 BRACKET; EXH PIPE
03.613 		8-98020-555-0 01 1 1509-
562 03.690 PLATE; STUD,BOLT
03.613 (A) 		1-22131-962-0 02 1 1509-
562 03.690 PLATE; STUD,BOLT
(B) 		8-98030-175-0 01 1 1509-
568 03.704 NUT; DPD
02.042 M12 FLANGE 		0-91180-112-0 04 1 1509-
çizim 494545
126 94 610 627 167 629 105 137 95 104 36
BalonParca AdiParca NoAdetTipApplied Date
36 03.613 NUT; EXH PIPE
03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 1509-
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1509-
94 03.704 BOLT; CLAMP
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509-
95 03.708 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509-
104 03.704 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1509-
105 03.704 NUT; CLAMP
03.162 M10 FLANGE 		0-91180-110-0 01 1 1509-
126 03.705 PIPE; EXH,RR 8-98181-928-0 01 1 1509-
137 03.706 BRACKET; TAIL PIPE 8-98203-438-0 01 1 1509-
167 03.706 HANGER; EXH PIPE 8-98032-150-0 01 1 1509-
610 03.704 BOLT; HANGER
00.685 M10X45 FLANGE 		0-28051-045-0 01 1 1509-
627 03.706 WASHER; HANGER
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509-
629 03.706 SPACER; HANGER
(B) L=23 		8-98006-011-0 01 1 1509-
629 03.706 SPACER; HANGER
(A) L=37.5 		9-22151-217-0 03 1 1509-
