Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#166209) — 59 parça

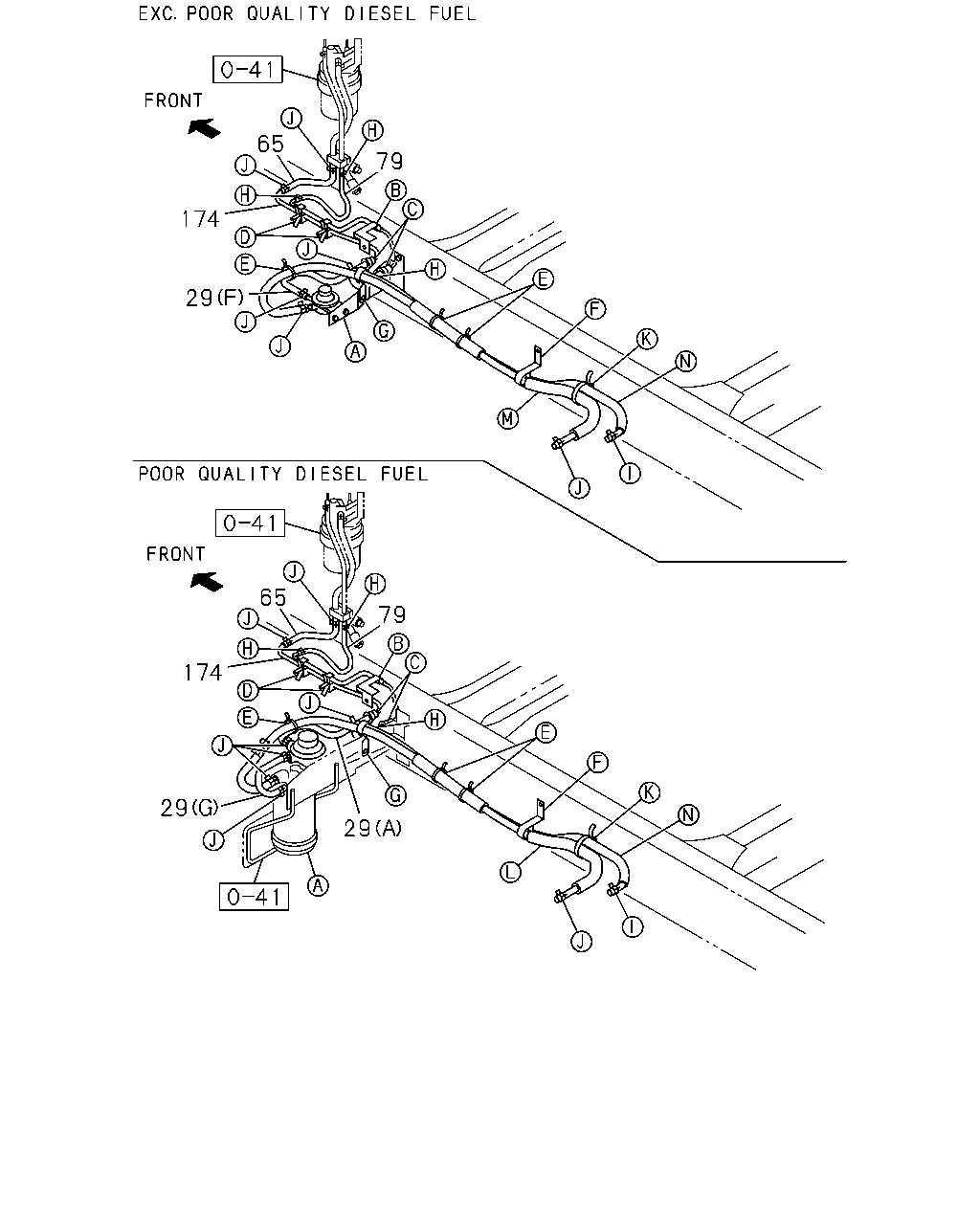

65 174 29 65 174 29 29 79 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> (B)	8-98099-508-2	01	1	1509-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A)	8-98099-502-0	01	1	1509-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (G)	8-98105-710-0	01	1	1509-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> (D)	8-98177-619-0	01	1	1509-
29	03.163 HOSE; FUEL FUEL TANK 100 LITTER<N02> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98177-876-2	01	1	1509-
29	03.163 HOSE; FUEL FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0) (F)	8-98037-758-0	01	1	1509-
29	03.163 HOSE; FUEL FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0) (E)	8-98177-620-1	01	1	1509-
65	03.163 HOSE; FUEL,DELIVERY PIPE	8-98034-028-1	01	1	1509-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98093-616-0	01	1	1509-
174	03.163 PIPE; FUEL,FEED,FRT	8-98158-899-0	01	1	1509-

66 124 47 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	03.163 PIPE; FUEL,RETURN (B)	8-98094-092-0	01	1	1509-
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	1509-
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 100 LITTER<N02>	8-98094-133-2	01	1	1509-
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 140 LITTER<N19>	8-98177-621-0	01	1	1509-
124	03.162 CLIP; HOSE (A) ID=13	8-98150-357-0	01	1	1509-
124	03.162 CLIP; HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1509-

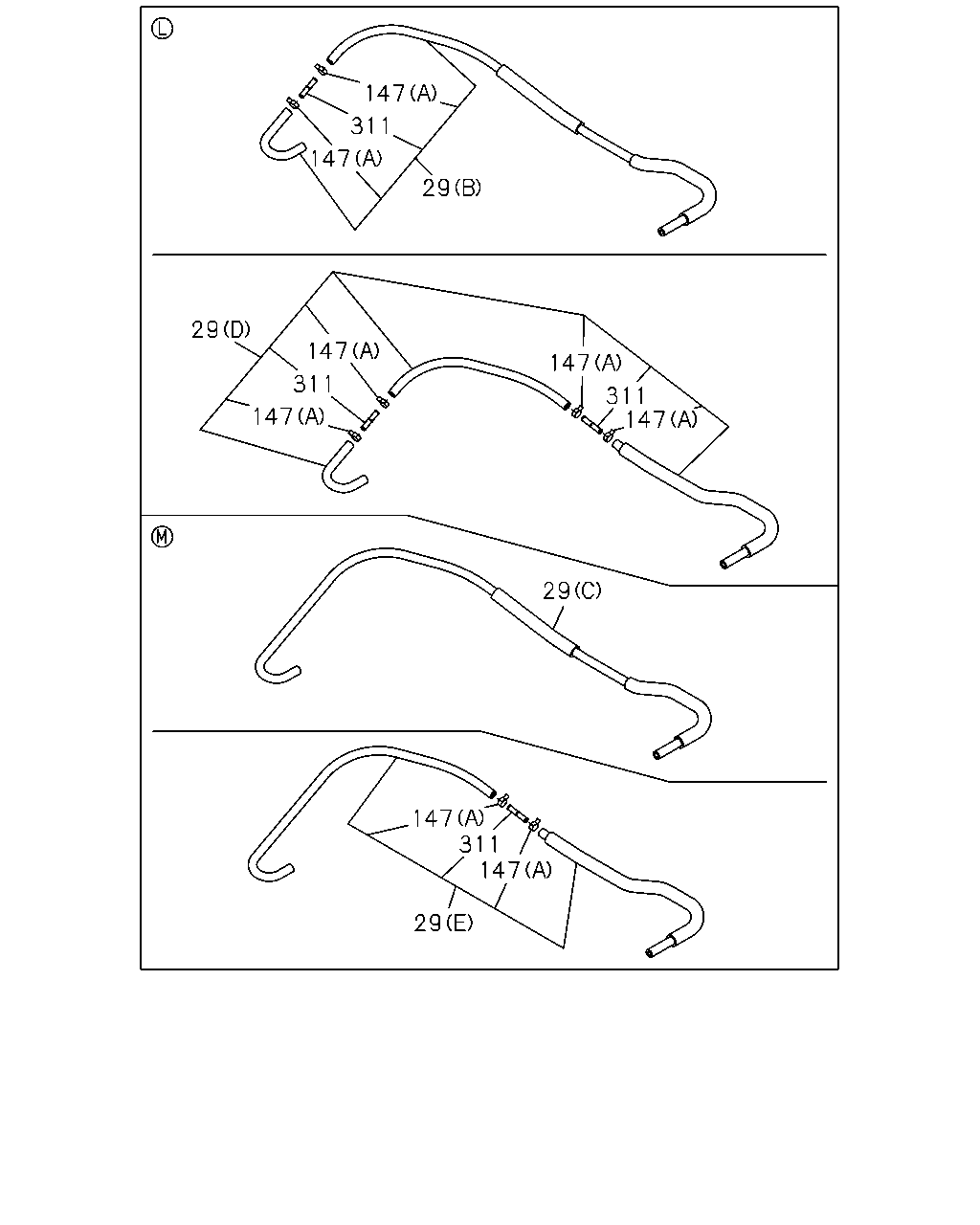

147 311 147 29 29 147 311 147 147 311 147 29 147 311 147 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> (B)	8-98099-508-2	01	1	1509-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A)	8-98099-502-0	01	1	1509-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (G)	8-98105-710-0	01	1	1509-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> (D)	8-98177-619-0	01	1	1509-
29	03.163 HOSE; FUEL FUEL TANK 100 LITTER<N02> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98177-876-2	01	1	1509-
29	03.163 HOSE; FUEL FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0) (F)	8-98037-758-0	01	1	1509-
29	03.163 HOSE; FUEL FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0) (E)	8-98177-620-1	01	1	1509-
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	1509-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1509-
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> (A) ID=16	8-98008-098-0	02	1	1509-
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> (A) ID=16	8-98008-098-0	04	1	1509-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	02	1	1509-
311	03.163 JOINT; HOSE FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0)	8-97353-668-0	01	1	1509-
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA>	8-97353-668-0	01	1	1509-
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19>	8-97353-668-0	02	1	1509-

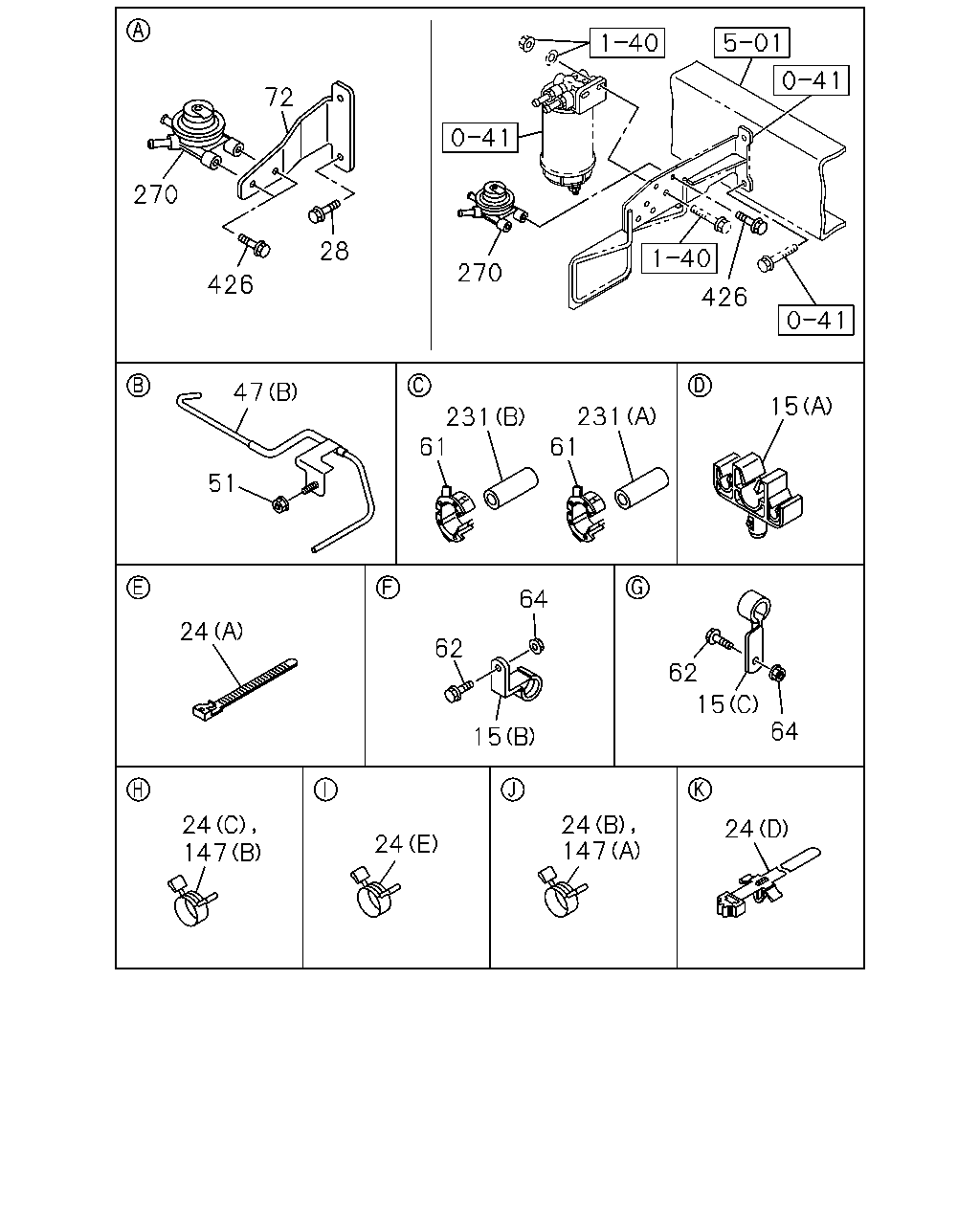

72 270 426 28 270 426 15 231 61 231 61 47 51 24 62 64 15 62 15 64 24 24 147 24 24 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE FUEL TANK 100 LITTER<N02> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1509-
15	03.162 CLIP; FUEL PIPE (A) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	02	1	1509-
15	03.162 CLIP; FUEL PIPE 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	1509-
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) ID=16	8-98008-098-0	06	1	1509-
24	03.162 CLIP; FUEL HOSE EXC. FUEL TANK 140 LITTER<N19> 02.559 (D) L=170.3	1-09987-182-0	01	1	1509-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1509-
24	03.162 CLIP; FUEL HOSE (E) ID=13	8-98150-357-0	01	1	1509-
24	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	01	1	1509-
24	03.162 CLIP; FUEL HOSE FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	04	1	1509-
28	03.330 BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1509-
47	03.163 PIPE; FUEL,RETURN (B)	8-98094-092-0	01	1	1509-
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	1509-
51	03.162 NUT; CLIP,PIPE M10 FLANGE	0-91180-110-0	01	1	1509-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	1509-
62	03.162 BOLT; CLIP FIX FUEL TANK 100 LITTER<N02> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-
62	03.162 BOLT; CLIP FIX EXC. FUEL TANK 100 LITTER<N02> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-
64	03.162 NUT; CLIP FUEL TANK 100 LITTER<N02> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-
64	03.162 NUT; CLIP EXC. FUEL TANK 100 LITTER<N02> 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-
72	03.901 BRACKET; FUEL PUMP & FILTER EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98084-815-1	01	1	1509-
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	1509-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1509-
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> (A) ID=16	8-98008-098-0	02	1	1509-
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> (A) ID=16	8-98008-098-0	04	1	1509-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	02	1	1509-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	1509-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=16.5 L=50	8-97214-235-0	01	1	1509-
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1509-
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1509-
