Isuzu WW
▶
TRUCKS
▶
NQR
▶
51636 - NQR BUS A/BRAKE LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#166206) — 52 parça
◀

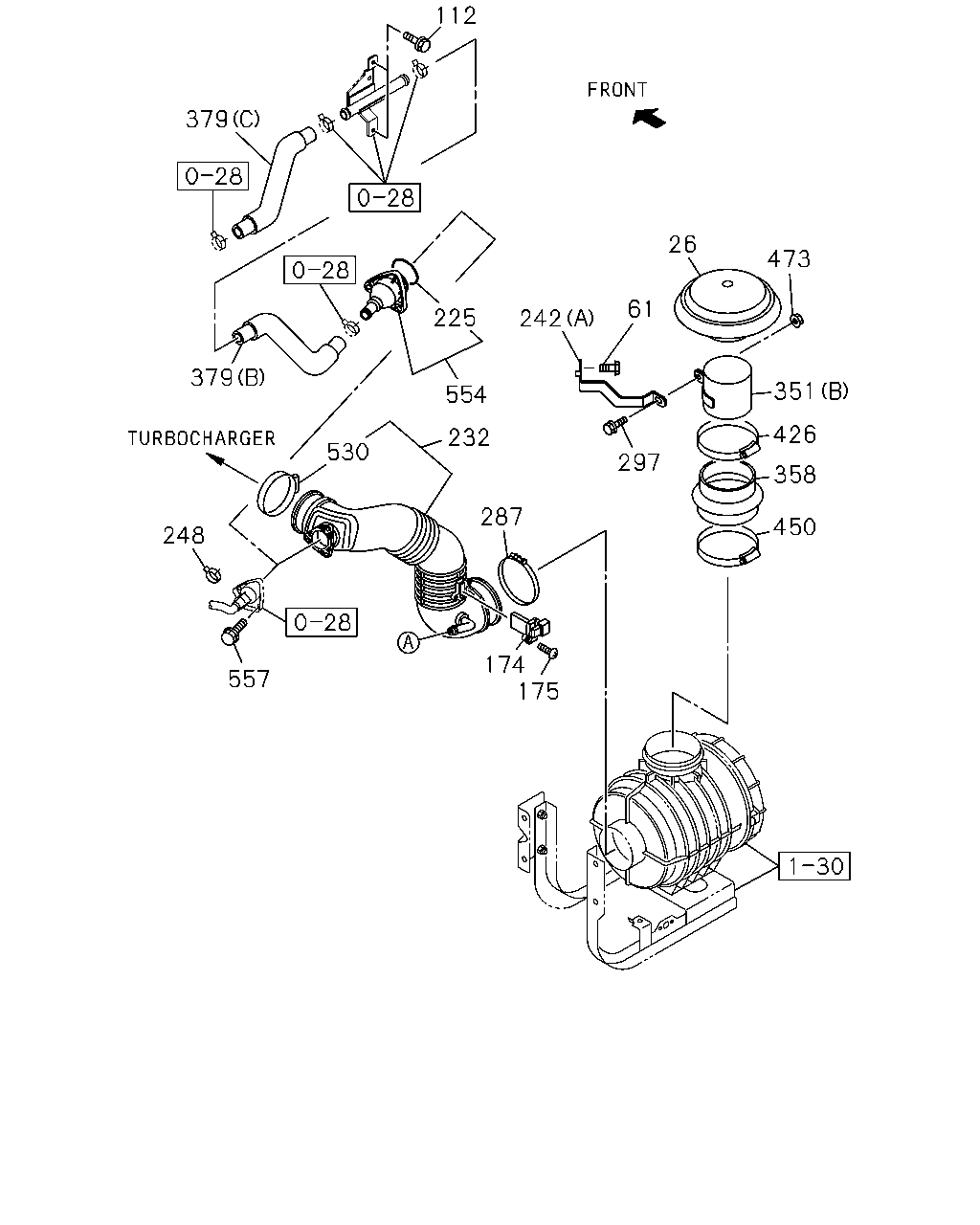

[131A] VERTICAL AIR DUCT (28 parça)

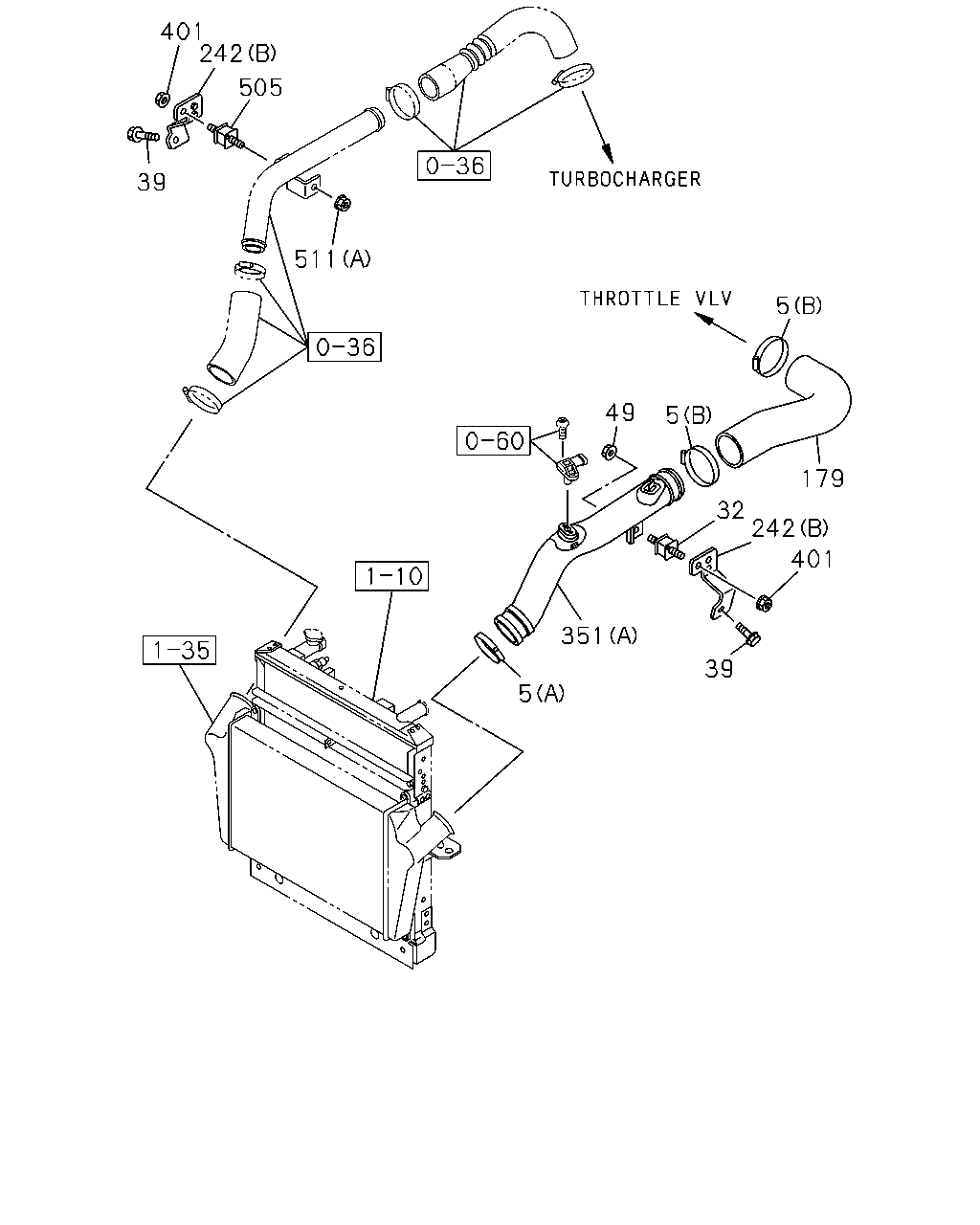

[131A] AIR DUCT; CHARGE AIR COOLER (15 parça)
[131A] AIR SUCTION PIPE (9 parça)
▶
112
379
379
248
557
530
232
554
225
242
61
26
473
351
426
358
450
297
287
174
175
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
03.417 DUCT; AIR INT
W/CLAMP
1-14219-171-0
01
1
1509-
61
03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1509-
61
03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1509-
112
03.417 BOLT; CLIP
FRIGID ZONE(YL3) 02.343 M8X12 FLANGE
0-28050-812-0
01
1
1509-
112
03.417 BOLT; CLIP
FRIGID ZONE(YL3) 02.343 M8X16 FLANGE
0-28050-816-0
01
1
1509-
174
03.682 SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
1509-
175
03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1509-
225
03.417 GASKET; AIR PIPE
FRIGID ZONE(YL3) 01.097 ID=43.7
9-09561-344-0
01
1
1509-
232
03.417 HOSE; CONN
8-98281-174-0
01
1
1509-
242
03.417 BRACKET; AIR DUCT
(B)
8-98032-142-1
01
1
1509-
242
03.417 BRACKET; AIR DUCT
(B)
8-98032-143-1
01
1
1509-
242
03.417 BRACKET; AIR DUCT
(A)
8-98202-506-0
01
1
1509-
248
03.417 CLIP; RUBBER HOSE
08.846 ID=21.7
8-97203-074-0
01
1
1509-
287
03.417 CLIP; AIR DUCT
03.407 ID=112
9-09915-074-1
01
1
1509-
297
03.417 BOLT; DUCT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1509-
351
03.407 DUCT; AIR
(A)
8-98105-722-1
01
1
1509-
351
03.407 DUCT; AIR
(B)
8-98202-502-0
01
1
1509-
358
03.417 HOSE; RUBBER,PIPE TO PIPE
8-98202-543-0
01
1
1509-
379
03.675 HOSE; RUBBER
FRIGID ZONE(YL3) (B)
8-98153-093-1
01
1
1509-
379
03.675 HOSE; RUBBER
FRIGID ZONE(YL3) 03.975 (C)
8-98153-119-0
01
1
1509-
379
03.675 HOSE; RUBBER
(D)
8-98177-584-0
01
1
1509-
379
03.675 HOSE; RUBBER
(A)
8-98180-671-2
01
1
1509-
426
03.417 CLIP; DUCT
03.407 ID=104-142
1-09707-155-0
01
1
1509-
450
03.417 CLAMP; HOSE
03.407 ID=130-169
1-09707-157-0
01
1
1509-
473
03.417 NUT; DUCT
01.062 M8 FLANGE
0-91180-108-0
01
1
1509-
530
03.407 CLAMP; AIR DUCT
ID=77-99
1-09707-141-0
01
1
1509-
554
04.439 FLANGE; PIPE,PCV
FRIGID ZONE(YL3)
8-98038-208-0
01
1
1509-
557
03.403 BOLT; HOSE CLIP
00.386 M6X20 FLANGE
0-28050-620-0
03
1
1509-
401
242
505
39
511
49
5
5
179
32
242
401
39
351
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
03.407 CLIP; AIR DUCT
(B) ID=77-99
1-09707-141-0
02
1
1509-
5
03.407 CLIP; AIR DUCT
(A) ID=70-90
8-98122-372-0
01
1
1509-
32
03.417 RUBBER; AIR DUCT MTG
8-97081-886-0
01
1
1509-
39
03.417 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1509-
49
03.417 NUT; AIR DUCT
01.062 M8 FLANGE
0-91180-108-0
01
1
1509-
179
03.417 HOSE; AIR INT
8-98117-928-2
01
1
1509-
242
03.417 BRACKET; AIR DUCT
(B)
8-98032-142-1
01
1
1509-
242
03.417 BRACKET; AIR DUCT
(B)
8-98032-143-1
01
1
1509-
242
03.417 BRACKET; AIR DUCT
(A)
8-98202-506-0
01
1
1509-
351
03.407 DUCT; AIR
(A)
8-98105-722-1
01
1
1509-
351
03.407 DUCT; AIR
(B)
8-98202-502-0
01
1
1509-
401
03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
505
03.406 RUBBER; MTG
03.417
8-97081-886-0
01
1
1509-
511
03.417 NUT; PIPE
01.062 (A) M8 FLANGE
0-91180-108-0
01
1
1509-
511
03.417 NUT; PIPE
03.162 (B) M10 FLANGE
0-91180-110-0
01
1
1509-
357
357
379
511
424
159
357
379
357
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
159
03.417 BOLT; AIR PIPE
00.029 M10X30 FLANGE
0-28651-030-0
01
1
1509-
357
03.417 CLIP; RUBBER HOSE
01.153 ID=24
8-98025-921-0
04
1
1509-
379
03.675 HOSE; RUBBER
FRIGID ZONE(YL3) (B)
8-98153-093-1
01
1
1509-
379
03.675 HOSE; RUBBER
FRIGID ZONE(YL3) 03.975 (C)
8-98153-119-0
01
1
1509-
379
03.675 HOSE; RUBBER
(D)
8-98177-584-0
01
1
1509-
379
03.675 HOSE; RUBBER
(A)
8-98180-671-2
01
1
1509-
424
03.417 PIPE; AIR,INL
8-98180-496-2
01
1
1509-
511
03.417 NUT; PIPE
01.062 (A) M8 FLANGE
0-91180-108-0
01
1
1509-
511
03.417 NUT; PIPE
03.162 (B) M10 FLANGE
0-91180-110-0
01
1
1509-
