◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#1662) — 21 parça

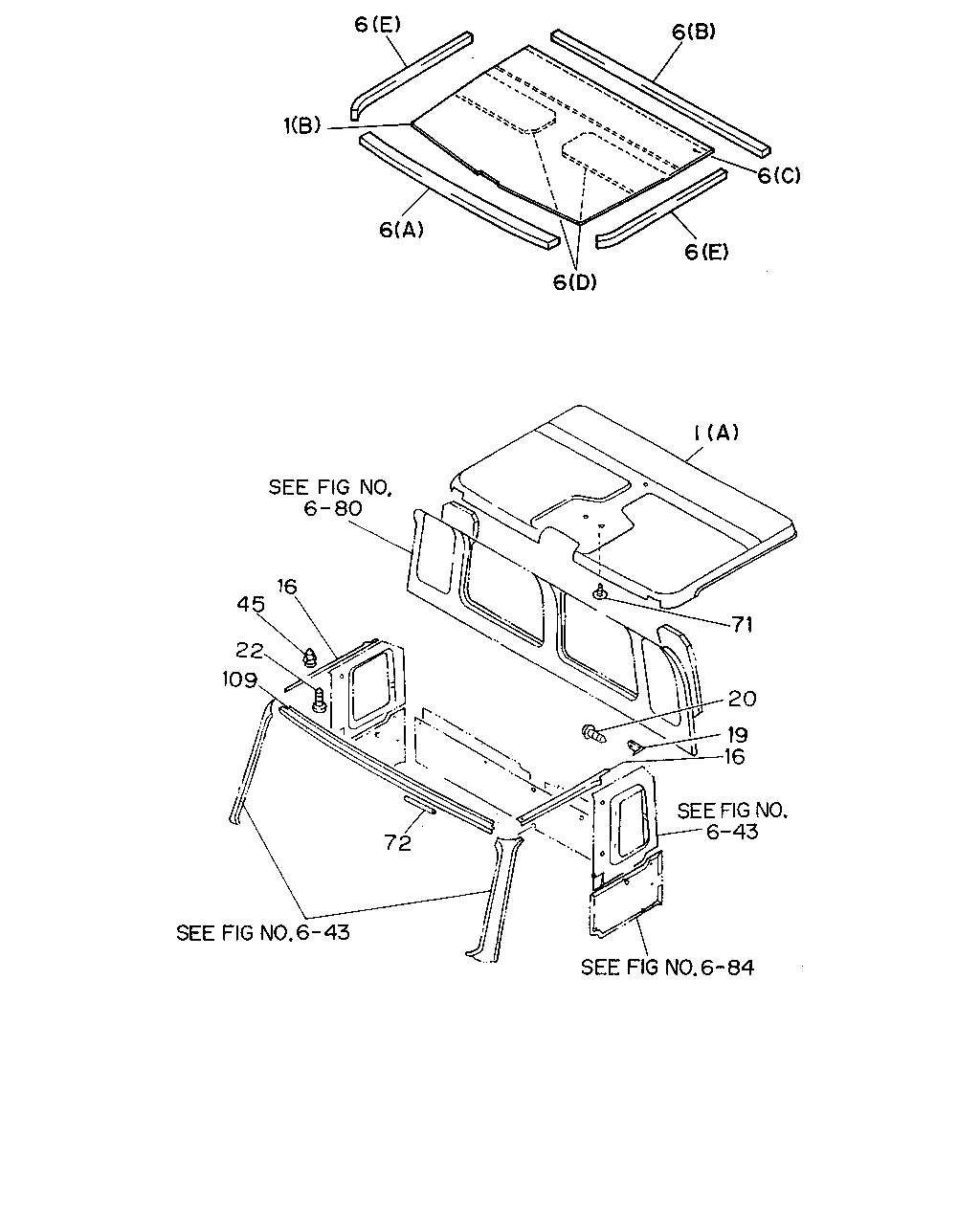

çizim 94427
6 6 6 6 6 1 6 1 71 20 19 16 16 45 22 109 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LINING; HD
DELUXE CAB<W14> (A) 		1-73318-348-4 01 1 9207- ● ● ● ●
1 LINING; HD
EXC. DELUXE CAB<W14> (B) 		1-73318-407-0 01 1 9207- ● ● ● ●
1 LINING; HD
(B) 		1-73318-379-1 01 1 9207- ●
6 SPACER; HD LINING
EXC. DELUXE CAB<W14> (A) L=1600 		1-73318-300-1 01 1 9207- ● ● ● ●
6 SPACER; HD LINING
(A) L=1600 		1-73318-300-1 01 1 9207- ●
6 SPACER; HD LINING
EXC. DELUXE CAB<W14> (B) L=1650 		1-73318-301-1 01 1 9207- ● ● ● ●
6 SPACER; HD LINING
(B) L=1650 		1-73318-301-1 01 1 9207- ●
6 SPACER; HD LINING
EXC. DELUXE CAB<W14> (E) L=1120 		1-73318-302-1 02 1 9207- ● ● ● ●
6 SPACER; HD LINING
(C) 315X1540 		1-73318-296-1 01 1 9207- ●
6 SPACER; HD LINING
(D) 315X690 		1-73318-297-1 02 1 9207- ●
6 SPACER; HD LINING
(E) 		1-73318-303-0 02 1 9207- ●
16 FINISHER; HEADLINING,FRT
DELUXE CAB<W14> GRAY 		1-73318-350-0 01 1 9207- ● ● ● ●
16 FINISHER; HEADLINING,FRT
DELUXE CAB<W14> GRAY 		1-73318-349-0 01 1 9207- ● ● ● ●
19 FINISHER; BACK CORNER,HEADLINING
DELUXE CAB<W14> GRAY 		1-73318-352-0 01 1 9207- ● ● ● ●
19 FINISHER; BACK CORNER,HEADLINING
DELUXE CAB<W14> GRAY 		1-73318-351-0 01 1 9207- ● ● ● ●
20 SCREW; FINISHER,BACK CORNER,HEADLINING
DELUXE CAB<W14> M4X16 TAPPING 		1-09981-477-0 04 1 9207- ● ● ● ●
22 SCREW; SIDE FINISHER,HEADLINING
DELUXE CAB<W14> M4X16 TAPPING 		1-09981-477-0 04 1 9207- ● ● ● ●
45 CLIP; FINISHER
DELUXE CAB<W14> 		1-73318-278-0 04 1 9207- ● ● ● ●
71 FASTENER; HD LINING
DELUXE CAB<W14> 		1-73318-353-0 01 1 9207- ● ● ● ●
72 FINISHER; CANT RAIL
DELUXE CAB<W14> L=190 		1-71998-300-0 01 1 9207- ● ● ● ●
109 TRIM; ROOM,CANT RAIL FRT
INTERIOR FULL TRIM<WM3> GRAY 		1-73998-800-0 01 1 9207- ● ● ● ●
