0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#166197) — 33 parça

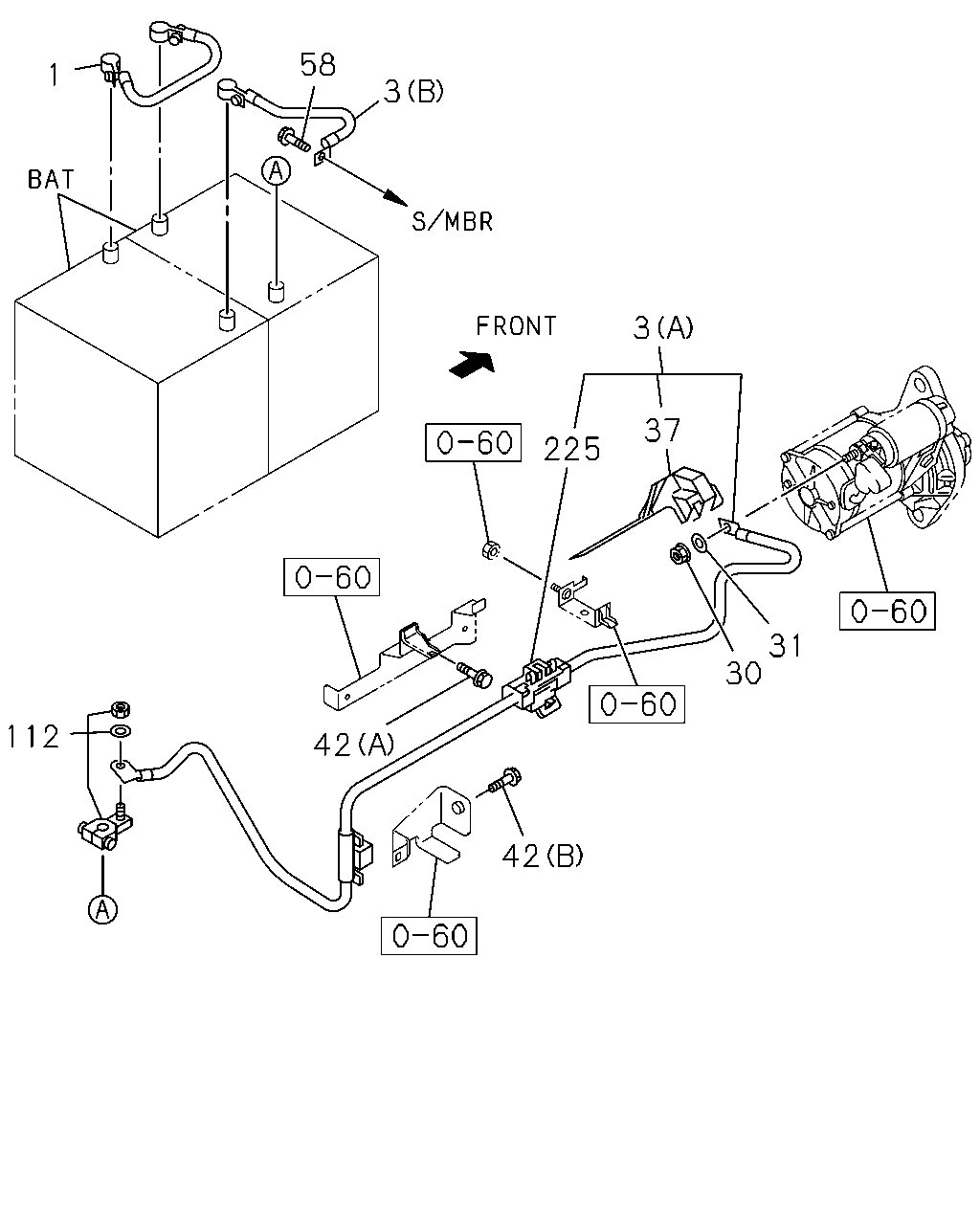

çizim 492200
1 58 3 42 112 42 30 31 37 225 3
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1509-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98294-756-0 01 1 1509-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (C) 		8-98294-757-0 01 1 1509-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L<TM1> (B) L=250 		8-98056-338-1 01 1 1509-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (D) 		8-98201-106-0 01 1 1509-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> (A) 		8-98294-765-0 01 1 1509-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C) 		8-98294-766-0 01 1 1509-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1509-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1509-
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1509-
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 80D26L<TM1> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1509-
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1509-
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1509-
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1509-
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1509-

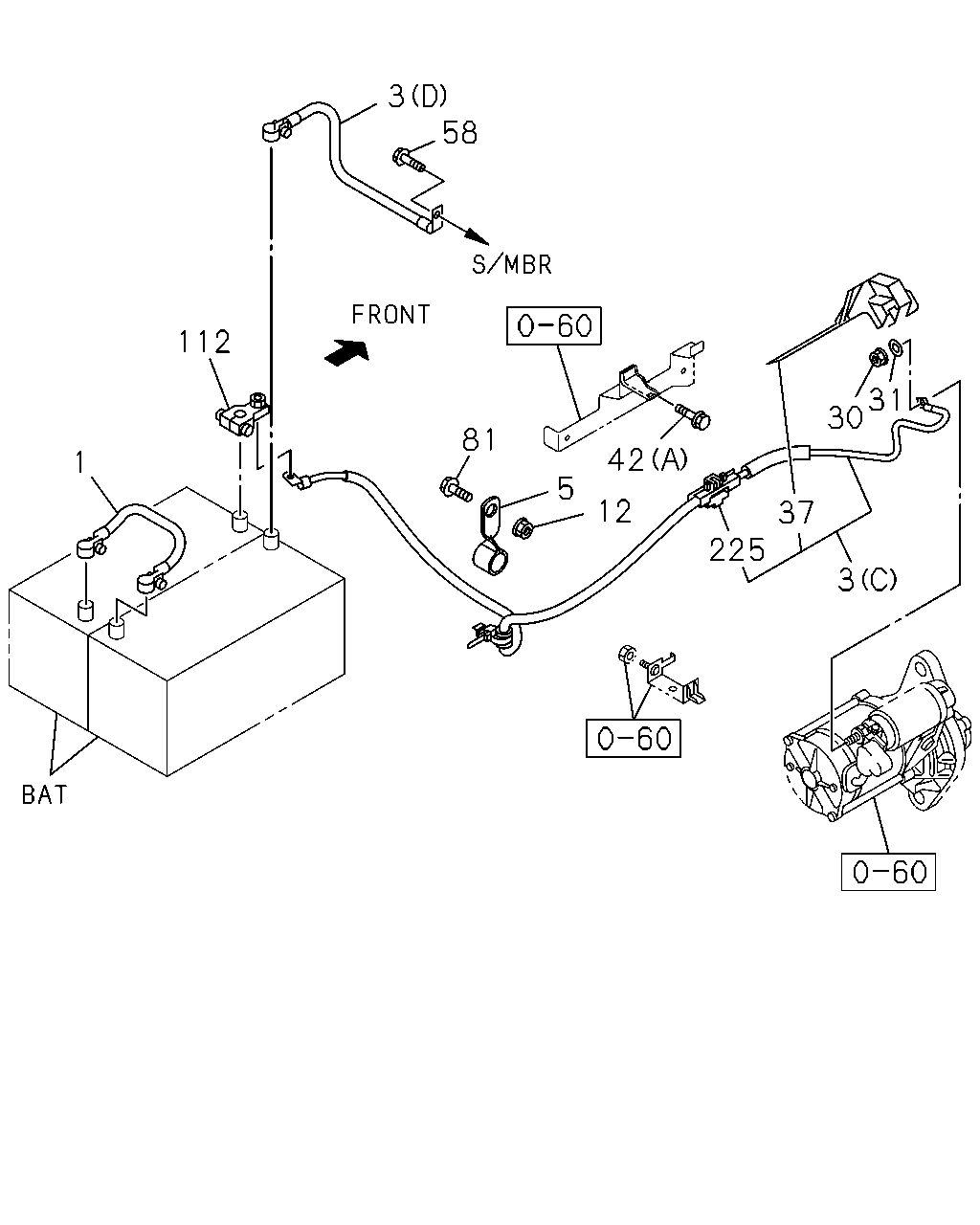

çizim 492203
1 112 3 58 81 42 5 12 225 37 30 31 3
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1509-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98294-756-0 01 1 1509-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (C) 		8-98294-757-0 01 1 1509-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L<TM1> (B) L=250 		8-98056-338-1 01 1 1509-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (D) 		8-98201-106-0 01 1 1509-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> (A) 		8-98294-765-0 01 1 1509-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C) 		8-98294-766-0 01 1 1509-
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 1509-
12 02.343 NUT; BATTERY CABLE CLIP
BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1509-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1509-
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1509-
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 80D26L<TM1> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1509-
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1509-
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1509-
81 02.559 BOLT; BATTERY CABLE
BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509-
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1509-
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1509-
