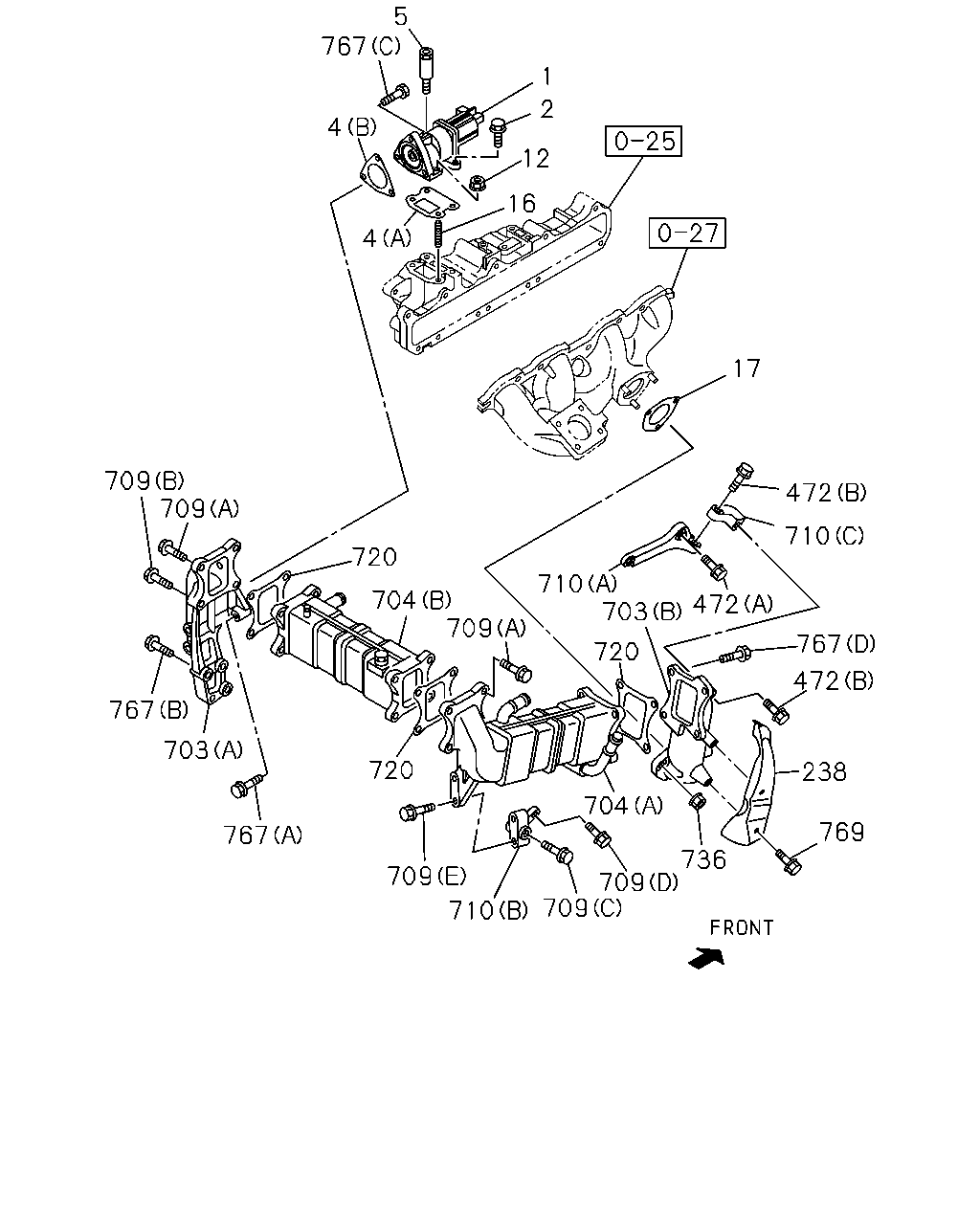

1 |
03.670 VALVE; EGR
|
8-98098-257-5 |
01 |
1 |
1509- |
| |
2 |
03.670 BOLT; EGR VLV
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1509- |
| |
4 |
03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
(A)
|
8-97306-040-0 |
01 |
1 |
1509- |
| |
4 |
03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
03.665
(B)
|
8-98036-507-0 |
01 |
1 |
1509- |
| |
5 |
03.670 ADAPTER ASM
00.269
|
8-97377-804-0 |
01 |
1 |
1509- |
| |
12 |
03.671 NUT; EGR VLV
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1509- |
| |
16 |
03.275 STUD; EGR VLV
02.510
M8X20 L=32
|
0-41010-820-0 |
02 |
1 |
1509- |
| |
17 |
03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
03.680
ID=51.5
|
8-98046-192-1 |
01 |
1 |
1509- |
| |
238 |
03.330 PROTECTOR; HEAT,EGR
|
8-98176-249-0 |
01 |
1 |
1509- |
| |
472 |
03.671 BOLT; BRKT
02.277
(A)
M8X25 FLANGE
|
0-28660-825-0 |
02 |
1 |
1509- |
| |
472 |
03.671 BOLT; BRKT
00.029
(B)
M10X40 FLANGE
|
0-28751-040-0 |
02 |
1 |
1509- |
| |
703 |
03.675 DUCT; EGR
(B)
|
8-98115-663-0 |
01 |
1 |
1509- |
| |
703 |
03.675 DUCT; EGR
(A)
|
8-98115-665-1 |
01 |
1 |
1509- |
| |
704 |
03.337 COOLER ASM; EGR
(A)
|
8-98025-248-5 |
01 |
1 |
1509- |
| |
704 |
03.337 COOLER ASM; EGR
(B)
|
8-98212-718-0 |
01 |
1 |
1509- |
| |
709 |
03.670 BOLT; EGR COOLER
(B)
M8X45 FLANGE
|
0-28060-845-0 |
01 |
1 |
1509- |
| |
709 |
03.670 BOLT; EGR COOLER
00.685
(C)
M12X60 FLANGE
|
0-28151-260-0 |
01 |
1 |
1509- |
| |
709 |
03.670 BOLT; EGR COOLER
02.277
(D)
M8X25 FLANGE
|
0-28660-825-0 |
01 |
1 |
1509- |
| |
709 |
03.670 BOLT; EGR COOLER
03.680
(A)
M8X30 FLANGE
|
0-28660-830-0 |
07 |
1 |
1509- |
| |
709 |
03.670 BOLT; EGR COOLER
00.029
(E)
M10X40 FLANGE
|
0-28751-040-0 |
02 |
1 |
1509- |
| |
710 |
03.337 BRACKET; EGR COOLER
03.680
(A)
|
8-98025-253-2 |
01 |
1 |
1509- |
| |
710 |
03.337 BRACKET; EGR COOLER
(B)
|
8-98025-254-1 |
01 |
1 |
1509- |
| |
710 |
03.337 BRACKET; EGR COOLER
(C)
|
8-98055-940-1 |
01 |
1 |
1509- |
| |
720 |
03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-98200-753-0 |
03 |
1 |
1509- |
| |
736 |
03.675 NUT; DUCT,EGR VLV
03.613
M8 FLANGE
|
8-97061-401-1 |
03 |
1 |
1509- |
| |
767 |
03.670 BOLT; DUCT,EGR
09.173
(A)
M8X45 FLANGE
|
0-28050-845-0 |
02 |
1 |
1509- |
| |
767 |
03.670 BOLT; DUCT,EGR
00.685
(B)
M12X50 FLANGE
|
0-28151-250-0 |
02 |
1 |
1509- |
| |
767 |
03.670 BOLT; DUCT,EGR
03.403
(C)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1509- |
| |
767 |
03.670 BOLT; DUCT,EGR
03.417
(D)
M8X28 FLANGE
|
8-98043-528-0 |
04 |
1 |
1509- |
| |
769 |
01.750 BOLT; HEAT PROTECTOR
03.602
M6X12 W/PL WASHER
|
8-98054-289-0 |
04 |
1 |
1509- |
