Isuzu WW
▶
TRUCKS
▶
NQR
▶
51636 - NQR BUS A/BRAKE LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-52 - OIL AND VACUUM PIPING; ENGINE
▶
0-52 — OIL AND VACUUM PIPING; ENGINE
(#166194) — 24 parça
◀

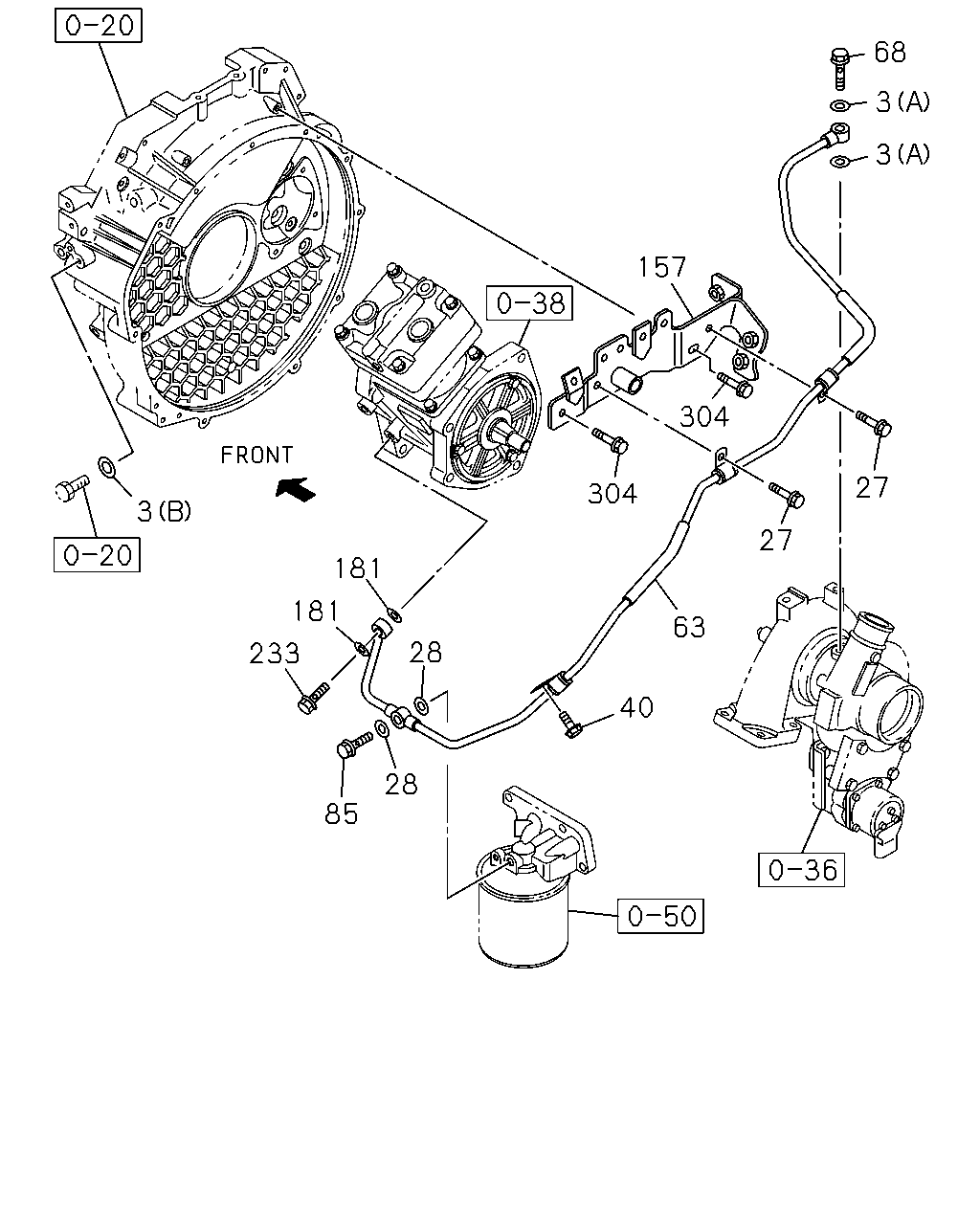

[052A] NO.1 (14 parça)
[052A] NO.2 (10 parça)
▶
68
3
3
157
27
27
63
304
304
181
181
233
28
28
85
3
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2
1-09630-083-0
01
1
1509-
3
01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0
9-09571-410-0
02
1
1509-
27
01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE
0-28050-816-0
01
1
1509-
27
01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE
0-28050-816-0
02
1
1509-
28
01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
02
1
1509-
40
01.531 BOLT; OIL PIPE
02.343 M8X12 FLANGE
0-28050-812-0
01
1
1509-
63
01.519 PIPE; OIL,TURBOCHARGER FEED
8-98172-865-2
01
1
1509-1509
63
01.519 PIPE; OIL,TURBOCHARGER FEED
8-98331-127-0
01
1
1510-
68
01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M10X26
8-98037-825-0
01
1
1509-
85
01.531 BOLT; EYE,OIL PIPE FIX
M10X28
8-98037-823-0
01
1
1509-
157
01.519 BRACKET; OIL PIPE
8-98190-337-0
01
1
1509-
181
01.531 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
02
1
1509-
233
01.531 BOLT; EYE
M10X22
1-09675-028-0
01
1
1509-
304
01.540 BOLT; BRKT,OIL PIPE
03.417 M10X20 FLANGE
0-28151-020-0
02
1
1509-
86
89
340
89
83
27
202
46
46
202
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE
0-28050-816-0
01
1
1509-
27
01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE
0-28050-816-0
02
1
1509-
46
01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
03.162 (A) M14X27 FLANGE
1-09675-086-0
01
1
1509-
46
01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
(B) M10X21 FLANGE
8-97372-239-0
01
1
1509-
83
01.519 PIPE; OIL,C/BL TO VAC PUMP
8-98190-349-1
01
1
1509-
86
01.519 PIPE; OIL,VAC PUMP RETURN
01.430
8-94455-311-1
01
1
1509-
89
04.681 CLIP; VAC HOSE
03.280 ID=17.1
8-94122-679-0
01
1
1509-
202
01.531 GASKET; OIL PIPE
(B) ID=10.2
8-97365-390-0
01
1
1509-
202
01.531 GASKET; OIL PIPE
(A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1509-
340
03.280 HOSE; VAC PUMP,RETURN
8-98176-281-0
01
1
1509-
