Isuzu WW
▶
TRUCKS
▶
NQR
▶
51636 - NQR BUS A/BRAKE LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶

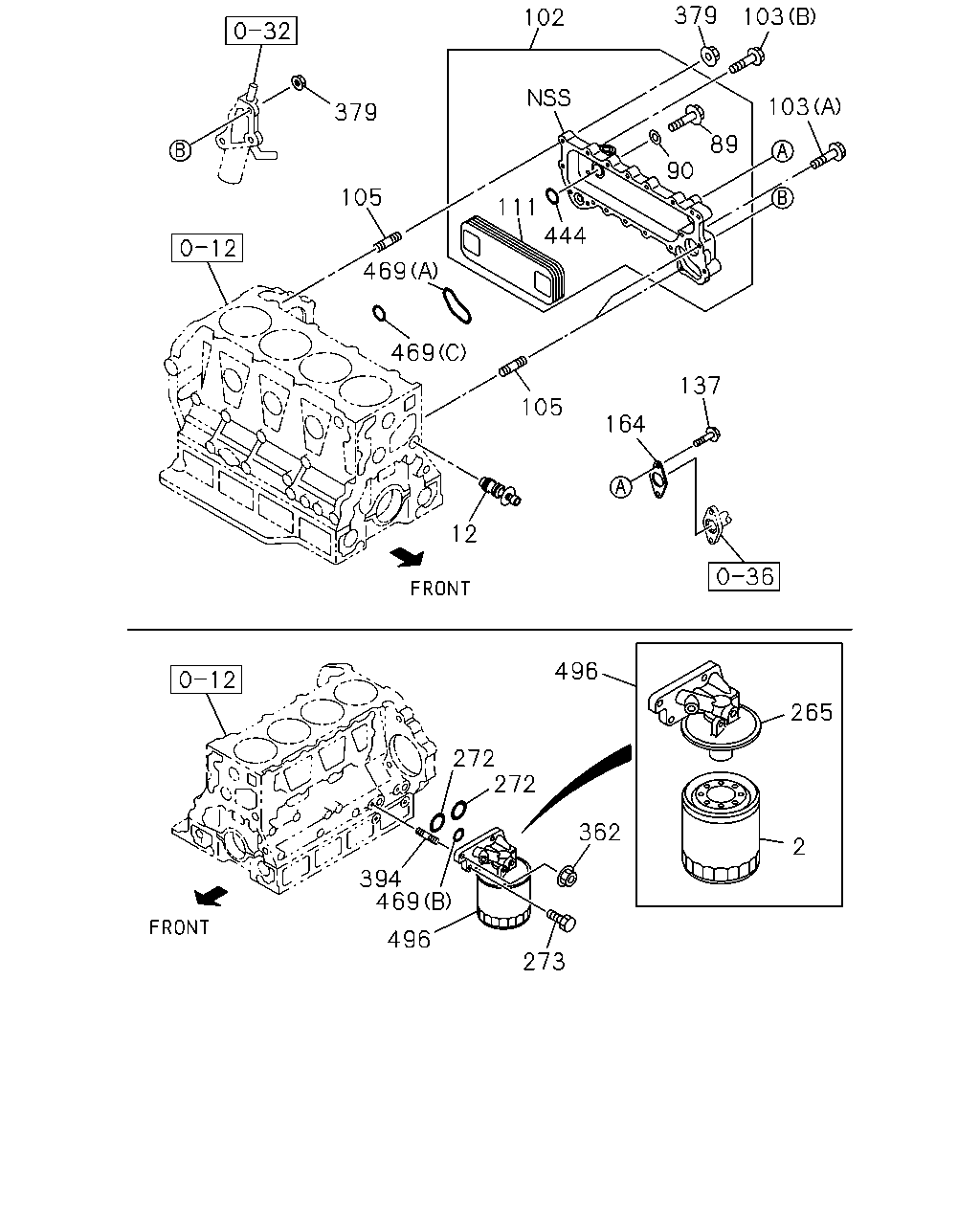

0-50 — OIL COOLER AND OIL FILTER
(#166192) — 25 parça
111
105
469
379
469
105
12
164
137
90
444
102
379
103
103
89
272
272
362
394
469
496
273
2
265
496
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
01.836 ELEMENT; OIL FILTER
8-98328-207-0
01
1
1510-
2
01.836 ELEMENT; OIL FILTER
8-97148-270-1
01
1
1509-1509
2
01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS
5-87610-117-0
01
1
1509-1509
12
01.540 VALVE ASM; BYPASS
8-97013-566-2
01
1
1509-
89
01.540 BOLT; ELEMENT TO CASE
02.343 M8X16 FLANGE
0-28050-816-0
04
1
1509-
90
01.540 GASKET; BOLT,OIL COOLER
01.550
1-21729-043-0
04
1
1509-
102
01.540 COOLER ASM; OIL
8-98085-312-5
01
1
1509-
103
01.540 BOLT; OIL COOLER
04.338 (A) M8X20 FLANGE
0-28050-820-0
08
1
1509-
103
01.540 BOLT; OIL COOLER
03.162 (B) M8X35 FLANGE
0-28050-835-0
08
1
1509-
105
01.540 STUD; OIL COOLER
M8X52 L=63
8-97016-314-0
03
1
1509-
111
01.540 CORE; OIL COOLER
8-97334-100-2
01
1
1509-
137
01.840 BOLT
01.531 M8X20 FLANGE
0-28650-820-0
02
1
1509-
164
01.550 GASKET; HTR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6
8-97146-684-0
01
1
1509-
265
01.837 BODY; OIL FILTER
8-97096-677-4
01
1
1509-
272
01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1
8-94399-399-0
02
1
1509-
273
01.840 BOLT; OIL FILTER
M10X30
0-59331-030-0
03
1
1509-
362
01.837 NUT; OIL FILTER
03.162 M10 FLANGE
0-91180-110-0
01
1
1509-
379
01.540 NUT; OIL COOLER
01.062 M8 FLANGE
0-91180-108-0
03
1
1509-
394
01.837 STUD; OIL FILTER
M10X25 L=48.5
0-49241-025-0
01
1
1509-
444
01.550 GASKET; ELEMENT TO BODY
8-97384-130-0
02
1
1509-
469
01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-94338-878-1
01
1
1509-
469
01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8
8-94399-339-0
01
1
1509-
469
01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE
8-98045-447-0
01
1
1509-
496
01.835 FILTER ASM; OIL
8-97148-268-4
01
1
1509-1509
496
01.835 FILTER ASM; OIL
8-98328-202-0
01
1
1510-
