Isuzu WW
▶
TRUCKS
▶
NQR
▶
51636 - NQR BUS A/BRAKE LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#166183) — 26 parça
◀
[032A] SUCTION PIPE (6 parça)
[032A] WATER HOSE (9 parça)
[032A] PIPING (11 parça)
▶

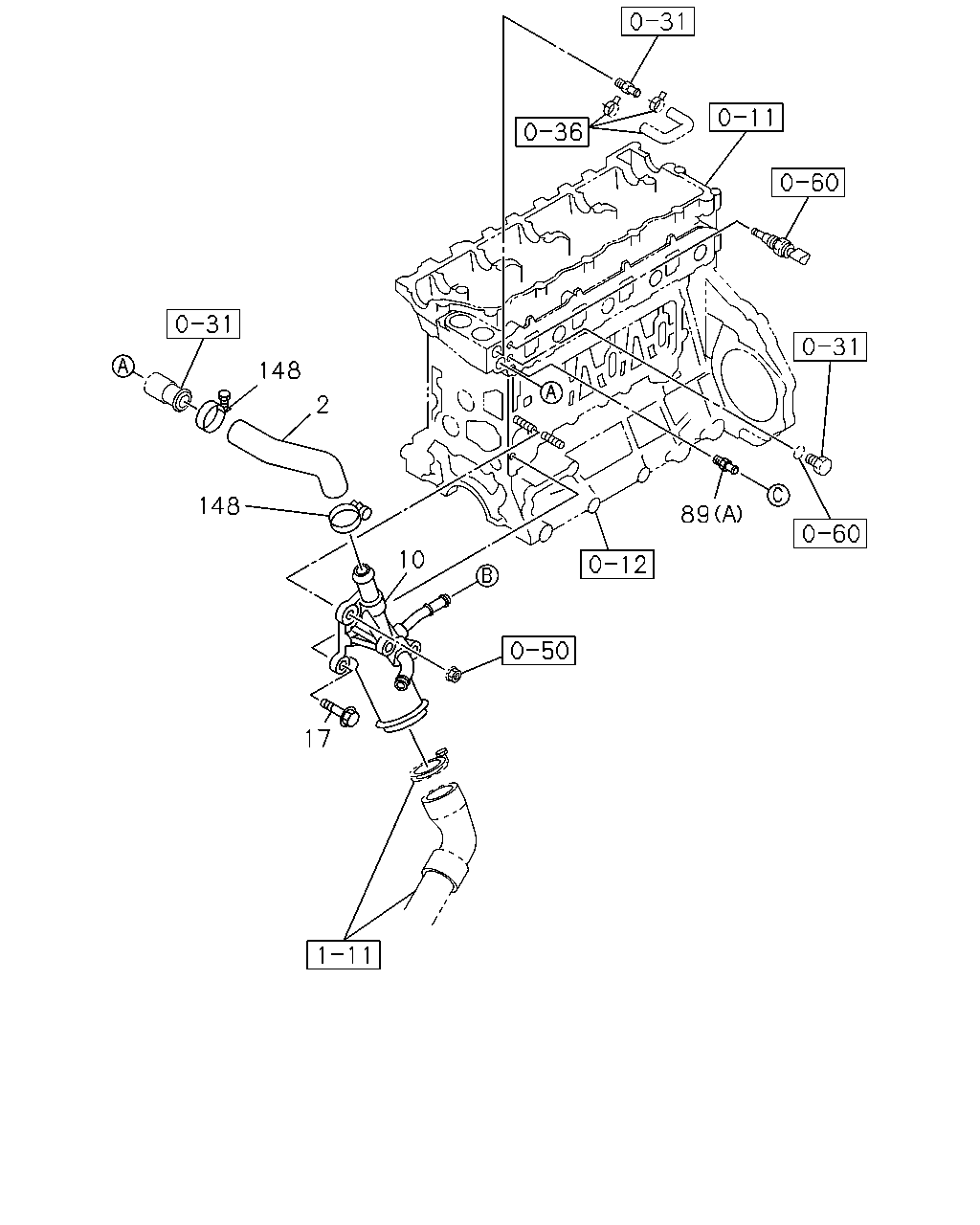

89
10
2
148
148
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
01.097 HOSE; WATER,BY-PASS
8-97379-228-1
01
1
1509-
10
01.153 PIPE; SUCTION
8-98166-995-0
01
1
1509-
17
01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE
8-94458-473-1
01
1
1509-
89
04.867 PIPE; WATER,AIR CMPR,IN
01.153 (A)
8-97358-699-0
01
1
1509-
89
04.867 PIPE; WATER,AIR CMPR,IN
(B)
8-98095-668-0
01
1
1509-
148
01.097 CLIP; BYPASS HOSE
03.417 ID=30
9-09915-315-1
02
1
1509-

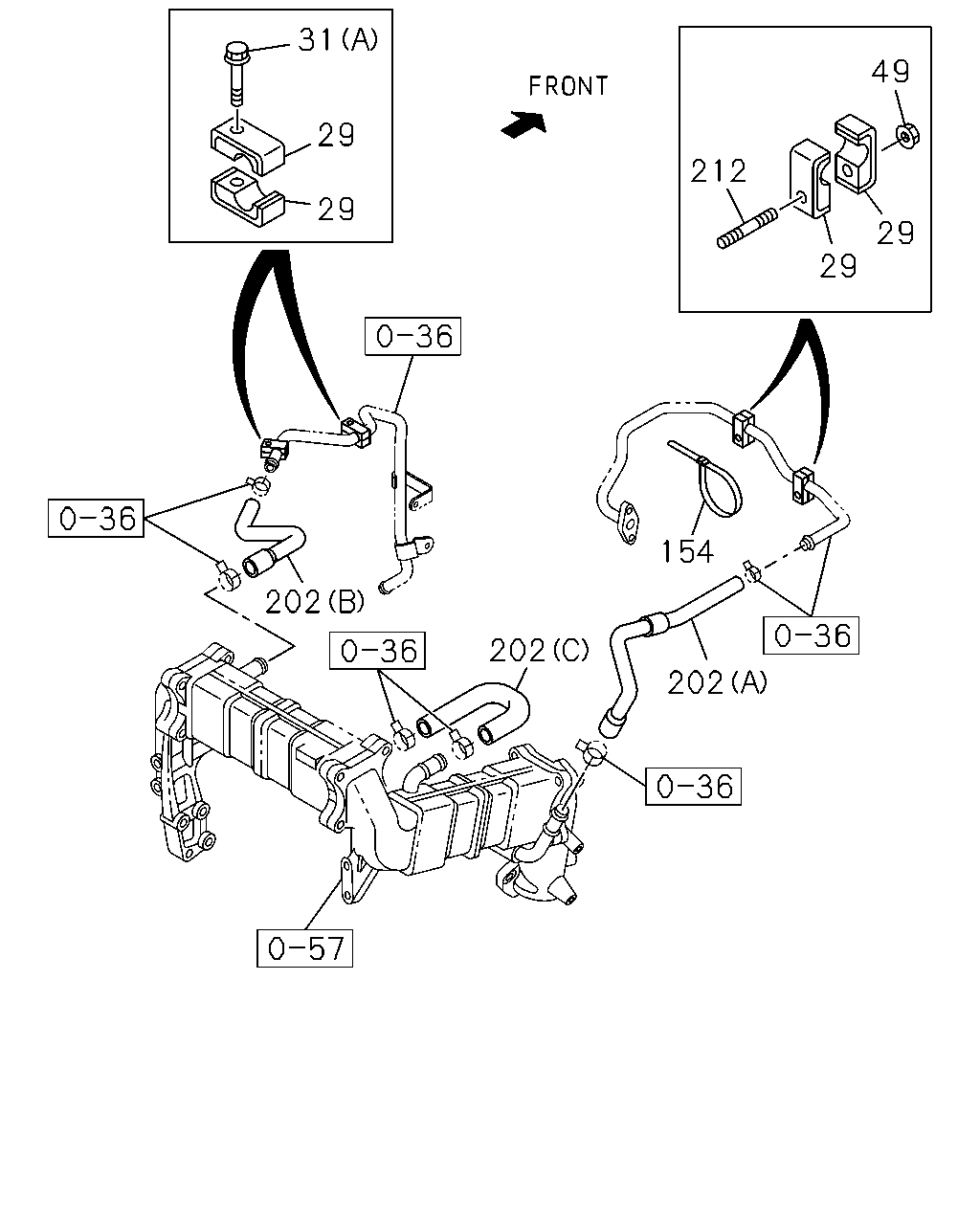

31
29
29
49
29
29
212
154
202
202
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
01.166 CLIP; PIPE
ID=17 L=17
1-09701-284-0
08
1
1509-
31
01.159 BOLT; CLIP
02.343 (B) M8X12 FLANGE
0-28050-812-0
01
1
1509-
31
01.159 BOLT; CLIP
02.277 (A) M8X40 FLANGE
0-28050-840-0
02
1
1509-
49
01.153 NUT; WATER PIPE
01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
154
01.153 CLIP; WATER HOSE
02.559 L=170.3
1-09987-182-0
01
1
1509-
202
01.240 HOSE; RUBBER,EGR COOLER
(A)
8-98028-169-2
01
1
1509-
202
01.240 HOSE; RUBBER,EGR COOLER
(B)
8-98028-170-0
01
1
1509-
202
01.240 HOSE; RUBBER,EGR COOLER
(C)
8-98028-171-0
01
1
1509-
212
01.153 STUD; PIPE
00.413 M8X45 L=55
8-94217-227-0
02
1
1509-

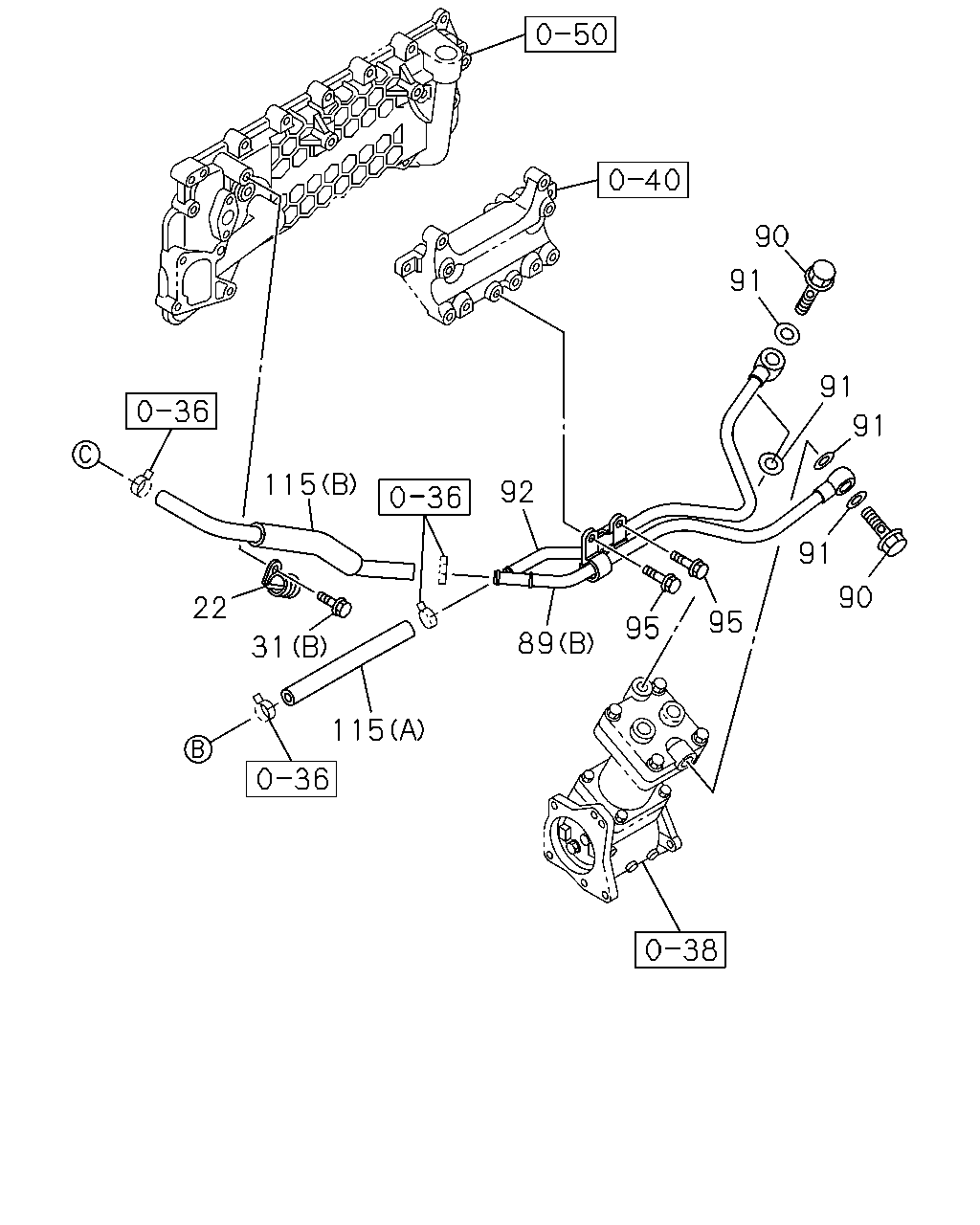

90
91
91
91
90
95
95
89
92
115
22
31
115
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
01.153 CLIP; WATER HOSE
01.152 L=36
8-94224-891-1
01
1
1509-
31
01.159 BOLT; CLIP
02.343 (B) M8X12 FLANGE
0-28050-812-0
01
1
1509-
31
01.159 BOLT; CLIP
02.277 (A) M8X40 FLANGE
0-28050-840-0
02
1
1509-
89
04.867 PIPE; WATER,AIR CMPR,IN
01.153 (A)
8-97358-699-0
01
1
1509-
89
04.867 PIPE; WATER,AIR CMPR,IN
(B)
8-98095-668-0
01
1
1509-
90
04.866 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
02
1
1509-
91
04.866 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 ID=14.2 OD=19.2
8-98251-345-0
04
1
1509-
92
04.867 PIPE; WATER,AIR CMPR,OUT
8-98132-662-0
01
1
1509-
95
01.240 BOLT; CLIP
02.343 M8X16 FLANGE
0-28050-816-0
02
1
1509-
115
01.855 HOSE; RUBBER
01.097 (A) L=130 SERVICED BY L=3000
0-03559-300-0
01
1
1509-
115
01.855 HOSE; RUBBER
(B)
8-98095-678-3
01
1
1509-
