Isuzu WW
▶
TRUCKS
▶
NQR
▶
51636 - NQR BUS A/BRAKE LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#166180) — 27 parça
◀

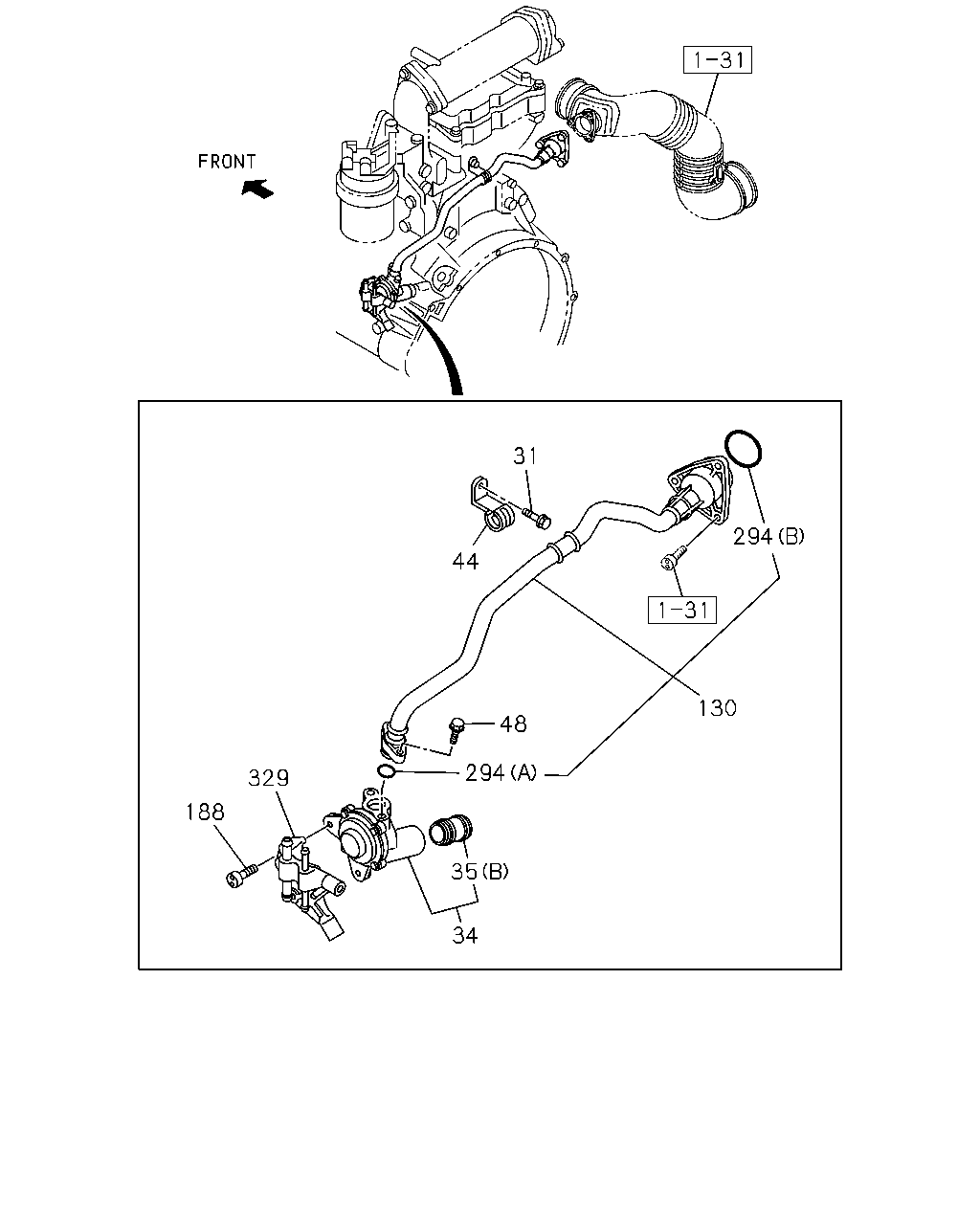

[028A] EXC.FRIGID ZONE (12 parça)
[028A] FRIGID ZONE (15 parça)
▶
31
44
48
294
130
35
34
329
188
294
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
03.417 BOLT; HOSE CLIP
EXC. FRIGID ZONE(YL3) 02.343 M8X12 FLANGE
0-28050-812-0
01
1
1509-
34
03.415 VENTILATOR
8-98245-392-0
01
1
1509-
35
03.415 GASKET; VENTILATOR
FRIGID ZONE(YL3) 01.550 (A) ID=17.8
1-09623-588-0
01
1
1509-
35
03.415 GASKET; VENTILATOR
(B)
8-98038-692-0
01
1
1509-
44
03.278 CLIP; HOSE,PCV
EXC. FRIGID ZONE(YL3) 02.483 ID=20 H=23 L=27
1-09700-861-0
01
1
1509-
48
03.278 BOLT; PIPE
FRIGID ZONE(YL3) 09.242 M6X16 FLANGE
0-28050-616-0
02
1
1509-
48
03.278 BOLT; PIPE
EXC. FRIGID ZONE(YL3) 00.386 M6X20 FLANGE
0-28050-620-0
02
1
1509-
130
03.278 PIPE; PCV
EXC. FRIGID ZONE(YL3)
8-98036-533-1
01
1
1509-
188
01.780 BOLT; BRKT
00.206 M8X30 FLANGE
0-28050-830-0
02
1
1509-
294
03.278 GASKET; PCV
EXC. FRIGID ZONE(YL3) 01.550 (A) ID=17.8
1-09623-588-0
01
1
1509-
294
03.278 GASKET; PCV
EXC. FRIGID ZONE(YL3) 01.097 (B) ID=43.7
9-09561-344-0
01
1
1509-
329
01.750 BRACKET; VENTILATOR
8-98171-059-0
01
1
1509-
270
270
32
32
32
304
142
48
35
34
35
47
33
329
188
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
03.417 CLIP; VENT HOSE
FRIGID ZONE(YL3) 08.846 ID=21.7
8-97203-074-0
04
1
1509-
33
03.278 PIPE; VENTILATOR
FRIGID ZONE(YL3)
8-98075-640-1
01
1
1509-
34
03.415 VENTILATOR
8-98245-392-0
01
1
1509-
35
03.415 GASKET; VENTILATOR
FRIGID ZONE(YL3) 01.550 (A) ID=17.8
1-09623-588-0
01
1
1509-
35
03.415 GASKET; VENTILATOR
(B)
8-98038-692-0
01
1
1509-
47
03.278 PIPE ASM; PCV
FRIGID ZONE(YL3)
8-98153-108-0
01
1
1509-
48
03.278 BOLT; PIPE
FRIGID ZONE(YL3) 09.242 M6X16 FLANGE
0-28050-616-0
02
1
1509-
48
03.278 BOLT; PIPE
EXC. FRIGID ZONE(YL3) 00.386 M6X20 FLANGE
0-28050-620-0
02
1
1509-
142
01.745 COVER; PCV
FRIGID ZONE(YL3)
8-98153-109-0
01
1
1509-
188
01.780 BOLT; BRKT
00.206 M8X30 FLANGE
0-28050-830-0
02
1
1509-
270
01.750 COVER; VENTILATOR
FRIGID ZONE(YL3) (A)
8-98152-829-0
01
1
1509-
270
01.750 COVER; VENTILATOR
FRIGID ZONE(YL3) (B)
8-98152-830-0
01
1
1509-
304
03.275 BOLT; COVER
FRIGID ZONE(YL3) 02.343 M8X16 FLANGE
0-28050-816-0
01
1
1509-
304
03.275 BOLT; COVER
FRIGID ZONE(YL3) 01.758 M8X20 HEX SOCKET
0-58330-820-0
02
1
1509-
329
01.750 BRACKET; VENTILATOR
8-98171-059-0
01
1
1509-
