Isuzu WW
▶
PICKUP
▶
TFR
▶
51632 - TFR/TFS THAILAND
▶
9 - Tools
▶
9-31 - REAR BODY; FLOOR AND FENDER
▶

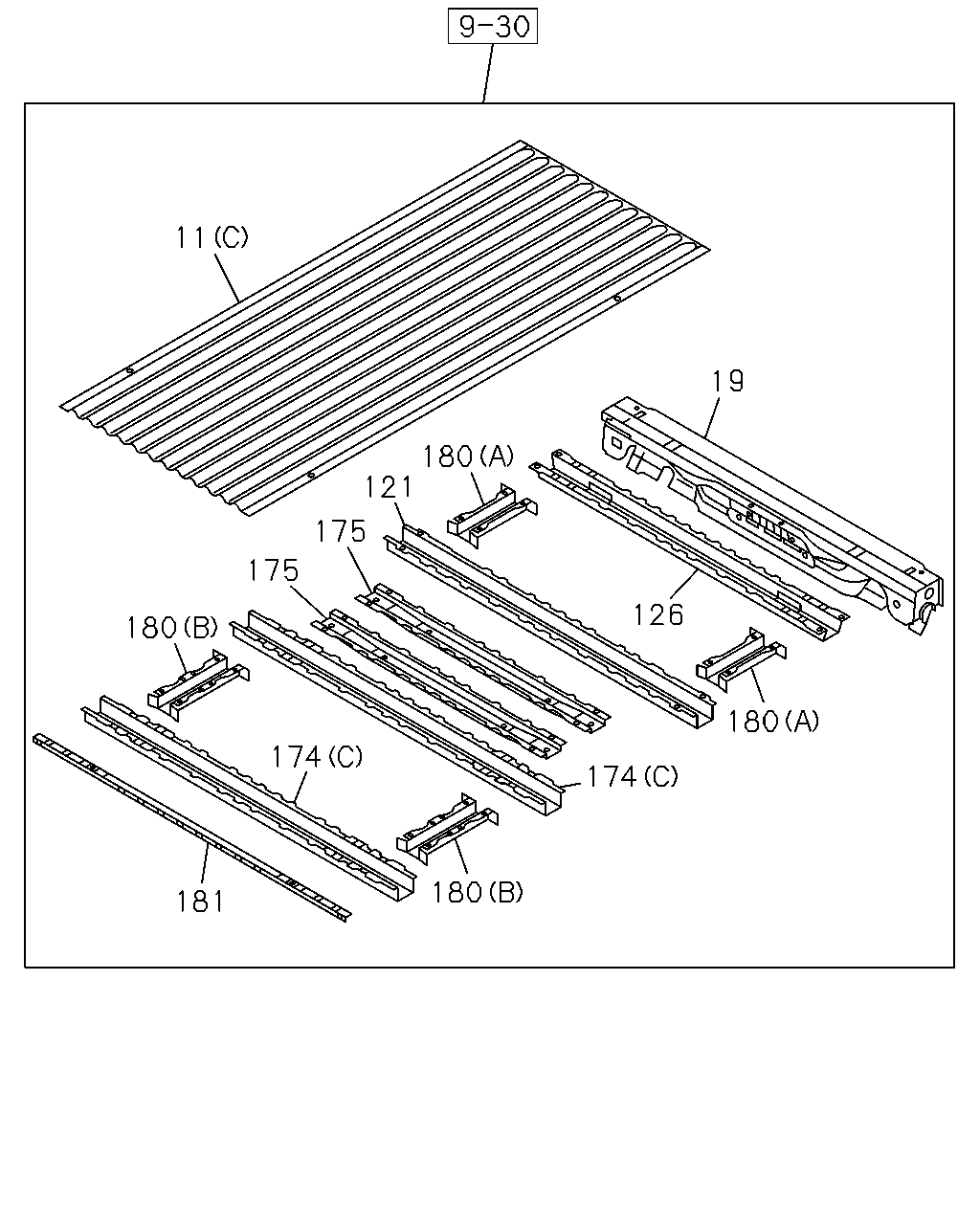

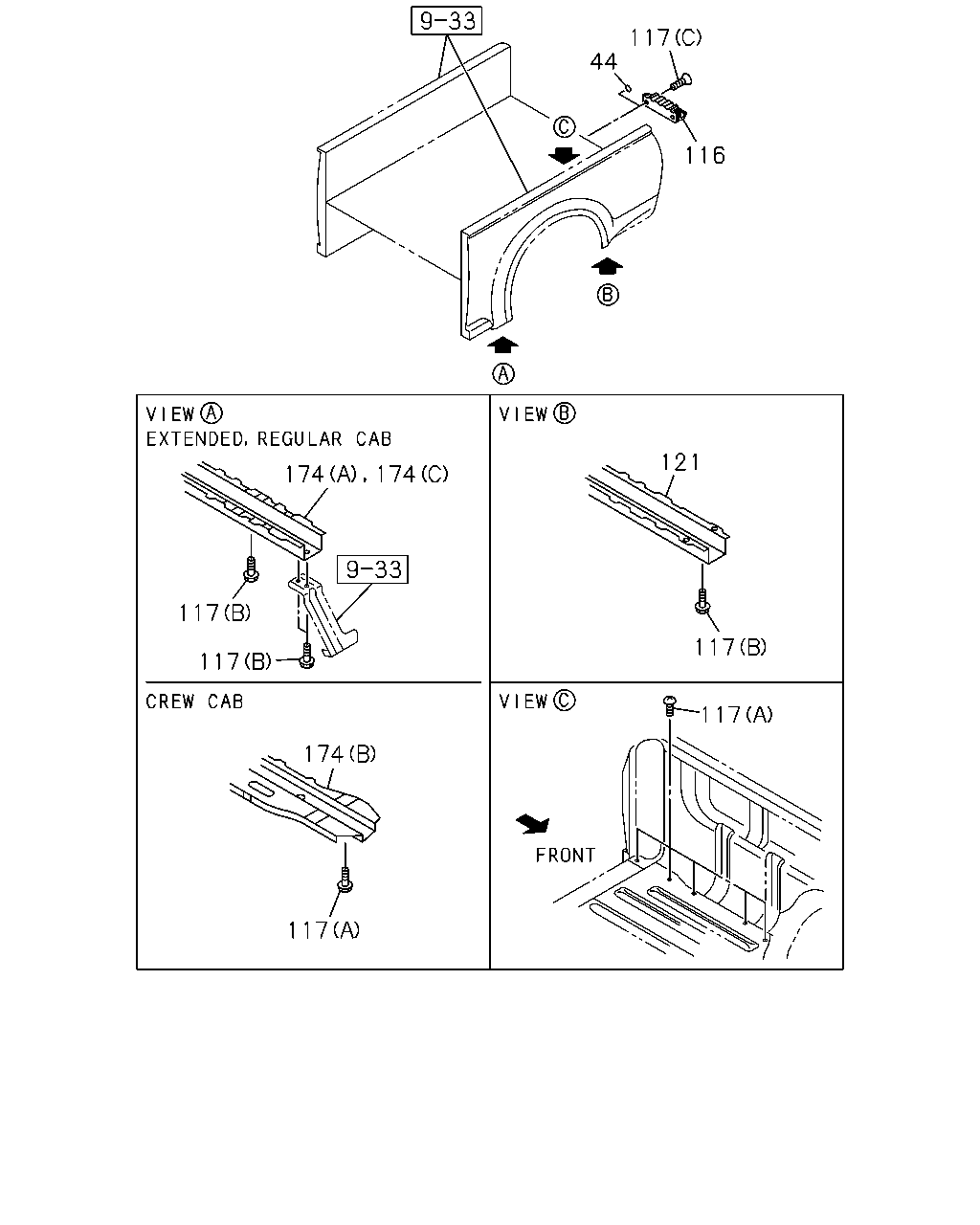

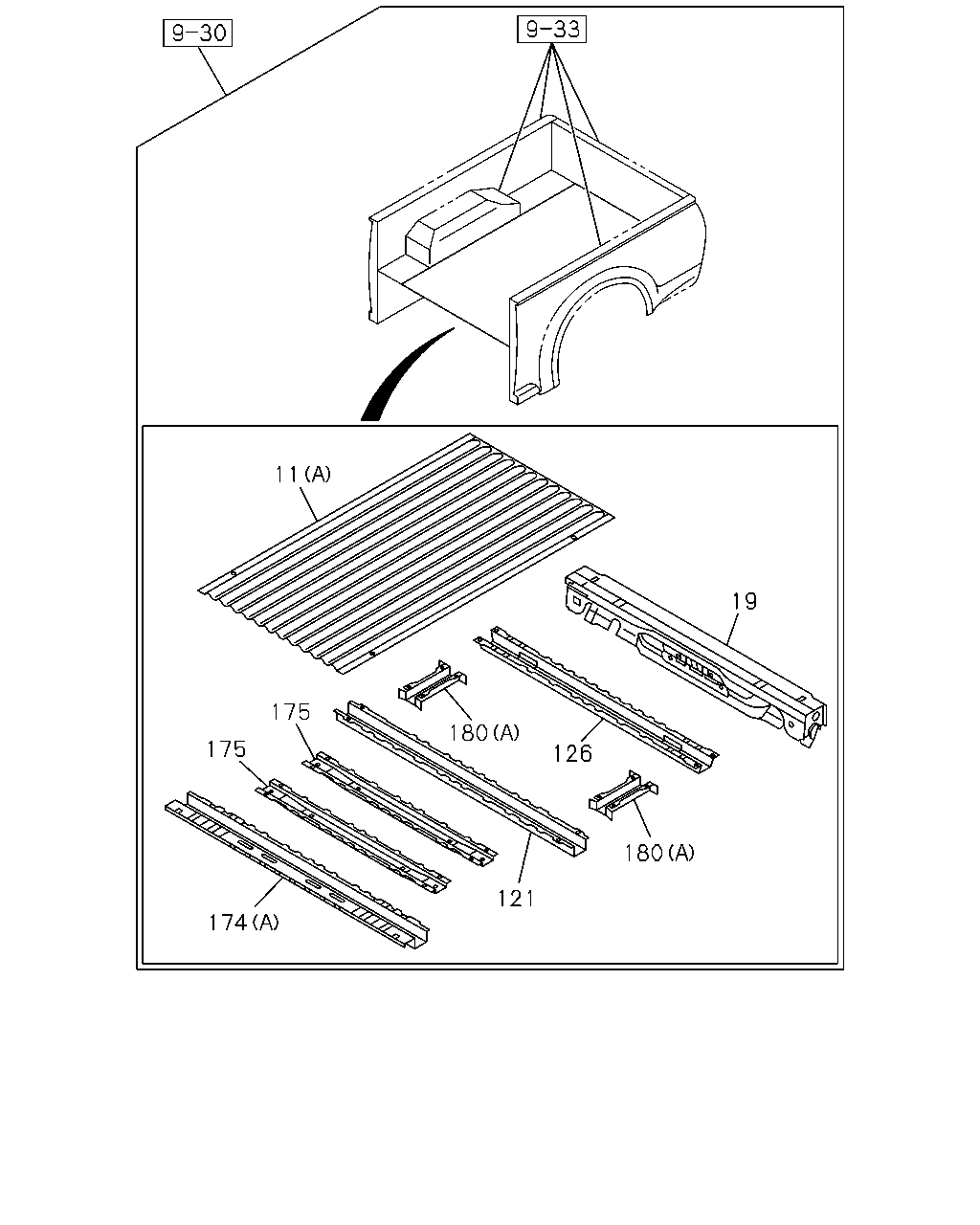

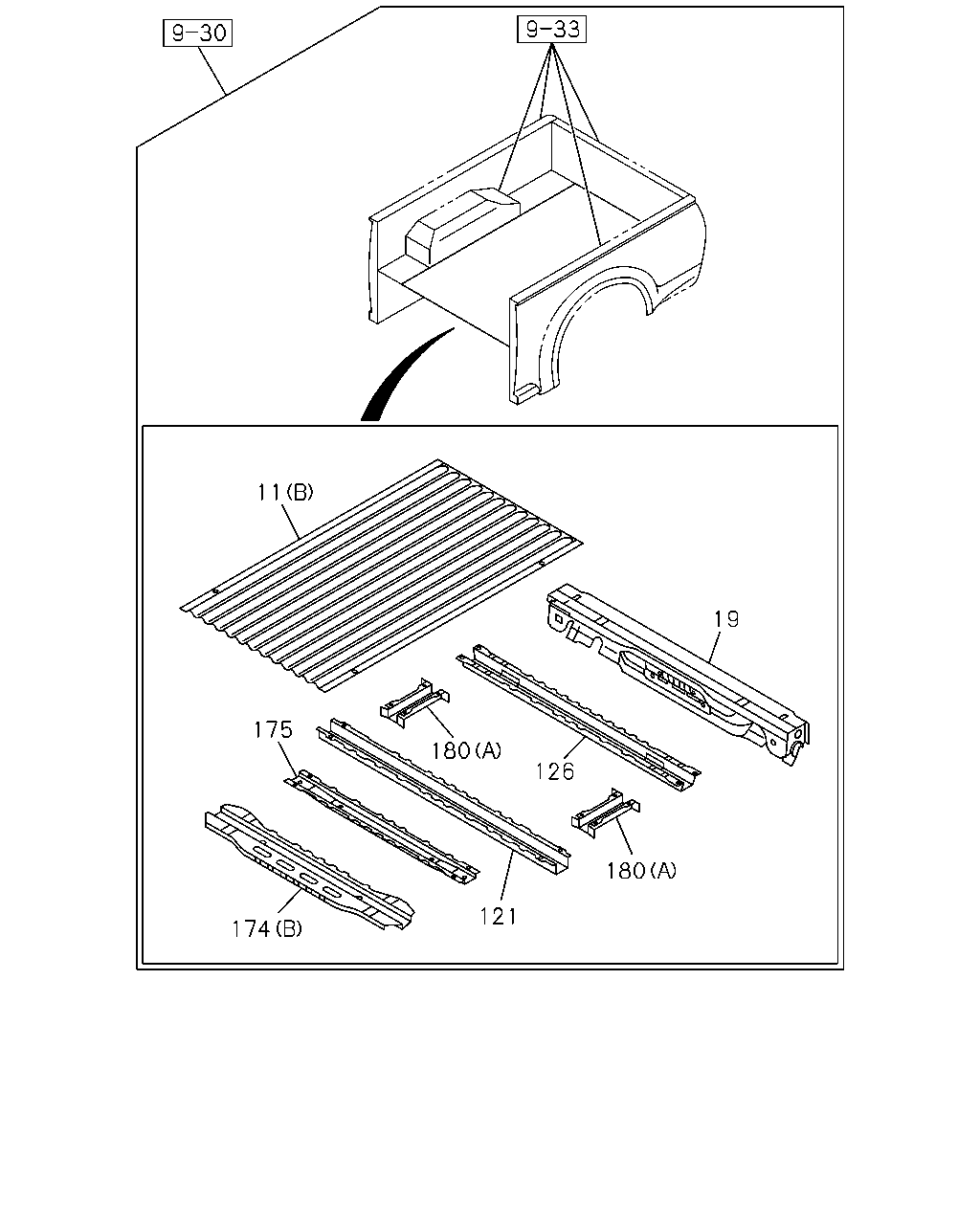

9-31 — REAR BODY; FLOOR AND FENDER
(#166165) — 81 parça
Tümü
A - TFB5CF
B - TFS5CF
C - TFB5SF
D - TFS5SF
E - TFB5WF
F - TFS5WF
◀
[931A] REGULAR CAB (22 parça)
[931A] FIXING PARTS (17 parça)
[931A] CREW CAB (21 parça)
[931A] EXTENDED CAB (21 parça)
▶
11
19
180
121
175
175
180
174
181
180
174
180
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
11
PANEL; FLOOR BOARD,RR BODY
(A) THA
8-98104-154-1
01
1
1510-
●
●
11
PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA
8-98104-150-1
01
1
1510-
●
●
11
PANEL; FLOOR BOARD,RR BODY
(B) THA
8-98104-159-2
01
1
1510-
●
●
19
BOLSTER; RR END,RR BODY
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA
8-98210-518-0
01
1
1510-
●
●
19
BOLSTER; RR END,RR BODY
REAR STEP BUMPER CHROME<V42> THA
8-98210-518-0
01
1
1510-
●
●
19
BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA
8-98104-216-7
01
1
1510-
●
●
19
BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA
8-98104-216-7
01
1
1510-
●
●
19
BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> THA
8-98104-216-7
01
1
1510-
●
●
121
BOLSTER; RR BODY
THA
8-98104-194-2
01
1
1510-
●
●
●
●
121
BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA
8-98104-194-2
01
1
1510-
●
●
126
BOLSTER; FRT END,RR BODY
THA
8-98104-201-2
01
1
1510-
●
●
●
●
126
BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA
8-98104-201-2
01
1
1510-
●
●
174
SILL; RR BODY CROSS NO.1
(A) THA
8-98140-852-4
01
1
1510-
●
●
174
SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL<E63> (C) THA
8-98104-179-1
02
1
1510-
●
●
174
SILL; RR BODY CROSS NO.1
(B) THA
8-98104-258-3
01
1
1510-
●
●
175
SILL; RR BODY CROSS NO.2
THA
8-98104-191-2
02
1
1510-
●
●
175
SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL<E63> THA
8-98104-191-2
02
1
1510-
●
●
175
SILL; RR BODY CROSS NO.2
THA
8-98104-191-2
01
1
1510-
●
●
180
REINFORCEMENT; SILL
(B) THA
8-98104-197-0
02
1
1510-
●
●
●
●
180
REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) THA
8-98104-197-0
02
1
1510-
●
●
180
REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) THA
8-98104-185-0
02
1
1510-
●
●
181
EXTENSION; PUBX,SILL
REAR BODY DBL WALL CTR PULL<E63> THA
8-98104-171-1
01
1
1510-
●
●
117
44
116
174
174
117
117
121
117
117
174
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
44
SEAL; RR POST,RR BODY
OD=25 BLACK THA
1-76798-019-0
02
1
1510-
●
●
116
SUPPORT; RR BODY,SILL
THA
8-98104-017-1
01
1
1510-
●
●
116
SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> THA
8-98104-017-1
01
1
1510-
●
●
117
BOLT; SILL
(A) M8X16.5 HEXALOBULAR SOCKET THA
8-98290-484-0
02
1
1510-
●
●
117
BOLT; SILL
(A) M8X16.5 HEXALOBULAR SOCKET THA
8-98290-484-0
10
1
1510-
●
●
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) M8X16.5 HEXALOBULAR SOCKET THA
8-98290-484-0
10
1
1510-
●
●
117
BOLT; SILL
(B) M8X20 THA
8-98294-857-0
08
1
1510-
●
●
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20 THA
8-98294-857-0
08
1
1510-
●
●
117
BOLT; SILL
(C) M8X22 THA
8-98050-437-0
02
1
1510-
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (C) M8X22 THA
8-98050-437-0
02
1
1510-
●
●
117
BOLT; SILL
(B) M8X20 THA
8-98294-857-0
06
1
1510-
●
●
117
BOLT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) M8X20 THA
8-98294-857-0
12
1
1510-
●
●
121
BOLSTER; RR BODY
THA
8-98104-194-2
01
1
1510-
●
●
●
●
121
BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA
8-98104-194-2
01
1
1510-
●
●
174
SILL; RR BODY CROSS NO.1
(A) THA
8-98140-852-4
01
1
1510-
●
●
174
SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL<E63> (C) THA
8-98104-179-1
02
1
1510-
●
●
174
SILL; RR BODY CROSS NO.1
(B) THA
8-98104-258-3
01
1
1510-
●
●
11
19
180
126
180
175
121
174
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
11
PANEL; FLOOR BOARD,RR BODY
(A) THA
8-98104-154-1
01
1
1510-
●
●
11
PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA
8-98104-150-1
01
1
1510-
●
●
11
PANEL; FLOOR BOARD,RR BODY
(B) THA
8-98104-159-2
01
1
1510-
●
●
19
BOLSTER; RR END,RR BODY
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA
8-98210-518-0
01
1
1510-
●
●
19
BOLSTER; RR END,RR BODY
REAR STEP BUMPER CHROME<V42> THA
8-98210-518-0
01
1
1510-
●
●
19
BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA
8-98104-216-7
01
1
1510-
●
●
19
BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA
8-98104-216-7
01
1
1510-
●
●
19
BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> THA
8-98104-216-7
01
1
1510-
●
●
121
BOLSTER; RR BODY
THA
8-98104-194-2
01
1
1510-
●
●
●
●
121
BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA
8-98104-194-2
01
1
1510-
●
●
126
BOLSTER; FRT END,RR BODY
THA
8-98104-201-2
01
1
1510-
●
●
●
●
126
BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA
8-98104-201-2
01
1
1510-
●
●
174
SILL; RR BODY CROSS NO.1
(A) THA
8-98140-852-4
01
1
1510-
●
●
174
SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL<E63> (C) THA
8-98104-179-1
02
1
1510-
●
●
174
SILL; RR BODY CROSS NO.1
(B) THA
8-98104-258-3
01
1
1510-
●
●
175
SILL; RR BODY CROSS NO.2
THA
8-98104-191-2
02
1
1510-
●
●
175
SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL<E63> THA
8-98104-191-2
02
1
1510-
●
●
175
SILL; RR BODY CROSS NO.2
THA
8-98104-191-2
01
1
1510-
●
●
180
REINFORCEMENT; SILL
(B) THA
8-98104-197-0
02
1
1510-
●
●
●
●
180
REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) THA
8-98104-197-0
02
1
1510-
●
●
180
REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) THA
8-98104-185-0
02
1
1510-
●
●
11
19
180
126
180
175
175
174
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
11
PANEL; FLOOR BOARD,RR BODY
(A) THA
8-98104-154-1
01
1
1510-
●
●
11
PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA
8-98104-150-1
01
1
1510-
●
●
11
PANEL; FLOOR BOARD,RR BODY
(B) THA
8-98104-159-2
01
1
1510-
●
●
19
BOLSTER; RR END,RR BODY
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA
8-98210-518-0
01
1
1510-
●
●
19
BOLSTER; RR END,RR BODY
REAR STEP BUMPER CHROME<V42> THA
8-98210-518-0
01
1
1510-
●
●
19
BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA
8-98104-216-7
01
1
1510-
●
●
19
BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA
8-98104-216-7
01
1
1510-
●
●
19
BOLSTER; RR END,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> THA
8-98104-216-7
01
1
1510-
●
●
121
BOLSTER; RR BODY
THA
8-98104-194-2
01
1
1510-
●
●
●
●
121
BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA
8-98104-194-2
01
1
1510-
●
●
126
BOLSTER; FRT END,RR BODY
THA
8-98104-201-2
01
1
1510-
●
●
●
●
126
BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA
8-98104-201-2
01
1
1510-
●
●
174
SILL; RR BODY CROSS NO.1
(A) THA
8-98140-852-4
01
1
1510-
●
●
174
SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL<E63> (C) THA
8-98104-179-1
02
1
1510-
●
●
174
SILL; RR BODY CROSS NO.1
(B) THA
8-98104-258-3
01
1
1510-
●
●
175
SILL; RR BODY CROSS NO.2
THA
8-98104-191-2
02
1
1510-
●
●
175
SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL<E63> THA
8-98104-191-2
02
1
1510-
●
●
175
SILL; RR BODY CROSS NO.2
THA
8-98104-191-2
01
1
1510-
●
●
180
REINFORCEMENT; SILL
(B) THA
8-98104-197-0
02
1
1510-
●
●
●
●
180
REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (B) THA
8-98104-197-0
02
1
1510-
●
●
180
REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL<E63> (A) THA
8-98104-185-0
02
1
1510-
●
●
