Sayfa 8-90 - Isuzu EPC

8-90 — RADIO AND TV (#166162) — 100 parça

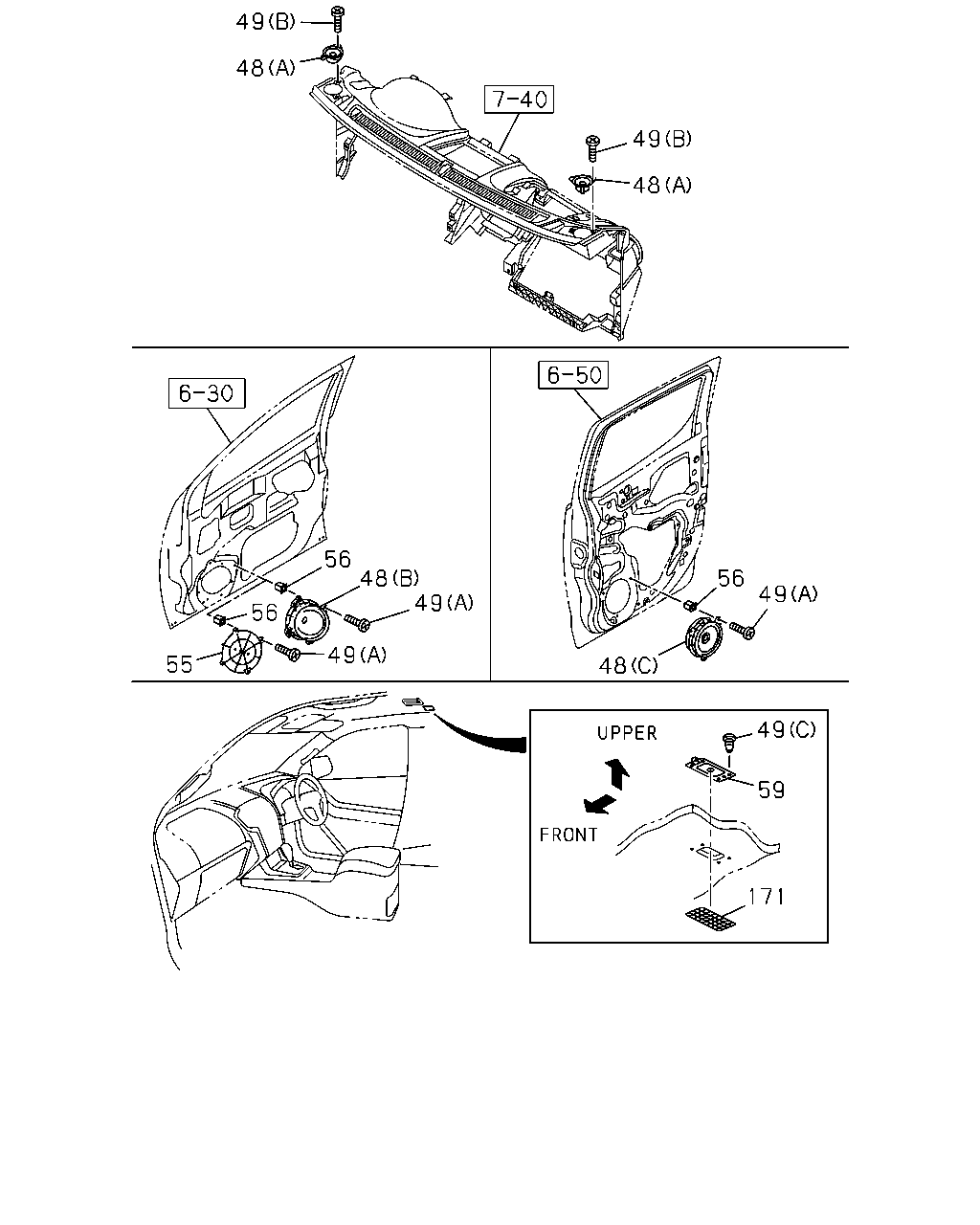

49 48 49 48 56 49 49 59 171 48 49 48 56 56 55 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6> (A) THA	8-98280-703-0	02	1	1510-	●	●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (A) THA	8-98280-703-0	02	1	1510-			●	●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87>, 2-SPEAKER SYSTEM BASE<U95> (B) THA	8-98280-701-0	02	1	1510-	●	●	●	●	●	●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (C) THA	8-98280-702-0	02	1	1510-			●	●
49	SCREW; SPEAKER HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> (C) M4X8 TAPPING IMA	0-71240-408-0	08	1	1510-	●	●
49	SCREW; SPEAKER HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (C) M4X8 TAPPING IMA	0-71240-408-0	08	1	1510-			●
49	SCREW; SPEAKER 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (C) M4X8 TAPPING IMA	0-71240-408-0	08	1	1510-				●
49	SCREW; SPEAKER 6-SPEAKER SYSTEM CUSTOM<UW6> (B) M5X16 TAPPING THA	8-98167-449-0	04	1	1510-	●	●
49	SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (B) M5X16 TAPPING THA	8-98167-449-0	04	1	1510-			●	●
49	SCREW; SPEAKER (A) M5X14 TAPPING THA	8-98184-363-0	08	1	1510-	●	●	●	●	●	●
49	SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (A) M5X14 TAPPING THA	8-98184-363-0	06	1	1510-			●	●
55	COVER; SPEAKER HOLE 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87>, 2-SPEAKER SYSTEM BASE<U95> THA	8-98102-183-0	02	1	1510-	●	●	●	●	●
56	NUT; SPEAKER,RADIO OR STEREO THA	8-98163-895-0	08	1	1510-	●	●	●	●	●	●
56	NUT; SPEAKER,RADIO OR STEREO 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98163-895-0	06	1	1510-			●	●
59	SPEAKER; AUDIO HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> THA	8-98254-512-0	02	1	1510-	●	●
59	SPEAKER; AUDIO HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98254-512-0	02	1	1510-			●
59	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98254-512-0	02	1	1510-				●
171	COVER; SPEAKER INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY THA	8-97460-003-0	02	1	1510-	●
171	COVER; SPEAKER INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA	8-97460-003-0	02	1	1510-			●
171	COVER; SPEAKER HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY THA	8-97460-003-0	02	1	1510-		●
171	COVER; SPEAKER 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA	8-97460-003-0	02	1	1510-				●
171	COVER; SPEAKER INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> BLACK THA	8-97460-053-0	02	1	1510-	●
171	COVER; SPEAKER INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> BLACK THA	8-97460-053-0	02	1	1510-			●

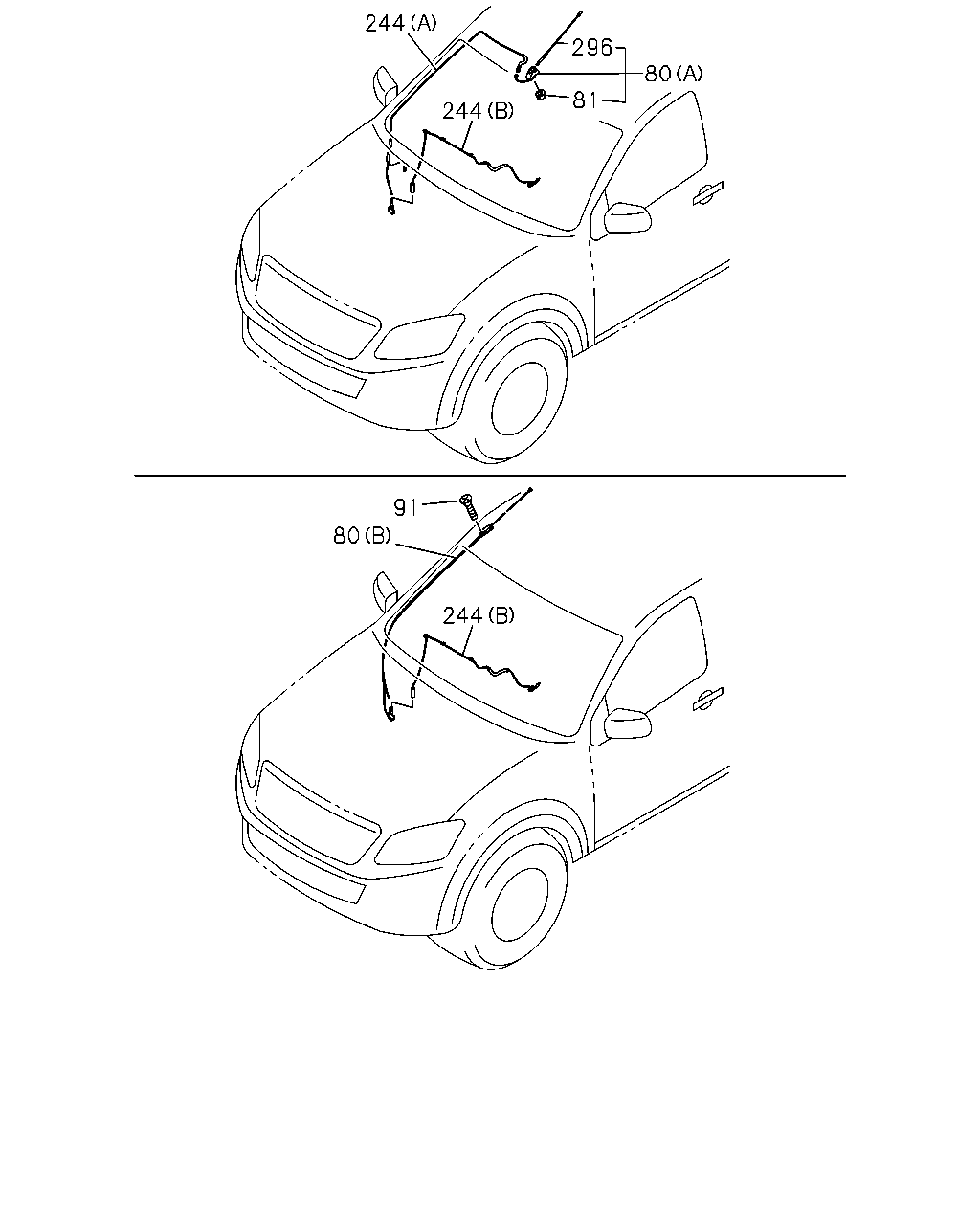

244 244 296 81 80 91 80 244

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> ROOF RADIO ANTENNA<U71> (A) THA	8-98053-048-0	01	1	1510-	●	●	●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> (A) THA	8-98053-048-0	01	1	1510-				●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> (B) THA	8-98053-047-2	01	1	1510-	●	●	●
80	ANTENNA RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-047-2	01	1	1510-					●
80	ANTENNA (B) THA	8-98053-047-2	01	1	1510-						●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ROOF RADIO ANTENNA<U71> (B) THA	8-98053-047-2	01	1	1510-				●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) DARK BLUE THA	8-97465-495-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR COSMIC BLACK MICA<523> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) BLACK THA	8-97465-496-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR SPLASH WHITE<527> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) WHITE THA	8-97465-497-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR TITANIUM SILVER MET<529> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) SILVER THA	8-97465-498-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR SILKY WHITE PEARL<531> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) WHITE THA	8-97465-499-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR ASH BEIGE MET<541> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) LIGHT BEIGE THA	8-97465-500-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR FJORD BLUE MET<545> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) LIGHT BLUE THA	8-97465-501-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) RED THA	8-97465-502-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR QUARTZ BLUE MET<553> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) LIGHT BLUE THA	8-97465-503-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR OBSIDIAN GRAY MICA<554> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) DARK GRAY THA	8-97465-504-0	01	1	1510-	●	●	●	●
81	NUT; ANTENNA POLE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> ROOF RADIO ANTENNA<U71> THA	8-98165-971-0	01	1	1510-	●	●	●
81	NUT; ANTENNA POLE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> THA	8-98165-971-0	01	1	1510-				●
91	BOLT; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5X16 IMA	8-97375-569-0	02	1	1510-	●	●	●	●	●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-051-1	01	1	1510-	●	●	●
244	CABLE; FEEDER RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-051-1	01	1	1510-					●
244	CABLE; FEEDER (B) THA	8-98053-051-1	01	1	1510-						●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> (B) THA	8-98053-051-1	01	1	1510-				●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> ROOF RADIO ANTENNA<U71> (A) THA	8-98063-228-0	01	1	1510-	●	●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> ROOF RADIO ANTENNA<U71> (A) THA	8-98063-228-0	01	1	1510-				●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) THA	8-98280-699-0	01	1	1510-	●	●	●	●
296	ROD; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> ROOF RADIO ANTENNA<U71> THA	8-98165-969-0	01	1	1510-	●	●	●
296	ROD; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> THA	8-98165-969-0	01	1	1510-				●

244 80 141 141 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> ROOF RADIO ANTENNA<U71> (A) THA	8-98053-048-0	01	1	1510-	●	●	●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> (A) THA	8-98053-048-0	01	1	1510-				●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> (B) THA	8-98053-047-2	01	1	1510-	●	●	●
80	ANTENNA RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-047-2	01	1	1510-					●
80	ANTENNA (B) THA	8-98053-047-2	01	1	1510-						●
80	ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ROOF RADIO ANTENNA<U71> (B) THA	8-98053-047-2	01	1	1510-				●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) DARK BLUE THA	8-97465-495-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR COSMIC BLACK MICA<523> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) BLACK THA	8-97465-496-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR SPLASH WHITE<527> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) WHITE THA	8-97465-497-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR TITANIUM SILVER MET<529> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) SILVER THA	8-97465-498-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR SILKY WHITE PEARL<531> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) WHITE THA	8-97465-499-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR ASH BEIGE MET<541> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) LIGHT BEIGE THA	8-97465-500-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR FJORD BLUE MET<545> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) LIGHT BLUE THA	8-97465-501-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) RED THA	8-97465-502-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR QUARTZ BLUE MET<553> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) LIGHT BLUE THA	8-97465-503-0	01	1	1510-	●	●	●	●
80	ANTENNA BODY COLOR OBSIDIAN GRAY MICA<554> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) DARK GRAY THA	8-97465-504-0	01	1	1510-	●	●	●	●
141	CLIP; ANTENNA CABLE AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA	8-98219-154-0	02	1	1510-	●	●	●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-051-1	01	1	1510-	●	●	●
244	CABLE; FEEDER RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-051-1	01	1	1510-					●
244	CABLE; FEEDER (B) THA	8-98053-051-1	01	1	1510-						●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> (B) THA	8-98053-051-1	01	1	1510-				●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> ROOF RADIO ANTENNA<U71> (A) THA	8-98063-228-0	01	1	1510-	●	●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> ROOF RADIO ANTENNA<U71> (A) THA	8-98063-228-0	01	1	1510-				●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) THA	8-98280-699-0	01	1	1510-	●	●	●	●
298	NUT; ANTENNA AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA	8-98219-125-0	01	1	1510-	●	●	●	●

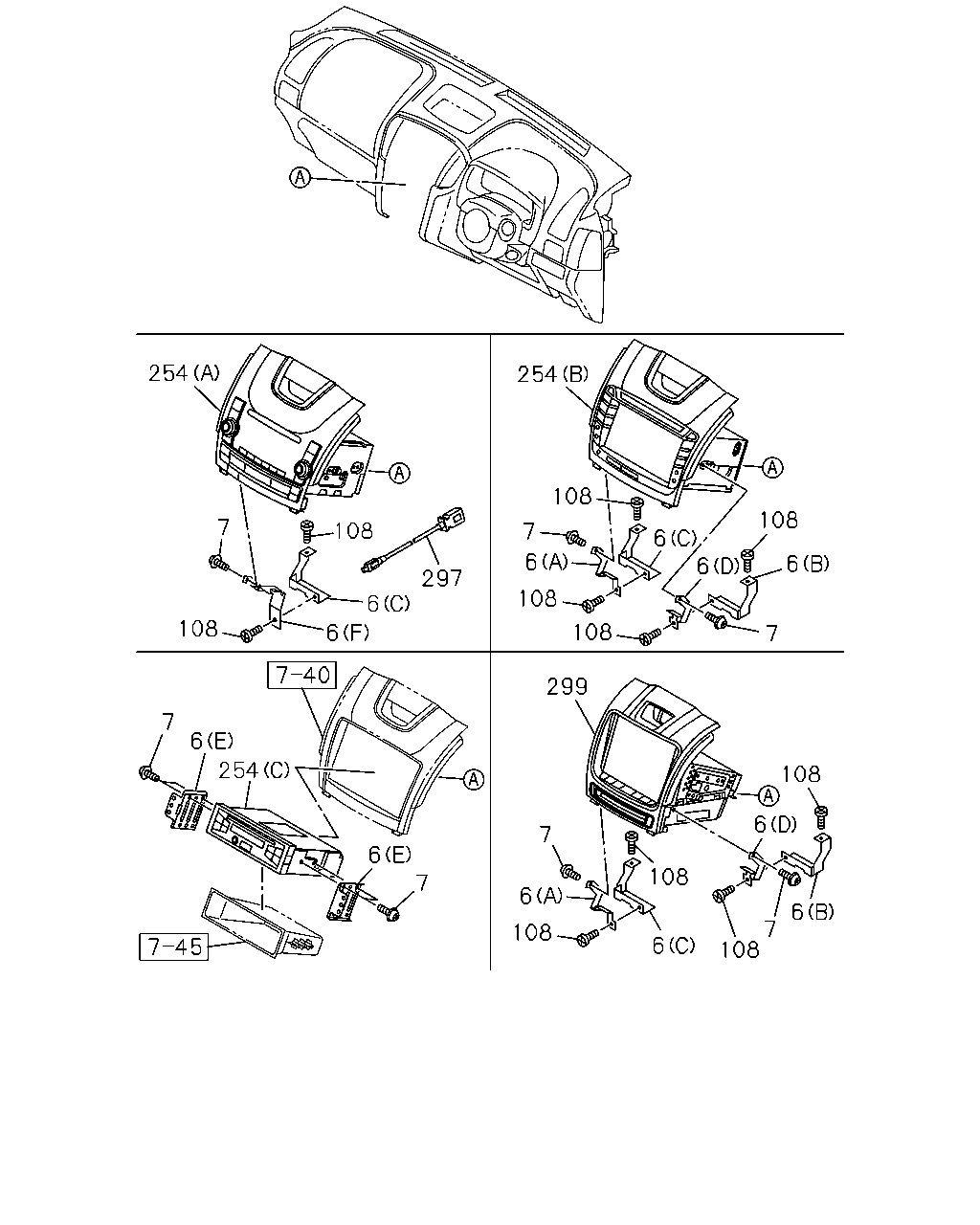

254 7 108 297 6 6 108 7 6 254 6 7 254 108 7 6 108 108 6 108 6 6 7 299 7 6 108 108 108 108 6 6 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> (F) THA	8-98227-139-1	01	1	1510-	●	●	●	●
6	BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,AM/FM, CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) THA	8-98106-390-3	01	1	1510-	●	●	●	●
6	BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (E) THA	8-98102-188-2	02	1	1510-	●	●	●		●
6	BRACKET; RADIO TO PANEL (E) THA	8-98102-188-2	02	1	1510-						●
6	BRACKET; RADIO TO PANEL RADIO DELETE<UL5> (E) THA	8-98102-188-2	02	1	1510-				●
6	BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (A) THA	8-98278-735-0	01	1	1510-	●	●	●	●
6	BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (D) THA	8-98278-736-0	01	1	1510-	●	●	●	●
6	BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (B) THA	8-98102-187-3	01	1	1510-	●	●	●	●
6	BRACKET; RADIO TO PANEL AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (A) THA	8-98278-773-0	01	1	1510-	●	●	●	●
6	BRACKET; RADIO TO PANEL AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (D) THA	8-98278-774-0	01	1	1510-	●	●	●	●
7	SCREW; RADIO AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> M5X10 W/LK+PL WASHER IMA	0-36230-510-0	01	1	1510-	●	●	●	●
7	SCREW; RADIO AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> M5X10 W/LK+PL WASHER IMA	0-36230-510-0	02	1	1510-	●	●	●	●
7	SCREW; RADIO AM/FM,CLOCK,CD PLAYER<U1C> M5X10 W/LK+PL WASHER IMA	0-36230-510-0	04	1	1510-	●	●	●		●
7	SCREW; RADIO M5X10 W/LK+PL WASHER IMA	0-36230-510-0	04	1	1510-						●
108	SCREW; BRKT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> M5X16 TAPPING THA	8-98167-449-0	02	1	1510-	●	●	●	●
108	SCREW; BRKT AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> M5X16 TAPPING THA	8-98167-449-0	04	1	1510-	●	●	●	●
254	RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> 6-SPEAKER SYSTEM CUSTOM<UW6> (A) THA	8-98312-283-0	01	1	1510-	●	●	●	●
254	RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> (A) THA	8-98312-284-0	01	1	1510-	●	●	●	●
254	RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 6-SPEAKER SYSTEM CUSTOM<UW6> (B) THA	8-98252-179-0	01	1	1510-	●	●	●	●
254	RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> (B) THA	8-98296-459-0	01	1	1510-	●	●	●	●
254	RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,CD PLAYER<U1C> (C) THA	8-98219-844-3	01	1	1510-	●	●	●		●
254	RADIO CONTROL ASM; STEREO,AM-FM (C) THA	8-98219-844-3	01	1	1510-						●
297	CABLE; USB AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> THA	8-98193-631-0	01	1	1510-	●	●	●	●
299	DISPLAY; MULTI AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA	8-98258-512-1	01	1	1510-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
