◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#166159) — 118 parça

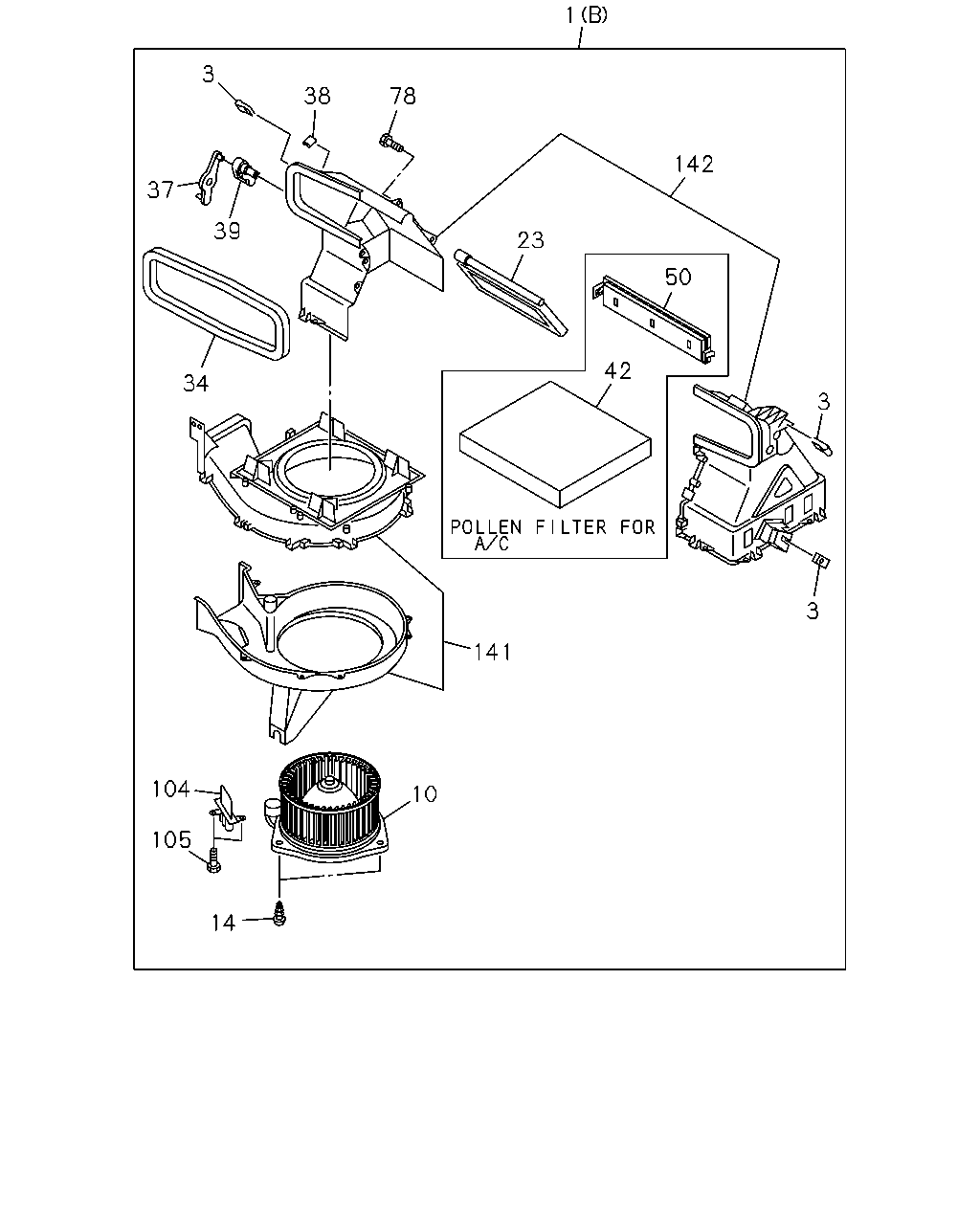

çizim 492526
3 38 78 1 142 50 23 42 141 10 104 105 14 34 39 37 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BLOWER ASM
AUTO COOLER SYSTEM<CJ2> POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) THA 		8-98233-046-1 01 1 1510- ● ● ● ●
1 BLOWER ASM
AUTO COOLER SYSTEM<CJ2> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) THA 		8-98233-041-1 01 1 1510- ● ● ● ●
1 BLOWER ASM
COOLER W/FRESH AIR<C65> POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) THA 		8-98233-045-1 01 1 1510- ● ● ● ● ●
1 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) THA 		8-98233-045-1 01 1 1510- ●
1 BLOWER ASM
COOLER W/FRESH AIR<C65> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) THA 		8-98233-040-1 01 1 1510- ● ● ● ● ●
1 BLOWER ASM
EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) THA 		8-98233-040-1 01 1 1510- ●
1 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-049-0 01 1 1510- ●
1 BLOWER ASM
COOLER WO/FRESH AIR<8NF> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C) THA 		8-98233-044-0 01 1 1510- ●
3 NUT; CASE
THA 		8-98139-394-1 03 1 1510- ● ● ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
THA 		8-98139-427-0 01 1 1510- ● ● ● ● ● ●
14 SCREW; COVER TO CASE
THA 		8-98139-395-1 03 1 1510- ● ● ● ● ● ●
23 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98294-586-0 01 1 1510- ● ● ● ●
23 SHUTTER; BLOWER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98294-586-0 01 1 1510- ●
23 SHUTTER; BLOWER UNIT
THA 		8-98294-586-0 01 1 1510- ●
34 LINING; BLOWER UNIT
THA 		8-98139-426-1 01 1 1510- ● ● ● ● ● ●
37 LEVER; MODE LEVER
AUTO COOLER SYSTEM<CJ2> THA 		8-98195-045-0 01 1 1510- ● ● ● ●
37 LEVER; MODE LEVER
COOLER W/FRESH AIR<C65> THA 		8-98139-417-0 01 1 1510- ● ● ● ● ●
37 LEVER; MODE LEVER
THA 		8-98139-417-0 01 1 1510- ●
38 CLIP; BLOWER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98139-422-1 01 1 1510- ● ● ● ● ●
38 CLIP; BLOWER UNIT
THA 		8-98139-422-1 01 1 1510- ●
39 LEVER; SHUTTER,BLOWER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-416-0 01 1 1510- ● ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98139-416-0 01 1 1510- ●
39 LEVER; SHUTTER,BLOWER UNIT
THA 		8-98139-416-0 01 1 1510- ●
42 FILTER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98139-428-0 01 1 1510- ● ● ● ● ● ●
50 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-650-0 01 1 1510- ● ● ● ● ● ●
78 SCREW; CASE TO CASE
THA 		8-98139-395-1 01 1 1510- ● ● ● ● ● ●
104 RESISTOR; BLOWER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98183-234-0 01 1 1510- ● ● ● ●
104 RESISTOR; BLOWER UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98183-234-0 01 1 1510- ●
104 RESISTOR; BLOWER UNIT
THA 		8-98183-234-0 01 1 1510- ●
105 SCREW; RESISTOR
COOLER W/FRESH AIR<C65> THA 		8-98139-395-1 02 1 1510- ● ● ● ●
105 SCREW; RESISTOR
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98139-395-1 02 1 1510- ●
105 SCREW; RESISTOR
THA 		8-98139-395-1 02 1 1510- ●
141 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-641-0 01 1 1510- ● ● ● ●
141 CASE ASM; BLOWER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98233-640-0 01 1 1510- ● ● ● ●
141 CASE ASM; BLOWER UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98233-640-0 01 1 1510- ●
141 CASE ASM; BLOWER UNIT
THA 		8-98233-640-0 01 1 1510- ●
142 CASE ASM
AUTO COOLER SYSTEM<CJ2> POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-646-0 01 1 1510- ● ● ● ●
142 CASE ASM
AUTO COOLER SYSTEM<CJ2> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-643-0 01 1 1510- ● ● ● ●
142 CASE ASM
COOLER W/FRESH AIR<C65> POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-645-0 01 1 1510- ● ● ● ● ●
142 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-645-0 01 1 1510- ●
142 CASE ASM
COOLER W/FRESH AIR<C65> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-642-0 01 1 1510- ● ● ● ● ●
142 CASE ASM
EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-642-0 01 1 1510- ●
142 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR<8NF> THA 		8-98233-647-0 01 1 1510- ●
142 CASE ASM
COOLER WO/FRESH AIR<8NF> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-644-0 01 1 1510- ●

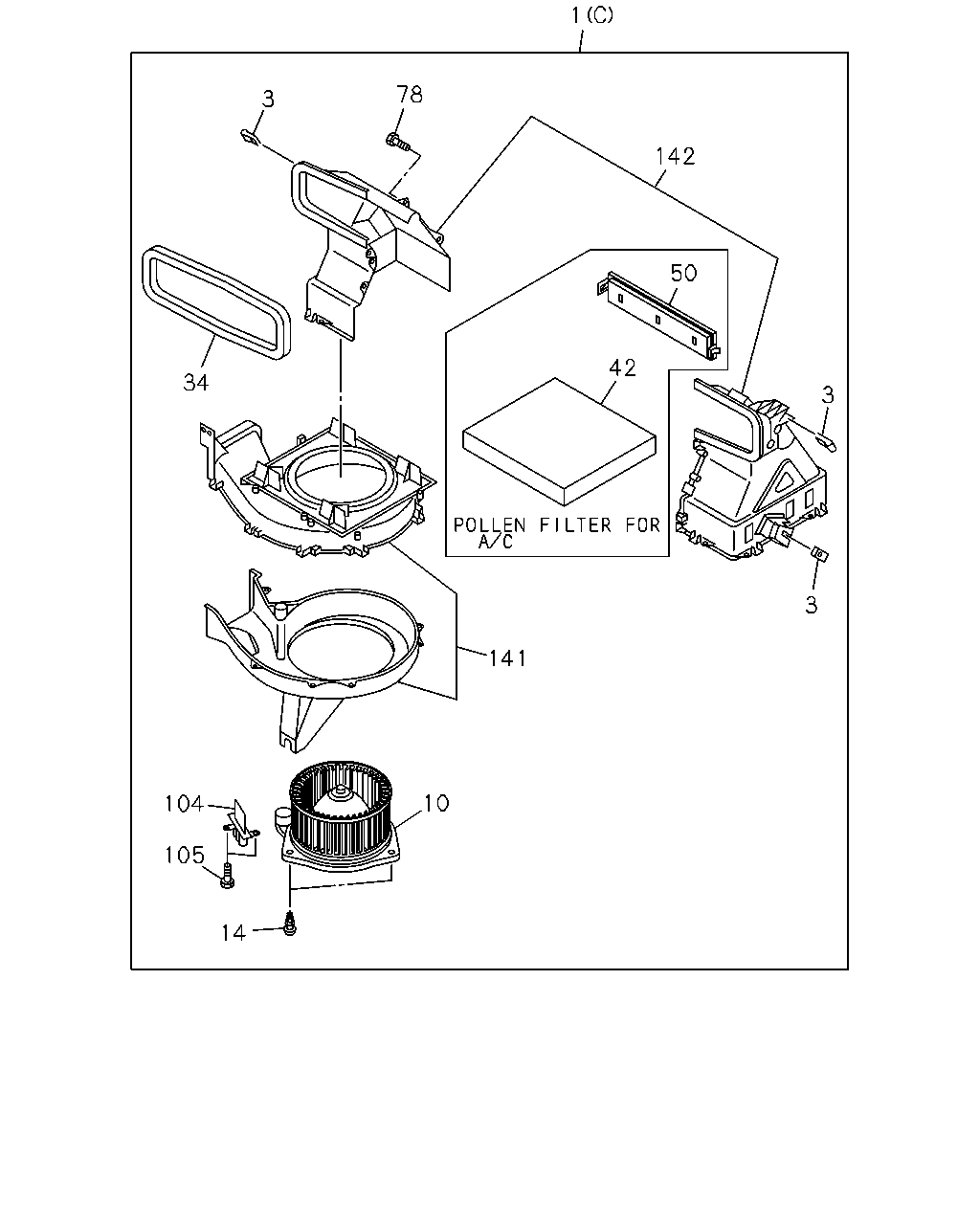

çizim 492527
1 142 50 3 3 42 141 10 14 105 104 34 3 78
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BLOWER ASM
AUTO COOLER SYSTEM<CJ2> POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) THA 		8-98233-046-1 01 1 1510- ● ● ● ●
1 BLOWER ASM
AUTO COOLER SYSTEM<CJ2> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) THA 		8-98233-041-1 01 1 1510- ● ● ● ●
1 BLOWER ASM
COOLER W/FRESH AIR<C65> POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) THA 		8-98233-045-1 01 1 1510- ● ● ● ● ●
1 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) THA 		8-98233-045-1 01 1 1510- ●
1 BLOWER ASM
COOLER W/FRESH AIR<C65> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) THA 		8-98233-040-1 01 1 1510- ● ● ● ● ●
1 BLOWER ASM
EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) THA 		8-98233-040-1 01 1 1510- ●
1 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-049-0 01 1 1510- ●
1 BLOWER ASM
COOLER WO/FRESH AIR<8NF> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C) THA 		8-98233-044-0 01 1 1510- ●
3 NUT; CASE
THA 		8-98139-394-1 03 1 1510- ● ● ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
THA 		8-98139-427-0 01 1 1510- ● ● ● ● ● ●
14 SCREW; COVER TO CASE
THA 		8-98139-395-1 03 1 1510- ● ● ● ● ● ●
34 LINING; BLOWER UNIT
THA 		8-98139-426-1 01 1 1510- ● ● ● ● ● ●
42 FILTER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98139-428-0 01 1 1510- ● ● ● ● ● ●
50 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-650-0 01 1 1510- ● ● ● ● ● ●
78 SCREW; CASE TO CASE
THA 		8-98139-395-1 01 1 1510- ● ● ● ● ● ●
104 RESISTOR; BLOWER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98183-234-0 01 1 1510- ● ● ● ●
104 RESISTOR; BLOWER UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98183-234-0 01 1 1510- ●
104 RESISTOR; BLOWER UNIT
THA 		8-98183-234-0 01 1 1510- ●
105 SCREW; RESISTOR
COOLER W/FRESH AIR<C65> THA 		8-98139-395-1 02 1 1510- ● ● ● ●
105 SCREW; RESISTOR
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98139-395-1 02 1 1510- ●
105 SCREW; RESISTOR
THA 		8-98139-395-1 02 1 1510- ●
141 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-641-0 01 1 1510- ● ● ● ●
141 CASE ASM; BLOWER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98233-640-0 01 1 1510- ● ● ● ●
141 CASE ASM; BLOWER UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98233-640-0 01 1 1510- ●
141 CASE ASM; BLOWER UNIT
THA 		8-98233-640-0 01 1 1510- ●
142 CASE ASM
AUTO COOLER SYSTEM<CJ2> POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-646-0 01 1 1510- ● ● ● ●
142 CASE ASM
AUTO COOLER SYSTEM<CJ2> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-643-0 01 1 1510- ● ● ● ●
142 CASE ASM
COOLER W/FRESH AIR<C65> POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-645-0 01 1 1510- ● ● ● ● ●
142 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-645-0 01 1 1510- ●
142 CASE ASM
COOLER W/FRESH AIR<C65> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-642-0 01 1 1510- ● ● ● ● ●
142 CASE ASM
EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-642-0 01 1 1510- ●
142 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR<8NF> THA 		8-98233-647-0 01 1 1510- ●
142 CASE ASM
COOLER WO/FRESH AIR<8NF> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-644-0 01 1 1510- ●

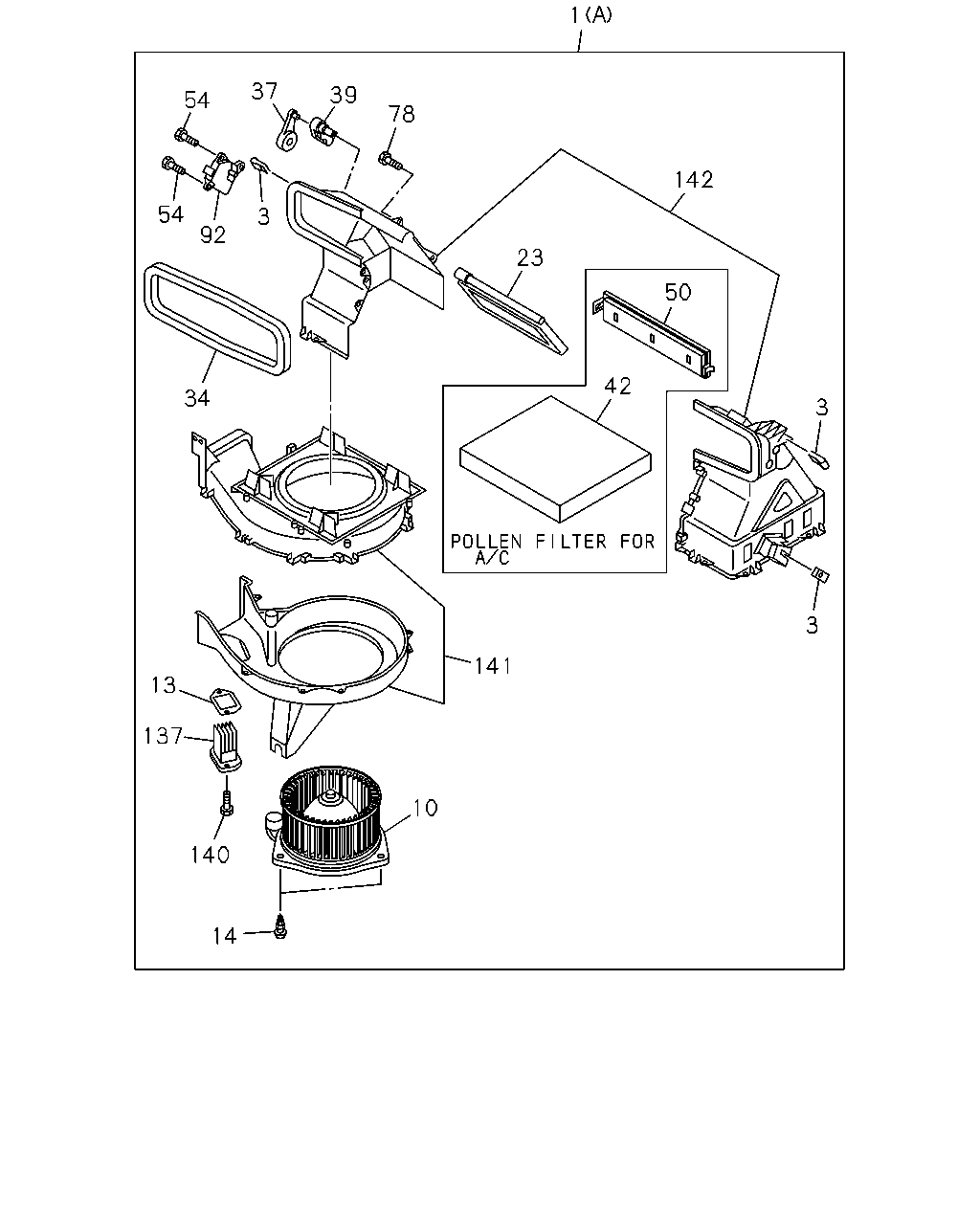

çizim 492536
1 142 50 3 42 23 3 78 3 37 39 54 54 34 92 13 137 140 10 14 141
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BLOWER ASM
AUTO COOLER SYSTEM<CJ2> POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) THA 		8-98233-046-1 01 1 1510- ● ● ● ●
1 BLOWER ASM
AUTO COOLER SYSTEM<CJ2> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) THA 		8-98233-041-1 01 1 1510- ● ● ● ●
1 BLOWER ASM
COOLER W/FRESH AIR<C65> POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) THA 		8-98233-045-1 01 1 1510- ● ● ● ● ●
1 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) THA 		8-98233-045-1 01 1 1510- ●
1 BLOWER ASM
COOLER W/FRESH AIR<C65> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) THA 		8-98233-040-1 01 1 1510- ● ● ● ● ●
1 BLOWER ASM
EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) THA 		8-98233-040-1 01 1 1510- ●
1 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-049-0 01 1 1510- ●
1 BLOWER ASM
COOLER WO/FRESH AIR<8NF> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C) THA 		8-98233-044-0 01 1 1510- ●
3 NUT; CASE
THA 		8-98139-394-1 03 1 1510- ● ● ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
THA 		8-98139-427-0 01 1 1510- ● ● ● ● ● ●
13 LINING; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98157-116-1 01 1 1510- ● ● ● ●
14 SCREW; COVER TO CASE
THA 		8-98139-395-1 03 1 1510- ● ● ● ● ● ●
23 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98294-586-0 01 1 1510- ● ● ● ●
23 SHUTTER; BLOWER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98294-586-0 01 1 1510- ●
23 SHUTTER; BLOWER UNIT
THA 		8-98294-586-0 01 1 1510- ●
34 LINING; BLOWER UNIT
THA 		8-98139-426-1 01 1 1510- ● ● ● ● ● ●
37 LEVER; MODE LEVER
AUTO COOLER SYSTEM<CJ2> THA 		8-98195-045-0 01 1 1510- ● ● ● ●
37 LEVER; MODE LEVER
COOLER W/FRESH AIR<C65> THA 		8-98139-417-0 01 1 1510- ● ● ● ● ●
37 LEVER; MODE LEVER
THA 		8-98139-417-0 01 1 1510- ●
39 LEVER; SHUTTER,BLOWER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-416-0 01 1 1510- ● ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98139-416-0 01 1 1510- ●
39 LEVER; SHUTTER,BLOWER UNIT
THA 		8-98139-416-0 01 1 1510- ●
42 FILTER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98139-428-0 01 1 1510- ● ● ● ● ● ●
50 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-650-0 01 1 1510- ● ● ● ● ● ●
54 SCREW; ACTUATOR TO CASE
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-395-1 02 1 1510- ● ● ● ●
78 SCREW; CASE TO CASE
THA 		8-98139-395-1 01 1 1510- ● ● ● ● ● ●
92 ACTUATOR; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-424-0 01 1 1510- ● ● ● ●
137 MODULE ASM; BLOWER
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-431-1 01 1 1510- ● ● ● ●
140 SCREW; MODULE
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-421-0 02 1 1510- ● ● ● ●
141 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-641-0 01 1 1510- ● ● ● ●
141 CASE ASM; BLOWER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98233-640-0 01 1 1510- ● ● ● ●
141 CASE ASM; BLOWER UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98233-640-0 01 1 1510- ●
141 CASE ASM; BLOWER UNIT
THA 		8-98233-640-0 01 1 1510- ●
142 CASE ASM
AUTO COOLER SYSTEM<CJ2> POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-646-0 01 1 1510- ● ● ● ●
142 CASE ASM
AUTO COOLER SYSTEM<CJ2> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-643-0 01 1 1510- ● ● ● ●
142 CASE ASM
COOLER W/FRESH AIR<C65> POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-645-0 01 1 1510- ● ● ● ● ●
142 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-645-0 01 1 1510- ●
142 CASE ASM
COOLER W/FRESH AIR<C65> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-642-0 01 1 1510- ● ● ● ● ●
142 CASE ASM
EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-642-0 01 1 1510- ●
142 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/FRESH AIR<8NF> THA 		8-98233-647-0 01 1 1510- ●
142 CASE ASM
COOLER WO/FRESH AIR<8NF> EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> THA 		8-98233-644-0 01 1 1510- ●
