8-71 — COMPRESSOR; AIR CONDITIONING (#166158) — 6 parça

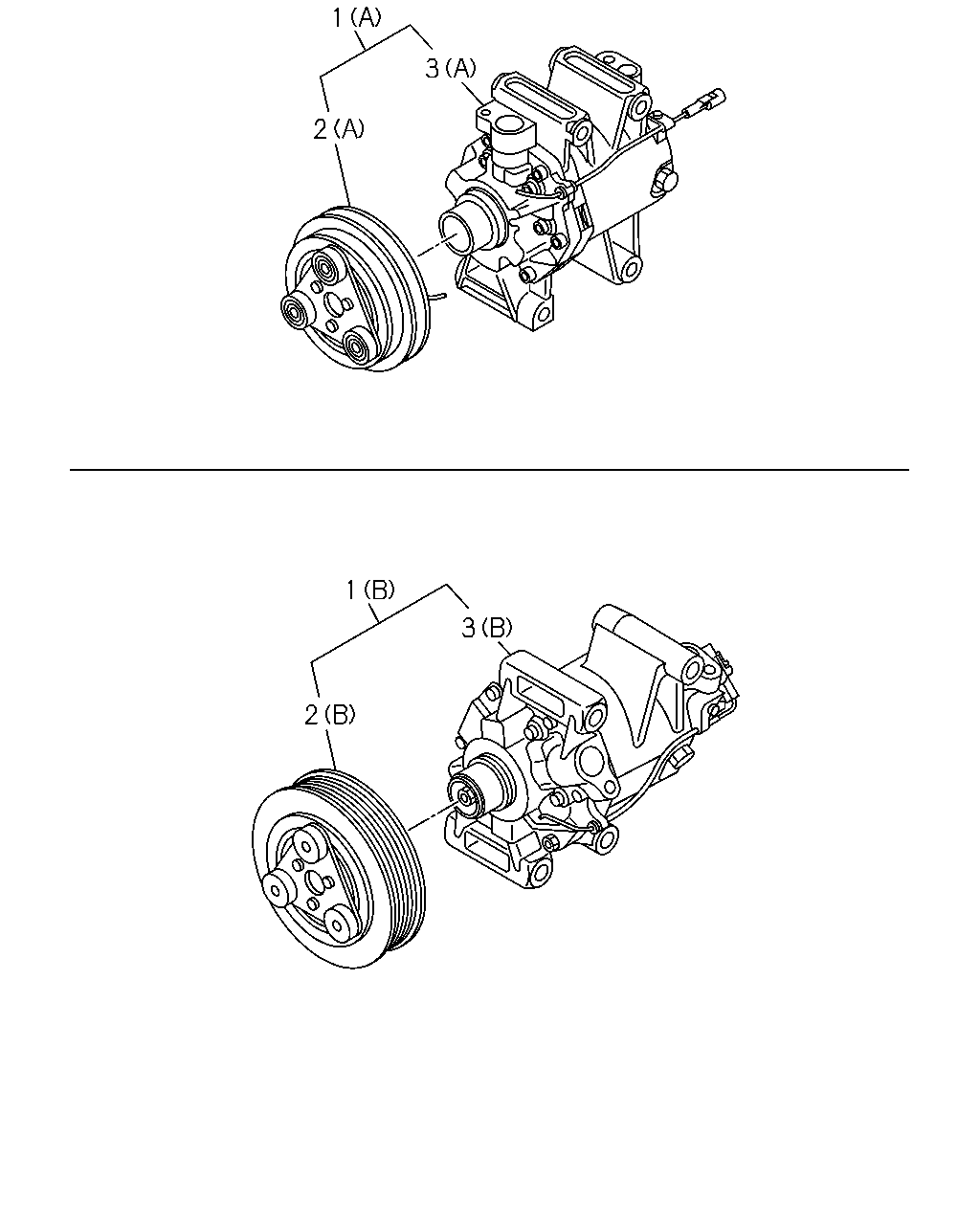

çizim 493107
1 3 2 3 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COMPRESSOR ASM; A/C
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) THA 		8-98102-824-1 01 1 1510- ● ● ● ● ● ●
1 COMPRESSOR ASM; A/C
RZ4E-TC ENG<RDZ> (B) THA 		8-98256-837-0 01 1 1510- ● ● ● ● ●
2 CLUTCH; MAGNET,A/C
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) THA 		8-98139-936-1 01 1 1510- ● ● ● ● ● ●
2 CLUTCH; MAGNET,A/C
RZ4E-TC ENG<RDZ> (B) THA 		8-98316-646-0 01 1 1510- ● ● ● ● ●
3 COMPRESSOR ASM; A/C
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) THA 		8-98139-935-1 01 1 1510- ● ● ● ● ● ●
3 COMPRESSOR ASM; A/C
RZ4E-TC ENG<RDZ> (B) THA 		8-98316-645-0 01 1 1510- ● ● ● ● ●
