Isuzu WW
▶
PICKUP
▶
TFR
▶
51632 - TFR/TFS THAILAND
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶
8-65 — CONTROL LEVER; HEATER AND AIR CON
(#166157) — 45 parça
Tümü
A - TFB5CF
B - TFB5WF
C - TFS5CF
D - TFS5WF
E - TFB5SF
F - TFS5SF
◀

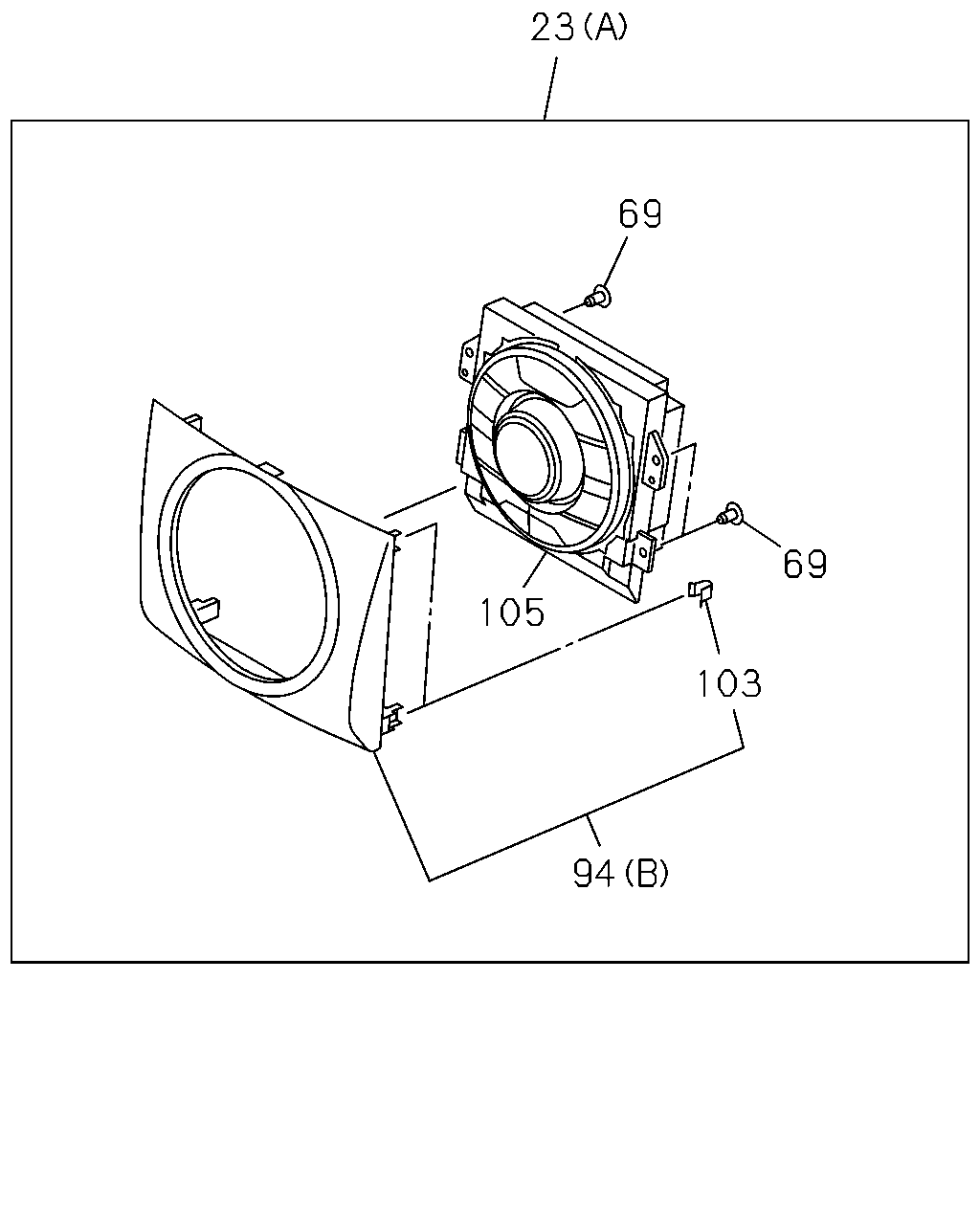

[865A] AUTO COOLER SYSTEM (17 parça)
[865A] COOLER W/FRESH AIR (28 parça)
▶
23
69
69
105
103
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
23
BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> (B) THA
8-98103-517-4
01
1
1510-
●
●
●
23
BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> (B) THA
8-98103-517-4
01
1
1510-
●
23
BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> EXC. REAR DEFOGGER<C49> (B) THA
8-98052-645-3
01
1
1510-
●
●
●
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2> (A) THA
8-98290-443-1
01
1
1510-
●
●
●
●
23
BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA
8-98052-641-4
01
1
1510-
●
●
●
23
BEZEL; CONT LEVER
COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA
8-98052-641-4
01
1
1510-
●
23
BEZEL; CONT LEVER
COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) THA
8-98052-637-3
01
1
1510-
●
●
●
23
BEZEL; CONT LEVER
COOLER W/FRESH AIR<C65> (B) THA
8-98052-637-3
01
1
1510-
●
23
BEZEL; CONT LEVER
(B) THA
8-98052-637-3
01
1
1510-
●
23
BEZEL; CONT LEVER
COOLER WO/FRESH AIR<8NF> (B) THA
8-98052-636-3
01
1
1510-
●
69
SCREW; BEZEL BRKT
M4X10 TAPPING THA
8-98164-986-0
04
1
1510-
●
●
●
●
●
●
94
PANEL; BEZEL
AUTO COOLER SYSTEM<CJ2> (B) THA
8-98141-789-0
01
1
1510-
●
●
●
●
94
PANEL; BEZEL
COOLER W/FRESH AIR<C65> (A) THA
8-98164-668-0
01
1
1510-
●
●
●
●
●
94
PANEL; BEZEL
(A) THA
8-98164-668-0
01
1
1510-
●
94
PANEL; BEZEL
COOLER WO/FRESH AIR<8NF> (A) THA
8-98064-614-0
01
1
1510-
●
103
CLIP
THA
8-98164-677-0
04
1
1510-
●
●
●
●
●
●
105
SWITCH ASM; A/C
AUTO COOLER SYSTEM<CJ2> THA
8-98322-458-0
01
1
1510-
●
●
●
●
23
69
96
96
103
69
106
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
23
BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> (B) THA
8-98103-517-4
01
1
1510-
●
●
●
23
BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> (B) THA
8-98103-517-4
01
1
1510-
●
23
BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> EXC. REAR DEFOGGER<C49> (B) THA
8-98052-645-3
01
1
1510-
●
●
●
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2> (A) THA
8-98290-443-1
01
1
1510-
●
●
●
●
23
BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA
8-98052-641-4
01
1
1510-
●
●
●
23
BEZEL; CONT LEVER
COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA
8-98052-641-4
01
1
1510-
●
23
BEZEL; CONT LEVER
COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) THA
8-98052-637-3
01
1
1510-
●
●
●
23
BEZEL; CONT LEVER
COOLER W/FRESH AIR<C65> (B) THA
8-98052-637-3
01
1
1510-
●
23
BEZEL; CONT LEVER
(B) THA
8-98052-637-3
01
1
1510-
●
23
BEZEL; CONT LEVER
COOLER WO/FRESH AIR<8NF> (B) THA
8-98052-636-3
01
1
1510-
●
69
SCREW; BEZEL BRKT
M4X10 TAPPING THA
8-98164-986-0
04
1
1510-
●
●
●
●
●
●
94
PANEL; BEZEL
AUTO COOLER SYSTEM<CJ2> (B) THA
8-98141-789-0
01
1
1510-
●
●
●
●
94
PANEL; BEZEL
COOLER W/FRESH AIR<C65> (A) THA
8-98164-668-0
01
1
1510-
●
●
●
●
●
94
PANEL; BEZEL
(A) THA
8-98164-668-0
01
1
1510-
●
94
PANEL; BEZEL
COOLER WO/FRESH AIR<8NF> (A) THA
8-98064-614-0
01
1
1510-
●
96
BULB ASM; BEZEL
COOLER W/FRESH AIR<C65> THA
8-98156-188-0
02
1
1510-
●
●
●
●
96
BULB ASM; BEZEL
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA
8-98156-188-0
02
1
1510-
●
96
BULB ASM; BEZEL
THA
8-98156-188-0
02
1
1510-
●
103
CLIP
THA
8-98164-677-0
04
1
1510-
●
●
●
●
●
●
106
CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> THA
8-98142-033-0
01
1
1510-
●
●
●
106
CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> THA
8-98142-033-0
01
1
1510-
●
106
CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> EXC. REAR DEFOGGER<C49> THA
8-98142-042-0
01
1
1510-
●
●
●
106
CONTROL SUB ASM; HTR & A/C
REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> THA
8-98142-039-0
01
1
1510-
●
●
●
106
CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> THA
8-98142-039-0
01
1
1510-
●
106
CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> THA
8-98142-036-0
01
1
1510-
●
●
●
106
CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR<C65> THA
8-98142-036-0
01
1
1510-
●
106
CONTROL SUB ASM; HTR & A/C
THA
8-98142-036-0
01
1
1510-
●
106
CONTROL SUB ASM; HTR & A/C
COOLER WO/FRESH AIR<8NF> THA
8-98142-030-0
01
1
1510-
●
