◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#166156) — 119 parça

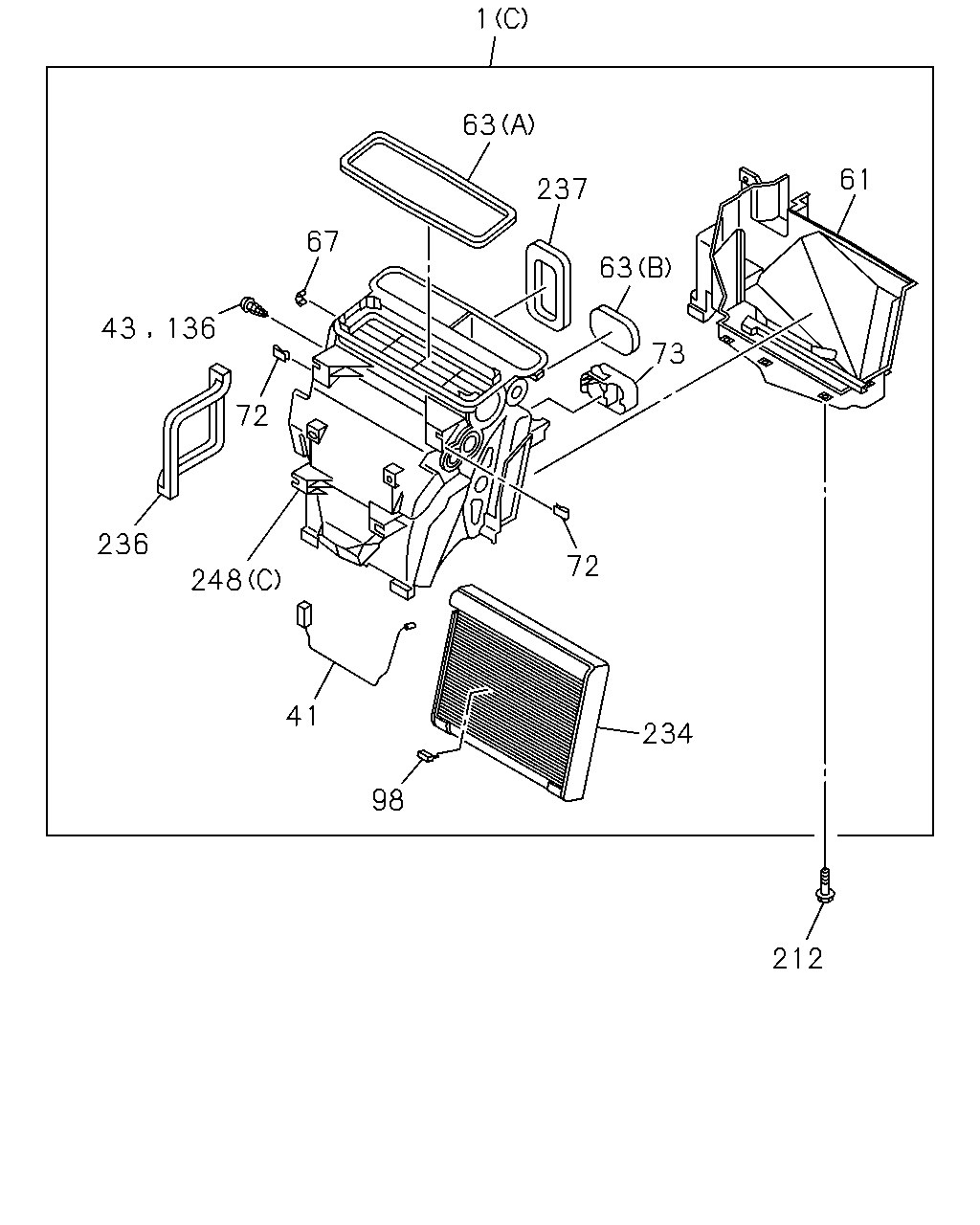

çizim 492550
61 1 63 237 63 73 72 67 43 136 72 236 248 41 98 234 212
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEATER UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98279-378-0 01 1 1510- ● ● ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98279-364-0 01 1 1510- ● ● ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98279-364-0 01 1 1510- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98279-364-0 01 1 1510- ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DELETE<8HH> (B) THA 		8-98279-353-0 01 1 1510- ●
1 HEATER UNIT
REAR BODY DELETE<8HH> (B) THA 		8-98279-353-0 01 1 1510- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98279-363-0 01 1 1510- ●
1 HEATER UNIT
REAR BODY DELETE<8HH> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98279-352-0 01 1 1510- ●
41 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-382-0 01 1 1510- ● ● ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98157-121-0 01 1 1510- ● ● ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98157-121-0 01 1 1510- ●
41 THERMOSTAT; HTR UNIT
THA 		8-98157-121-0 01 1 1510- ●
43 SCREW; CASE,HTR UNIT
THA 		8-98233-593-0 15 1 1510- ● ● ● ● ● ●
61 CASE; HTR UNIT
THA 		8-98233-572-0 01 1 1510- ● ● ● ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98139-358-0 02 1 1510- ● ● ● ●
63 LINING; HTR UNIT
(B) THA 		8-98157-118-1 01 1 1510- ● ● ● ● ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA 		8-98139-358-0 01 1 1510- ● ● ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) THA 		8-98139-358-0 01 1 1510- ●
63 LINING; HTR UNIT
(A) THA 		8-98139-358-0 01 1 1510- ●
67 CLIP; HTR UNIT
THA 		8-98157-123-0 01 1 1510- ● ● ● ● ● ●
72 NUT; CASE,HTR UNIT
THA 		8-98139-394-1 03 1 1510- ● ● ● ● ● ●
73 PLATE; HTR UNIT
THA 		8-98233-591-0 01 1 1510- ● ● ● ● ● ●
98 CLIP; HTR UNIT
THA 		8-98157-122-0 01 1 1510- ● ● ● ● ● ●
136 SCREW; PLATE
THA 		8-98233-593-0 02 1 1510- ● ● ● ● ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE THA 		0-28650-620-0 05 1 1510- ● ● ● ● ● ●
234 EVAPORATOR ASM; HEATER
THA 		8-98291-531-0 01 1 1510- ● ● ● ● ● ●
236 GASKET; HEATER
THA 		8-98139-357-0 01 1 1510- ● ● ● ● ● ●
237 INSULATOR; EVAPORATOR
THA 		8-98139-360-1 01 1 1510- ● ● ● ● ● ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98233-570-0 01 1 1510- ● ● ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-564-0 01 1 1510- ● ● ● ● ●
248 CASE ASM; HTR UNIT
(B) THA 		8-98233-564-0 01 1 1510- ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-563-0 01 1 1510- ●

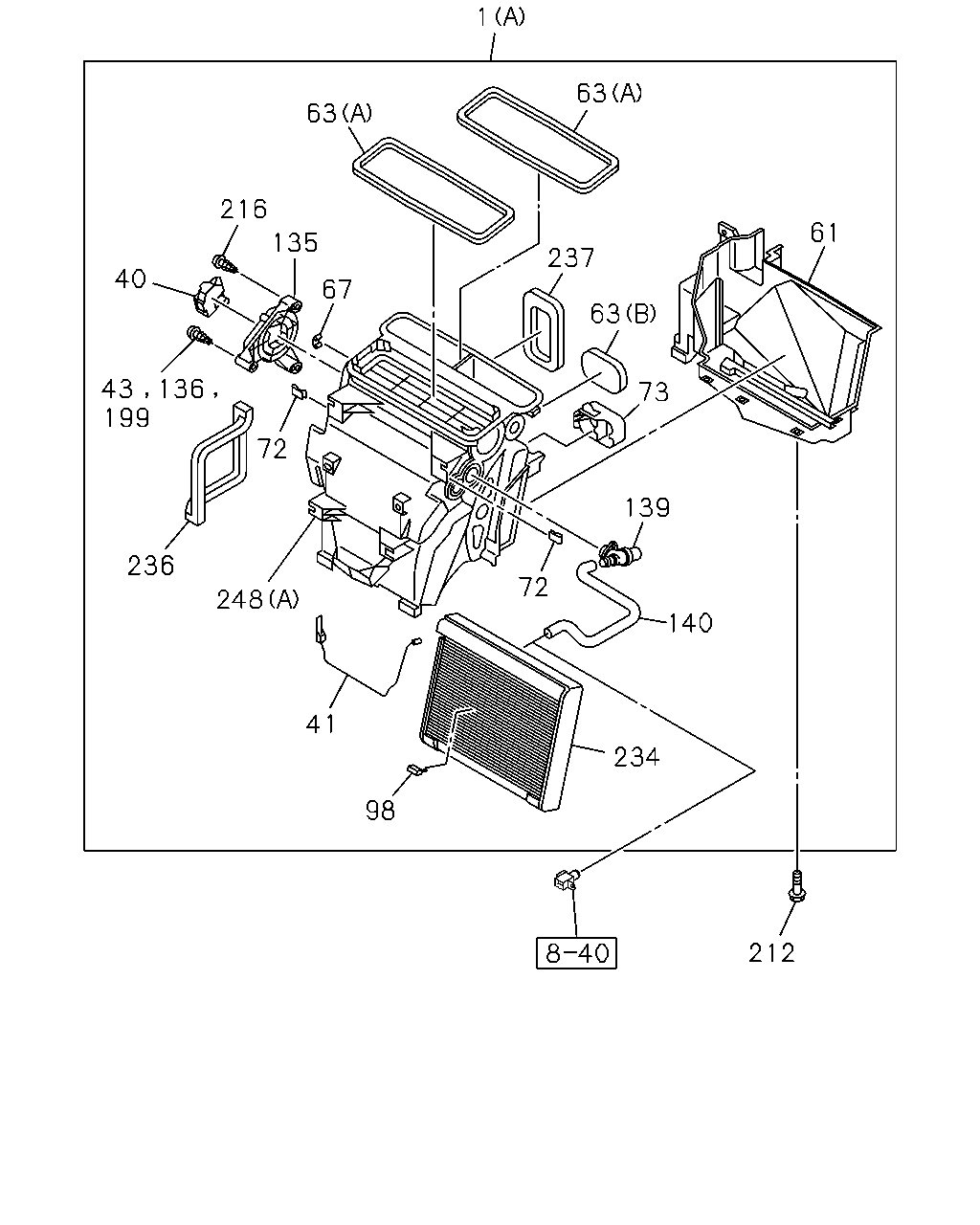

çizim 492563
212 234 140 72 98 41 248 236 199 43 136 216 40 135 63 67 1 63 237 63 73 139 61 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEATER UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98279-378-0 01 1 1510- ● ● ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98279-364-0 01 1 1510- ● ● ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98279-364-0 01 1 1510- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98279-364-0 01 1 1510- ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DELETE<8HH> (B) THA 		8-98279-353-0 01 1 1510- ●
1 HEATER UNIT
REAR BODY DELETE<8HH> (B) THA 		8-98279-353-0 01 1 1510- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98279-363-0 01 1 1510- ●
1 HEATER UNIT
REAR BODY DELETE<8HH> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98279-352-0 01 1 1510- ●
40 ACTUATOR; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-385-0 01 1 1510- ● ● ● ●
41 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-382-0 01 1 1510- ● ● ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98157-121-0 01 1 1510- ● ● ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98157-121-0 01 1 1510- ●
41 THERMOSTAT; HTR UNIT
THA 		8-98157-121-0 01 1 1510- ●
43 SCREW; CASE,HTR UNIT
THA 		8-98233-593-0 15 1 1510- ● ● ● ● ● ●
61 CASE; HTR UNIT
THA 		8-98233-572-0 01 1 1510- ● ● ● ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98139-358-0 02 1 1510- ● ● ● ●
63 LINING; HTR UNIT
(B) THA 		8-98157-118-1 01 1 1510- ● ● ● ● ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA 		8-98139-358-0 01 1 1510- ● ● ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) THA 		8-98139-358-0 01 1 1510- ●
63 LINING; HTR UNIT
(A) THA 		8-98139-358-0 01 1 1510- ●
67 CLIP; HTR UNIT
THA 		8-98157-123-0 01 1 1510- ● ● ● ● ● ●
72 NUT; CASE,HTR UNIT
THA 		8-98139-394-1 03 1 1510- ● ● ● ● ● ●
73 PLATE; HTR UNIT
THA 		8-98233-591-0 01 1 1510- ● ● ● ● ● ●
98 CLIP; HTR UNIT
THA 		8-98157-122-0 01 1 1510- ● ● ● ● ● ●
135 COVER; HTR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-377-0 01 1 1510- ● ● ● ●
135 COVER; HTR
COOLER W/FRESH AIR<C65> THA 		8-98139-377-0 01 1 1510- ●
135 COVER; HTR
THA 		8-98139-377-0 01 1 1510- ●
136 SCREW; PLATE
THA 		8-98233-593-0 02 1 1510- ● ● ● ● ● ●
139 ASPIRATOR; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-392-1 01 1 1510- ● ● ● ●
140 HOSE; AIR
AUTO COOLER SYSTEM<CJ2> THA 		8-98274-187-0 01 1 1510- ● ● ● ●
199 SCREW; ACTUATOR
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-593-0 02 1 1510- ● ● ● ●
199 SCREW; ACTUATOR
COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1510- ● ● ● ● ●
199 SCREW; ACTUATOR
THA 		8-98233-593-0 03 1 1510- ●
212 BOLT; HTR UNIT
M6X20 FLANGE THA 		0-28650-620-0 05 1 1510- ● ● ● ● ● ●
216 SCREW; COVER,HEATER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1510- ● ● ● ●
216 SCREW; COVER,HEATER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1510- ●
216 SCREW; COVER,HEATER UNIT
THA 		8-98233-593-0 03 1 1510- ●
234 EVAPORATOR ASM; HEATER
THA 		8-98291-531-0 01 1 1510- ● ● ● ● ● ●
236 GASKET; HEATER
THA 		8-98139-357-0 01 1 1510- ● ● ● ● ● ●
237 INSULATOR; EVAPORATOR
THA 		8-98139-360-1 01 1 1510- ● ● ● ● ● ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98233-570-0 01 1 1510- ● ● ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-564-0 01 1 1510- ● ● ● ● ●
248 CASE ASM; HTR UNIT
(B) THA 		8-98233-564-0 01 1 1510- ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-563-0 01 1 1510- ●

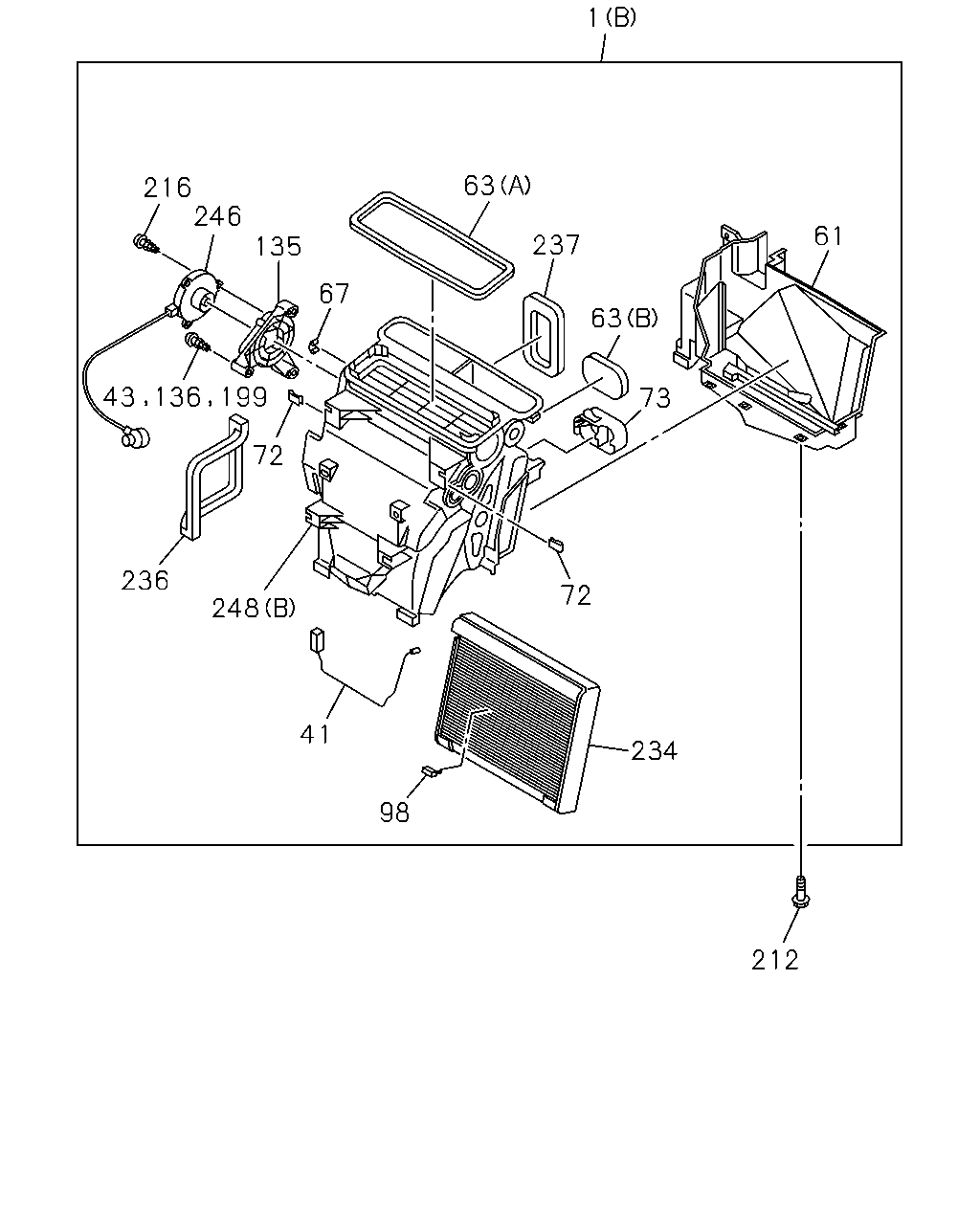

çizim 492564
1 61 63 237 63 73 72 234 212 98 41 248 236 72 43 136 199 67 135 246 216
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEATER UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98279-378-0 01 1 1510- ● ● ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98279-364-0 01 1 1510- ● ● ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98279-364-0 01 1 1510- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98279-364-0 01 1 1510- ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DELETE<8HH> (B) THA 		8-98279-353-0 01 1 1510- ●
1 HEATER UNIT
REAR BODY DELETE<8HH> (B) THA 		8-98279-353-0 01 1 1510- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98279-363-0 01 1 1510- ●
1 HEATER UNIT
REAR BODY DELETE<8HH> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98279-352-0 01 1 1510- ●
41 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-382-0 01 1 1510- ● ● ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98157-121-0 01 1 1510- ● ● ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98157-121-0 01 1 1510- ●
41 THERMOSTAT; HTR UNIT
THA 		8-98157-121-0 01 1 1510- ●
43 SCREW; CASE,HTR UNIT
THA 		8-98233-593-0 15 1 1510- ● ● ● ● ● ●
61 CASE; HTR UNIT
THA 		8-98233-572-0 01 1 1510- ● ● ● ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98139-358-0 02 1 1510- ● ● ● ●
63 LINING; HTR UNIT
(B) THA 		8-98157-118-1 01 1 1510- ● ● ● ● ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA 		8-98139-358-0 01 1 1510- ● ● ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) THA 		8-98139-358-0 01 1 1510- ●
63 LINING; HTR UNIT
(A) THA 		8-98139-358-0 01 1 1510- ●
67 CLIP; HTR UNIT
THA 		8-98157-123-0 01 1 1510- ● ● ● ● ● ●
72 NUT; CASE,HTR UNIT
THA 		8-98139-394-1 03 1 1510- ● ● ● ● ● ●
73 PLATE; HTR UNIT
THA 		8-98233-591-0 01 1 1510- ● ● ● ● ● ●
98 CLIP; HTR UNIT
THA 		8-98157-122-0 01 1 1510- ● ● ● ● ● ●
135 COVER; HTR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-377-0 01 1 1510- ● ● ● ●
135 COVER; HTR
COOLER W/FRESH AIR<C65> THA 		8-98139-377-0 01 1 1510- ●
135 COVER; HTR
THA 		8-98139-377-0 01 1 1510- ●
136 SCREW; PLATE
THA 		8-98233-593-0 02 1 1510- ● ● ● ● ● ●
199 SCREW; ACTUATOR
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-593-0 02 1 1510- ● ● ● ●
199 SCREW; ACTUATOR
COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1510- ● ● ● ● ●
199 SCREW; ACTUATOR
THA 		8-98233-593-0 03 1 1510- ●
212 BOLT; HTR UNIT
M6X20 FLANGE THA 		0-28650-620-0 05 1 1510- ● ● ● ● ● ●
216 SCREW; COVER,HEATER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1510- ● ● ● ●
216 SCREW; COVER,HEATER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1510- ●
216 SCREW; COVER,HEATER UNIT
THA 		8-98233-593-0 03 1 1510- ●
234 EVAPORATOR ASM; HEATER
THA 		8-98291-531-0 01 1 1510- ● ● ● ● ● ●
236 GASKET; HEATER
THA 		8-98139-357-0 01 1 1510- ● ● ● ● ● ●
237 INSULATOR; EVAPORATOR
THA 		8-98139-360-1 01 1 1510- ● ● ● ● ● ●
246 ACTUATOR; MODE
COOLER W/FRESH AIR<C65> THA 		8-98139-397-1 01 1 1510- ● ● ● ● ●
246 ACTUATOR; MODE
THA 		8-98139-397-1 01 1 1510- ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98233-570-0 01 1 1510- ● ● ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-564-0 01 1 1510- ● ● ● ● ●
248 CASE ASM; HTR UNIT
(B) THA 		8-98233-564-0 01 1 1510- ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-563-0 01 1 1510- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
