◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#166154) — 23 parça

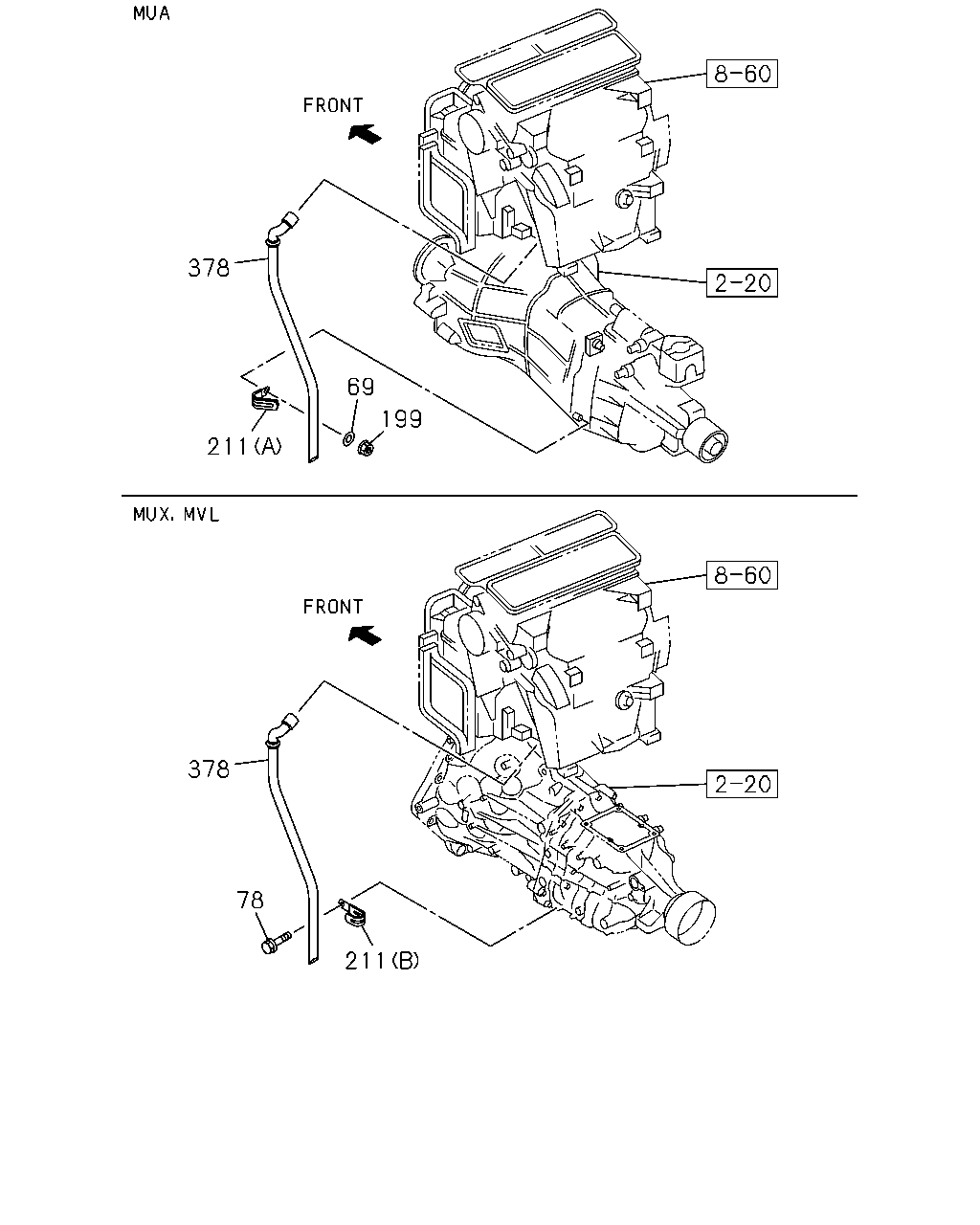

çizim 492559
378 211 69 199 378 78 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
69 WASHER; PL,EVAP
M/T MUA 5 SPEED 5H<MWQ> ID=10.5 OD=22 IMA 		0-91614-610-0 01 1 1510- ● ● ● ●
78 BOLT; EVAP,A/C
M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> M6X12 W/LK&PL WASHER THA 		0-52000-612-0 01 1 1510- ● ● ● ● ● ●
199 NUT
M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA 		0-91180-110-0 01 1 1510- ● ● ● ●
211 CLIP; HOSE
M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98173-569-0 01 1 1510- ● ● ● ●
211 CLIP; HOSE
M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> (B) ID=22 L=35 THA 		8-97375-643-0 01 1 1510- ● ● ● ● ● ●
378 HOSE; DRAIN,EVAPORATOR
THA 		8-98163-367-2 01 1 1510- ● ● ● ● ● ●

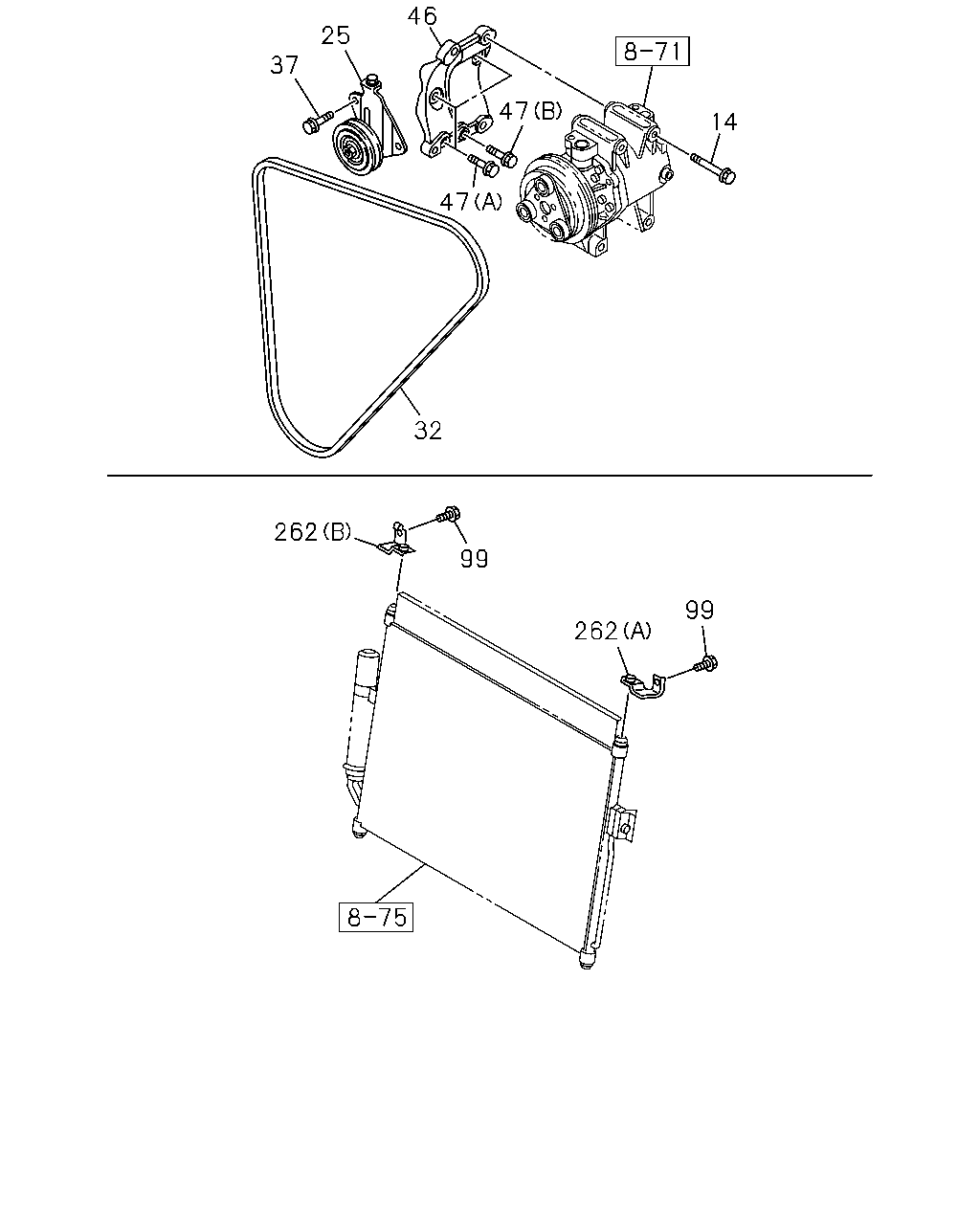

çizim 492570
46 14 47 47 25 37 32 262 99 262 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 BOLT; CMPR
EXC. PROVISIONAL PACKAGE SPEC<BCC> M10X100 FLANGE THA 		0-28151-000-0 04 1 1510- ● ● ● ● ●
14 BOLT; CMPR
PROVISIONAL PACKAGE SPEC<BCC> M10X95 FLANGE IMA 		8-94397-027-1 04 1 1510- ● ● ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98205-963-0 01 1 1510- ● ● ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98130-204-0 01 1 1510- ● ● ● ● ●
32 BELT; A/C CMPR
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> L=1445 MITSUBOSHI THA 		8-97985-121-0 01 1 1510- ● ● ● ● ● ●
32 BELT; A/C CMPR
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> L=1445 BANDO THA 		8-97985-122-0 01 1 1510- ● ● ● ● ● ●
32 BELT; A/C CMPR
RZ4E-TC ENG<RDZ> L=1850 MITSUBOSHI THA 		8-98248-191-2 01 1 1510- ● ● ● ● ●
37 BOLT; PULLEY BRKT
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M8X16 FLANGE THA 		0-28050-816-0 02 1 1510- ● ● ● ● ● ●
46 BRACKET; CMPR
4JK1-TCS ENG<LKZ> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-97371-258-0 01 1 1510- ● ● ●
46 BRACKET; CMPR
4JK1-TCS ENG<LKZ> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-97371-258-0 01 1 1510- ●
46 BRACKET; CMPR
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98226-839-0 01 1 1510- ● ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JK1-TCS ENG<LKZ> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) M8X25 FLANGE THA 		0-28650-825-0 03 1 1510- ● ● ● ●
47 BOLT; BRKT TO BODY
4JK1-TCS ENG<LKZ> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) M8X35 FLANGE THA 		8-98049-562-0 01 1 1510- ● ● ● ●
47 BOLT; BRKT TO BODY
PROVISIONAL PACKAGE SPEC<BCC> (A) M8X25 FLANGE THA 		0-28650-825-0 04 1 1510- ● ● ● ● ● ●
99 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 02 1 1510- ● ● ● ● ● ●
262 BRACKET; CONDENSER
(A) THA 		8-98103-644-0 01 1 1510- ● ● ● ● ● ●
262 BRACKET; CONDENSER
(B) THA 		8-98103-645-0 01 1 1510- ● ● ● ● ● ●
