8-28 — CHASSIS ELECTRICAL (#166151) — 27 parça

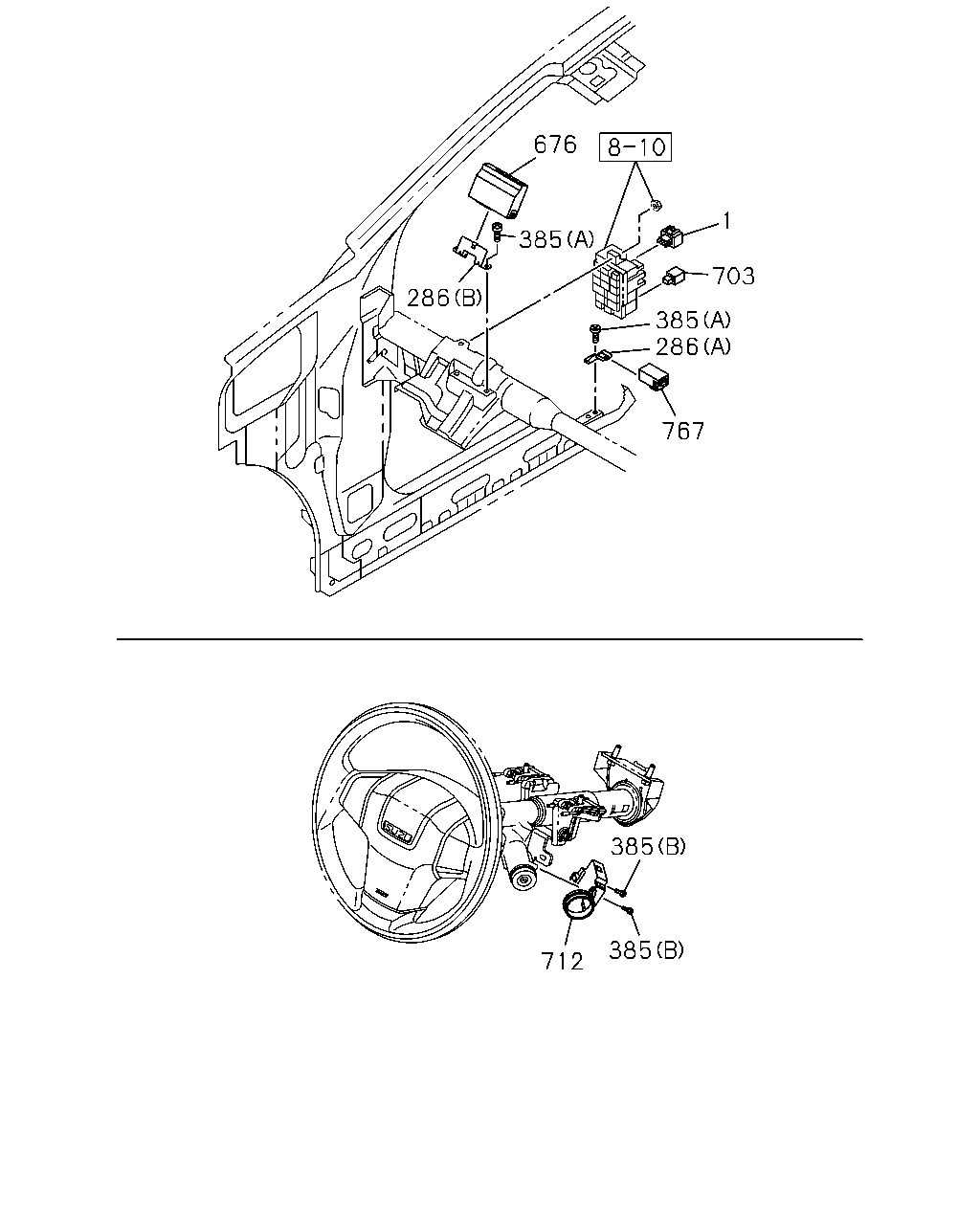

çizim 492546
676 1 385 703 385 767 286 385 385 712 286
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 UNIT; FLASHER
THA 		8-98270-253-0 01 1 1510- ● ● ● ● ● ●
286 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98102-502-2 01 1 1510- ● ● ● ●
286 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA 		8-98102-503-0 01 1 1510- ● ● ● ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3> (A) M5X16 TAPPING THA 		8-98167-449-0 02 1 1510- ● ● ● ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) M5X16 TAPPING THA 		8-98167-449-0 01 1 1510- ● ● ● ●
385 BOLT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1510- ● ● ●
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1510- ●
385 BOLT; CONT UNIT
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1510- ●
676 CONTROL UNIT; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98306-471-0 01 1 1510- ● ● ● ●
703 TIMER; DEFOGGER
REAR DEFOGGER<C49> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMA 		8-98269-669-0 01 1 1510- ● ● ●
703 TIMER; DEFOGGER
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMA 		8-98269-669-0 01 1 1510- ●
712 CONTROL UNIT; ANTI THEFT
4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMA 		8-98255-847-0 01 1 1510- ● ● ● ●
712 CONTROL UNIT; ANTI THEFT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> IMA 		8-98255-847-0 01 1 1510- ● ● ●
712 CONTROL UNIT; ANTI THEFT
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> IMA 		8-98255-847-0 01 1 1510- ●
767 RECEIVER ASM; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98306-421-0 01 1 1510- ● ● ● ●
767 RECEIVER ASM; KEYLESS ENTRY
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98076-338-1 01 1 1510- ● ● ● ●

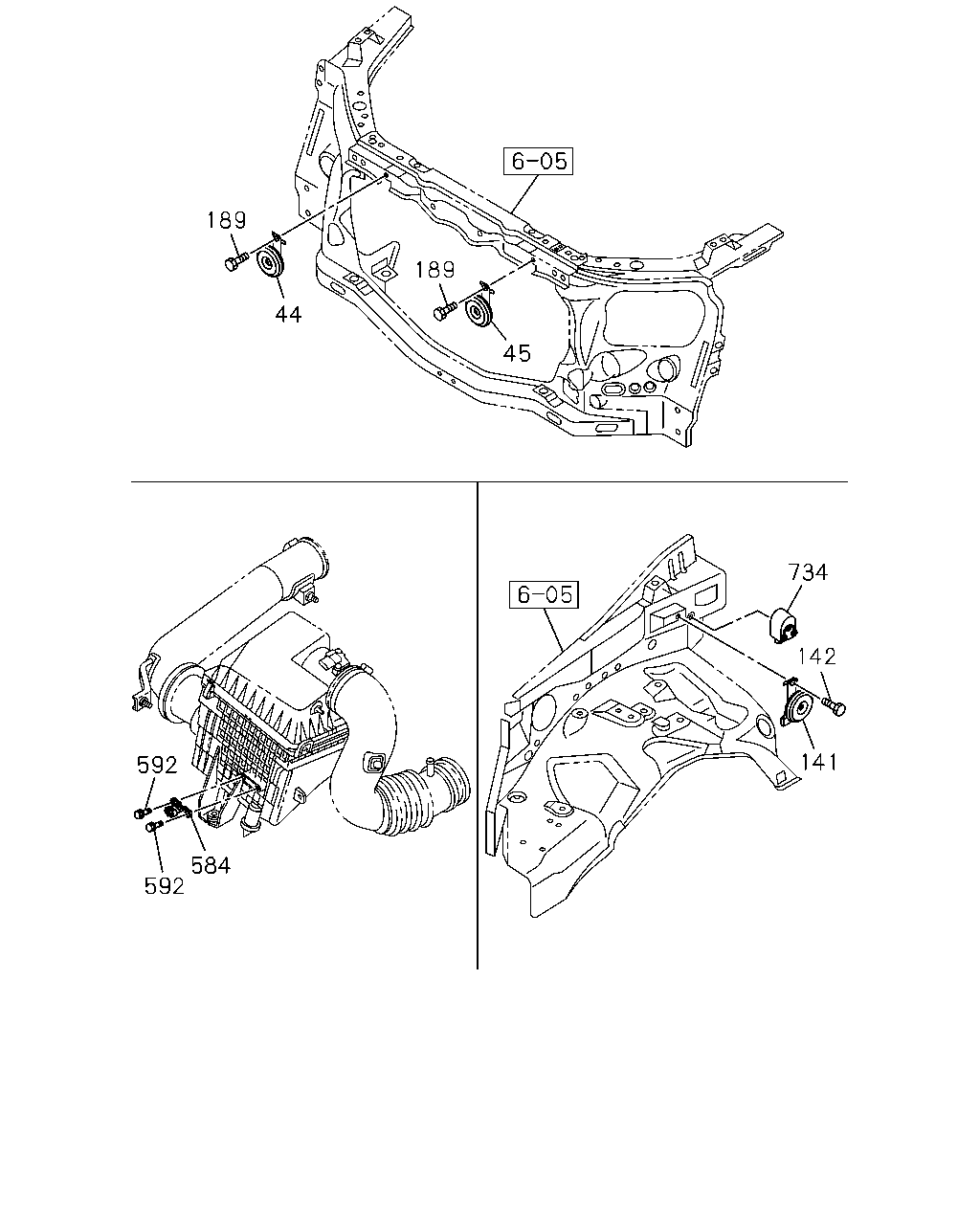

çizim 492555
189 44 189 45 592 584 592 734 142 141
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 HORN; HIGH NOTE
DUAL TONE HORN<U05> THA 		8-98084-022-1 01 1 1510- ● ● ● ● ●
44 HORN; HIGH NOTE
THA 		8-98084-022-1 01 1 1510- ●
45 HORN; LOW NOTE
THA 		8-98084-023-0 01 1 1510- ● ● ● ● ● ●
141 HORN; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98164-588-0 01 1 1510- ● ● ● ●
142 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1510- ● ● ● ●
189 BOLT; HORN
M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1510- ● ● ● ● ● ●
189 BOLT; HORN
DUAL TONE HORN<U05> M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1510- ● ● ● ● ●
189 BOLT; HORN
M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1510- ●
584 SENSOR; PRESSURE
IMA 		8-98020-514-0 01 1 1510- ● ● ● ● ● ●
592 BOLT; SENSOR
M6X16 FLANGE THA 		0-28650-616-0 02 1 1510- ● ● ● ● ● ●
734 ALARM; MULTI
PASSIVE ENTRY AND START SYSTEM<AP3> IMA 		8-98192-897-0 01 1 1510- ● ● ● ●
