◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#166149) — 38 parça

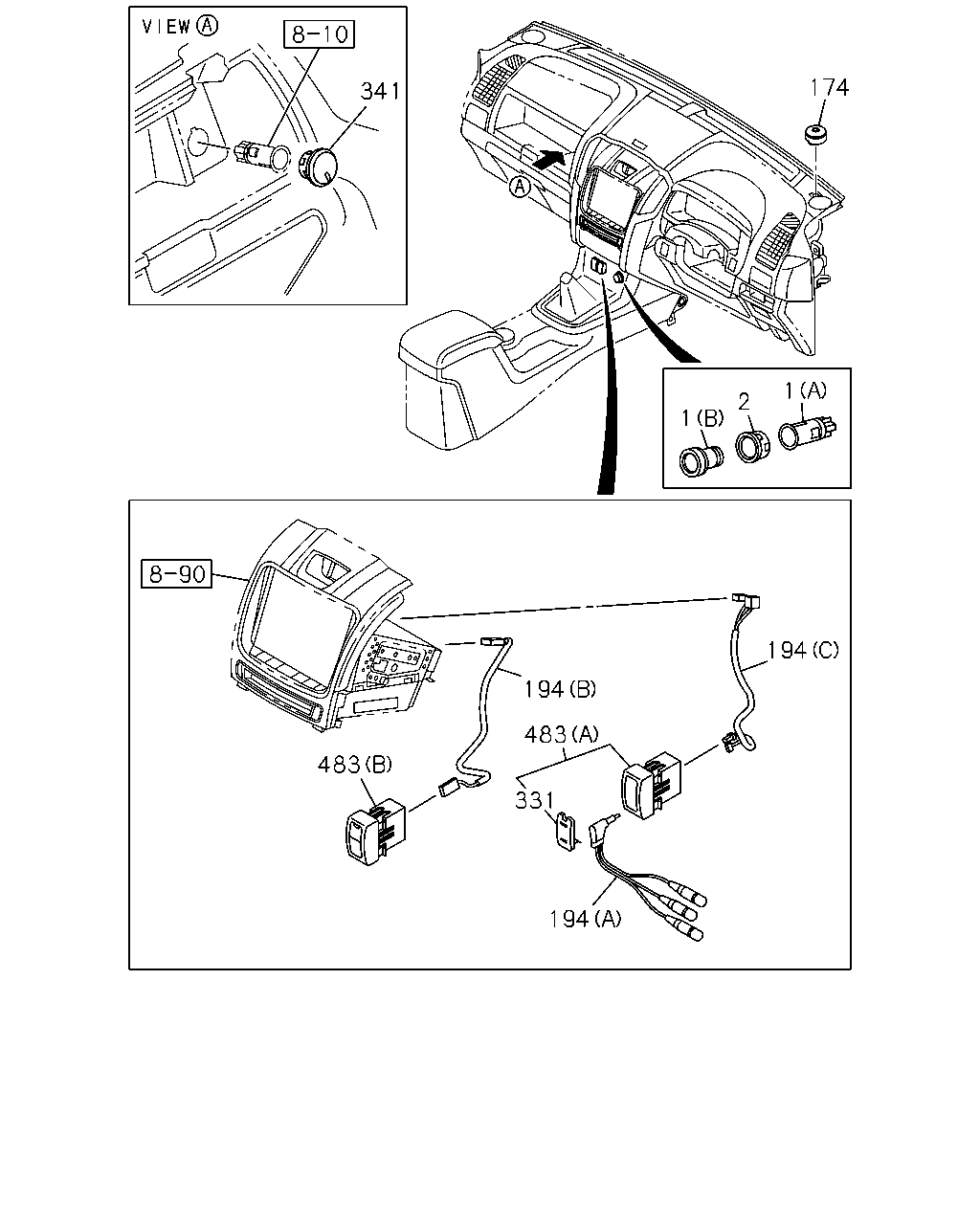

çizim 492631
483 194 483 331 194 194 1 2 1 174 341
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LIGHTER; CIGAR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> (A) IMA 		8-98123-114-0 01 1 1510- ● ●
1 LIGHTER; CIGAR
INTERIOR DELUXE<RBB> (A) IMA 		8-98123-114-0 01 1 1510- ● ●
1 LIGHTER; CIGAR
(A) IMA 		8-98123-114-0 01 1 1510- ●
1 LIGHTER; CIGAR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> (B) IMA 		8-98123-117-0 01 1 1510- ● ●
1 LIGHTER; CIGAR
INTERIOR DELUXE<RBB> (B) IMA 		8-98123-117-0 01 1 1510- ● ●
1 LIGHTER; CIGAR
(B) IMA 		8-98123-117-0 01 1 1510- ●
2 BEZEL; CIGAR LIGHTER
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> IMA 		8-98123-118-0 01 1 1510- ● ●
2 BEZEL; CIGAR LIGHTER
INTERIOR DELUXE<RBB> IMA 		8-98123-118-0 01 1 1510- ● ●
2 BEZEL; CIGAR LIGHTER
IMA 		8-98123-118-0 01 1 1510- ●
174 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98153-855-0 01 1 1510- ● ● ● ●
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (C) THA 		8-98317-311-0 01 1 1510- ● ● ● ●
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (A) THA 		8-98209-351-0 01 1 1510- ● ● ● ●
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (B) THA 		8-98272-744-0 01 1 1510- ● ● ● ●
331 COVER; SW
AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA 		8-98319-655-0 01 1 1510- ● ● ● ●
341 COVER ASM
ACCESSORY SOCKET FRT CONSOLE<KC5> IMA 		8-98123-123-0 01 1 1510- ● ●
341 COVER ASM
IMA 		8-98123-123-0 01 1 1510- ● ● ● ●
341 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> THA 		8-98142-409-1 01 1 1510- ● ●
483 SWITCH
AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (A) THA 		8-98317-310-0 01 1 1510- ● ● ● ●
483 SWITCH
AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (B) THA 		8-98272-745-0 01 1 1510- ● ● ● ●

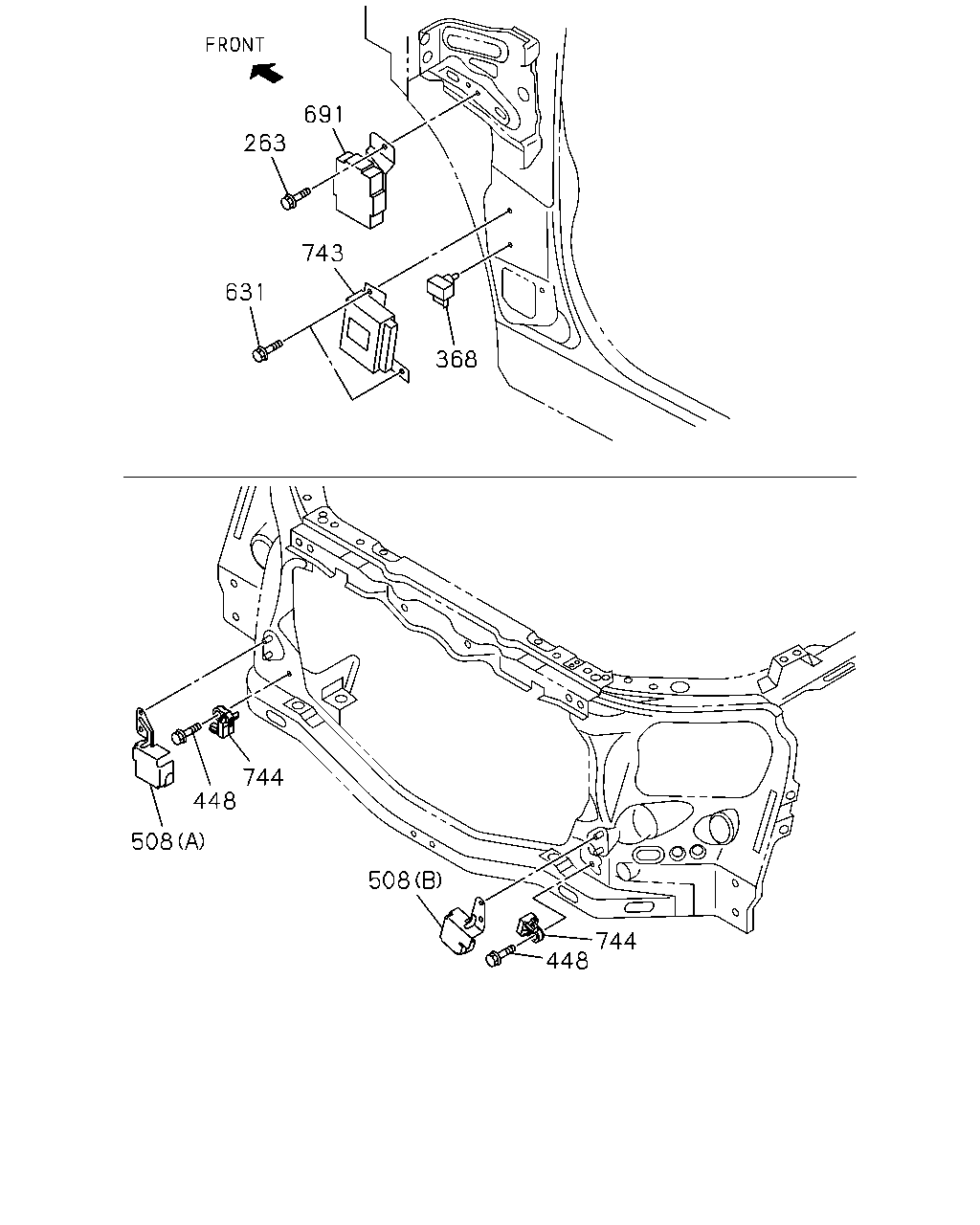

çizim 492641
691 263 743 631 368 744 448 508 508 744 448
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
263 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1510- ● ● ●
368 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98269-673-0 01 1 1510- ● ● ● ● ● ●
448 BOLT; SENSOR
M6X25 FLANGE THA 		0-28650-625-0 02 1 1510- ● ● ● ● ● ●
508 PROTECTOR
(A) THA 		8-98165-179-0 01 1 1510- ● ● ● ● ● ●
508 PROTECTOR
(B) THA 		8-98165-180-0 01 1 1510- ● ● ● ● ● ●
631 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> M6X16 FLANGE THA 		0-28450-616-0 02 1 1510- ● ● ● ●
691 CONTROLLER; TRANSFER
THA 		8-98186-110-0 01 1 1510- ● ● ●
743 CONTROL UNIT; BCM
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98065-084-5 01 1 1510- ● ● ● ●
743 CONTROL UNIT; BCM
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98215-286-0 01 1 1510- ● ● ● ●
744 SENSOR; AIR BAG
THA 		8-98260-438-0 02 1 1510- ● ● ● ● ● ●
çizim 492699
469 234 234 234
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
234 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1510- ● ● ●
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1510- ●
234 SENSOR; VEHICLE SPD
M/T MUX 5 SPEED 5S<MZJ> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1510- ●
234 SENSOR; VEHICLE SPD
M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1510- ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA 		8-98119-901-0 01 1 1510- ● ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> IMA 		8-98119-901-0 01 1 1510- ●

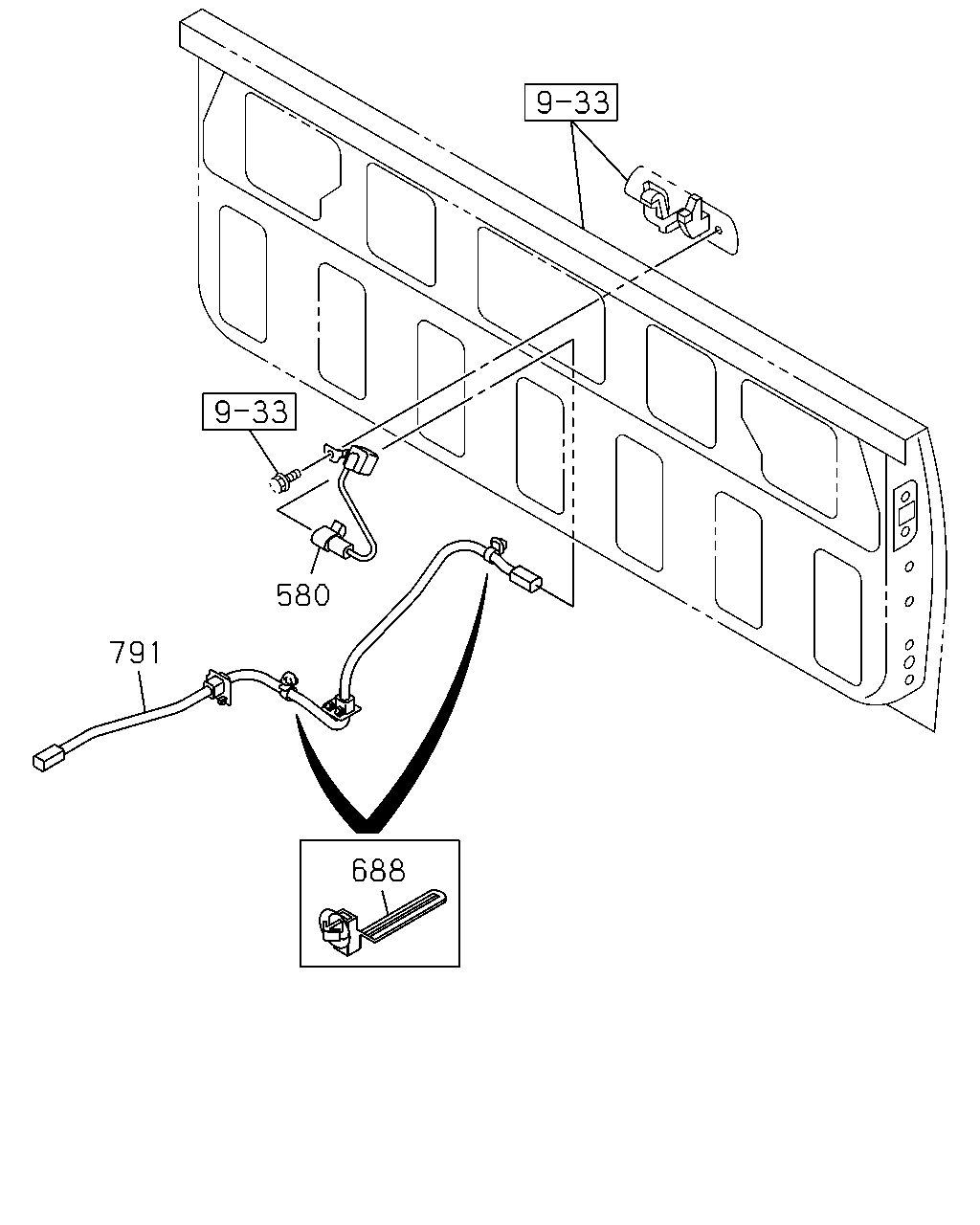

çizim 492720
580 791 688
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
580 CAMERA; REAR
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA 		8-98254-286-0 01 1 1510- ● ● ● ●
688 CLIP; CABLE
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> L=140 THA 		8-97378-707-0 02 1 1510- ● ● ● ●
791 CABLE; SAFETY
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA 		8-98254-282-0 01 1 1510- ● ● ● ●
