◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#166148) — 89 parça

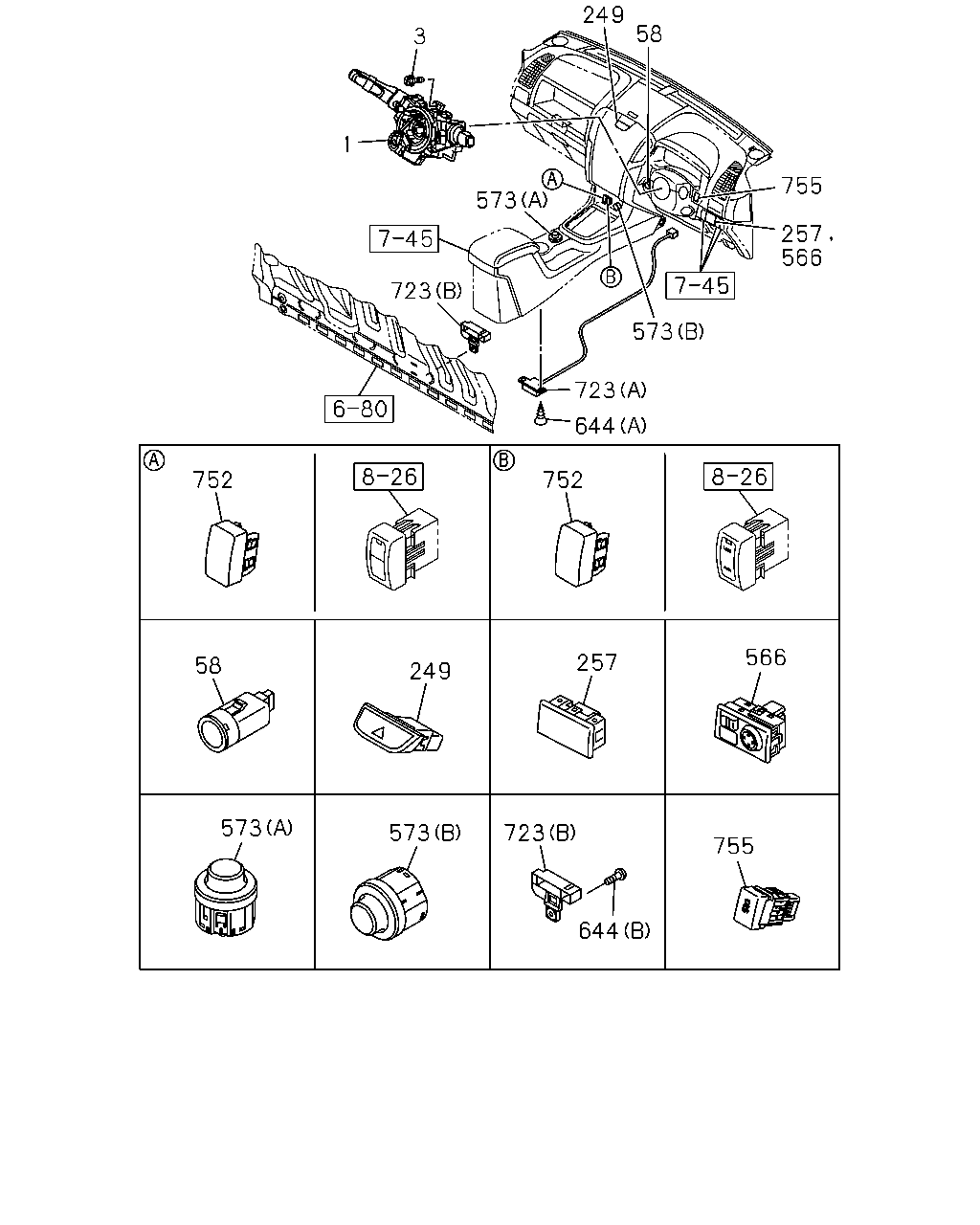

çizim 492680
3 1 573 249 58 755 257 566 573 723 644 723 752 752 566 257 249 58 573 573 723 644 755
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SWITCH; COMB
VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98280-389-0 01 1 1510- ● ●
1 SWITCH; COMB
VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-389-0 01 1 1510- ●
1 SWITCH; COMB
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-389-0 01 1 1510- ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98194-136-1 01 1 1510- ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98194-136-1 01 1 1510- ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98194-134-1 01 1 1510- ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> THA 		8-98194-134-1 01 1 1510- ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98194-134-1 01 1 1510- ●
1 SWITCH; COMB
THA 		8-98194-134-1 01 1 1510- ●
1 SWITCH; COMB
FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98194-138-1 01 1 1510- ● ●
1 SWITCH; COMB
FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98194-138-1 01 1 1510- ●
1 SWITCH; COMB
EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98194-139-1 01 1 1510- ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> THA 		8-98194-139-1 01 1 1510- ●
1 SWITCH; COMB
EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98194-139-1 01 1 1510- ●
1 SWITCH; COMB
VARIABLE INTERMITTENT WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98280-390-0 01 1 1510- ●
1 SWITCH; COMB
ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-390-0 01 1 1510- ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98194-142-1 01 1 1510- ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98194-141-1 01 1 1510- ●
1 SWITCH; COMB
ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98296-351-0 01 1 1510- ●
1 SWITCH; COMB
ELECTRONIC TRACTION CONTROL<NW9> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98296-352-0 01 1 1510- ●
3 SCREW; COMB SW
M5X20 W/LK&PL WASHER THA 		0-36230-520-0 01 1 1510- ● ● ● ● ● ●
58 SWITCH; IGNITION
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98226-271-1 01 1 1510- ● ● ● ●
249 SWITCH; HAZARD
BLACK THA 		8-97416-805-0 01 1 1510- ● ● ● ● ● ●
257 COVER; HOLE,SW
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA 		8-98106-389-2 01 1 1510- ● ●
257 COVER; HOLE,SW
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-98106-389-2 01 1 1510- ● ●
257 COVER; HOLE,SW
THA 		8-98106-389-2 01 1 1510- ●
566 SWITCH; MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIR ELEC POWER FOLDING COLOR TURN SIGNAL<8ME> THA 		8-98058-078-1 01 1 1510- ● ●
566 SWITCH; MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> THA 		8-98058-078-1 01 1 1510- ● ●
566 SWITCH; MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98106-392-1 01 1 1510- ● ● ● ●
573 SWITCH; 4WD
FLOOR CONSOLE W/LID<D55> (A) THA 		8-98296-584-0 01 1 1510- ●
573 SWITCH; 4WD
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (A) THA 		8-98296-584-0 01 1 1510- ●
573 SWITCH; 4WD
EXC. FLOOR CONSOLE W/LID<D55> (B) THA 		8-98058-076-2 01 1 1510- ●
573 SWITCH; 4WD
(B) THA 		8-98058-076-2 01 1 1510- ●
573 SWITCH; 4WD
EXC. FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOOR CONSOLE W/LID<D55> (B) THA 		8-98058-076-2 01 1 1510- ●
644 SCREW; TAPPING
PASSIVE ENTRY AND START SYSTEM<AP3> (A) M5X16 TAPPING THA 		8-98167-449-0 02 1 1510- ● ● ● ●
644 SCREW; TAPPING
PASSIVE ENTRY AND START SYSTEM<AP3> (B) M6X12 TAPPING THA 		0-71240-612-0 01 1 1510- ● ●
723 ANTENNA; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-98076-332-1 01 1 1510- ● ● ● ●
723 ANTENNA; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98076-333-0 01 1 1510- ● ●
752 COVER; SEAT HTR
INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98141-215-1 02 1 1510- ● ● ●
752 COVER; SEAT HTR
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98141-215-1 02 1 1510- ●
755 SWITCH; ESC OFF
ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98058-081-1 01 1 1510- ● ●

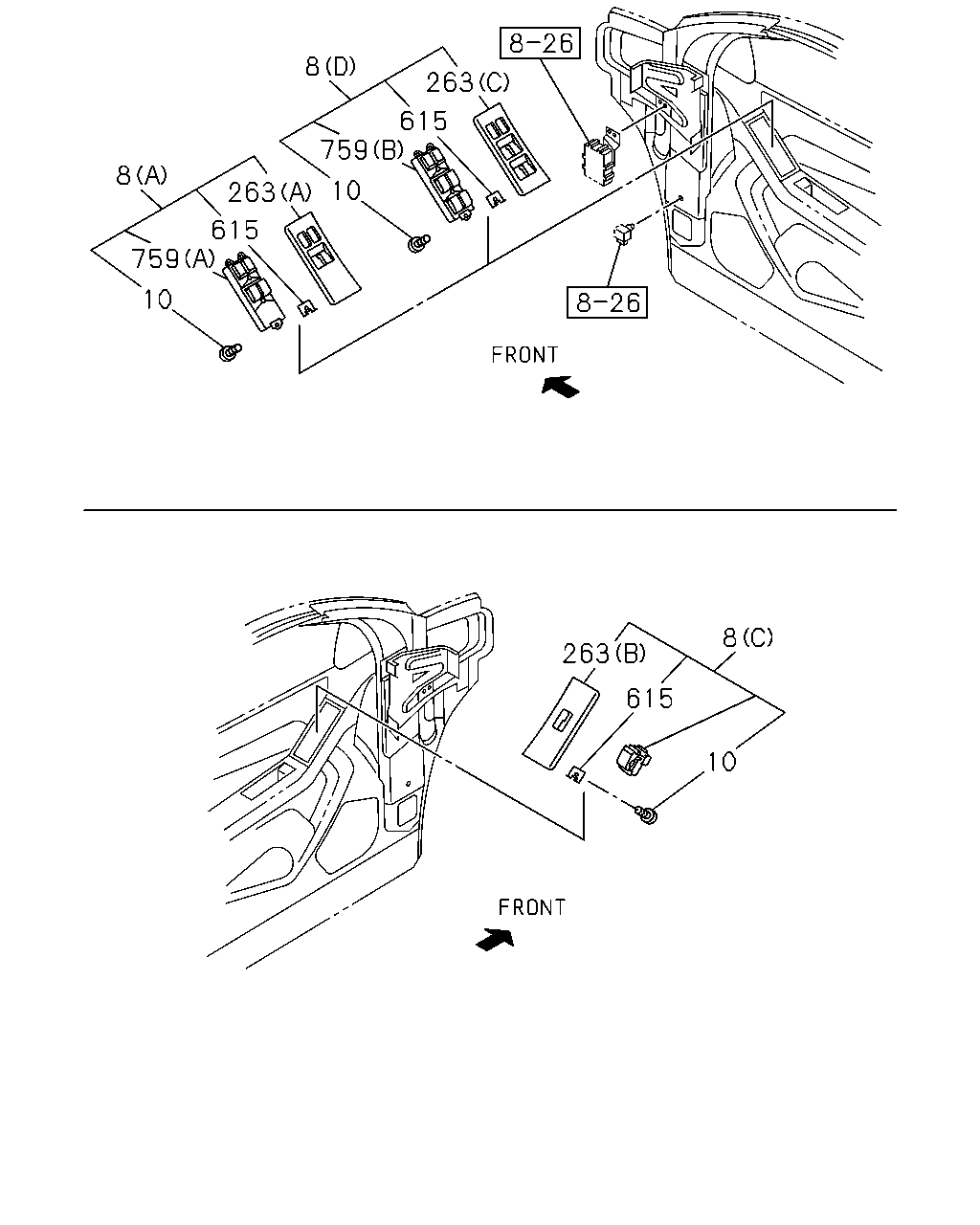

çizim 492689
263 8 615 759 10 263 8 615 759 10 8 615 263 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (A) BLACK THA 		8-97416-734-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA 		8-97416-810-0 01 1 1510- ● ● ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA 		8-97416-810-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
(C) BLACK THA 		8-97416-810-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) BLACK THA 		8-97416-735-0 01 1 1510- ● ● ●
8 SWITCH; POWER WINDOW
(A) BLACK THA 		8-97416-735-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (D) BLACK THA 		8-97416-975-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA 		8-97417-004-0 02 1 1510- ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (D) BLACK THA 		8-97416-976-0 01 1 1510- ● ●
10 SCREW; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-450-0 03 1 1510- ● ● ● ●
10 SCREW; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-450-0 03 1 1510- ● ● ● ●
10 SCREW; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-450-0 03 1 1510- ●
10 SCREW; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-450-0 03 1 1510- ●
10 SCREW; POWER WINDOW SW
THA 		8-98192-450-0 03 1 1510- ●
10 SCREW; POWER WINDOW SW
THA 		8-98192-450-0 03 1 1510- ●
263 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA 		8-98192-247-0 01 1 1510- ● ● ● ●
263 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA 		8-98192-247-0 01 1 1510- ●
263 COVER; SW
(B) THA 		8-98192-247-0 01 1 1510- ●
263 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) THA 		8-98192-243-0 01 1 1510- ● ●
263 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) THA 		8-98192-243-0 01 1 1510- ●
263 COVER; SW
(A) THA 		8-98192-243-0 01 1 1510- ●
263 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) THA 		8-98192-244-0 01 1 1510- ● ●
615 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-268-0 01 1 1510- ● ● ● ●
615 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-268-0 01 1 1510- ● ● ● ●
615 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-268-0 01 1 1510- ●
615 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-268-0 01 1 1510- ●
615 SPRING; POWER WINDOW SW
THA 		8-98192-268-0 01 1 1510- ●
615 SPRING; POWER WINDOW SW
THA 		8-98192-268-0 01 1 1510- ●
759 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (A) THA 		8-98192-249-0 01 1 1510- ● ●
759 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) THA 		8-98192-250-0 01 1 1510- ● ● ●
759 SWITCH ASM; WINDOW
(A) THA 		8-98192-250-0 01 1 1510- ●
759 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (B) THA 		8-98192-251-0 01 1 1510- ● ●
759 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA 		8-98192-252-0 01 1 1510- ● ●

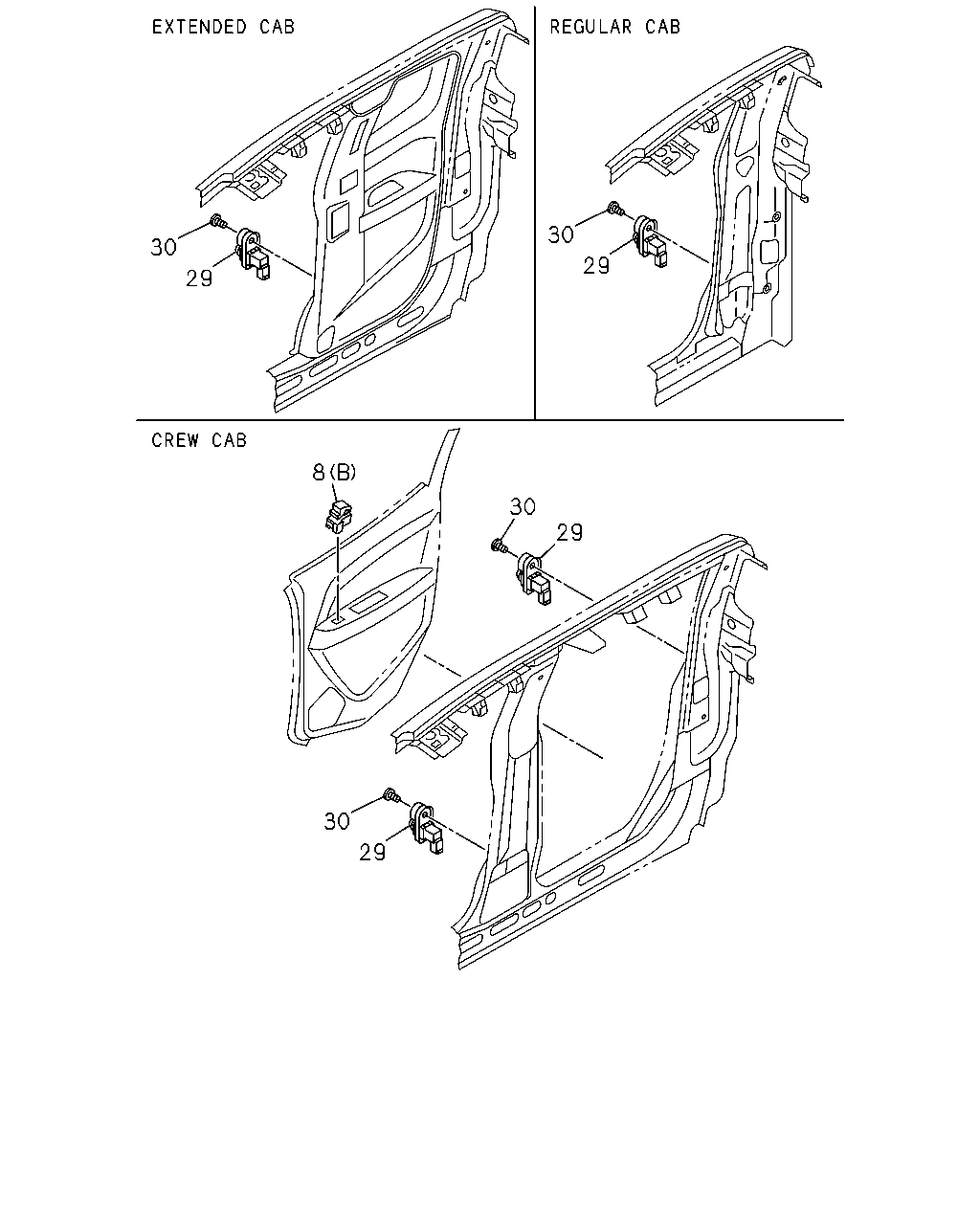

çizim 492698
30 29 29 30 8 30 29 30 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (A) BLACK THA 		8-97416-734-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA 		8-97416-810-0 01 1 1510- ● ● ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA 		8-97416-810-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
(C) BLACK THA 		8-97416-810-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) BLACK THA 		8-97416-735-0 01 1 1510- ● ● ●
8 SWITCH; POWER WINDOW
(A) BLACK THA 		8-97416-735-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (D) BLACK THA 		8-97416-975-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA 		8-97417-004-0 02 1 1510- ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (D) BLACK THA 		8-97416-976-0 01 1 1510- ● ●
29 SWITCH; DOOR
THA 		8-97313-208-0 02 1 1510- ● ● ● ● ● ●
29 SWITCH; DOOR
THA 		8-97313-208-0 02 1 1510- ● ●
30 SCREW; DOOR SW
M5X14 IMA 		8-94120-095-0 02 1 1510- ● ● ● ● ● ●
30 SCREW; DOOR SW
M5X14 IMA 		8-94120-095-0 02 1 1510- ● ●
çizim 493406
99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
99 RELAY; FOG LAMP
FOG LAMP<T96> 12V YAZAKI THA 		8-97309-293-0 01 1 1510- ● ● ●
99 RELAY; FOG LAMP
12V YAZAKI THA 		8-97309-293-0 01 1 1510- ●
