◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#166147) — 26 parça

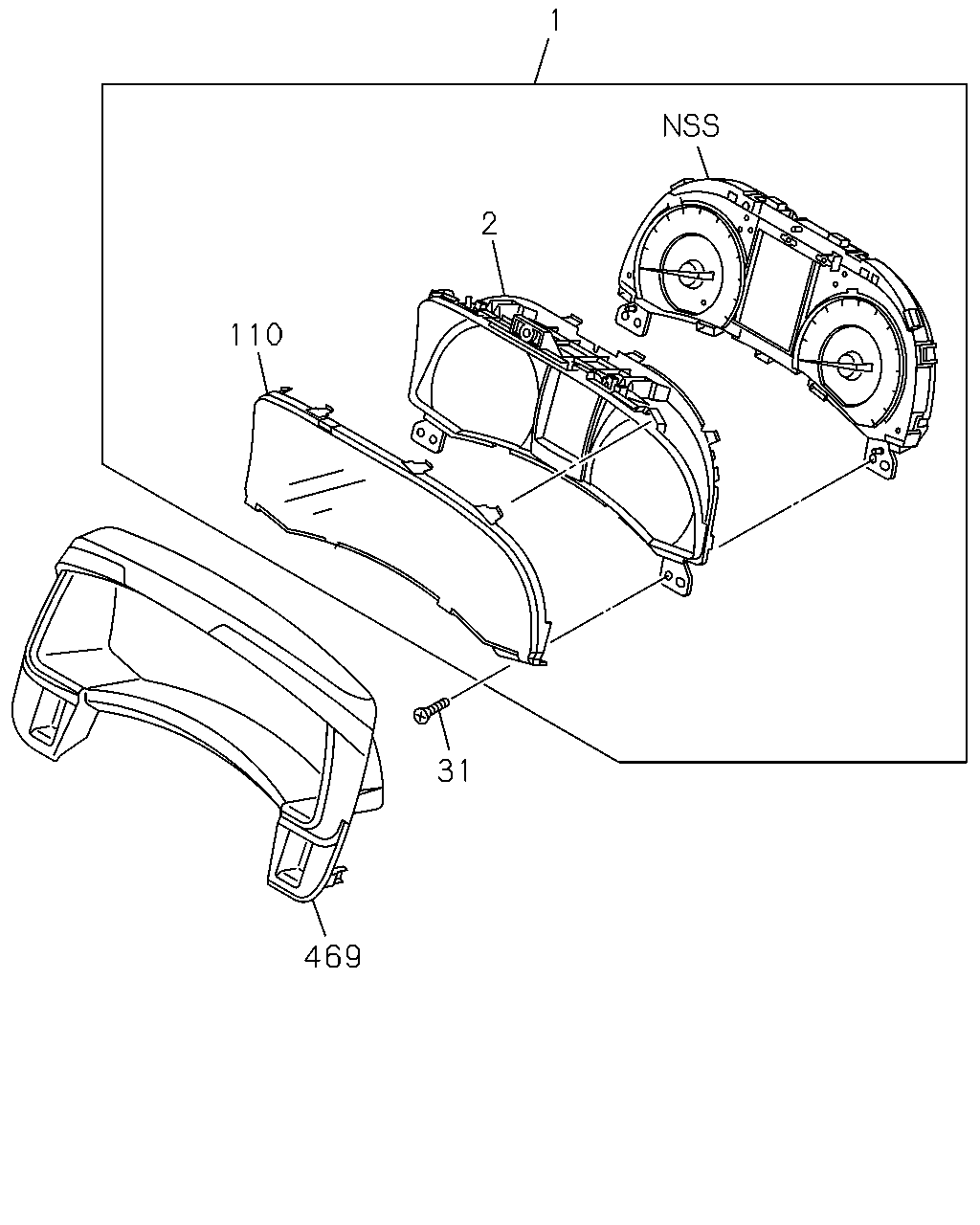

çizim 492667
1 2 110 31 469
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 METER COMPL; CLUSTER
4JK1-TCS ENG<LKZ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98318-295-0 01 1 1510- ● ● ●
1 METER COMPL; CLUSTER
4JK1-TCS ENG<LKZ> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98318-292-0 01 1 1510- ● ● ● ●
1 METER COMPL; CLUSTER
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-255-2 01 1 1510- ● ● ● ●
1 METER COMPL; CLUSTER
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98280-261-2 01 1 1510- ● ● ● ● ●
1 METER COMPL; CLUSTER
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98280-254-2 01 1 1510- ● ●
1 METER COMPL; CLUSTER
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> ELECTRONIC TRACTION CONTROL<NW9> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98280-260-2 01 1 1510- ●
2 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98291-005-0 01 1 1510- ● ●
2 PANEL; CLUSTER
4JK1-TCS ENG<LKZ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98291-005-0 01 1 1510- ●
2 PANEL; CLUSTER
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98291-005-0 01 1 1510- ●
2 PANEL; CLUSTER
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> THA 		8-98291-005-0 01 1 1510- ●
2 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98291-004-0 01 1 1510- ● ●
2 PANEL; CLUSTER
THA 		8-98291-004-0 01 1 1510- ●
2 PANEL; CLUSTER
4JK1-TCS ENG<LKZ> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98291-004-0 01 1 1510- ●
2 PANEL; CLUSTER
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98291-004-0 01 1 1510- ●
2 PANEL; CLUSTER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98291-004-0 01 1 1510- ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING THA 		8-98167-449-0 03 1 1510- ● ● ● ● ● ●
110 GLASS; CLUSTER METER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98291-003-0 01 1 1510- ● ●
110 GLASS; CLUSTER METER
4JK1-TCS ENG<LKZ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98291-003-0 01 1 1510- ●
110 GLASS; CLUSTER METER
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98291-003-0 01 1 1510- ●
110 GLASS; CLUSTER METER
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> THA 		8-98291-003-0 01 1 1510- ●
110 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98291-002-0 01 1 1510- ● ●
110 GLASS; CLUSTER METER
THA 		8-98291-002-0 01 1 1510- ●
110 GLASS; CLUSTER METER
4JK1-TCS ENG<LKZ> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98291-002-0 01 1 1510- ●
110 GLASS; CLUSTER METER
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98291-002-0 01 1 1510- ●
110 GLASS; CLUSTER METER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98291-002-0 01 1 1510- ●
469 PLATE; INSTRUMENT PANEL
BLACK THA 		8-97416-628-1 01 1 1510- ● ● ● ● ● ●
