8-15 — FIXING PARTS; WIRING HARNESS (#166146) — 94 parça

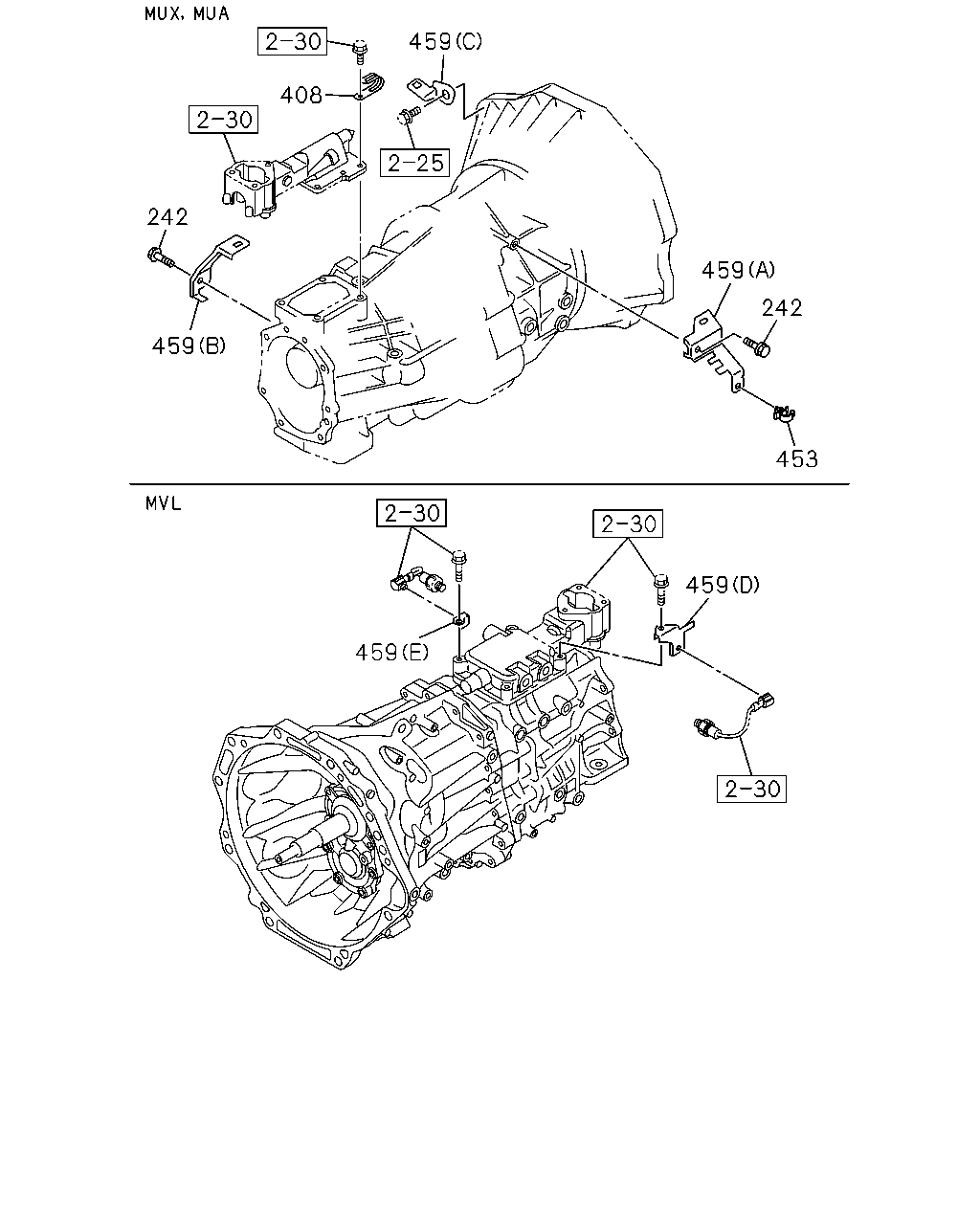

408 459 242 459 459 459 453 242 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
242	BOLT; BRKT,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA	0-28050-816-0	02	1	1510-	●	●	●	●	●	●
408	CLIP; TRANS HARNESS 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA	8-97367-984-1	04	1	1510-	●	●	●	●
453	CLIP; CABLE HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> ID=6.5 IMA	5-09709-117-0	01	1	1510-	●	●	●	●	●	●
459	BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-98035-740-0	01	1	1510-	●	●	●	●	●	●
459	BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) THA	8-98035-741-0	01	1	1510-	●	●	●	●	●	●
459	BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5H<MWQ> (C) THA	8-98050-882-0	01	1	1510-	●	●	●	●
459	BRACKET; SUPPORT,HARNESS RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> (D) IMA	8-98274-915-0	01	1	1510-	●	●	●	●		●
459	BRACKET; SUPPORT,HARNESS RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> (E) IMA	8-98274-916-1	01	1	1510-	●	●	●	●		●

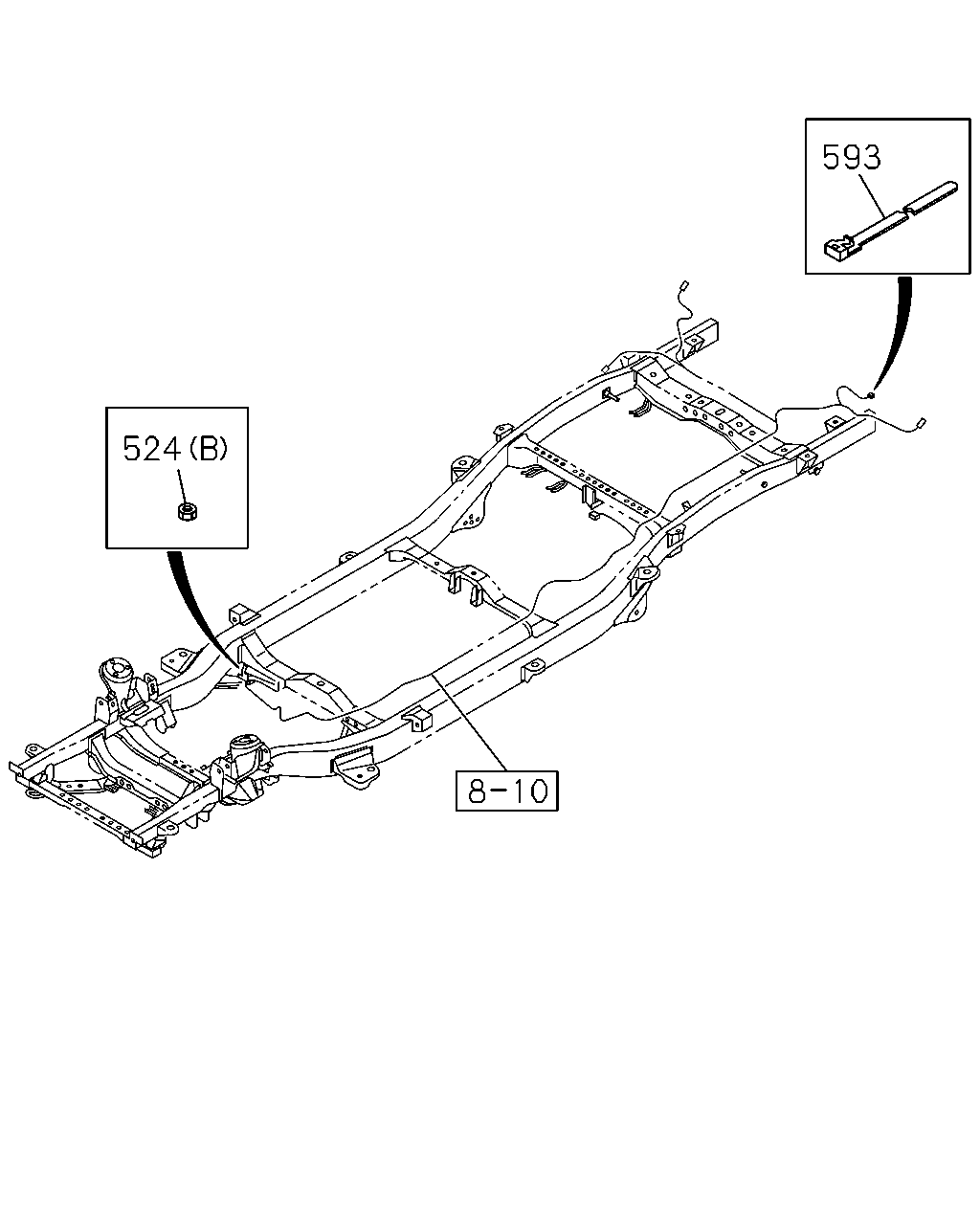

593 524

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
524	NUT; HARNESS (B) M6 FLANGE THA	0-91180-106-0	01	1	1510-	●	●	●	●	●	●
524	NUT; HARNESS (A) M8 FLANGE THA	0-91180-108-0	01	1	1510-	●	●	●	●	●	●
593	CLIP REAR BODY DELETE<8HH> L=250 IMA	5-09707-030-1	01	1	1510-		●			●

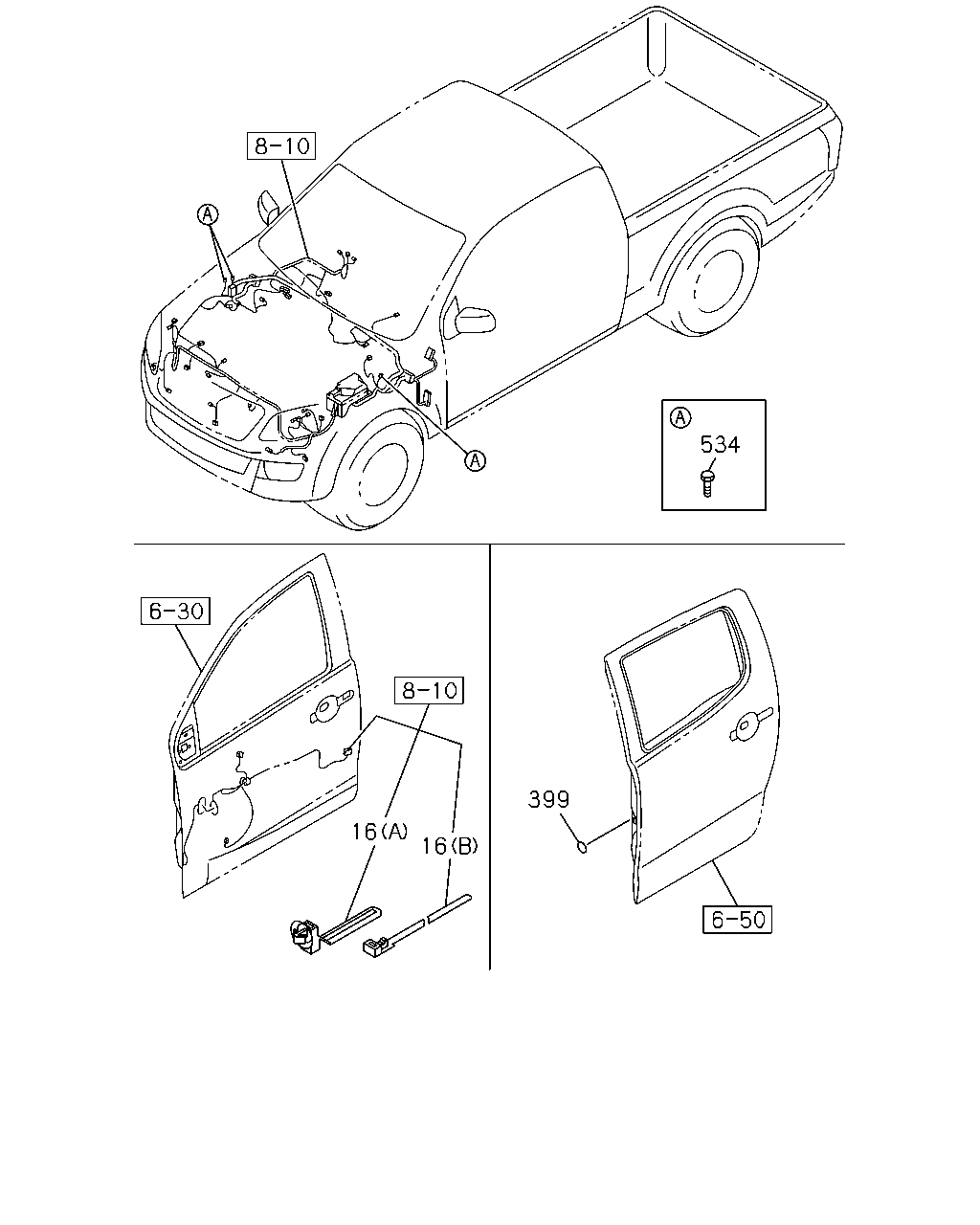

534 16 16 399

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	CLIP; HARNESS DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC POWER FOLDING COLOR TURN SIGNAL<8ME> (B) L=140 THA	8-97378-707-0	03	1	1510-	●		●
16	CLIP; HARNESS DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140 THA	8-97378-707-0	03	1	1510-				●		●
16	CLIP; HARNESS (A) L=155 THA	8-97173-307-0	02	1	1510-	●	●	●	●	●	●
16	CLIP; HARNESS (A) L=155 THA	8-97173-307-0	02	1	1510-	●	●	●	●	●	●
16	CLIP; HARNESS (B) L=140 THA	8-97378-707-0	01	1	1510-	●	●	●	●	●	●
16	CLIP; HARNESS (B) L=140 THA	8-97378-707-0	01	1	1510-	●	●	●	●	●	●
399	COVER; HOLE,HARNESS,RR DOOR EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4>,DRIVER POWER WINDOW W/AUTO DOORDOWN<A31>,6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> OD=44 BLACK THA	5-76777-037-0	02	1	1510-			●			●
534	BOLT; EARTH M6X14 W/PL WASHER IMA	8-98164-836-0	04	1	1510-	●			●

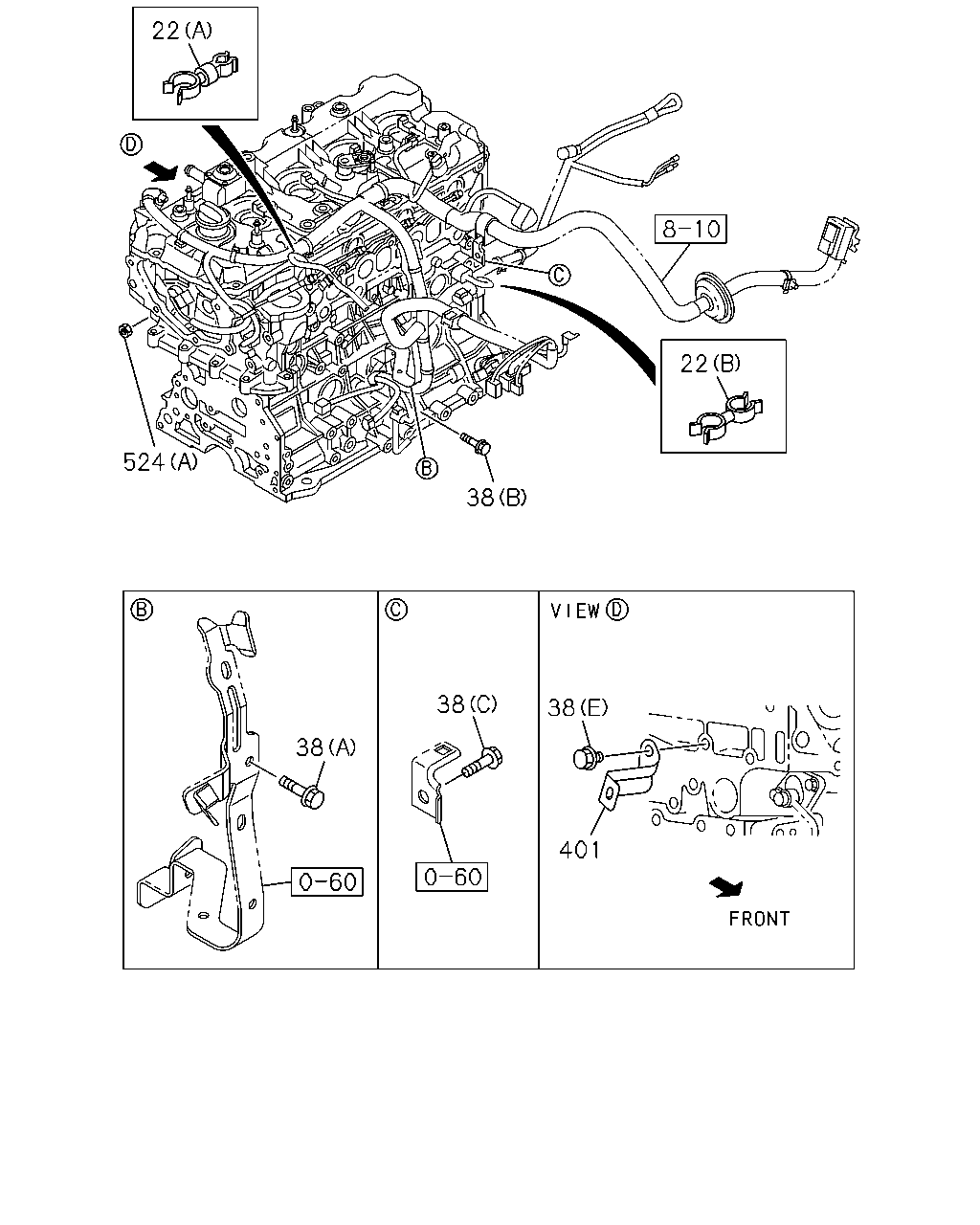

22 524 38 22 38 38 38 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	CLIP; ENG HARNESS 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (B) ID=7.5 & 7.5 THA	8-98212-981-0	01	1	1510-	●	●	●	●	●	●
22	CLIP; ENG HARNESS 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) ID=11.8 & 7.5 THA	8-98212-982-0	01	1	1510-	●	●	●	●	●	●
22	CLIP; ENG HARNESS RZ4E-TC ENG<RDZ> (C) ID=17.5 & 21 THA	8-97177-580-0	01	1	1510-	●	●	●	●		●
22	CLIP; ENG HARNESS RZ4E-TC ENG<RDZ> (D) ID=12 & 6 THA	8-94145-893-0	01	1	1510-	●	●	●	●		●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) M6X12 FLANGE THA	0-28050-612-0	02	1	1510-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (E) M10X12 FLANGE IMA	0-28151-012-0	01	1	1510-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS RZ4E-TC ENG<RDZ> (D) M6X16 FLANGE THA	0-28050-616-0	01	1	1510-	●	●	●	●		●
38	BOLT; CLIP,HARNESS (D) M6X16 FLANGE THA	0-28650-616-0	05	1	1510-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-	●		●	●		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-	●		●	●		●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-	●		●	●
38	BOLT; CLIP,HARNESS RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> EXC. REFRIGERATION KIT<7FH> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-					●
38	BOLT; CLIP,HARNESS RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-	●		●	●		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-	●		●	●		●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-	●		●	●
38	BOLT; CLIP,HARNESS RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> EXC. REFRIGERATION KIT<7FH> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-					●
401	BRACKET; HARNESS,GEN 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> THA	8-98224-801-0	01	1	1510-	●	●	●	●	●	●
524	NUT; HARNESS (B) M6 FLANGE THA	0-91180-106-0	01	1	1510-	●	●	●	●	●	●
524	NUT; HARNESS (A) M8 FLANGE THA	0-91180-108-0	01	1	1510-	●	●	●	●	●	●

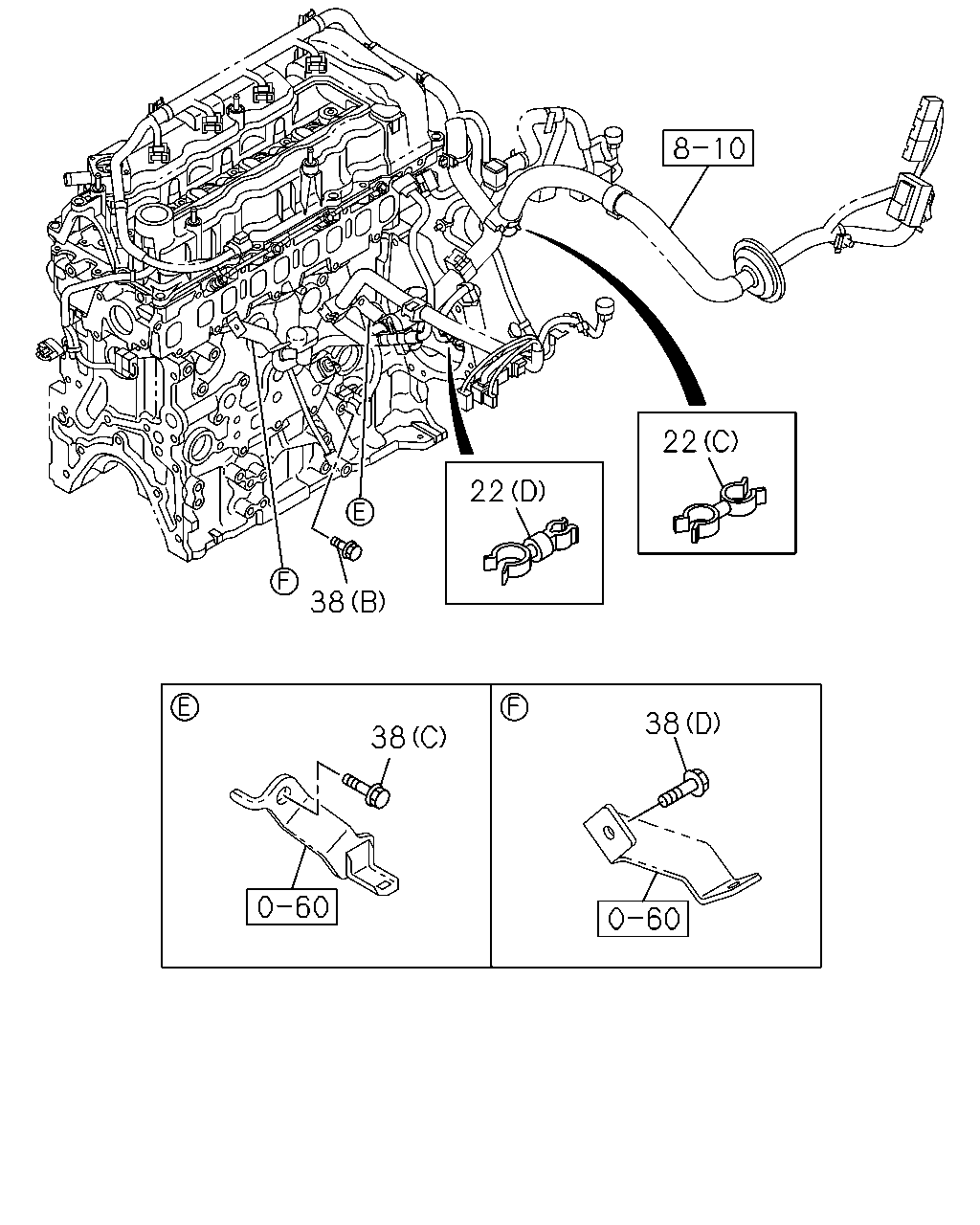

38 22 22 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	CLIP; ENG HARNESS 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (B) ID=7.5 & 7.5 THA	8-98212-981-0	01	1	1510-	●	●	●	●	●	●
22	CLIP; ENG HARNESS 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) ID=11.8 & 7.5 THA	8-98212-982-0	01	1	1510-	●	●	●	●	●	●
22	CLIP; ENG HARNESS RZ4E-TC ENG<RDZ> (C) ID=17.5 & 21 THA	8-97177-580-0	01	1	1510-	●	●	●	●		●
22	CLIP; ENG HARNESS RZ4E-TC ENG<RDZ> (D) ID=12 & 6 THA	8-94145-893-0	01	1	1510-	●	●	●	●		●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) M6X12 FLANGE THA	0-28050-612-0	02	1	1510-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (E) M10X12 FLANGE IMA	0-28151-012-0	01	1	1510-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS RZ4E-TC ENG<RDZ> (D) M6X16 FLANGE THA	0-28050-616-0	01	1	1510-	●	●	●	●		●
38	BOLT; CLIP,HARNESS (D) M6X16 FLANGE THA	0-28650-616-0	05	1	1510-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-	●		●	●		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-	●		●	●		●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-	●		●	●
38	BOLT; CLIP,HARNESS RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> EXC. REFRIGERATION KIT<7FH> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-					●
38	BOLT; CLIP,HARNESS RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-	●		●	●		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-	●		●	●		●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-	●		●	●
38	BOLT; CLIP,HARNESS RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> EXC. REFRIGERATION KIT<7FH> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-					●

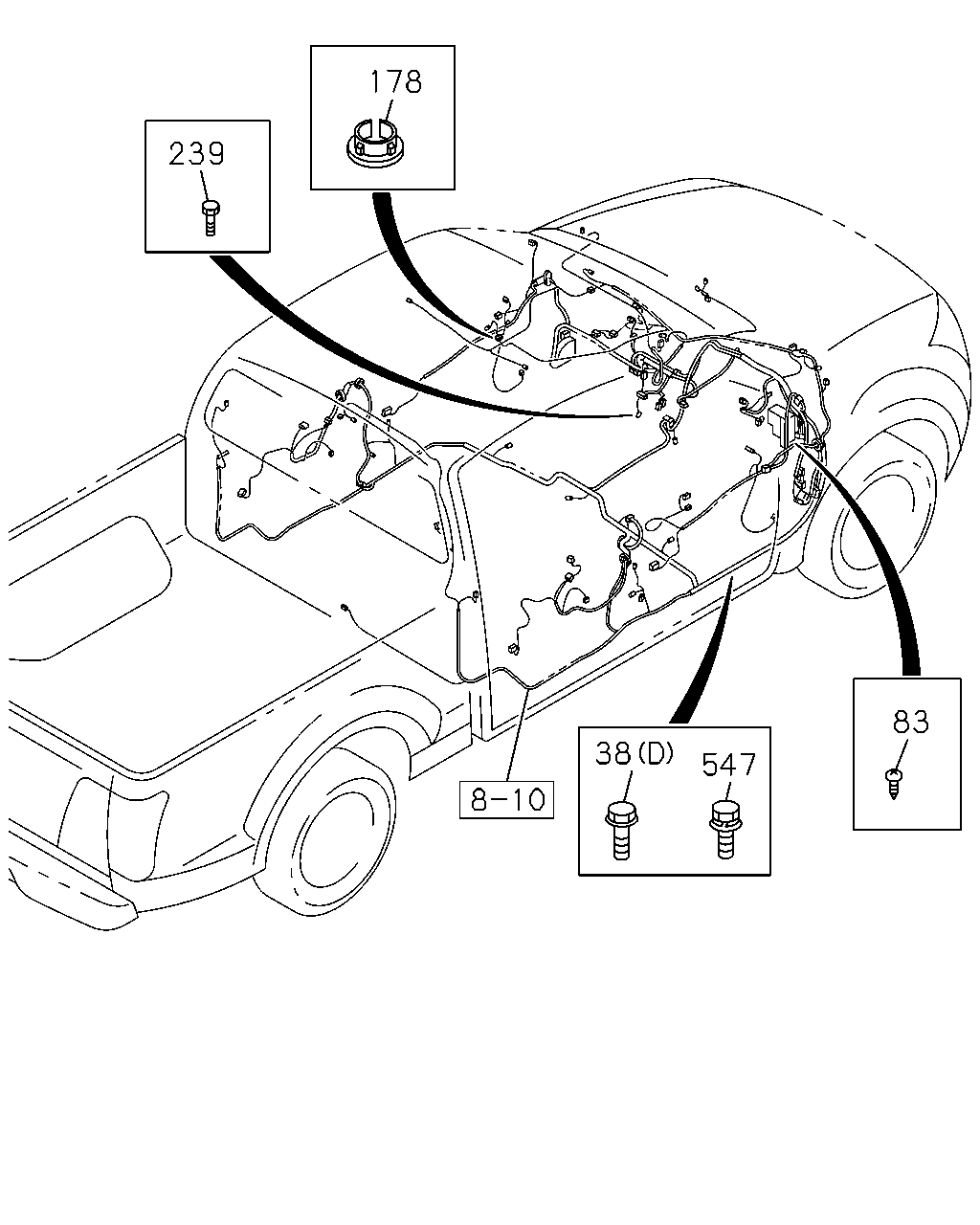

178 239 38 547 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) M6X12 FLANGE THA	0-28050-612-0	02	1	1510-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (E) M10X12 FLANGE IMA	0-28151-012-0	01	1	1510-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS RZ4E-TC ENG<RDZ> (D) M6X16 FLANGE THA	0-28050-616-0	01	1	1510-	●	●	●	●		●
38	BOLT; CLIP,HARNESS (D) M6X16 FLANGE THA	0-28650-616-0	05	1	1510-	●	●	●	●	●	●
38	BOLT; CLIP,HARNESS RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-	●		●	●		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-	●		●	●		●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-	●		●	●
38	BOLT; CLIP,HARNESS RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> EXC. REFRIGERATION KIT<7FH> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1510-					●
38	BOLT; CLIP,HARNESS RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-	●		●	●		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-	●		●	●		●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-	●		●	●
38	BOLT; CLIP,HARNESS RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> EXC. REFRIGERATION KIT<7FH> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-		●
38	BOLT; CLIP,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-					●
83	SCREW; HARNESS M5X25 TAPPING W/PL WASHER THA	0-74360-525-0	01	1	1510-	●	●	●	●	●	●
178	GROMMET; HARNESS THA	8-97027-381-0	01	1	1510-	●	●	●	●	●	●
239	BOLT; GRAND M6X14 W/PL WASHER IMA	8-98164-836-0	03	1	1510-	●	●	●	●
239	BOLT; GRAND 4JJ1-TCX ENG<LS0> M6X14 W/PL WASHER IMA	8-98164-836-0	03	1	1510-					●
239	BOLT; GRAND 4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> M6X14 W/PL WASHER IMA	8-98164-836-0	03	1	1510-						●
239	BOLT; GRAND M6X14 W/PL WASHER IMA	8-98164-836-0	02	1	1510-	●	●	●	●	●	●
239	BOLT; GRAND FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> EXC. REAR DEFOGGER<C49> M6X14 W/PL WASHER IMA	8-98164-836-0	02	1	1510-	●			●
239	BOLT; GRAND FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUC KET STANDARD<A50> REAR DEFOGGER<C49> M6X14 W/PL WASHER IMA	8-98164-836-0	02	1	1510-	●			●
239	BOLT; GRAND FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUC KET STANDARD<A50> M6X14 W/PL WASHER IMA	8-98164-836-0	02	1	1510-			●			●
547	BOLT M6X14 W/PL WASHER IMA	8-98164-836-0	01	1	1510-	●	●	●	●	●	●
