◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#166145) — 298 parça
çizim 492627
35 738 738 739 736 741 743 742 746 737 745 747 748
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
35 BOX; RELAY & FUSE
THA 		8-98113-097-0 01 1 1510- ● ● ● ● ● ●
736 RELAY; STARTER CUT
12V YAZAKI THA 		8-97309-292-0 01 1 1510- ● ● ● ● ● ●
737 RELAY; DIMMER
12V YAZAKI THA 		8-97309-292-0 01 1 1510- ● ● ● ● ● ●
738 RELAY; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (A) 12V YAZAKI THA 		8-97309-292-0 01 1 1510- ● ● ● ●
738 RELAY; HEADLAMP
(B) 12V YAZAKI THA 		8-97309-293-0 01 1 1510- ● ● ● ● ● ●
739 RELAY; TAIL LAMP
12V YAZAKI THA 		8-97309-293-0 01 1 1510- ● ● ● ● ● ●
741 RELAY; HORN
12V YAZAKI THA 		8-97309-293-0 01 1 1510- ● ● ● ● ● ●
742 RELAY; THERMO
12V YAZAKI THA 		8-97309-293-0 01 1 1510- ● ● ● ● ● ●
743 RELAY; A/C COMPRESSOR
12V YAZAKI THA 		8-97309-293-0 01 1 1510- ● ● ● ● ● ●
745 RELAY; HEATER
12V YAZAKI THA 		8-98146-834-0 01 1 1510- ● ● ● ● ● ●
746 RELAY; ECM,MAIN
12V YAZAKI THA 		8-98146-834-0 01 1 1510- ● ● ● ● ● ●
747 RELAY; GLOW
12V YAZAKI THA 		8-98146-837-0 01 1 1510- ● ● ● ● ● ●
748 RELAY; STARTER
12V YAZAKI THA 		8-98146-837-0 01 1 1510- ● ● ● ● ● ●

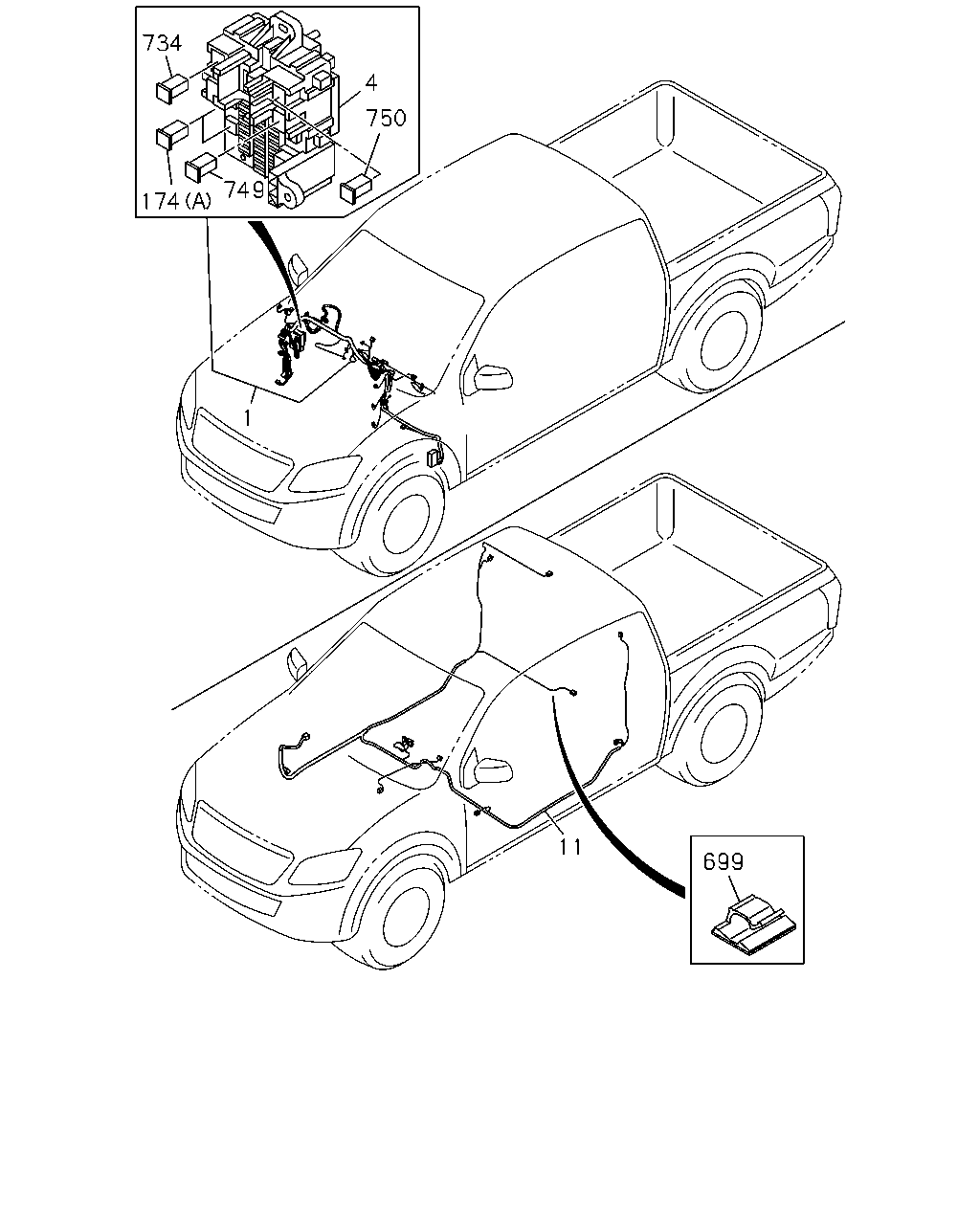

çizim 492639
734 174 4 749 750 1 11 699
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HARNESS; CAB
INTERIOR BASIC<RBA> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,AU TO DOOR LOCK<AU4>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-856-2 01 1 1510- ●
1 HARNESS; CAB
INTERIOR BASIC<RBA> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. AUTO DOOR LOCK<AU4>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98280-856-2 01 1 1510- ●
1 HARNESS; CAB
INTERIOR DELUXE<RBB> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-857-4 01 1 1510- ● ● ●
1 HARNESS; CAB
INTERIOR DELUXE<RBB> DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98280-857-4 01 1 1510- ●
1 HARNESS; CAB
4JJ1-TCX ENG<LS0> THA 		8-98280-857-4 01 1 1510- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-869-1 01 1 1510- ● ● ●
1 HARNESS; CAB
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-869-1 01 1 1510- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-868-1 01 1 1510- ● ● ●
1 HARNESS; CAB
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-868-1 01 1 1510- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-863-1 01 1 1510- ● ● ●
1 HARNESS; CAB
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-863-1 01 1 1510- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-865-1 01 1 1510- ● ● ●
1 HARNESS; CAB
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-865-1 01 1 1510- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-862-1 01 1 1510- ● ● ●
1 HARNESS; CAB
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-862-1 01 1 1510- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-864-1 01 1 1510- ● ● ●
1 HARNESS; CAB
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-864-1 01 1 1510- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-867-2 01 1 1510- ● ● ●
1 HARNESS; CAB
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-867-2 01 1 1510- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-866-2 01 1 1510- ● ● ●
1 HARNESS; CAB
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-866-2 01 1 1510- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-859-2 01 1 1510- ● ● ●
1 HARNESS; CAB
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-859-2 01 1 1510- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-861-2 01 1 1510- ● ● ●
1 HARNESS; CAB
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-861-2 01 1 1510- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-858-2 01 1 1510- ● ● ●
1 HARNESS; CAB
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-858-2 01 1 1510- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-860-2 01 1 1510- ● ● ●
1 HARNESS; CAB
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-860-2 01 1 1510- ●
4 BOX ASM; FUSE,HARNESS
THA 		8-98166-751-0 01 1 1510- ● ● ● ● ● ●
11 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> THA 		8-98279-032-0 01 1 1510- ● ●
11 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> THA 		8-98279-033-0 01 1 1510- ● ●
11 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> EXC. REAR DEFOGGER<C49> THA 		8-98279-035-0 01 1 1510- ● ●
11 HARNESS; BODY
THA 		8-98279-021-0 01 1 1510- ● ●
11 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> THA 		8-98280-519-0 01 1 1510- ●
11 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> THA 		8-98280-519-0 01 1 1510- ●
11 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49> THA 		8-98280-521-0 01 1 1510- ●
11 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> THA 		8-98280-508-0 01 1 1510- ●
11 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> THA 		8-98280-508-0 01 1 1510- ●
11 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49> THA 		8-98280-510-0 01 1 1510- ●
11 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4> THA 		8-98280-498-0 01 1 1510- ●
11 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4> THA 		8-98280-498-0 01 1 1510- ●
11 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49> THA 		8-98280-500-0 01 1 1510- ●
174 FUSE; SLOW BLOW
(B) 30A PINK THA 		8-98079-191-0 AR 1 1510- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN THA 		8-98079-192-0 AR 1 1510- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(A) 20A BLUE THA 		8-98079-189-0 AR 1 1510- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(C) 120A WHITE IMA 		1-82516-028-1 AR 1 1510- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 50A RED THA 		8-98079-193-0 AR 1 1510- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(D) 60A YELLOW THA 		8-97219-407-0 AR 1 1510- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW THA 		8-98197-288-0 AR 1 1510- ● ● ● ● ● ●
699 CLIP; ENG HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3> ID=7 THA 		8-98158-303-0 02 1 1510- ● ●
734 RELAY; ACC SOCKET
12V YAZAKI THA 		8-97309-293-0 01 1 1510- ● ● ● ● ● ●
749 RELAY; POWER WINDOW
12V YAZAKI THA 		8-97309-293-0 01 1 1510- ● ● ● ● ● ●
750 RELAY; RR DEFOGGER
12V YAZAKI THA 		8-97309-293-0 01 1 1510- ● ● ● ● ● ●

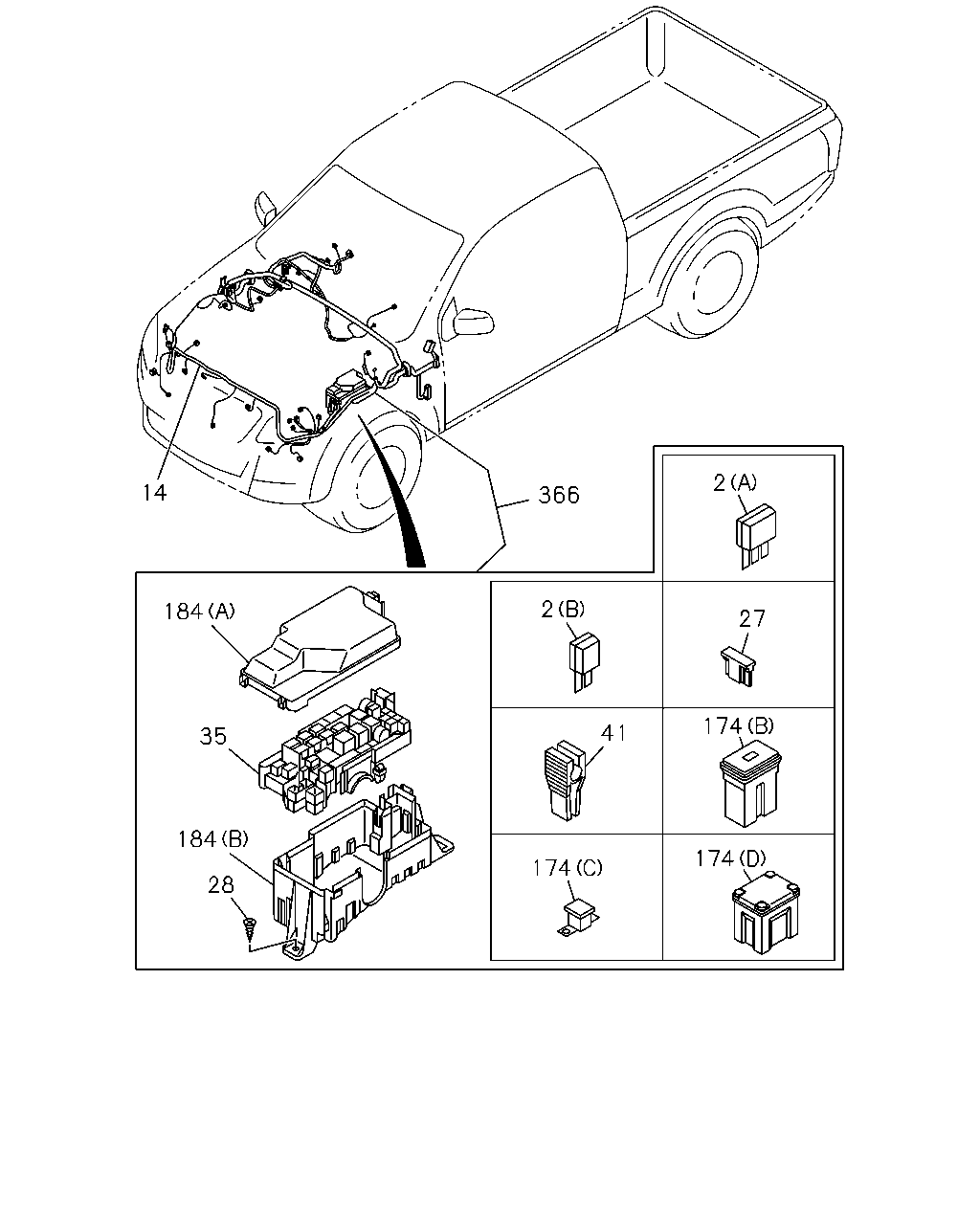

çizim 492659
14 184 35 184 28 366 2 41 174 2 27 174 174
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA 		8-94422-639-1 AR 1 1510- ● ● ● ● ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A THA 		8-94422-640-1 AR 1 1510- ● ● ● ● ● ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98280-963-0 01 1 1510- ● ● ●
14 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98280-963-0 01 1 1510- ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98280-951-0 01 1 1510- ● ● ●
14 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98280-951-0 01 1 1510- ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-961-0 01 1 1510- ● ● ●
14 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-961-0 01 1 1510- ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98280-949-0 01 1 1510- ● ● ●
14 HARNESS; HEADLAMP
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98280-949-0 01 1 1510- ●
14 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA 		8-98280-962-0 01 1 1510- ● ● ●
14 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA>,HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98280-950-0 01 1 1510- ● ● ●
14 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-960-0 01 1 1510- ● ● ●
14 HARNESS; HEADLAMP
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98280-948-0 01 1 1510- ● ● ●
14 HARNESS; HEADLAMP
THA 		8-98280-948-0 01 1 1510- ● ●
27 FUSE UNIT
10A RED THA 		8-98054-257-0 AR 1 1510- ● ● ● ● ● ●
27 FUSE UNIT
15A BLUE THA 		8-98054-258-0 AR 1 1510- ● ● ● ● ● ●
27 FUSE UNIT
20A YELLOW THA 		8-98054-259-0 AR 1 1510- ● ● ● ● ● ●
27 FUSE UNIT
5A ORANGE THA 		8-98281-195-0 AR 1 1510- ● ● ● ● ● ●
28 SCREW; FUSE BOX
THA 		8-97249-192-0 02 1 1510- ● ● ● ● ● ●
35 BOX; RELAY & FUSE
THA 		8-98113-097-0 01 1 1510- ● ● ● ● ● ●
41 PULLER; FUSE
THA 		8-98054-260-0 01 1 1510- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK THA 		8-98079-191-0 AR 1 1510- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN THA 		8-98079-192-0 AR 1 1510- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(A) 20A BLUE THA 		8-98079-189-0 AR 1 1510- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(C) 120A WHITE IMA 		1-82516-028-1 AR 1 1510- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 50A RED THA 		8-98079-193-0 AR 1 1510- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(D) 60A YELLOW THA 		8-97219-407-0 AR 1 1510- ● ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW THA 		8-98197-288-0 AR 1 1510- ● ● ● ● ● ●
184 COVER; RELAY & FUSE BOX
(A) THA 		8-98113-098-0 01 1 1510- ● ● ● ● ● ●
184 COVER; RELAY & FUSE BOX
(B) THA 		8-98113-099-0 01 1 1510- ● ● ● ● ● ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,FOG LAMP<T96>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-429-2 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98280-429-2 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98320-329-0 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98320-329-0 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98320-328-0 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98320-328-0 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98320-332-0 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98320-332-0 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98320-331-0 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98320-331-0 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,FOG LAMP<T96>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98320-333-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98320-333-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY> THA 		8-98320-333-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98280-423-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-423-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA 		8-98280-424-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-424-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-421-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-421-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-422-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-422-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98280-419-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-419-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98280-420-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-420-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,FOG LAMP<T96>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-418-2 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98280-418-2 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY> THA 		8-98280-418-2 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98280-401-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-401-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA 		8-98280-402-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-402-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-399-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-399-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-400-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-400-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98280-397-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-397-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98280-396-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-396-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,FOG LAMP<T96>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98280-398-2 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98280-398-2 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY> THA 		8-98280-398-2 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98280-427-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA 		8-98280-428-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-425-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-426-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98280-405-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA 		8-98280-406-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-403-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-404-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,FOG LAMP<T96>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98320-330-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98280-434-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-434-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA 		8-98280-435-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-435-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-432-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-432-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-433-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-433-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98280-430-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-430-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98280-431-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-431-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98280-412-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-412-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA 		8-98280-413-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-413-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-410-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-410-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-411-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-411-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98280-408-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-408-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98280-407-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98280-407-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> THA 		8-98280-438-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA 		8-98280-439-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-436-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-437-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> THA 		8-98280-416-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA 		8-98280-417-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-414-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
RZ4E-TC ENG<RDZ> M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98280-415-1 01 1 1510- ●

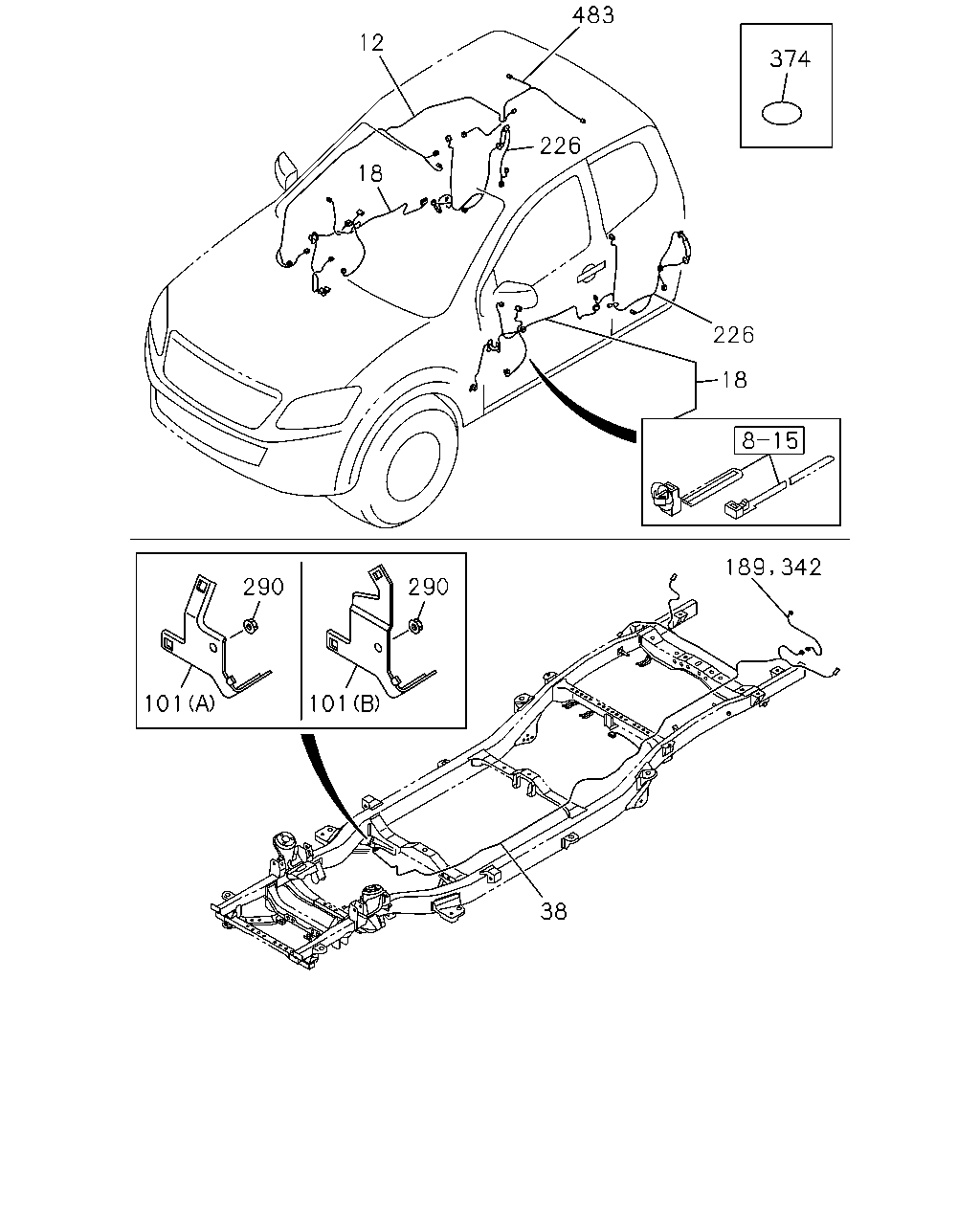

çizim 492674
483 226 12 18 374 226 18 290 101 290 101 189 342 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 HARNESS; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98278-989-0 01 1 1510- ● ● ● ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98278-988-0 01 1 1510- ● ● ● ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA 		8-98279-000-0 01 1 1510- ● ●
12 HARNESS; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98278-985-0 01 1 1510- ● ● ●
12 HARNESS; ROOF
THA 		8-98159-331-0 01 1 1510- ● ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA 		8-98279-012-0 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC POWER FOLDING COLOR TURN SIGNAL<8ME> THA 		8-98209-211-3 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98209-211-3 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC POWER FOLDING COLOR TURN SIGNAL<8ME> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-486-4 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC POWER FOLDING COLOR TURN SIGNAL<8ME> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-486-4 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-486-4 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-486-4 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-363-1 01 1 1510- ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-363-1 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-365-1 01 1 1510- ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-365-1 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC POWER FOLDING COLOR TURN SIGNAL<8ME> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-362-1 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-362-1 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC POWER FOLDING COLOR TURN SIGNAL<8ME> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-364-1 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-364-1 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98200-117-1 01 1 1510- ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98200-117-1 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-508-5 01 1 1510- ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA 		8-98159-508-5 01 1 1510- ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-508-5 01 1 1510- ● ●
18 HARNESS; DOOR
THA 		8-98159-508-5 01 1 1510- ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-490-3 01 1 1510- ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA 		8-98159-490-3 01 1 1510- ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-490-3 01 1 1510- ● ●
18 HARNESS; DOOR
THA 		8-98159-490-3 01 1 1510- ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC POWER FOLDING COLOR TURN SIGNAL<8ME> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-506-5 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-506-5 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC POWER FOLDING COLOR TURN SIGNAL<8ME> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-488-4 01 1 1510- ● ●
18 HARNESS; DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-488-4 01 1 1510- ● ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,AU TO DOOR LOCK<AU4>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-510-4 01 1 1510- ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> EXC. AUTO DOOR LOCK<AU4>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98159-510-4 01 1 1510- ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,AU TO DOOR LOCK<AU4>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-510-4 01 1 1510- ● ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4>,DRIVER POWER WINDOW W/AUTO DOORDOWN<A31>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-492-3 01 1 1510- ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> EXC. AUTO DOOR LOCK<AU4>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98159-492-3 01 1 1510- ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4>,DRIVER POWER WINDOW W/AUTO DOORDOWN<A31>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-492-3 01 1 1510- ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98295-686-0 01 1 1510- ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> HIGH RIDE SUSPENSION<7YC> THA 		8-98295-686-0 01 1 1510- ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98295-686-0 01 1 1510- ●
38 HARNESS; CHAS
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> THA 		8-98295-686-0 01 1 1510- ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,HIGH RIDE SUSPENSION<7YC> THA 		8-98295-687-0 01 1 1510- ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98295-689-0 01 1 1510- ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> HIGH RIDE SUSPENSION<7YC> THA 		8-98295-689-0 01 1 1510- ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA 		8-98295-689-0 01 1 1510- ●
38 HARNESS; CHAS
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> THA 		8-98295-689-0 01 1 1510- ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,HIGH RIDE SUSPENSION<7YC> THA 		8-98295-690-0 01 1 1510- ● ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98295-684-0 01 1 1510- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98295-684-0 01 1 1510- ●
38 HARNESS; CHAS
RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REAR BODY DELETE<8HH> THA 		8-98295-684-0 01 1 1510- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA 		8-98295-684-0 01 1 1510- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98295-684-0 01 1 1510- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98295-684-0 01 1 1510- ●
38 HARNESS; CHAS
4JJ1-TCX ENG<LS0> THA 		8-98295-684-0 01 1 1510- ●
38 HARNESS; CHAS
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98295-684-0 01 1 1510- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> ,HIGH RIDE SUSPENSION<7YC> THA 		8-98295-685-0 01 1 1510- ●
38 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL<E63> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98295-685-0 01 1 1510- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,HIGH RIDE SUSPENSION<7YC> THA 		8-98295-685-0 01 1 1510- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98295-688-0 01 1 1510- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98295-688-0 01 1 1510- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA 		8-98295-688-0 01 1 1510- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98295-688-0 01 1 1510- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98295-688-0 01 1 1510- ●
38 HARNESS; CHAS
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98295-688-0 01 1 1510- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> ,HIGH RIDE SUSPENSION<7YC> THA 		8-98295-691-0 01 1 1510- ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,HIGH RIDE SUSPENSION<7YC> THA 		8-98295-691-0 01 1 1510- ●
101 BRACKET; HARNESS CONNECTOR
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) THA 		8-98102-999-0 01 1 1510- ● ● ● ●
101 BRACKET; HARNESS CONNECTOR
4JJ1-TCX ENG<LS0> (A) THA 		8-98102-999-0 01 1 1510- ● ●
101 BRACKET; HARNESS CONNECTOR
RZ4E-TC ENG<RDZ> (B) THA 		8-98317-132-0 01 1 1510- ● ● ● ● ●
189 HARNESS; EXT
HIGH RIDE SUSPENSION<7YC> EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98140-863-0 01 1 1510- ● ●
189 HARNESS; EXT
REAR BODY DELETE<8HH> THA 		8-98140-863-0 01 1 1510- ●
189 HARNESS; EXT
EXC. REAR STEP BUMPER CHROME<V42> THA 		8-98140-863-0 01 1 1510- ● ●
189 HARNESS; EXT
THA 		8-98140-863-0 01 1 1510- ●
226 HARNESS; RR DOOR
THA 		8-98159-355-6 01 1 1510- ● ●
226 HARNESS; RR DOOR
THA 		8-98167-613-6 01 1 1510- ● ●
226 HARNESS; RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-534-3 01 1 1510- ● ●
226 HARNESS; RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98159-534-3 01 1 1510- ● ●
226 HARNESS; RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-533-3 01 1 1510- ● ●
226 HARNESS; RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-533-3 01 1 1510- ● ●
226 HARNESS; RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-535-3 01 1 1510- ● ●
226 HARNESS; RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-535-3 01 1 1510- ● ●
226 HARNESS; RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-536-3 01 1 1510- ● ●
226 HARNESS; RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-536-3 01 1 1510- ● ●
226 HARNESS; RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-527-3 01 1 1510- ● ●
226 HARNESS; RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-528-3 01 1 1510- ● ●
226 HARNESS; RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-525-3 01 1 1510- ● ●
226 HARNESS; RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-526-3 01 1 1510- ● ●
226 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,PASSIVE ENTRY AND START SYSTEM<AP3>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31>,6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98291-187-0 01 1 1510- ● ●
226 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98291-188-0 01 1 1510- ● ●
226 HARNESS; RR DOOR
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4>,DRIVER POWER WINDOW W/AUTO DOORDOWN<A31> THA 		8-98284-255-0 01 1 1510- ● ●
226 HARNESS; RR DOOR
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4>,DRIVER POWER WINDOW W/AUTO DOORDOWN<A31> THA 		8-98284-256-0 01 1 1510- ● ●
290 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 1510- ● ● ● ● ● ●
342 HARNESS; EXT,LICENSE LAMP
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98137-580-2 01 1 1510- ● ● ● ●
374 PLUG; HARNESS CONNECTOR
EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4>,DRIVER POWER WINDOW W/AUTO DOORDOWN<A31>,6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> D=58 BLACK THA 		8-97302-191-0 02 1 1510- ● ●
483 HARNESS; EXT,RADIO
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> THA 		8-98278-780-0 01 1 1510- ● ●
483 HARNESS; EXT,RADIO
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98278-780-0 01 1 1510- ●
483 HARNESS; EXT,RADIO
6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98278-780-0 01 1 1510- ●
483 HARNESS; EXT,RADIO
6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> THA 		8-98278-779-0 01 1 1510- ● ●
483 HARNESS; EXT,RADIO
6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> EXC. HEADER CONSOLE<DK6> THA 		8-98278-779-0 01 1 1510- ●

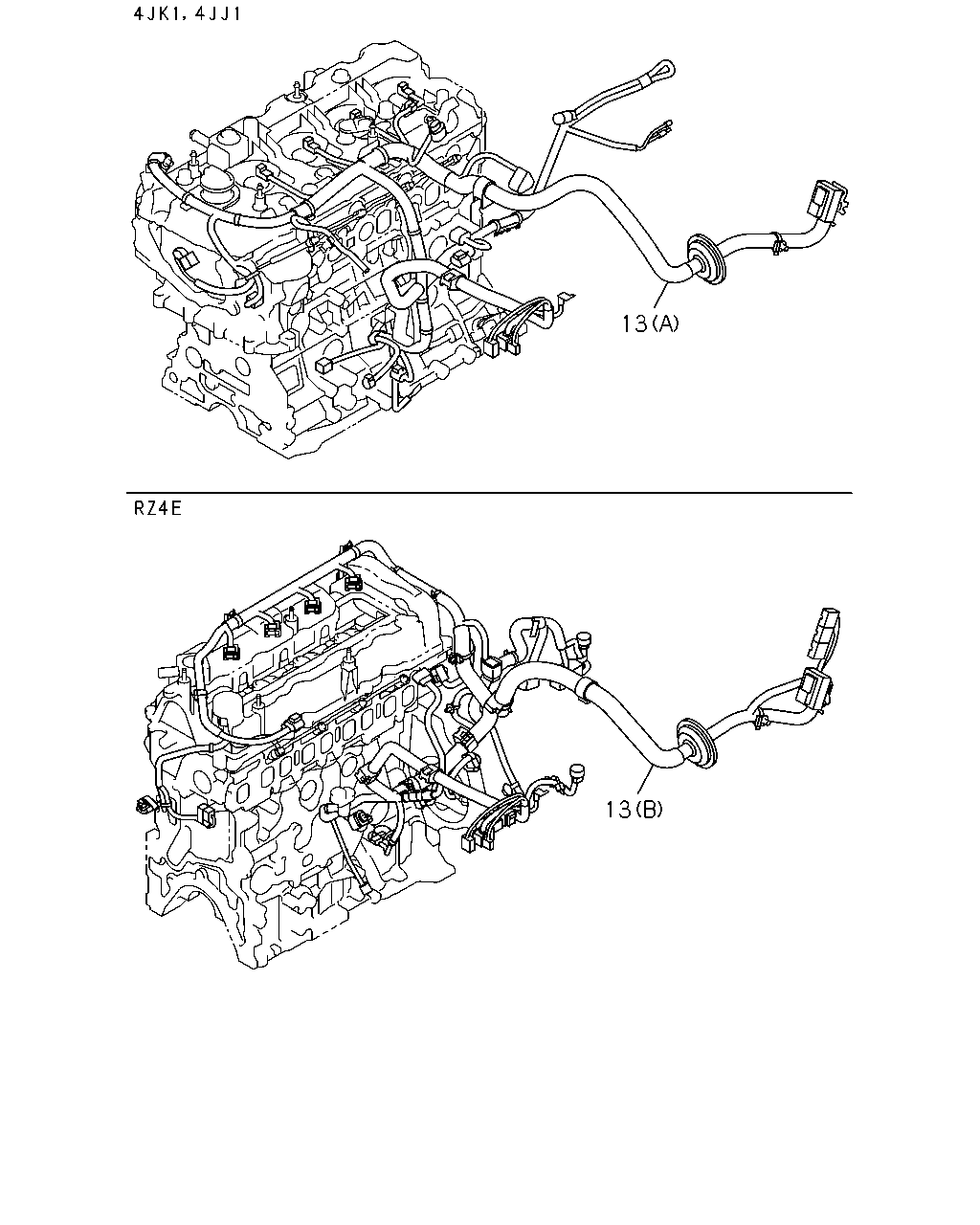

çizim 493248
13 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 HARNESS; ENG
4JK1-TCS ENG<LKZ> EXC. REFRIGERATION KIT<7FH> (A) THA 		8-98206-013-3 01 1 1510- ● ● ●
13 HARNESS; ENG
4JK1-TCS ENG<LKZ> REFRIGERATION KIT<7FH> (A) THA 		8-98234-321-2 01 1 1510- ●
13 HARNESS; ENG
4JK1-TCS ENG<LKZ> (A) THA 		8-98260-515-0 01 1 1510- ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> (A) THA 		8-98206-011-3 01 1 1510- ● ● ●
13 HARNESS; ENG
RZ4E-TC ENG<RDZ> (B) THA 		8-98269-624-5 01 1 1510- ● ● ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> (A) THA 		8-98260-517-0 01 1 1510- ● ● ●
13 HARNESS; ENG
RZ4E-TC ENG<RDZ> (B) THA 		8-98269-625-5 01 1 1510- ● ●
çizim 493293
734 750 749 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 BOX ASM; FUSE,HARNESS
THA 		8-98166-751-0 01 1 1510- ● ● ● ● ● ●
734 RELAY; ACC SOCKET
12V YAZAKI THA 		8-97309-293-0 01 1 1510- ● ● ● ● ● ●
749 RELAY; POWER WINDOW
12V YAZAKI THA 		8-97309-293-0 01 1 1510- ● ● ● ● ● ●
750 RELAY; RR DEFOGGER
12V YAZAKI THA 		8-97309-293-0 01 1 1510- ● ● ● ● ● ●

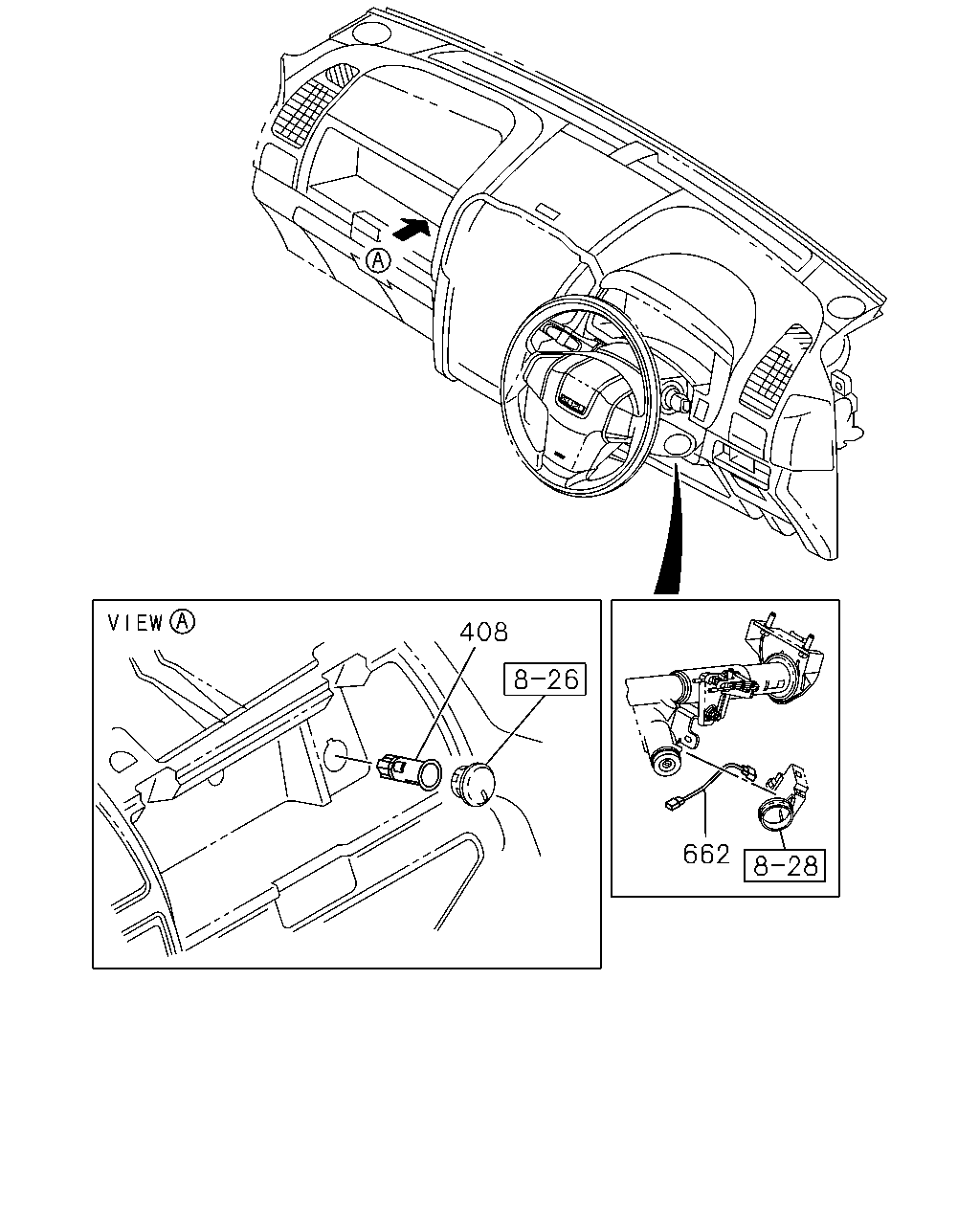

çizim 493435
408 662
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
408 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> IMA 		8-98123-115-0 01 1 1510- ● ●
408 SOCKET ASM; ACCESSORY
IMA 		8-98123-115-0 01 1 1510- ● ● ● ●
662 HARNESS; IMMOBILIZER
IMMOBILIZER SYSTEM<7KC> THA 		8-98278-808-0 01 1 1510- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
