8-01 — LAMP; FRONT AND FRONT SIDE (#166142) — 72 parça

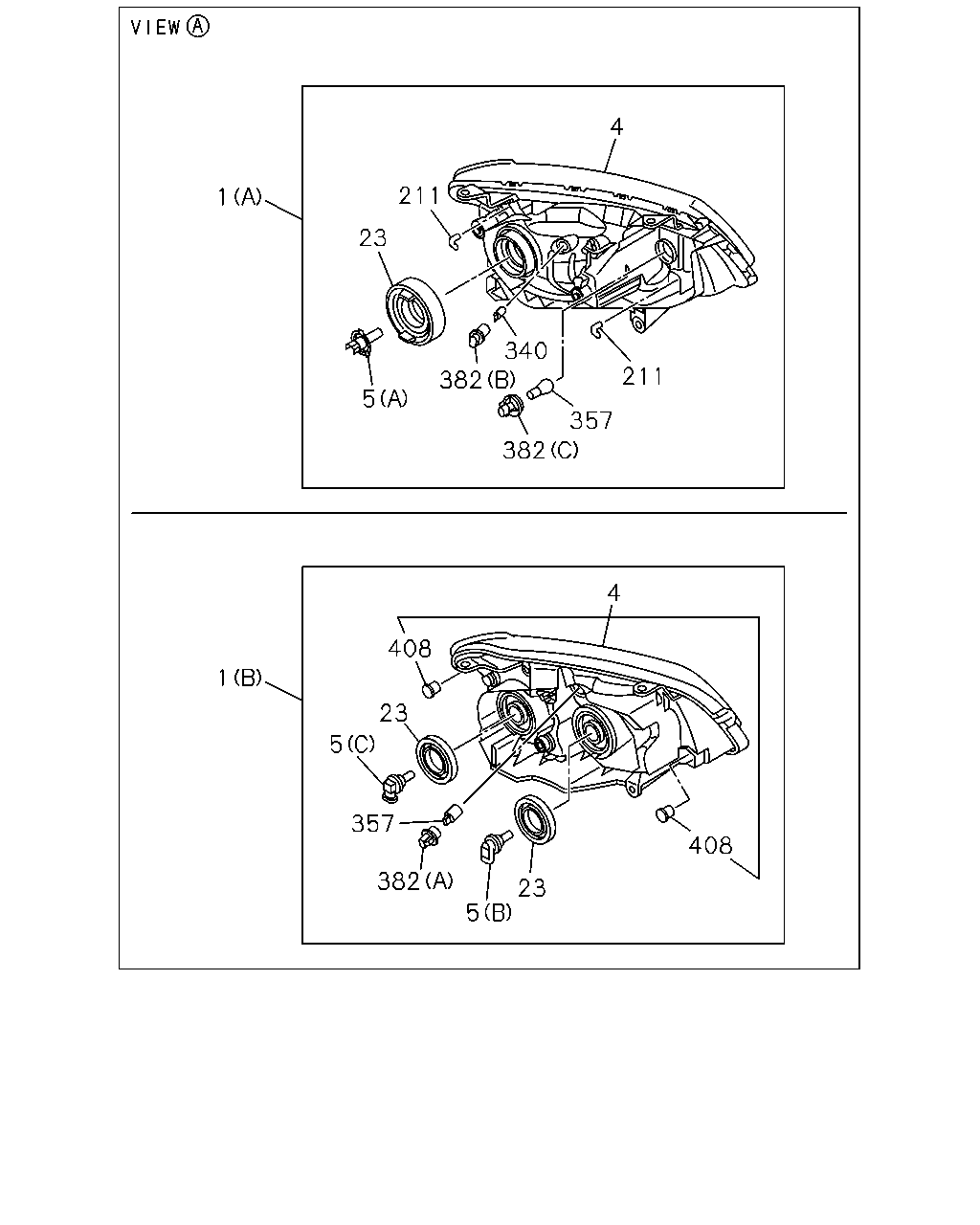

çizim 492700
1 4 211 23 5 382 340 382 357 211 1 4 408 23 5 357 382 5 23 408
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-98236-688-3 01 1 1510- ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-98236-689-3 01 1 1510- ● ● ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-98236-685-2 01 1 1510- ● ● ● ●
1 LAMP ASM; HEAD
(A) THA 		8-98236-685-2 01 1 1510- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-98236-686-2 01 1 1510- ● ● ● ●
1 LAMP ASM; HEAD
(A) THA 		8-98236-686-2 01 1 1510- ● ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98290-332-1 01 1 1510- ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98290-333-1 01 1 1510- ● ● ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98276-305-0 01 1 1510- ● ● ● ●
4 HEADLAMP UNIT
THA 		8-98276-305-0 01 1 1510- ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98276-306-0 01 1 1510- ● ● ● ●
4 HEADLAMP UNIT
THA 		8-98276-306-0 01 1 1510- ● ●
5 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60W THA 		8-97289-997-0 02 1 1510- ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W THA 		8-98160-205-0 02 1 1510- ● ● ● ●
5 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 12V 55/60W THA 		8-98186-377-0 02 1 1510- ● ● ● ●
5 BULB; HEADLAMP
(A) 12V 55/60W THA 		8-98186-377-0 02 1 1510- ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-97675-961-0 04 1 1510- ● ● ● ●
23 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98276-301-0 02 1 1510- ● ● ● ●
23 COVER; BULB,HEADLAMP
THA 		8-98276-301-0 02 1 1510- ● ●
211 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98276-302-0 06 1 1510- ● ● ● ●
211 TUBE; HEADLAMP
THA 		8-98276-302-0 06 1 1510- ● ●
340 BULB; POSITION
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W THA 		8-98257-815-0 02 1 1510- ● ● ● ●
340 BULB; POSITION
12V 5W THA 		8-98257-815-0 02 1 1510- ● ●
357 BULB; TURN SIGNAL
HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W THA 		8-98160-206-0 02 1 1510- ● ● ● ●
357 BULB; TURN SIGNAL
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W THA 		8-97179-967-0 02 1 1510- ● ● ● ●
357 BULB; TURN SIGNAL
12V 21W THA 		8-97179-967-0 02 1 1510- ● ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-98160-270-1 02 1 1510- ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-97332-447-0 02 1 1510- ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
(B) THA 		8-97332-447-0 02 1 1510- ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98206-114-0 02 1 1510- ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
(C) THA 		8-98206-114-0 02 1 1510- ● ●
408 CAP; BREATHER,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98300-478-0 04 1 1510- ● ● ● ●

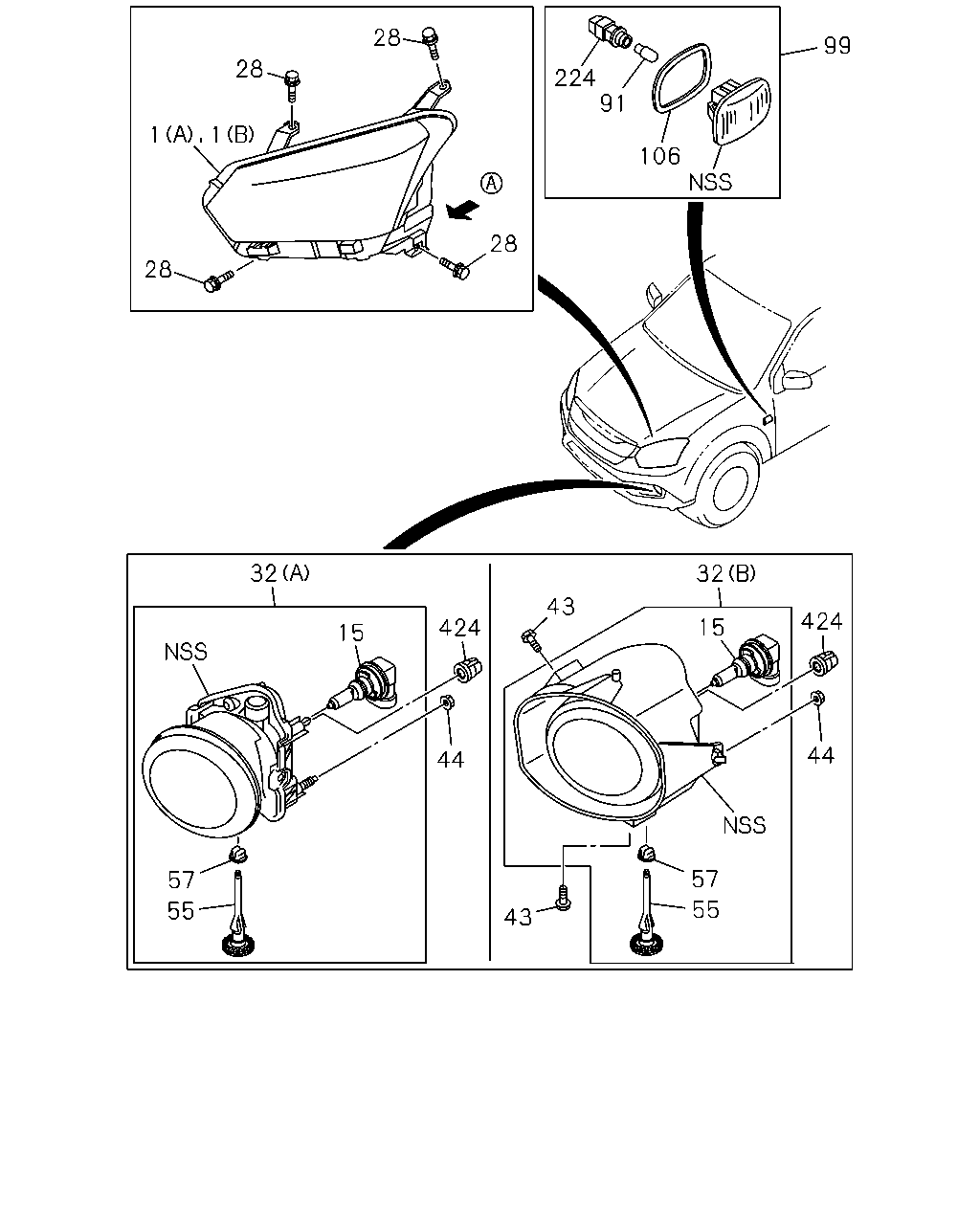

çizim 492716
28 28 1 1 28 28 224 91 106 99 32 15 424 44 57 55 43 32 15 424 44 57 55 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-98236-688-3 01 1 1510- ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-98236-689-3 01 1 1510- ● ● ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-98236-685-2 01 1 1510- ● ● ● ●
1 LAMP ASM; HEAD
(A) THA 		8-98236-685-2 01 1 1510- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-98236-686-2 01 1 1510- ● ● ● ●
1 LAMP ASM; HEAD
(A) THA 		8-98236-686-2 01 1 1510- ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 19W THA 		8-98241-838-0 02 1 1510- ● ● ●
15 BULB; FOG LAMP
12V 19W THA 		8-98241-838-0 02 1 1510- ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER THA 		8-98062-140-0 08 1 1510- ● ● ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98226-794-0 01 1 1510- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> (A) THA 		8-98226-794-0 01 1 1510- ●
32 LAMP ASM; FOG
(A) THA 		8-98226-794-0 01 1 1510- ●
32 LAMP ASM; FOG
FOG LAMP<T96> HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98226-795-0 01 1 1510- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> (A) THA 		8-98226-795-0 01 1 1510- ●
32 LAMP ASM; FOG
(A) THA 		8-98226-795-0 01 1 1510- ●
32 LAMP ASM; FOG
FOG LAMP<T96> EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98249-454-0 01 1 1510- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98249-455-0 01 1 1510- ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> EXC. HIGH RIDE SUSPENSION<7YC> M6X18 W/LK&PL WASHER IMA 		8-98061-682-0 04 1 1510- ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> HIGH RIDE SUSPENSION<7YC> M6 FLANGE IMA 		8-98055-704-0 04 1 1510- ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE IMA 		8-98055-704-0 04 1 1510- ●
44 NUT; FOG LAMP
M6 FLANGE IMA 		8-98055-704-0 04 1 1510- ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> THA 		8-98241-840-0 02 1 1510- ● ● ●
55 SCREW; ADJ,FOG LAMP
THA 		8-98241-840-0 02 1 1510- ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> THA 		8-98017-835-0 02 1 1510- ● ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
THA 		8-98017-835-0 02 1 1510- ●
91 BULB; SIDE TURN SIGNAL
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> 12V 5W THA 		8-97310-952-0 02 1 1510- ● ●
91 BULB; SIDE TURN SIGNAL
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> 12V 5W THA 		8-97310-952-0 02 1 1510- ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 1510- ●
99 LAMP; SIDE FLASHER
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA 		8-98084-153-0 02 1 1510- ● ●
99 LAMP; SIDE FLASHER
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-98084-153-0 02 1 1510- ● ●
99 LAMP; SIDE FLASHER
THA 		8-98084-153-0 02 1 1510- ●
106 GASKET; SIDE TURN SIGNAL
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA 		8-97333-420-0 02 1 1510- ● ●
106 GASKET; SIDE TURN SIGNAL
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-97333-420-0 02 1 1510- ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 1510- ●
224 SOCKET; SIDE FLASHER LAMP
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA 		8-97310-953-0 02 1 1510- ● ●
224 SOCKET; SIDE FLASHER LAMP
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-97310-953-0 02 1 1510- ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 1510- ●
424 RETAINER; FOG LAMP
FOG LAMP<T96> HIGH RIDE SUSPENSION<7YC> THA 		8-97372-854-0 02 1 1510- ● ●
424 RETAINER; FOG LAMP
FOG LAMP<T96> THA 		8-97372-854-0 02 1 1510- ●
424 RETAINER; FOG LAMP
THA 		8-97372-854-0 02 1 1510- ●
