◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#166141) — 25 parça

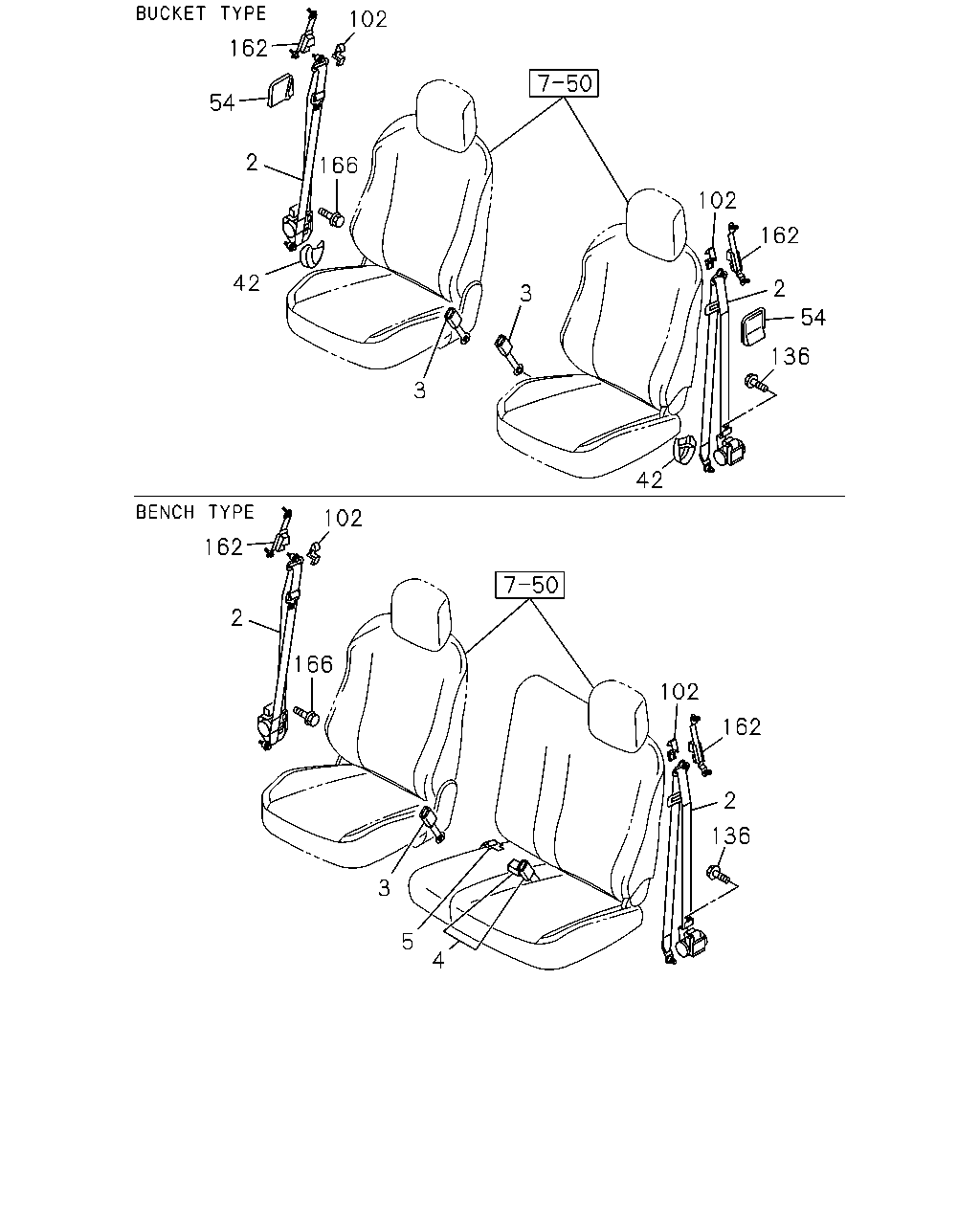

çizim 492708
42 136 54 2 162 102 3 3 42 166 2 54 162 102 102 162 2 166 3 5 4 136 2 162 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUC KET STANDARD<A50> PASSENGER SIDE BLACK THA 		8-97423-667-0 01 1 1510- ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BUCKET STANDARD<A50> PASSENGER SIDE BLACK THA 		8-97423-667-0 01 1 1510- ●
2 BELT; SEAT,TONGUE SIDE
DRIVER SIDE BLACK THA 		8-97423-663-0 01 1 1510- ● ● ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT SPLIT BENCH<AM6> PASSENGER SIDE BLACK THA 		8-97423-668-0 01 1 1510- ●
2 BELT; SEAT,TONGUE SIDE
PASSENGER SIDE BLACK THA 		8-97423-668-0 01 1 1510- ●
3 BELT; SEAT,BUCKLE SIDE
SEAT TRIM LEATHER<6TB>,SEAT TRIM VINYL<8LJ>, SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>, SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK THA 		8-97416-839-0 01 1 1510- ● ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE
BLACK THA 		8-97426-632-0 01 1 1510- ● ● ● ● ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT SPLIT BENCH<AM6> BLACK THA 		8-97417-107-1 01 1 1510- ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
BLACK THA 		8-97417-107-1 01 1 1510- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRONT SEAT SPLIT BENCH<AM6> BLACK THA 		8-97423-671-0 01 1 1510- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
BLACK THA 		8-97423-671-0 01 1 1510- ●
42 COVER; SEAT BELT
BLACK THA 		8-97417-001-0 02 1 1510- ● ●
54 BEZEL; SEAT BELT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-758-1 01 1 1510- ●
54 BEZEL; SEAT BELT
BLACK THA 		8-97416-758-1 01 1 1510- ●
54 BEZEL; SEAT BELT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-760-1 01 1 1510- ●
54 BEZEL; SEAT BELT
BLACK THA 		8-97416-760-1 01 1 1510- ●
54 BEZEL; SEAT BELT
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-759-1 01 1 1510- ●
54 BEZEL; SEAT BELT
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-761-1 01 1 1510- ●
102 COVER; SHOULDER ANCHOR
BLACK THA 		8-97416-646-2 02 1 1510- ● ● ● ● ● ●
136 BOLT; SEAT BELT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1510- ● ● ● ● ● ●
162 ADJUSTER; SEAT BELT
BLACK THA 		8-97416-645-1 02 1 1510- ● ● ● ● ● ●
166 BOLT; SEAT BELT ANCHOR
M6X16 FLANGE THA 		0-28650-616-0 01 1 1510- ● ● ● ● ● ●

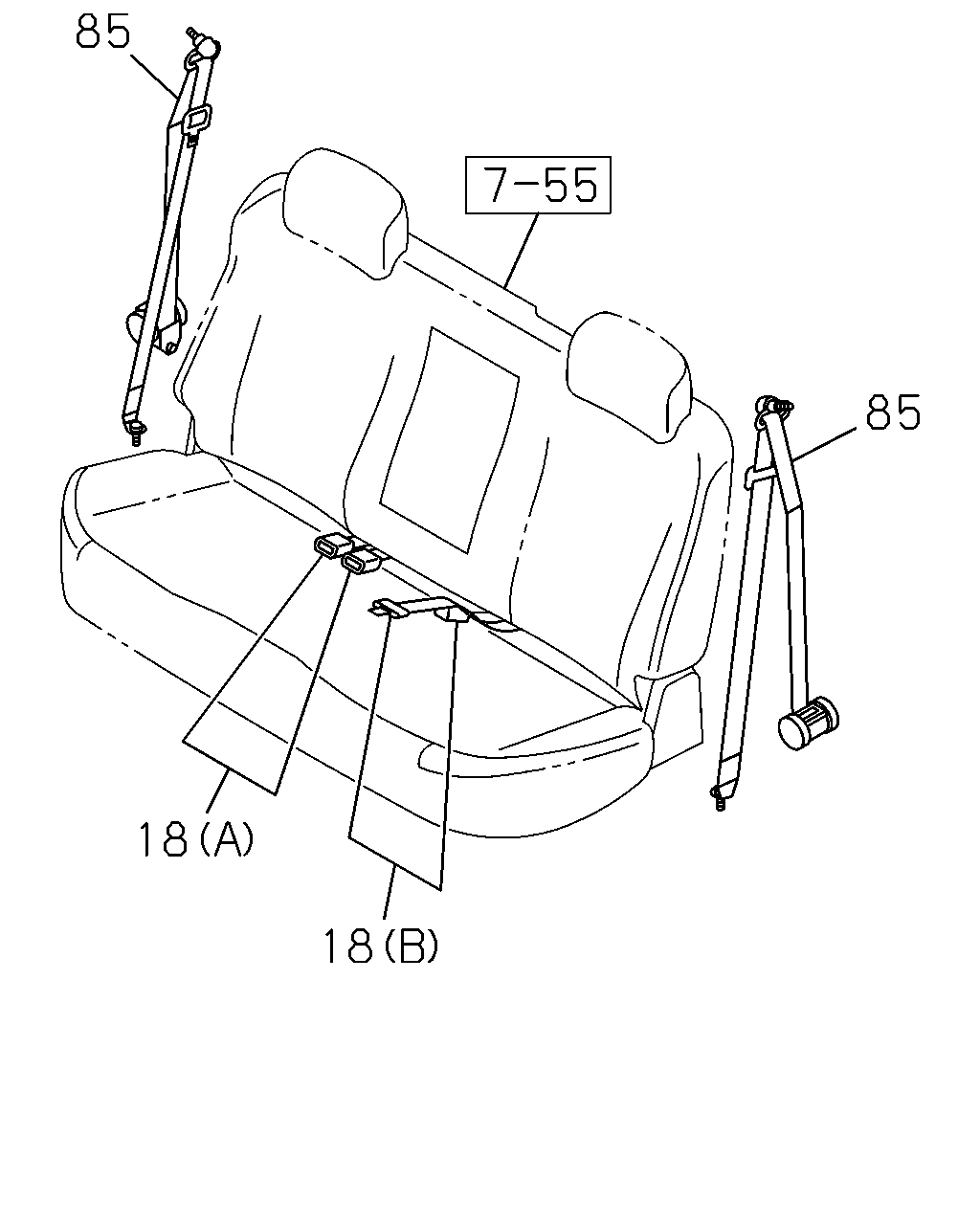

çizim 493143
85 85 18 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 BELT; SEAT,RR
(A) BLACK THA 		8-97416-937-1 01 1 1510- ● ●
18 BELT; SEAT,RR
(B) BLACK THA 		8-97423-672-0 01 1 1510- ● ●
85 BELT; SEAT,RR OUTER
BLACK THA 		8-97423-669-0 02 1 1510- ● ●
