7-55 — REAR SEAT (#166140) — 82 parça

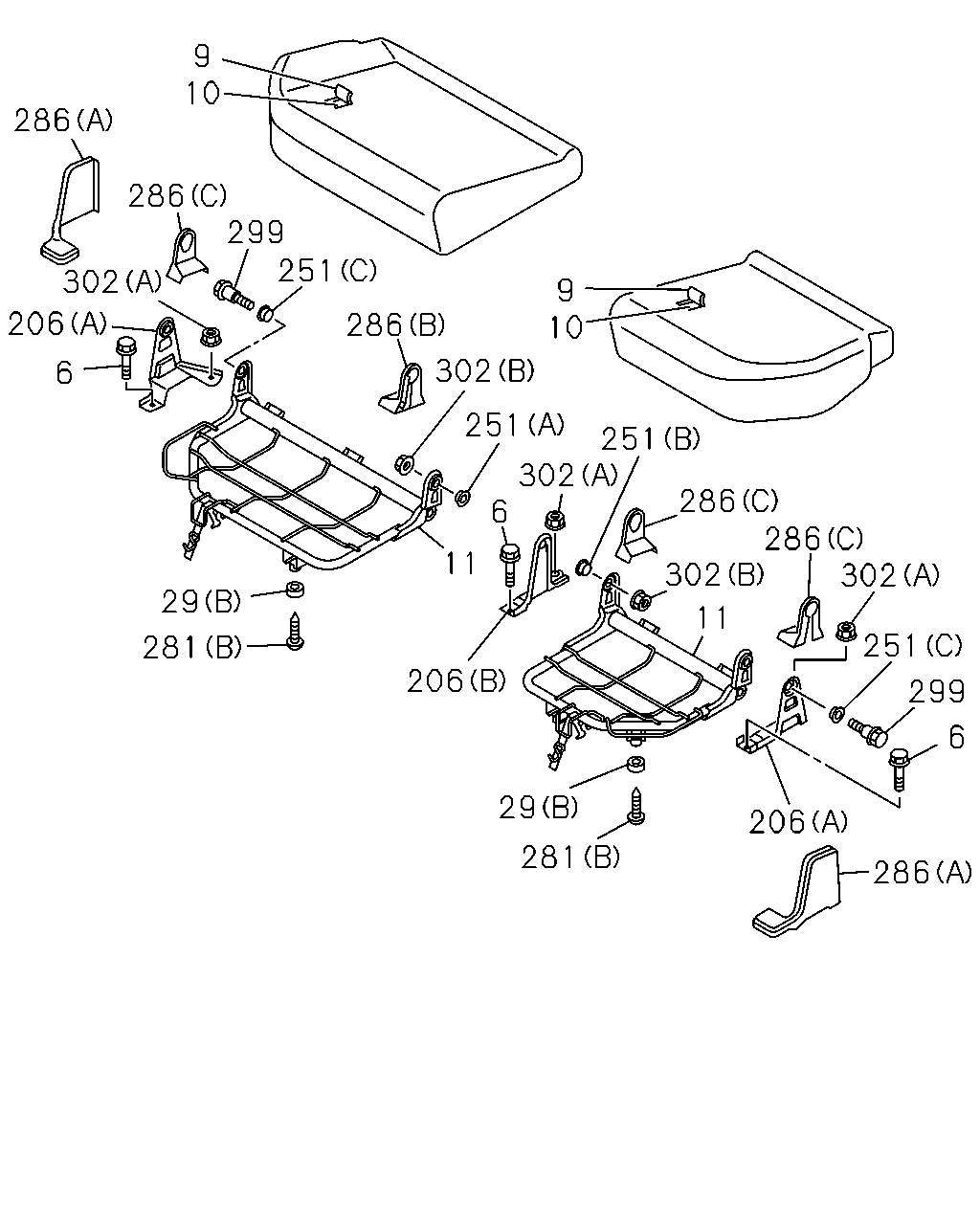

9 10 286 286 299 302 206 6 251 286 302 251 302 6 11 29 281 206 29 281 206 286 6 299 251 302 11 286 302 286 251 10 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BOLT; RR SEAT M12X27.5 W/PL WASHER THA	8-98050-319-0	03	1	1510-	●	●
9	COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR DARK GRAY<117> SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> LIGHT GRAY THA	8-97460-412-0	01	1	1510-	●	●
9	COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR DARK GRAY<117> SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> LIGHT GRAY THA	8-97460-414-0	01	1	1510-	●	●
9	COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR BEIGE<120> SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> BEIGE THA	8-97460-424-0	01	1	1510-	●
9	COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR BEIGE<120> SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> BEIGE THA	8-97460-426-0	01	1	1510-	●
9	COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR DARK GRAY<117> SEAT TRIM LEATHER<6TB> BLACK THA	8-97460-467-0	01	1	1510-	●	●
9	COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR DARK GRAY<117> SEAT TRIM LEATHER<6TB> BLACK THA	8-97460-469-0	01	1	1510-	●	●
9	COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB> BLACK THA	8-97460-455-0	01	1	1510-	●
9	COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB> BLACK THA	8-97460-457-0	01	1	1510-	●
9	COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM HIGH GRADE CLOTH VAR1<8LM> LIGHT GRAY THA	8-97460-406-0	01	1	1510-	●
9	COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM HIGH GRADE CLOTH VAR1<8LM> LIGHT GRAY THA	8-97460-408-0	01	1	1510-	●
9	COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR DARK GRAY<117> SEAT TRIM MID GRADE CLOTH<8LL> BLACK THA	8-97429-748-0	01	1	1510-	●
9	COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR DARK GRAY<117> SEAT TRIM MID GRADE CLOTH<8LL> BLACK THA	8-97429-751-0	01	1	1510-	●
9	COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR BEIGE<120> SEAT TRIM MID GRADE CLOTH<8LL> BEIGE THA	8-97429-875-0	01	1	1510-	●
9	COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR BEIGE<120> SEAT TRIM MID GRADE CLOTH<8LL> BEIGE THA	8-97429-878-0	01	1	1510-	●
10	PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>,SEAT TRIMHIGH GRADE CLOTH VAR3<8LP> THA	8-98300-436-0	01	1	1510-	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>,SEAT TRIMHIGH GRADE CLOTH VAR3<8LP> THA	8-98300-440-0	01	1	1510-	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB> THA	8-98300-438-0	01	1	1510-	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB> THA	8-98300-442-0	01	1	1510-	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM MID GRADE CLOTH<8LL> THA	8-98200-494-1	01	1	1510-	●
10	PAD; CUSHION,RR SEAT SEAT TRIM MID GRADE CLOTH<8LL> THA	8-98200-498-1	01	1	1510-	●
11	FRAME ASM; CUSHION,RR SEAT INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>,S EAT TRIM HIGH GRADE CLOTH VAR3<8LP> BLACK THA	8-97427-778-1	01	1	1510-	●	●
11	FRAME ASM; CUSHION,RR SEAT INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>,S EAT TRIM HIGH GRADE CLOTH VAR3<8LP> BLACK THA	8-97427-781-1	01	1	1510-	●	●
11	FRAME ASM; CUSHION,RR SEAT INTERIOR COLOR BEIGE<120> SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> BEIGE THA	8-97429-874-1	01	1	1510-	●
11	FRAME ASM; CUSHION,RR SEAT INTERIOR COLOR BEIGE<120> SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> BEIGE THA	8-97429-877-1	01	1	1510-	●
29	RUBBER; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>, SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (A) THA	8-98224-609-0	02	1	1510-	●	●
29	RUBBER; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>, SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (B) THA	8-98224-621-0	05	1	1510-	●	●
206	BRACKET ASM; LEG,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>, SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (A) THA	8-98224-625-0	01	1	1510-	●	●
206	BRACKET ASM; LEG,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>, SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (B) THA	8-98224-695-0	01	1	1510-	●	●
206	BRACKET ASM; LEG,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>, SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (A) THA	8-98224-697-0	01	1	1510-	●	●
251	BUSHING; HINGE PIN SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>, SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (A) THA	8-98224-622-0	01	1	1510-	●	●
251	BUSHING; HINGE PIN SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>, SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (B) THA	8-98224-623-0	01	1	1510-	●	●
251	BUSHING; HINGE PIN SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>, SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (C) THA	8-98224-624-0	02	1	1510-	●	●
281	SCREW SEAT TRIM MID GRADE CLOTH<8LL> (B) M5X18 THA	8-98233-169-0	05	1	1510-	●
281	SCREW SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>, SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (A) M4X14 THA	8-98224-611-0	02	1	1510-	●	●
281	SCREW SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>,SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (B) M5X18 THA	8-98233-169-0	04	1	1510-	●	●
286	COVER; HINGE INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>,S EAT TRIM HIGH GRADE CLOTH VAR3<8LP> (B) BLACK THA	8-97424-699-1	01	1	1510-	●	●
286	COVER; HINGE INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>,S EAT TRIM HIGH GRADE CLOTH VAR3<8LP> (C) BLACK THA	8-97424-700-0	03	1	1510-	●	●
286	COVER; HINGE INTERIOR COLOR BEIGE<120> SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (B) BEIGE THA	8-97425-396-1	01	1	1510-	●
286	COVER; HINGE INTERIOR COLOR BEIGE<120> SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (C) BEIGE THA	8-97425-397-0	03	1	1510-	●
286	COVER; HINGE INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97416-997-2	01	1	1510-	●
286	COVER; HINGE (A) BLACK THA	8-97416-997-2	01	1	1510-		●
286	COVER; HINGE INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97416-999-2	01	1	1510-	●
286	COVER; HINGE (A) BLACK THA	8-97416-999-2	01	1	1510-		●
286	COVER; HINGE INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97416-998-2	01	1	1510-	●
286	COVER; HINGE INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97417-000-2	01	1	1510-	●
299	BOLT; LEG SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>, SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> M8X26 THA	8-98224-698-0	02	1	1510-	●	●
302	NUT; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>, SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (B) M6 FLANGE THA	8-98225-096-0	02	1	1510-	●	●
302	NUT; RR SEAT (A) M12 FLANGE THA	0-91180-212-0	03	1	1510-	●	●

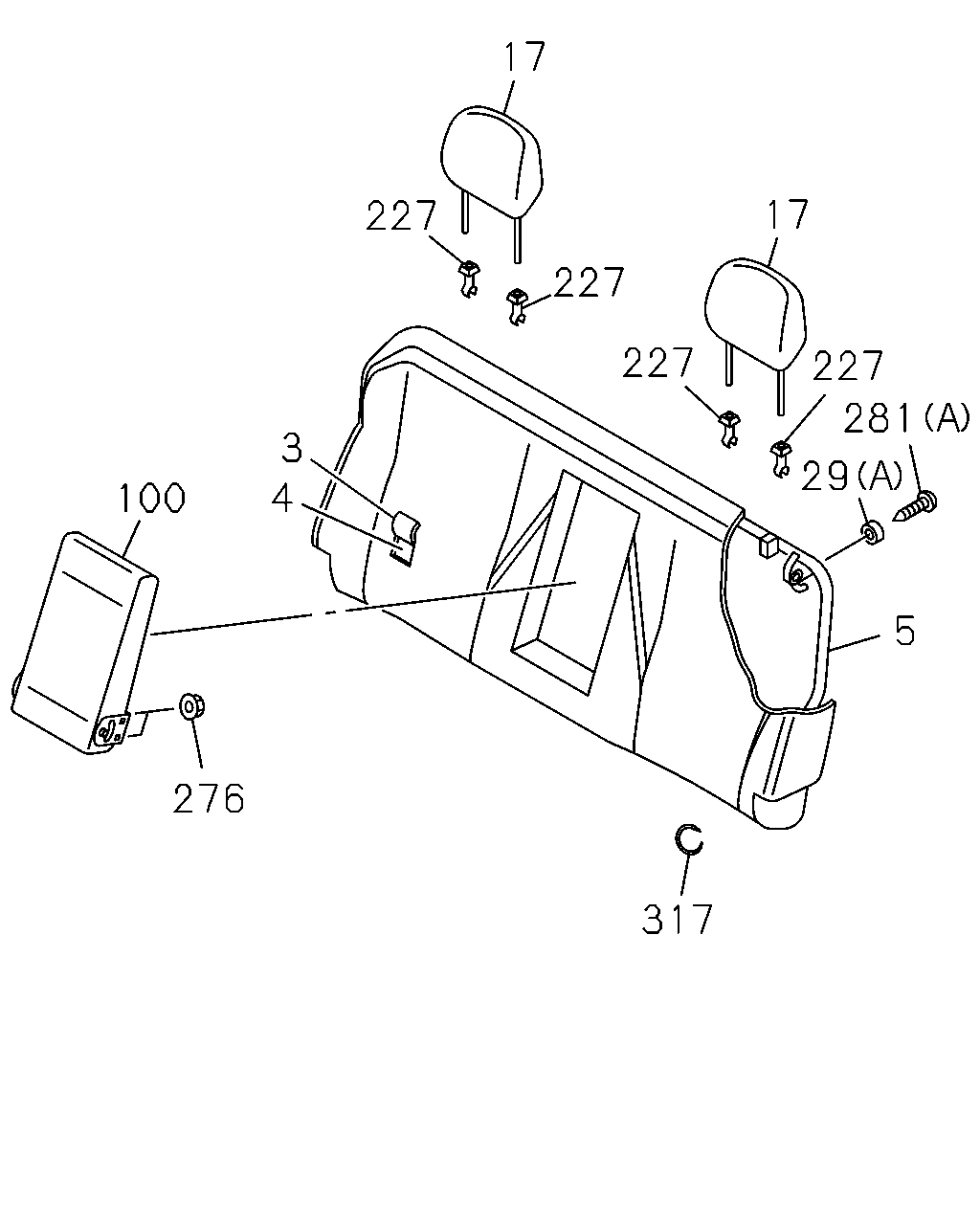

5 29 281 227 17 227 227 17 227 3 4 100 276 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	COVER; TRIM,RR SEAT BACK INTERIOR COLOR DARK GRAY<117> SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> LIGHT GRAY THA	8-97460-421-0	01	1	1510-	●	●
3	COVER; TRIM,RR SEAT BACK INTERIOR COLOR BEIGE<120> SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> BEIGE THA	8-97460-422-0	01	1	1510-	●
3	COVER; TRIM,RR SEAT BACK INTERIOR COLOR DARK GRAY<117> SEAT TRIM LEATHER<6TB> BLACK THA	8-97460-482-0	01	1	1510-	●	●
3	COVER; TRIM,RR SEAT BACK INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB> BLACK THA	8-97460-453-0	01	1	1510-	●
3	COVER; TRIM,RR SEAT BACK INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM HIGH GRADE CLOTH VAR1<8LM> LIGHT GRAY THA	8-97460-404-0	01	1	1510-	●
3	COVER; TRIM,RR SEAT BACK INTERIOR COLOR DARK GRAY<117> SEAT TRIM MID GRADE CLOTH<8LL> BLACK THA	8-97429-739-0	01	1	1510-	●
3	COVER; TRIM,RR SEAT BACK INTERIOR COLOR BEIGE<120> SEAT TRIM MID GRADE CLOTH<8LL> BEIGE THA	8-97429-872-0	01	1	1510-	●
4	PAD; RR,SEAT BACK SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>,SEAT TRIMHIGH GRADE CLOTH VAR3<8LP> THA	8-98300-431-0	01	1	1510-	●	●
4	PAD; RR,SEAT BACK SEAT TRIM LEATHER<6TB> THA	8-98300-433-0	01	1	1510-	●	●
4	PAD; RR,SEAT BACK SEAT TRIM MID GRADE CLOTH<8LL> THA	8-98196-180-0	01	1	1510-	●
5	FRAME ASM; RR SEAT BACK INTERIOR COLOR BEIGE<120> SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> BEIGE THA	8-97427-755-0	01	1	1510-	●
5	FRAME ASM; RR SEAT BACK INTERIOR COLOR DARK GRAY<117> SEAT TRIM MID GRADE CLOTH<8LL> BLACK THA	8-97427-751-0	01	1	1510-	●
5	FRAME ASM; RR SEAT BACK INTERIOR COLOR BEIGE<120> SEAT TRIM MID GRADE CLOTH<8LL> BEIGE THA	8-97429-737-0	01	1	1510-	●
5	FRAME ASM; RR SEAT BACK INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>,SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> BLACK THA	8-97427-754-0	01	1	1510-	●	●
17	REST; HD,RR SEAT INTERIOR COLOR DARK GRAY<117> SEAT TRIM LEATHER<6TB> BLACK THA	8-97460-470-0	02	1	1510-	●	●
17	REST; HD,RR SEAT INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB> BLACK THA	8-97460-427-0	02	1	1510-	●
17	REST; HD,RR SEAT INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>,SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> LIGHT GRAY THA	8-97424-691-0	02	1	1510-	●	●
17	REST; HD,RR SEAT INTERIOR COLOR BEIGE<120> SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> BEIGE THA	8-97425-359-0	02	1	1510-	●
29	RUBBER; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>, SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (A) THA	8-98224-609-0	02	1	1510-	●	●
29	RUBBER; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>, SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (B) THA	8-98224-621-0	05	1	1510-	●	●
100	REST; ARM,RR SEAT INTERIOR COLOR BEIGE<120> SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> BEIGE THA	8-97425-391-0	01	1	1510-	●
100	REST; ARM,RR SEAT INTERIOR COLOR DARK GRAY<117> SEAT TRIM LEATHER<6TB> BLACK THA	8-97460-464-0	01	1	1510-	●	●
100	REST; ARM,RR SEAT INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB> BLACK THA	8-97465-106-0	01	1	1510-	●
100	REST; ARM,RR SEAT INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>,SEAT TRIMHIGH GRADE CLOTH VAR3<8LP> LIGHT GRAY THA	8-97424-694-0	01	1	1510-	●	●
227	HOLDER; GUIDE,RR HD REST INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>,S EAT TRIM HIGH GRADE CLOTH VAR3<8LP> LOCK BLACK THA	8-97424-499-0	02	1	1510-	●	●
227	HOLDER; GUIDE,RR HD REST INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>,S EAT TRIM HIGH GRADE CLOTH VAR3<8LP> FREE BLACK THA	8-97424-500-0	02	1	1510-	●	●
227	HOLDER; GUIDE,RR HD REST INTERIOR COLOR BEIGE<120> SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> LOCK BEIGE THA	8-97425-393-0	02	1	1510-	●
227	HOLDER; GUIDE,RR HD REST INTERIOR COLOR BEIGE<120> SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> FREE BEIGE THA	8-97425-394-0	02	1	1510-	●
276	NUT; ARM REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>,SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> M6 FLANGE THA	8-98224-604-0	04	1	1510-	●	●
281	SCREW SEAT TRIM MID GRADE CLOTH<8LL> (B) M5X18 THA	8-98233-169-0	05	1	1510-	●
281	SCREW SEAT TRIM LEATHER<6TB>,SEAT TRIM MID GRADE CLOTH<8LL>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>, SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (A) M4X14 THA	8-98224-611-0	02	1	1510-	●	●
281	SCREW SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH VAR1<8LM>,SEAT TRIM HIGH GRADE CLOTH VAR3<8LP> (B) M5X18 THA	8-98233-169-0	04	1	1510-	●	●
317	RING; BACK,RR SEAT THA	8-98220-068-0	AR	1	1510-	●	●
