7-45 — CONSOLE BOX (#166138) — 119 parça

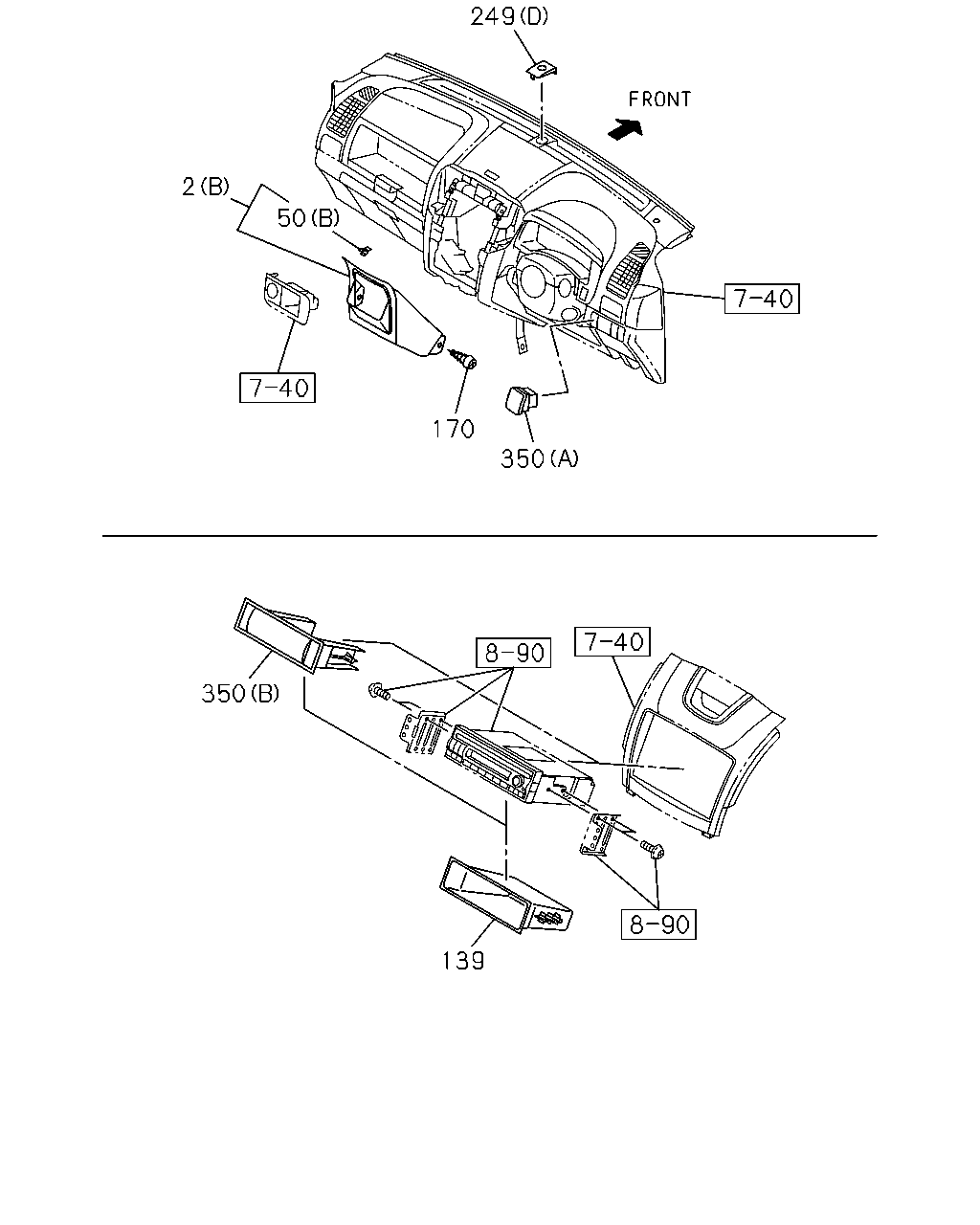

çizim 492634
249 350 170 50 2 350 139
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 CONSOLE; CENTER
FLOOR CONSOLE W/LID<D55> (A) BLACK THA 		8-97427-532-0 01 1 1510- ● ● ● ● ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE WO/LID<D54> (B) BLACK THA 		8-97416-633-4 01 1 1510- ●
2 CONSOLE; CENTER
FRONT SEAT SPLIT BENCH<AM6> EXC. FLOOR CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55> (B) BLACK THA 		8-97416-633-4 01 1 1510- ●
2 CONSOLE; CENTER
FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE WO/LID<D54> (B) BLACK THA 		8-97416-633-4 01 1 1510- ●
2 CONSOLE; CENTER
(B) BLACK THA 		8-97416-633-4 01 1 1510- ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117> FLOOR CONSOLE WO/LID<D54> (C) BLACK THA 		8-97416-653-3 01 1 1510- ●
2 CONSOLE; CENTER
FLOOR CONSOLE WO/LID<D54> (C) BLACK THA 		8-97416-653-3 01 1 1510- ●
2 CONSOLE; CENTER
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07> (A) BLACK THA 		8-97427-531-0 01 1 1510- ● ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-98192-891-0 02 1 1510- ● ● ●
50 CLIP; CONSOLE
(A) THA 		8-98192-891-0 02 1 1510- ●
50 CLIP; CONSOLE
INTERIOR COLOR DARK GRAY<117> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE WO/LID<D54> (B) THA 		8-98164-677-0 02 1 1510- ●
50 CLIP; CONSOLE
FRONT SEAT SPLIT BENCH<AM6> EXC. FLOOR CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55> (B) THA 		8-98164-677-0 02 1 1510- ●
50 CLIP; CONSOLE
FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE WO/LID<D54> (B) THA 		8-98164-677-0 02 1 1510- ●
50 CLIP; CONSOLE
(B) THA 		8-98164-677-0 02 1 1510- ●
139 BOX; CONSOLE,UPR
INTERIOR BASIC<RBA> RADIO DELETE<UL5> BLACK THA 		8-97416-619-0 01 1 1510- ● ●
139 BOX; CONSOLE,UPR
AM/FM,CLOCK,CD PLAYER<U1C> BLACK THA 		8-97416-619-0 01 1 1510- ●
139 BOX; CONSOLE,UPR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> AM/FM,CLOCK,CD PLAYER<U1C> BLACK THA 		8-97416-619-0 01 1 1510- ●
139 BOX; CONSOLE,UPR
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,CD PLAYER<U1C> BLACK THA 		8-97416-619-0 01 1 1510- ● ●
139 BOX; CONSOLE,UPR
BLACK THA 		8-97416-619-0 01 1 1510- ●
170 RETAINER; CONSOLE BOX
INTERIOR COLOR DARK GRAY<117> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE WO/LID<D54> BLACK THA 		8-97416-699-0 02 1 1510- ●
170 RETAINER; CONSOLE BOX
FRONT SEAT SPLIT BENCH<AM6> EXC. FLOOR CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97416-699-0 02 1 1510- ●
170 RETAINER; CONSOLE BOX
FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE WO/LID<D54> BLACK THA 		8-97416-699-0 02 1 1510- ●
170 RETAINER; CONSOLE BOX
BLACK THA 		8-97416-699-0 02 1 1510- ●
249 COVER
AUTO COOLER SYSTEM<CJ2> (D) BLACK THA 		8-97416-614-2 01 1 1510- ● ● ● ●
249 COVER
COOLER W/FRESH AIR<C65> (D) BLACK THA 		8-97416-613-2 01 1 1510- ● ● ● ●
249 COVER
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (D) BLACK THA 		8-97416-613-2 01 1 1510- ●
249 COVER
(D) BLACK THA 		8-97416-613-2 01 1 1510- ●
249 COVER
FLOOR CONSOLE W/LID<D55> (B) BLACK THA 		8-97416-660-1 01 1 1510- ● ●
249 COVER
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (B) BLACK THA 		8-97416-660-1 01 1 1510- ●
249 COVER
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (A) BLACK THA 		8-97417-151-2 01 1 1510- ● ● ● ●
249 COVER
INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (E) SILVER THA 		8-97465-558-0 01 1 1510- ● ● ● ●
249 COVER
INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> HIGH RIDE SUSPENSION<7YC> (E) BLACK THA 		8-97465-559-0 01 1 1510- ● ●
249 COVER
INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> EXC. HIGH RIDE SUSPENSION<7YC> (E) RED THA 		8-97465-567-0 01 1 1510- ● ●
249 COVER
FLOOR CONSOLE W/LID<D55> (C) BLACK THA 		8-97416-659-2 01 1 1510- ●
249 COVER
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (C) BLACK THA 		8-97416-659-2 01 1 1510- ●
350 COVER; CONSOLE
INTERIOR BASIC<RBA> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> RADIO DELETE<UL5> (B) BLACK THA 		8-97416-806-0 01 1 1510- ●
350 COVER; CONSOLE
INTERIOR BASIC<RBA> RADIO DELETE<UL5> (B) BLACK THA 		8-97416-806-0 01 1 1510- ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1510- ● ● ● ● ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1510- ● ● ● ● ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1510- ● ● ● ● ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1510- ● ● ● ● ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1510- ● ● ● ●
350 COVER; CONSOLE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-98103-424-2 01 1 1510- ● ● ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1510- ● ●
350 COVER; CONSOLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) THA 		8-98103-424-2 01 1 1510- ● ●

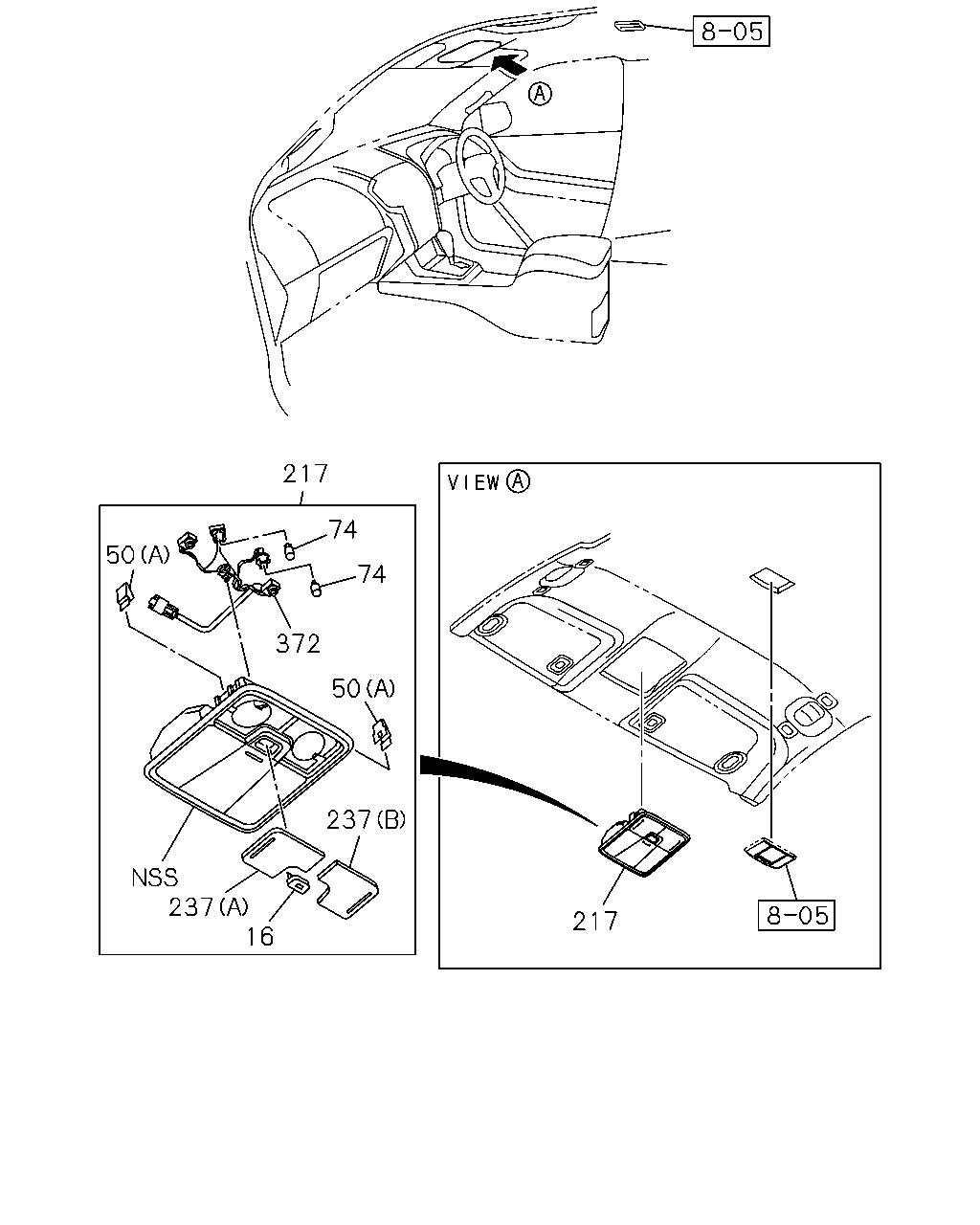

çizim 492643
217 74 74 372 50 237 16 237 50 217
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 KNOB ASM
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> GRAY THA 		8-97423-261-0 01 1 1510- ● ●
16 KNOB ASM
HEADER CONSOLE<DK6> GRAY THA 		8-97423-261-0 01 1 1510- ●
16 KNOB ASM
GRAY THA 		8-97423-261-0 01 1 1510- ●
16 KNOB ASM
INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> BLACK THA 		8-97423-947-0 01 1 1510- ● ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-98192-891-0 02 1 1510- ● ● ●
50 CLIP; CONSOLE
(A) THA 		8-98192-891-0 02 1 1510- ●
50 CLIP; CONSOLE
INTERIOR COLOR DARK GRAY<117> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE WO/LID<D54> (B) THA 		8-98164-677-0 02 1 1510- ●
50 CLIP; CONSOLE
FRONT SEAT SPLIT BENCH<AM6> EXC. FLOOR CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55> (B) THA 		8-98164-677-0 02 1 1510- ●
50 CLIP; CONSOLE
FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE WO/LID<D54> (B) THA 		8-98164-677-0 02 1 1510- ●
50 CLIP; CONSOLE
(B) THA 		8-98164-677-0 02 1 1510- ●
74 BULB; CONSOLE
HEADER CONSOLE<DK6> 12V 5W THA 		8-94124-595-0 02 1 1510- ● ● ●
74 BULB; CONSOLE
12V 5W THA 		8-94124-595-0 02 1 1510- ●
217 CONSOLE; HEADER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> GRAY THA 		8-97416-690-5 01 1 1510- ● ●
217 CONSOLE; HEADER
HEADER CONSOLE<DK6> GRAY THA 		8-97416-690-5 01 1 1510- ●
217 CONSOLE; HEADER
GRAY THA 		8-97416-690-5 01 1 1510- ●
217 CONSOLE; HEADER
INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> BLACK THA 		8-97423-928-5 01 1 1510- ● ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-98192-893-0 01 1 1510- ● ● ●
237 LENS; HEADER CONSOLE
(A) THA 		8-98192-893-0 01 1 1510- ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (B) THA 		8-98192-894-0 01 1 1510- ● ● ●
237 LENS; HEADER CONSOLE
(B) THA 		8-98192-894-0 01 1 1510- ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
HEADER CONSOLE<DK6> THA 		8-98192-890-0 01 1 1510- ● ● ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
THA 		8-98192-890-0 01 1 1510- ●

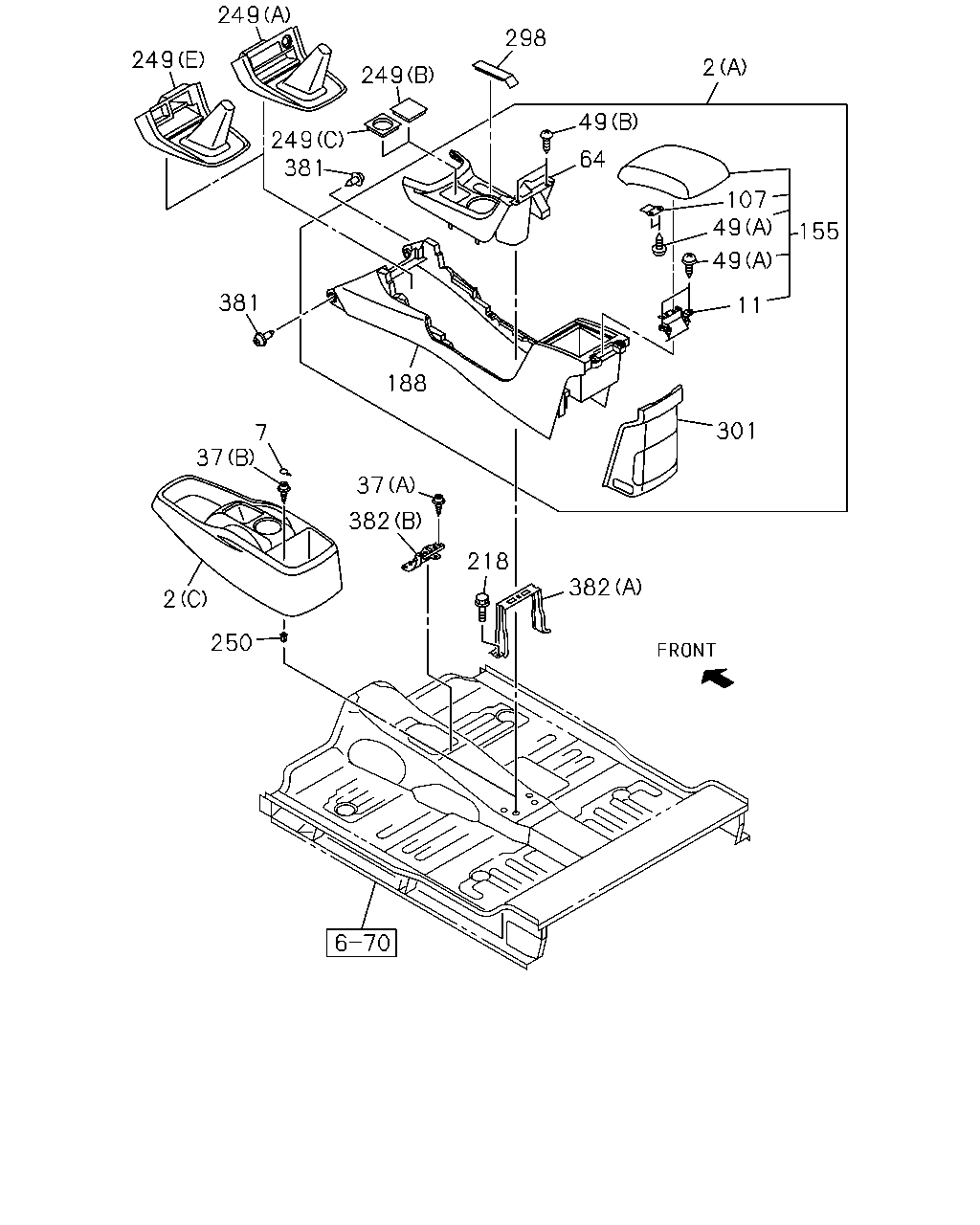

çizim 492706
249 249 249 298 2 49 64 107 49 155 49 11 301 188 381 381 249 7 37 37 382 218 382 2 250
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 CONSOLE; CENTER
FLOOR CONSOLE W/LID<D55> (A) BLACK THA 		8-97427-532-0 01 1 1510- ● ● ● ● ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE WO/LID<D54> (B) BLACK THA 		8-97416-633-4 01 1 1510- ●
2 CONSOLE; CENTER
FRONT SEAT SPLIT BENCH<AM6> EXC. FLOOR CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55> (B) BLACK THA 		8-97416-633-4 01 1 1510- ●
2 CONSOLE; CENTER
FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE WO/LID<D54> (B) BLACK THA 		8-97416-633-4 01 1 1510- ●
2 CONSOLE; CENTER
(B) BLACK THA 		8-97416-633-4 01 1 1510- ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117> FLOOR CONSOLE WO/LID<D54> (C) BLACK THA 		8-97416-653-3 01 1 1510- ●
2 CONSOLE; CENTER
FLOOR CONSOLE WO/LID<D54> (C) BLACK THA 		8-97416-653-3 01 1 1510- ●
2 CONSOLE; CENTER
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07> (A) BLACK THA 		8-97427-531-0 01 1 1510- ● ●
7 COVER; HOLE,FLOOR CONSOLE
INTERIOR COLOR DARK GRAY<117> FLOOR CONSOLE WO/LID<D54> BLACK THA 		8-97416-610-0 02 1 1510- ●
7 COVER; HOLE,FLOOR CONSOLE
FLOOR CONSOLE WO/LID<D54> BLACK THA 		8-97416-610-0 02 1 1510- ●
11 HINGE; CONSOLE LID
FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97423-090-0 01 1 1510- ● ● ●
11 HINGE; CONSOLE LID
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> BLACK THA 		8-97423-090-0 01 1 1510- ● ●
37 SCREW; CONSOLE
FLOOR CONSOLE WO/LID<D54> (B) M5X16 TAPPING W/PL WASHER IMA 		8-98039-091-0 02 1 1510- ● ●
37 SCREW; CONSOLE
FLOOR CONSOLE W/LID<D55> (A) M5X16 TAPPING W/PL WASHER IMA 		0-74165-516-0 03 1 1510- ● ● ●
37 SCREW; CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (A) M5X16 TAPPING W/PL WASHER IMA 		0-74165-516-0 03 1 1510- ● ●
49 SCREW; CONSOLE
FLOOR CONSOLE W/LID<D55> (A) M5X16 THA 		8-98197-847-0 06 1 1510- ● ● ●
49 SCREW; CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (A) M5X16 THA 		8-98197-847-0 06 1 1510- ● ●
49 SCREW; CONSOLE
FLOOR CONSOLE W/LID<D55> (B) M4X14 THA 		8-98234-823-0 02 1 1510- ● ● ●
49 SCREW; CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (B) M4X14 THA 		8-98234-823-0 02 1 1510- ● ●
64 BEZEL; CENTER CONSOLE
FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97423-087-3 01 1 1510- ● ● ●
64 BEZEL; CENTER CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> BLACK THA 		8-97423-087-3 01 1 1510- ● ●
107 LOCK; LID,RR CONSOLE
FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97423-089-0 01 1 1510- ● ● ●
107 LOCK; LID,RR CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> BLACK THA 		8-97423-089-0 01 1 1510- ● ●
155 LID; PARCEL BOX
FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97423-088-1 01 1 1510- ● ● ●
155 LID; PARCEL BOX
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> BLACK THA 		8-97423-088-1 01 1 1510- ● ●
188 CONSOLE; RR
FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97423-086-3 01 1 1510- ● ● ●
188 CONSOLE; RR
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> BLACK THA 		8-97423-086-3 01 1 1510- ● ●
218 BOLT; BRKT
FLOOR CONSOLE W/LID<D55> M6X12.5 FLANGE THA 		8-98014-141-0 02 1 1510- ● ● ●
218 BOLT; BRKT
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> M6X12.5 FLANGE THA 		8-98014-141-0 02 1 1510- ● ●
249 COVER
AUTO COOLER SYSTEM<CJ2> (D) BLACK THA 		8-97416-614-2 01 1 1510- ● ● ● ●
249 COVER
COOLER W/FRESH AIR<C65> (D) BLACK THA 		8-97416-613-2 01 1 1510- ● ● ● ●
249 COVER
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (D) BLACK THA 		8-97416-613-2 01 1 1510- ●
249 COVER
(D) BLACK THA 		8-97416-613-2 01 1 1510- ●
249 COVER
FLOOR CONSOLE W/LID<D55> (B) BLACK THA 		8-97416-660-1 01 1 1510- ● ●
249 COVER
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (B) BLACK THA 		8-97416-660-1 01 1 1510- ●
249 COVER
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (A) BLACK THA 		8-97417-151-2 01 1 1510- ● ● ● ●
249 COVER
INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (E) SILVER THA 		8-97465-558-0 01 1 1510- ● ● ● ●
249 COVER
INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> HIGH RIDE SUSPENSION<7YC> (E) BLACK THA 		8-97465-559-0 01 1 1510- ● ●
249 COVER
INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> EXC. HIGH RIDE SUSPENSION<7YC> (E) RED THA 		8-97465-567-0 01 1 1510- ● ●
249 COVER
FLOOR CONSOLE W/LID<D55> (C) BLACK THA 		8-97416-659-2 01 1 1510- ●
249 COVER
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (C) BLACK THA 		8-97416-659-2 01 1 1510- ●
250 GROMMET; CONSOLE BOX
FLOOR CONSOLE WO/LID<D54> D=7X7 L=7.5 THA 		5-09983-007-0 02 1 1510- ● ●
298 BEZEL; HAND BRAKE,CONSOLE
FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97416-651-2 01 1 1510- ● ● ●
298 BEZEL; HAND BRAKE,CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> BLACK THA 		8-97416-651-2 01 1 1510- ● ●
301 BEZEL; CONSOLE
FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97423-092-2 01 1 1510- ● ● ● ● ●
301 BEZEL; CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07> BLACK THA 		8-97423-091-2 01 1 1510- ● ●
381 RETAINER; FLOOR CONSOLE
FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97360-070-0 02 1 1510- ● ● ●
381 RETAINER; FLOOR CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> BLACK THA 		8-97360-070-0 02 1 1510- ● ●
382 BRACKET; FLOOR CONSOLE
FLOOR CONSOLE W/LID<D55> (A) THA 		8-98102-973-3 01 1 1510- ● ● ●
382 BRACKET; FLOOR CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (A) THA 		8-98102-973-3 01 1 1510- ● ●
382 BRACKET; FLOOR CONSOLE
FLOOR CONSOLE W/LID<D55> (B) THA 		8-98112-864-4 01 1 1510- ● ● ●
382 BRACKET; FLOOR CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (B) THA 		8-98112-864-4 01 1 1510- ● ●
