Sayfa 7-43 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶

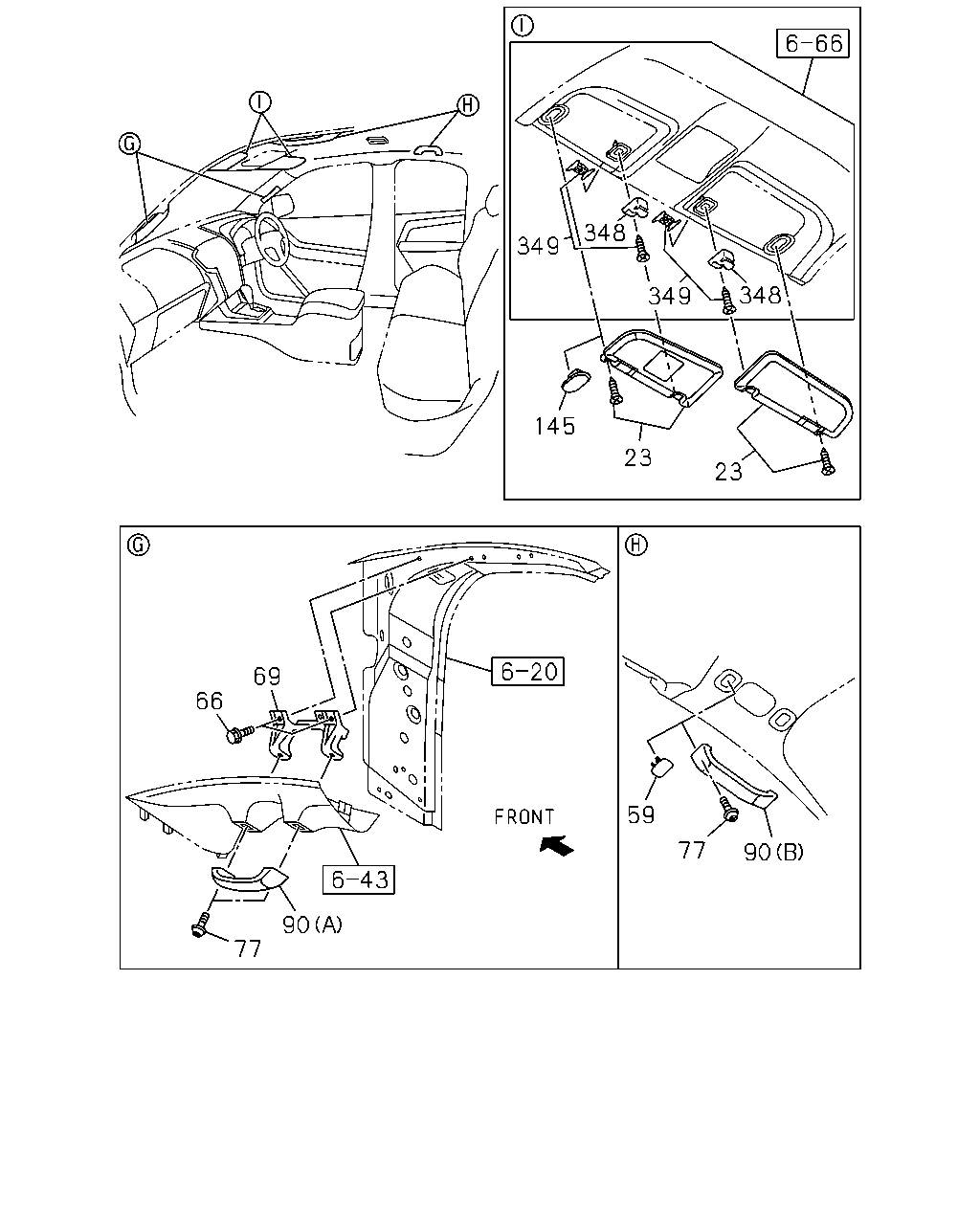

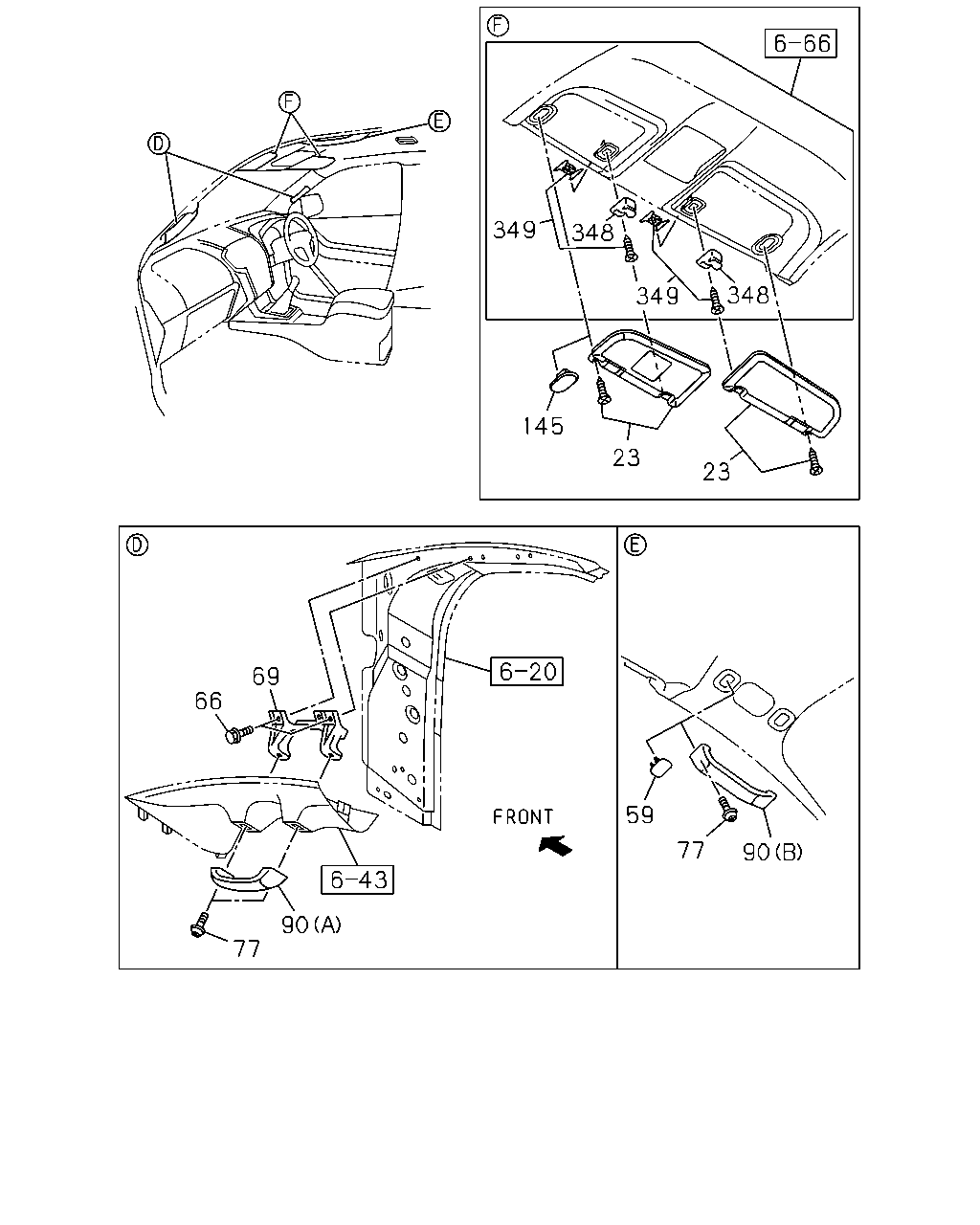

7-43 — SUN VISOR AND ASSIST GRIP (#166137) — 126 parça

349 348 349 348 23 23 145 59 77 90 90 77 69 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	SUN VISOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA	8-97416-686-3	01	1	1510-	●	●	●	●
23	SUN VISOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA	8-97429-637-0	01	1	1510-	●	●	●	●
23	SUN VISOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA	8-97416-683-2	01	1	1510-	●	●
23	SUN VISOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA	8-97416-682-2	01	1	1510-	●	●
23	SUN VISOR GRAY THA	8-97416-682-2	01	1	1510-					●
23	SUN VISOR INTERIOR COLOR UPR & LWR DARK GRAY<154> SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> BLACK THA	8-97423-927-3	01	1	1510-	●
23	SUN VISOR INTERIOR COLOR UPR & LWR DARK GRAY<154> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> BLACK THA	8-97423-927-3	01	1	1510-		●
23	SUN VISOR INTERIOR COLOR UPR & LWR DARK GRAY<154> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> BLACK THA	8-97423-926-2	01	1	1510-	●	●
23	SUN VISOR GRAY THA	8-97416-687-2	01	1	1510-			●	●		●
59	COVER; ASSIST GRIP INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA	8-97423-934-0	02	1	1510-	●	●
59	COVER; ASSIST GRIP INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. ASSIST HANDLE<E28> BLACK THA	8-97423-934-0	02	1	1510-	●	●
59	COVER; ASSIST GRIP INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> GRAY THA	8-97416-700-0	02	1	1510-	●	●
59	COVER; ASSIST GRIP INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. ASSIST HANDLE<E28> GRAY THA	8-97416-700-0	02	1	1510-	●	●
59	COVER; ASSIST GRIP GRAY THA	8-97416-700-0	02	1	1510-			●	●	●	●
59	COVER; ASSIST GRIP EXC. ASSIST HANDLE<E28> GRAY THA	8-97416-700-0	02	1	1510-			●	●	●	●
66	BOLT; ASSIST GRIP BRKT HIGH RIDE SUSPENSION<7YC> M6X16 FLANGE THA	8-98050-320-0	04	1	1510-	●	●
66	BOLT; ASSIST GRIP BRKT M6X16 FLANGE THA	8-98050-320-0	04	1	1510-			●	●		●
69	BRACKET; ASSIST GRIP HIGH RIDE SUSPENSION<7YC> THA	8-98103-347-3	01	1	1510-	●	●
69	BRACKET; ASSIST GRIP THA	8-98103-347-3	01	1	1510-			●	●		●
69	BRACKET; ASSIST GRIP HIGH RIDE SUSPENSION<7YC> THA	8-98103-348-3	01	1	1510-	●	●
69	BRACKET; ASSIST GRIP THA	8-98103-348-3	01	1	1510-			●	●		●
77	SCREW; ASSIST GRIP ASSIST HANDLE<E28> M6X25 THA	0-36230-625-0	02	1	1510-	●	●	●	●	●	●
77	SCREW; ASSIST GRIP HIGH RIDE SUSPENSION<7YC> M6X25 THA	0-36230-625-0	04	1	1510-	●	●
77	SCREW; ASSIST GRIP M6X25 THA	0-36230-625-0	04	1	1510-		●	●	●		●
77	SCREW; ASSIST GRIP M6X25 THA	0-36230-625-0	04	1	1510-				●
90	GRIP; ASSIST,ROOF INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> (A) GRAY THA	8-97416-698-4	02	1	1510-	●	●
90	GRIP; ASSIST,ROOF (A) GRAY THA	8-97416-698-4	02	1	1510-			●	●		●
90	GRIP; ASSIST,ROOF INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> ASSIST HANDLE<E28> (B) FRONT GRAY THA	8-97416-698-4	01	1	1510-	●	●
90	GRIP; ASSIST,ROOF ASSIST HANDLE<E28> (B) FRONT GRAY THA	8-97416-698-4	01	1	1510-			●	●	●	●
90	GRIP; ASSIST,ROOF INTERIOR COLOR UPR & LWR DARK GRAY<154> ASSIST HANDLE<E28> (B) FRONT BLACK THA	8-97423-931-4	01	1	1510-	●	●
90	GRIP; ASSIST,ROOF INTERIOR COLOR UPR & LWR DARK GRAY<154> HIGH RIDE SUSPENSION<7YC> (A) BLACK THA	8-97423-931-4	02	1	1510-	●	●
90	GRIP; ASSIST,ROOF INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (B) REAR GRAY THA	8-97418-299-1	01	1	1510-		●
90	GRIP; ASSIST,ROOF (B) REAR GRAY THA	8-97418-299-1	01	1	1510-				●
90	GRIP; ASSIST,ROOF INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (B) REAR GRAY THA	8-97418-300-1	01	1	1510-		●
90	GRIP; ASSIST,ROOF (B) REAR GRAY THA	8-97418-300-1	01	1	1510-				●
90	GRIP; ASSIST,ROOF INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) REAR BLACK THA	8-97423-932-1	01	1	1510-		●
90	GRIP; ASSIST,ROOF INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) REAR BLACK THA	8-97423-933-1	01	1	1510-		●
145	PLUG; HOLE INTERIOR COLOR DARK GRAY<117> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY THA	8-97416-689-1	01	1	1510-	●
145	PLUG; HOLE EXC. SUNVISOR PASSENGER SIDE<D20> GRAY THA	8-97416-689-1	01	1	1510-					●
348	RETAINER; SUNSHADE INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> GRAY THA	8-97403-990-0	02	1	1510-	●	●	●	●	●	●
348	RETAINER; SUNSHADE INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> BLACK THA	8-97423-949-0	02	1	1510-	●	●
349	CLIP; RETAINER SUNSHADE THA	8-98039-903-0	02	1	1510-	●	●	●	●	●	●

349 348 349 348 23 23 145 59 77 90 90 77 66 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	SUN VISOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA	8-97416-686-3	01	1	1510-	●	●	●	●
23	SUN VISOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA	8-97429-637-0	01	1	1510-	●	●	●	●
23	SUN VISOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA	8-97416-683-2	01	1	1510-	●	●
23	SUN VISOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA	8-97416-682-2	01	1	1510-	●	●
23	SUN VISOR GRAY THA	8-97416-682-2	01	1	1510-					●
23	SUN VISOR INTERIOR COLOR UPR & LWR DARK GRAY<154> SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> BLACK THA	8-97423-927-3	01	1	1510-	●
23	SUN VISOR INTERIOR COLOR UPR & LWR DARK GRAY<154> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> BLACK THA	8-97423-927-3	01	1	1510-		●
23	SUN VISOR INTERIOR COLOR UPR & LWR DARK GRAY<154> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> BLACK THA	8-97423-926-2	01	1	1510-	●	●
23	SUN VISOR GRAY THA	8-97416-687-2	01	1	1510-			●	●		●
59	COVER; ASSIST GRIP INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA	8-97423-934-0	02	1	1510-	●	●
59	COVER; ASSIST GRIP INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. ASSIST HANDLE<E28> BLACK THA	8-97423-934-0	02	1	1510-	●	●
59	COVER; ASSIST GRIP INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> GRAY THA	8-97416-700-0	02	1	1510-	●	●
59	COVER; ASSIST GRIP INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. ASSIST HANDLE<E28> GRAY THA	8-97416-700-0	02	1	1510-	●	●
59	COVER; ASSIST GRIP GRAY THA	8-97416-700-0	02	1	1510-			●	●	●	●
59	COVER; ASSIST GRIP EXC. ASSIST HANDLE<E28> GRAY THA	8-97416-700-0	02	1	1510-			●	●	●	●
66	BOLT; ASSIST GRIP BRKT HIGH RIDE SUSPENSION<7YC> M6X16 FLANGE THA	8-98050-320-0	04	1	1510-	●	●
66	BOLT; ASSIST GRIP BRKT M6X16 FLANGE THA	8-98050-320-0	04	1	1510-			●	●		●
69	BRACKET; ASSIST GRIP HIGH RIDE SUSPENSION<7YC> THA	8-98103-347-3	01	1	1510-	●	●
69	BRACKET; ASSIST GRIP THA	8-98103-347-3	01	1	1510-			●	●		●
69	BRACKET; ASSIST GRIP HIGH RIDE SUSPENSION<7YC> THA	8-98103-348-3	01	1	1510-	●	●
69	BRACKET; ASSIST GRIP THA	8-98103-348-3	01	1	1510-			●	●		●
77	SCREW; ASSIST GRIP ASSIST HANDLE<E28> M6X25 THA	0-36230-625-0	02	1	1510-	●	●	●	●	●	●
77	SCREW; ASSIST GRIP HIGH RIDE SUSPENSION<7YC> M6X25 THA	0-36230-625-0	04	1	1510-	●	●
77	SCREW; ASSIST GRIP M6X25 THA	0-36230-625-0	04	1	1510-		●	●	●		●
77	SCREW; ASSIST GRIP M6X25 THA	0-36230-625-0	04	1	1510-				●
90	GRIP; ASSIST,ROOF INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> (A) GRAY THA	8-97416-698-4	02	1	1510-	●	●
90	GRIP; ASSIST,ROOF (A) GRAY THA	8-97416-698-4	02	1	1510-			●	●		●
90	GRIP; ASSIST,ROOF INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> ASSIST HANDLE<E28> (B) FRONT GRAY THA	8-97416-698-4	01	1	1510-	●	●
90	GRIP; ASSIST,ROOF ASSIST HANDLE<E28> (B) FRONT GRAY THA	8-97416-698-4	01	1	1510-			●	●	●	●
90	GRIP; ASSIST,ROOF INTERIOR COLOR UPR & LWR DARK GRAY<154> ASSIST HANDLE<E28> (B) FRONT BLACK THA	8-97423-931-4	01	1	1510-	●	●
90	GRIP; ASSIST,ROOF INTERIOR COLOR UPR & LWR DARK GRAY<154> HIGH RIDE SUSPENSION<7YC> (A) BLACK THA	8-97423-931-4	02	1	1510-	●	●
90	GRIP; ASSIST,ROOF INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (B) REAR GRAY THA	8-97418-299-1	01	1	1510-		●
90	GRIP; ASSIST,ROOF (B) REAR GRAY THA	8-97418-299-1	01	1	1510-				●
90	GRIP; ASSIST,ROOF INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (B) REAR GRAY THA	8-97418-300-1	01	1	1510-		●
90	GRIP; ASSIST,ROOF (B) REAR GRAY THA	8-97418-300-1	01	1	1510-				●
90	GRIP; ASSIST,ROOF INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) REAR BLACK THA	8-97423-932-1	01	1	1510-		●
90	GRIP; ASSIST,ROOF INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) REAR BLACK THA	8-97423-933-1	01	1	1510-		●
145	PLUG; HOLE INTERIOR COLOR DARK GRAY<117> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY THA	8-97416-689-1	01	1	1510-	●
145	PLUG; HOLE EXC. SUNVISOR PASSENGER SIDE<D20> GRAY THA	8-97416-689-1	01	1	1510-					●
348	RETAINER; SUNSHADE INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> GRAY THA	8-97403-990-0	02	1	1510-	●	●	●	●	●	●
348	RETAINER; SUNSHADE INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> BLACK THA	8-97423-949-0	02	1	1510-	●	●
349	CLIP; RETAINER SUNSHADE THA	8-98039-903-0	02	1	1510-	●	●	●	●	●	●

349 348 349 348 23 23 145 59 77 90 69 66 90 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	SUN VISOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA	8-97416-686-3	01	1	1510-	●	●	●	●
23	SUN VISOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA	8-97429-637-0	01	1	1510-	●	●	●	●
23	SUN VISOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA	8-97416-683-2	01	1	1510-	●	●
23	SUN VISOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA	8-97416-682-2	01	1	1510-	●	●
23	SUN VISOR GRAY THA	8-97416-682-2	01	1	1510-					●
23	SUN VISOR INTERIOR COLOR UPR & LWR DARK GRAY<154> SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> BLACK THA	8-97423-927-3	01	1	1510-	●
23	SUN VISOR INTERIOR COLOR UPR & LWR DARK GRAY<154> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> BLACK THA	8-97423-927-3	01	1	1510-		●
23	SUN VISOR INTERIOR COLOR UPR & LWR DARK GRAY<154> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> BLACK THA	8-97423-926-2	01	1	1510-	●	●
23	SUN VISOR GRAY THA	8-97416-687-2	01	1	1510-			●	●		●
59	COVER; ASSIST GRIP INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA	8-97423-934-0	02	1	1510-	●	●
59	COVER; ASSIST GRIP INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. ASSIST HANDLE<E28> BLACK THA	8-97423-934-0	02	1	1510-	●	●
59	COVER; ASSIST GRIP INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> GRAY THA	8-97416-700-0	02	1	1510-	●	●
59	COVER; ASSIST GRIP INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. ASSIST HANDLE<E28> GRAY THA	8-97416-700-0	02	1	1510-	●	●
59	COVER; ASSIST GRIP GRAY THA	8-97416-700-0	02	1	1510-			●	●	●	●
59	COVER; ASSIST GRIP EXC. ASSIST HANDLE<E28> GRAY THA	8-97416-700-0	02	1	1510-			●	●	●	●
66	BOLT; ASSIST GRIP BRKT HIGH RIDE SUSPENSION<7YC> M6X16 FLANGE THA	8-98050-320-0	04	1	1510-	●	●
66	BOLT; ASSIST GRIP BRKT M6X16 FLANGE THA	8-98050-320-0	04	1	1510-			●	●		●
69	BRACKET; ASSIST GRIP HIGH RIDE SUSPENSION<7YC> THA	8-98103-347-3	01	1	1510-	●	●
69	BRACKET; ASSIST GRIP THA	8-98103-347-3	01	1	1510-			●	●		●
69	BRACKET; ASSIST GRIP HIGH RIDE SUSPENSION<7YC> THA	8-98103-348-3	01	1	1510-	●	●
69	BRACKET; ASSIST GRIP THA	8-98103-348-3	01	1	1510-			●	●		●
77	SCREW; ASSIST GRIP ASSIST HANDLE<E28> M6X25 THA	0-36230-625-0	02	1	1510-	●	●	●	●	●	●
77	SCREW; ASSIST GRIP HIGH RIDE SUSPENSION<7YC> M6X25 THA	0-36230-625-0	04	1	1510-	●	●
77	SCREW; ASSIST GRIP M6X25 THA	0-36230-625-0	04	1	1510-		●	●	●		●
77	SCREW; ASSIST GRIP M6X25 THA	0-36230-625-0	04	1	1510-				●
90	GRIP; ASSIST,ROOF INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> (A) GRAY THA	8-97416-698-4	02	1	1510-	●	●
90	GRIP; ASSIST,ROOF (A) GRAY THA	8-97416-698-4	02	1	1510-			●	●		●
90	GRIP; ASSIST,ROOF INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> ASSIST HANDLE<E28> (B) FRONT GRAY THA	8-97416-698-4	01	1	1510-	●	●
90	GRIP; ASSIST,ROOF ASSIST HANDLE<E28> (B) FRONT GRAY THA	8-97416-698-4	01	1	1510-			●	●	●	●
90	GRIP; ASSIST,ROOF INTERIOR COLOR UPR & LWR DARK GRAY<154> ASSIST HANDLE<E28> (B) FRONT BLACK THA	8-97423-931-4	01	1	1510-	●	●
90	GRIP; ASSIST,ROOF INTERIOR COLOR UPR & LWR DARK GRAY<154> HIGH RIDE SUSPENSION<7YC> (A) BLACK THA	8-97423-931-4	02	1	1510-	●	●
90	GRIP; ASSIST,ROOF INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (B) REAR GRAY THA	8-97418-299-1	01	1	1510-		●
90	GRIP; ASSIST,ROOF (B) REAR GRAY THA	8-97418-299-1	01	1	1510-				●
90	GRIP; ASSIST,ROOF INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (B) REAR GRAY THA	8-97418-300-1	01	1	1510-		●
90	GRIP; ASSIST,ROOF (B) REAR GRAY THA	8-97418-300-1	01	1	1510-				●
90	GRIP; ASSIST,ROOF INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) REAR BLACK THA	8-97423-932-1	01	1	1510-		●
90	GRIP; ASSIST,ROOF INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) REAR BLACK THA	8-97423-933-1	01	1	1510-		●
145	PLUG; HOLE INTERIOR COLOR DARK GRAY<117> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY THA	8-97416-689-1	01	1	1510-	●
145	PLUG; HOLE EXC. SUNVISOR PASSENGER SIDE<D20> GRAY THA	8-97416-689-1	01	1	1510-					●
348	RETAINER; SUNSHADE INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> GRAY THA	8-97403-990-0	02	1	1510-	●	●	●	●	●	●
348	RETAINER; SUNSHADE INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> BLACK THA	8-97423-949-0	02	1	1510-	●	●
349	CLIP; RETAINER SUNSHADE THA	8-98039-903-0	02	1	1510-	●	●	●	●	●	●
