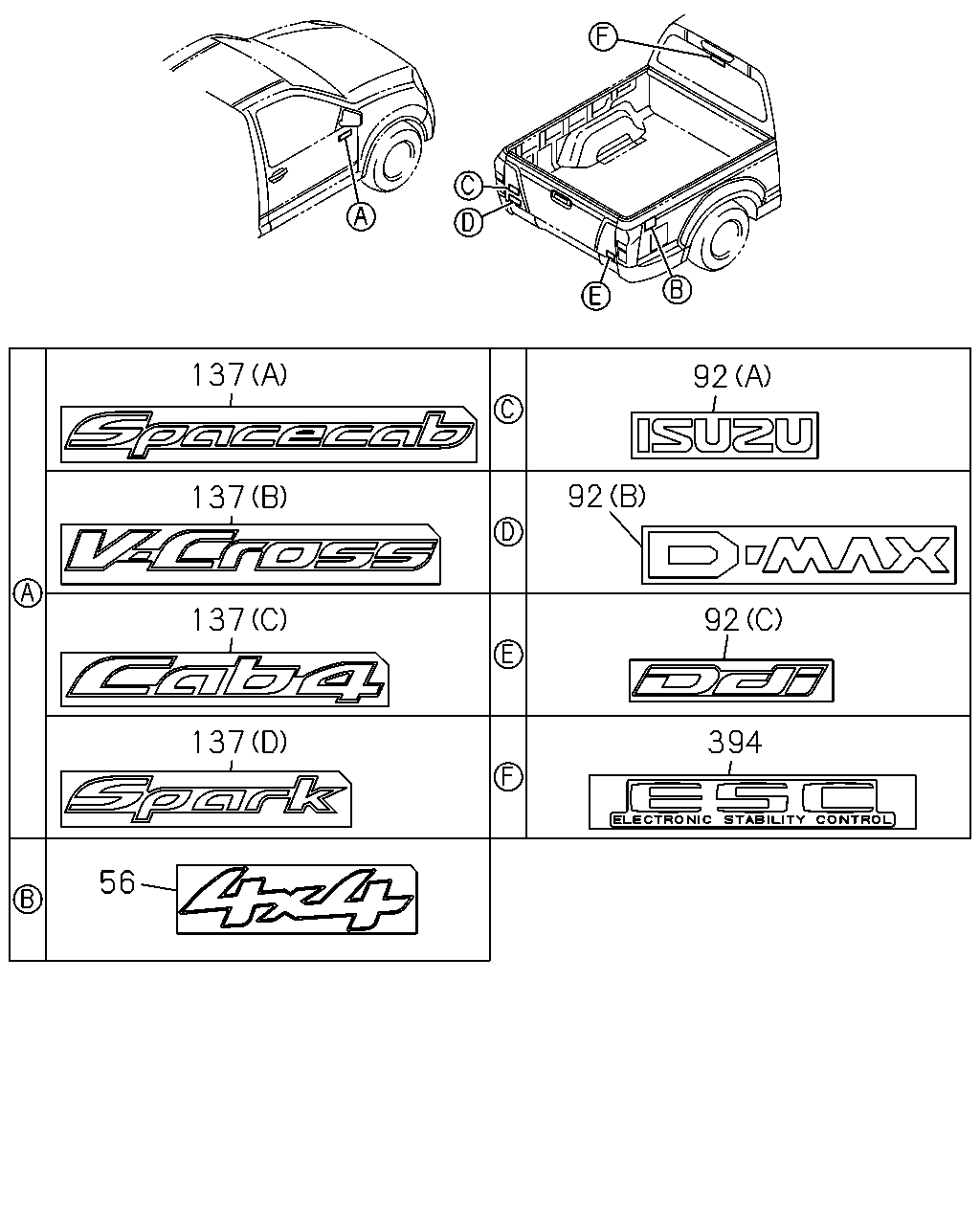

7-01 — EMBLEM AND NAME PLATE (#166132) — 33 parça

137 137 137 137 56 92 92 92 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
56	DECAL; BODY SIDE DECAL 4X4<YJ3> RED & SILVER & GRAY THA	8-97465-880-0	02	1	1510-	●	●	●
92	DECAL; RR END REAR BODY DBL WALL CTR PULL<E63> (A) THA	8-98129-861-0	01	1	1510-		●		●
92	DECAL; RR END REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98129-863-0	01	1	1510-		●		●
92	DECAL; RR END INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> REAR BODY DBL WALL CTR PULL<E63> (C) THA	8-98268-565-1	01	1	1510-				●
92	DECAL; RR END 4JJ1-TCX ENG<LS0> REAR BODY DBL WALL CTR PULL<E63> (C) THA	8-98268-565-1	01	1	1510-		●
137	DECAL; DOOR BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR VENETIAN RED MICA<546>,BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> EXC. HIGH RIDE SUSPENSION<7YC> (A) LIGHT SILVER THA	8-97421-200-1	02	1	1510-					●
137	DECAL; DOOR BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> EXC. HIGH RIDE SUSPENSION<7YC> (A) DARK GRAY THA	8-97421-199-1	02	1	1510-					●
137	DECAL; DOOR BODY COLOR BALTIC BLUE<526>,BODY COLOR VENETIAN RED MICA<546>,BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> (D) LIGHT SILVER THA	8-97421-198-1	02	1	1510-				●
137	DECAL; DOOR BODY COLOR BALTIC BLUE<526>,BODY COLOR VENETIAN RED MICA<546>,BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> (D) LIGHT SILVER THA	8-97421-198-1	02	1	1510-		●
137	DECAL; DOOR BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR HIGHWAY YELLOW<536>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> (D) DARK GRAY THA	8-97421-197-1	02	1	1510-				●
137	DECAL; DOOR BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545> (D) DARK GRAY THA	8-97421-197-1	02	1	1510-		●
137	DECAL; DOOR BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR VENETIAN RED MICA<546>,BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> INTERIOR DELUXE<RBB> EXC. HIGH RIDE SUSPENSION<7YC> (C) LIGHT SILVER THA	8-97421-202-1	02	1	1510-						●
137	DECAL; DOOR BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545> INTERIOR DELUXE<RBB> EXC. HIGH RIDE SUSPENSION<7YC> (C) DARK GRAY THA	8-97421-201-1	02	1	1510-						●
137	DECAL; DOOR BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR VENETIAN RED MICA<546>,BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> INTERIOR DELUXE<RBB> (B) LIGHT SILVER THA	8-97421-204-1	02	1	1510-	●
137	DECAL; DOOR BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545> INTERIOR DELUXE<RBB> (B) DARK GRAY THA	8-97421-203-1	02	1	1510-	●
394	DECAL; RR BODY ELECTRONIC TRACTION CONTROL<NW9> THA	8-98129-857-2	01	1	1510-			●			●

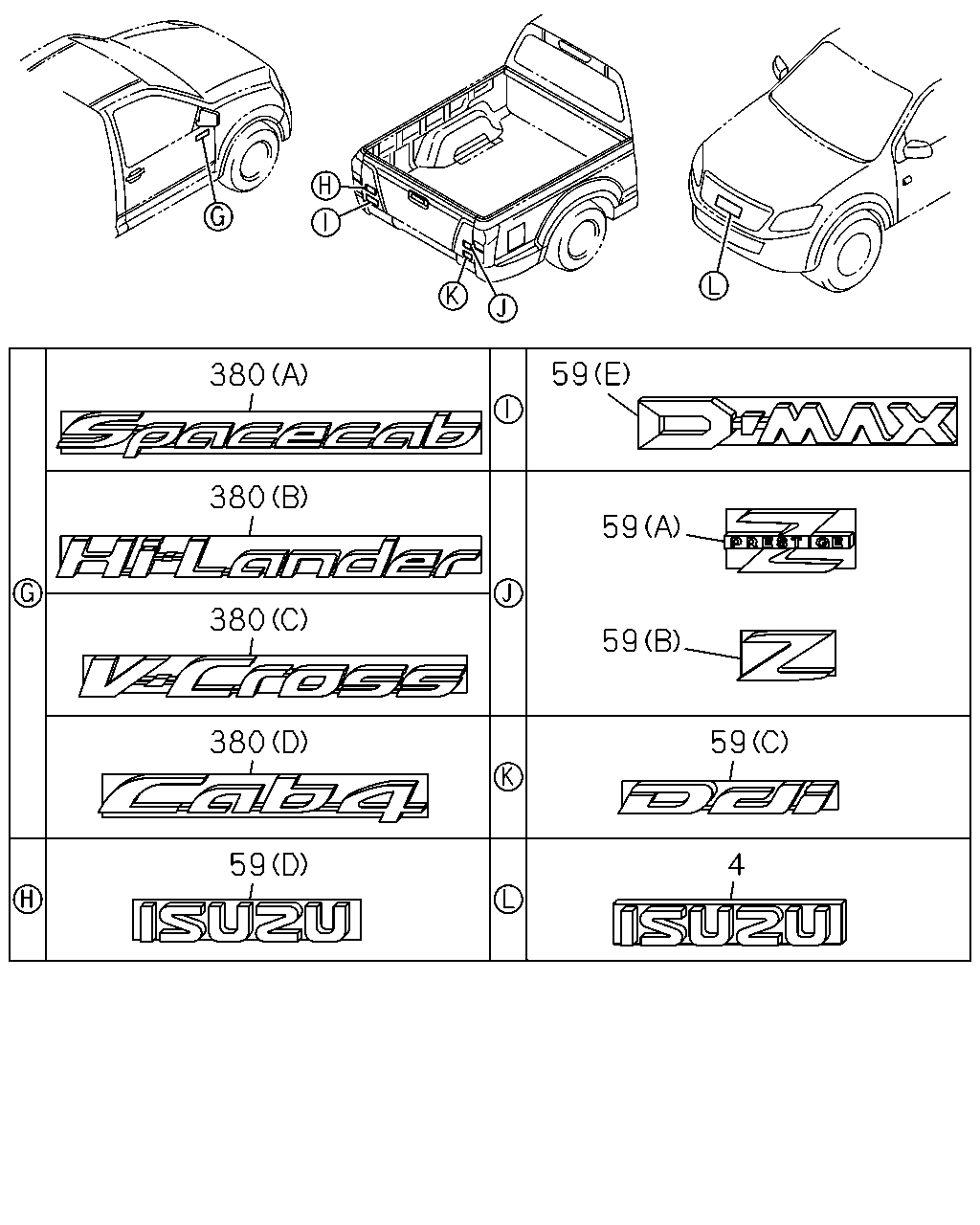

380 380 380 380 59 59 59 59 59 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	EMBLEM; RAD GRILLE EXC. SALES PACKAGE SPORTY<XK0> THA	8-98164-912-0	01	1	1510-					●	●
4	EMBLEM; RAD GRILLE THA	8-98164-912-0	01	1	1510-	●	●	●	●
4	EMBLEM; RAD GRILLE SALES PACKAGE SPORTY<XK0> THA	8-98214-587-0	01	1	1510-					●	●
59	DECAL; TAIL GATE EXTERIOR ORNAMENTATION DELUXE<B57> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (B) THA	8-98134-861-0	01	1	1510-	●		●		●	●
59	DECAL; TAIL GATE EXTERIOR ORNAMENTATION DELUXE<B57> AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> (A) THA	8-98134-862-0	01	1	1510-	●		●		●	●
59	DECAL; TAIL GATE SALES PACKAGE SPORTY<XK0> (D) THA	8-98319-767-0	01	1	1510-					●	●
59	DECAL; TAIL GATE (C) THA	8-98268-564-0	01	1	1510-	●		●		●	●
59	DECAL; TAIL GATE (E) THA	8-98134-860-0	01	1	1510-	●		●		●	●
59	DECAL; TAIL GATE EXC. SALES PACKAGE SPORTY<XK0> (D) THA	8-98129-896-0	01	1	1510-					●	●
59	DECAL; TAIL GATE (D) THA	8-98129-896-0	01	1	1510-	●		●
380	PLATE; SIDE INTERIOR CUSTOM<RBD> SALES PACKAGE SPORTY<XK0> HIGH RIDE SUSPENSION<7YC> (B) THA	8-98215-666-0	02	1	1510-					●	●
380	PLATE; SIDE INTERIOR CUSTOM<RBD> SALES PACKAGE SPORTY<XK0> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98215-664-0	02	1	1510-					●
380	PLATE; SIDE INTERIOR CUSTOM<RBD> HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> (B) THA	8-98129-887-0	02	1	1510-					●	●
380	PLATE; SIDE INTERIOR CUSTOM<RBD> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-98129-873-0	02	1	1510-					●
380	PLATE; SIDE INTERIOR CUSTOM<RBD> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (D) THA	8-98129-878-0	02	1	1510-						●
380	PLATE; SIDE INTERIOR CUSTOM<RBD> (C) THA	8-98129-891-0	02	1	1510-	●
380	PLATE; SIDE 4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> (C) THA	8-98129-891-0	02	1	1510-			●
