◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#166131) — 14 parça

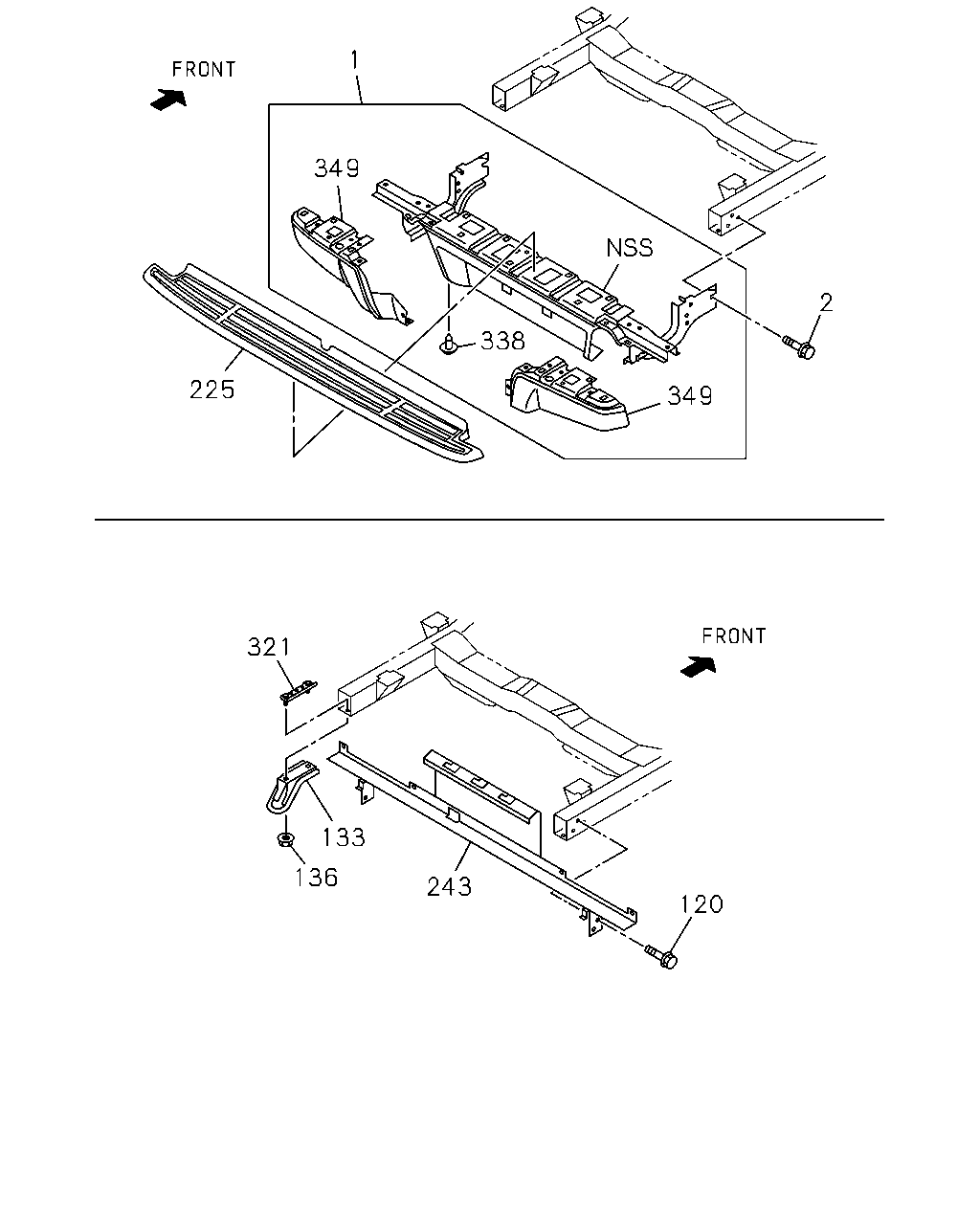

çizim 492781
120 243 133 136 321 225 1 349 338 349 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BUMPER; RR
REAR STEP BUMPER CHROME<V42> PLATED THA 		8-98153-274-4 01 1 1510- ● ● ● ●
1 BUMPER; RR
REAR STEP BUMPER PAINTED<V43> PRIMER THA 		8-98223-491-0 01 1 1510- ● ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> M12X30 THA 		8-98062-142-0 06 1 1510- ● ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42> M12X30 THA 		8-98062-142-0 06 1 1510- ● ●
120 BOLT
REAR BODY DELETE<8HH> M12X30 FLANGE THA 		0-28661-230-0 02 1 1510- ● ●
133 HOOK
TOW HOOK RR ONLY<7TK> THA 		8-98107-434-0 01 1 1510- ● ● ● ● ● ●
136 NUT; HOOK
TOW HOOK RR ONLY<7TK> M10 FLANGE THA 		0-91180-210-0 02 1 1510- ● ● ● ● ● ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98102-359-2 01 1 1510- ● ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98102-359-2 01 1 1510- ● ●
243 BRACKET
REAR BODY DELETE<8HH> THA 		8-98202-598-1 01 1 1510- ● ●
321 BRACKET; HOOK
TOW HOOK RR ONLY<7TK> THA 		8-98123-937-0 01 1 1510- ● ● ● ● ● ●
338 PIN; PUSH
REAR STEP BUMPER PAINTED<V43> THA 		8-97352-595-0 02 1 1510- ● ●
349 SHELL; RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98238-273-0 01 1 1510- ● ● ● ●
349 SHELL; RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98238-274-0 01 1 1510- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
