3-05 — REAR WHEEL BRAKE (#16613) — 82 parça

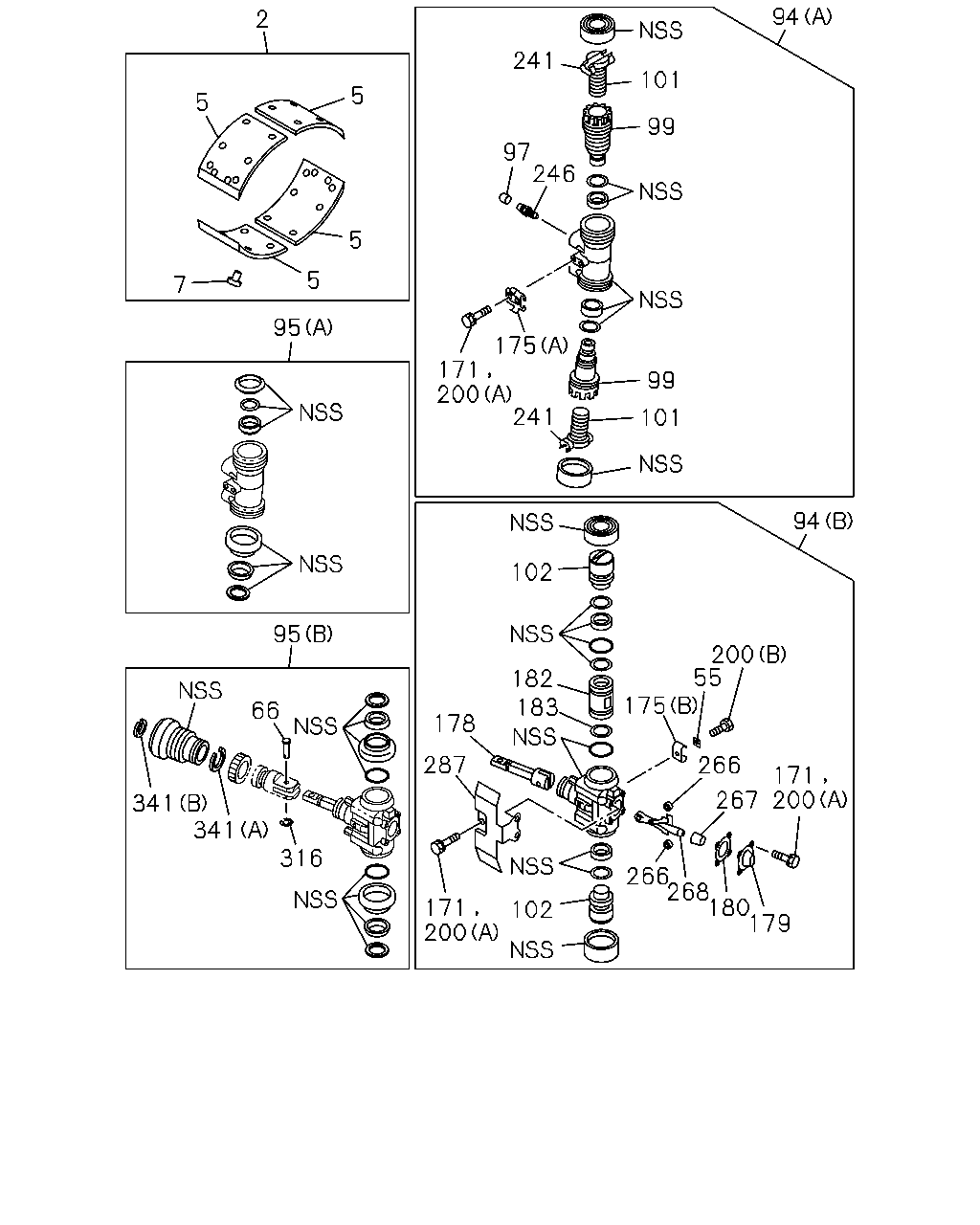

çizim 127004
2 5 5 5 5 7 95 95 66 341 341 316 178 287 200 171 102 266 268 180 179 200 171 267 266 200 55 175 182 183 102 94 101 99 241 200 171 175 99 101 94 241 246 97
BalonParca AdiParca NoAdetTipApplied Date
2 LINING SET; RR BRK,STANDARD 1-88311-387-0 02 1 1001-
5 LINING; RR BRK SHOE,STANDARD 1-47126-802-0 08 1 1001-
7 RIVET; LINING,RR BRK
D6X11.5 		1-09732-019-0 96 1 1001-
55 PLATE; LK,RR WHEEL CYL 1-47622-073-0 02 1 1001-
66 PIN; JAW JOINT 1-09744-129-0 02 1 1001-
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-166-1 02 1 1001-
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-219-0 01 1 1001-
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-218-0 01 1 1001-
95 CUP SET; RR WHEEL CYL
(A) FORWARD 		1-87831-324-0 02 1 1001-
95 CUP SET; RR WHEEL CYL
(B) BACKWARD 		1-87831-325-0 02 1 1001-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 1001-
99 PISTON; RR WHEEL CYL 1-47620-240-0 04 1 1001-
101 SCREW; ADJ,RR WHEEL CYL 1-47622-070-0 04 1 1001-
102 PISTON; REAR WHEEL CYL 1-47620-241-0 02 1 1001-
171 BOLT; RR WHEEL CYL 1-47622-071-0 10 1 1001-
175 HANGER; RR WHEEL BRK
(A) 		1-47619-187-0 02 1 1001-
175 HANGER; RR WHEEL BRK
(B) 		1-47619-188-0 02 1 1001-
178 WEDGE; RR WHEEL CYL 1-47640-013-0 02 1 1001-
179 COVER; WEDGE,RR WHEEL CYL 1-47649-045-0 02 1 1001-
180 GASKET; COVER,RR WHEEL CYL 1-47619-013-0 02 1 1001-
182 TAPPET; RR WHEEL CYL 1-47629-280-0 04 1 1001-
183 GASKET; TAPPET,WHEEL CYL 1-09623-690-0 02 1 1001-
200 BOLT
(C) 		1-47159-240-0 02 1 1001-
200 BOLT
(D) 		1-47159-241-0 02 1 1001-
200 BOLT
(A) 		1-47622-071-0 04 1 1001-
200 BOLT
(B) 		1-47622-072-0 02 1 1001-
241 HOLDER 1-47619-097-0 04 1 1001-
246 BLEEDER 1-47615-018-1 02 1 1001-1406
246 BLEEDER 1-47615-009-0 02 1 1407-
266 ROLLER; WEDGE 1-47643-003-0 04 1 1001-
267 CAGE; WEDGE 1-47649-004-0 02 1 1001-
268 RETAINER; WEDGE 1-47649-003-0 02 1 1001-
287 COVER 1-47619-186-0 02 1 1001-
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 1001-
341 SPRING; ASSIST,BOOT
(A) 		1-47616-110-0 02 1 1001-
341 SPRING; ASSIST,BOOT
(B) 		1-47619-184-0 02 1 1001-

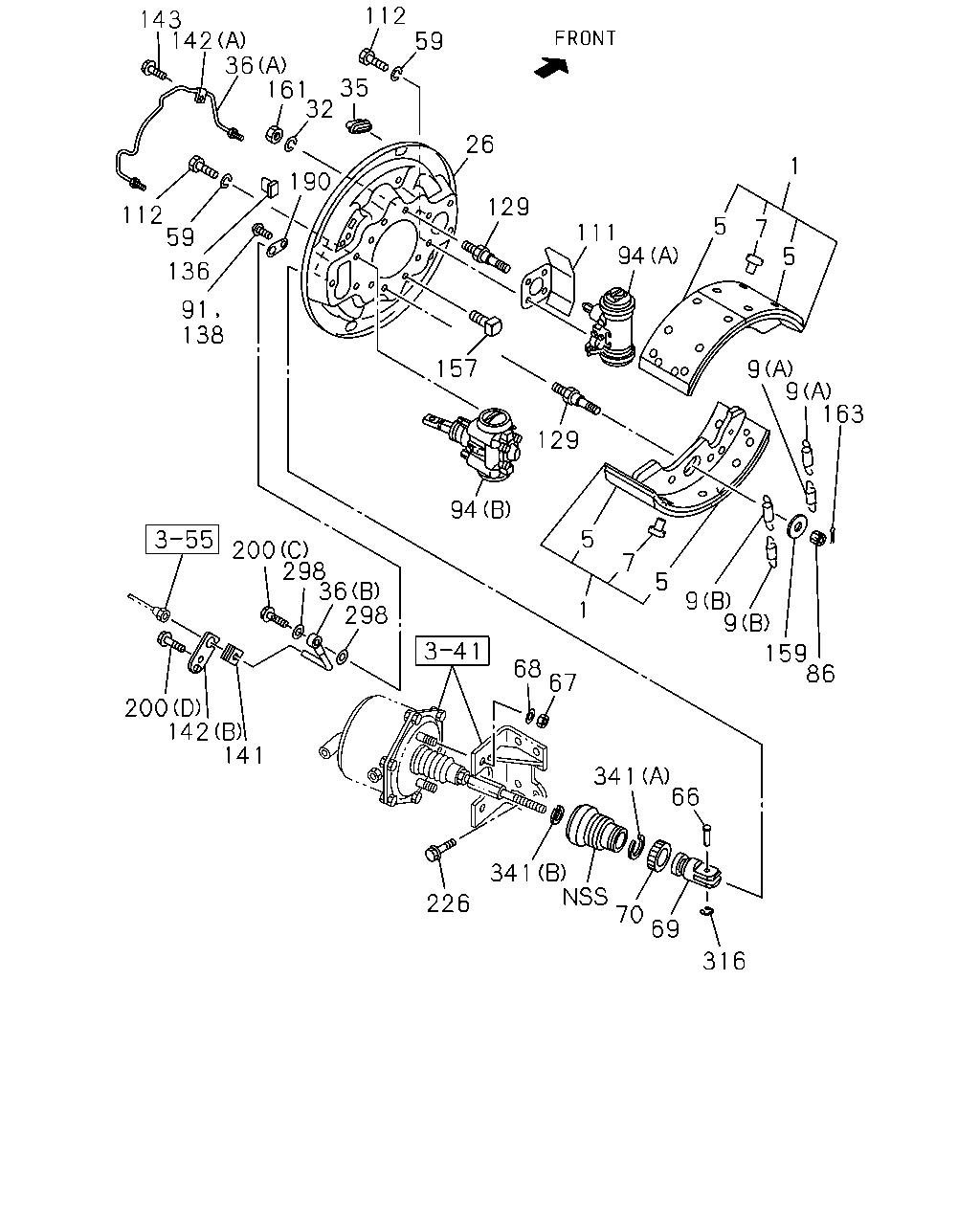

çizim 127006
143 142 36 161 32 35 112 59 26 129 111 94 5 7 5 1 9 9 163 86 159 9 9 5 7 5 1 94 129 157 138 91 190 136 59 112 200 298 36 298 68 67 341 66 316 69 70 341 226 141 142 200
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR 1-47170-485-1 04 1 1001-
5 LINING; RR BRK SHOE,STANDARD 1-47126-802-0 08 1 1001-
7 RIVET; LINING,RR BRK
D6X11.5 		1-09732-019-0 96 1 1001-
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-381-1 04 1 1001-
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-382-0 04 1 1001-
26 PLATE; BACK,RR BRK 1-47150-713-2 01 1 1001-
26 PLATE; BACK,RR BRK 1-47150-712-2 01 1 1001-
32 WASHER; LK 1-47159-110-0 04 1 1001-
35 GROMMET; CHECK HOLE 1-09333-139-0 04 1 1001-
36 PIPE; OIL,RR BRK
(B) 		1-49167-905-0 02 1 1001-
36 PIPE; OIL,RR BRK
(A) 		1-49167-858-0 01 1 1001-
36 PIPE; OIL,RR BRK
(A) 		1-49167-857-0 01 1 1001-
59 WASHER; LK,RR WHEEL CYL
ID=12.2 SOU 		0-91510-612-0 14 1 1001-
66 PIN; JAW JOINT 1-09744-129-0 02 1 1001-
67 NUT; POWER CHAMBER FIX
M16 SOU 		0-91110-516-0 04 1 1001-
68 WASHER; LK,CHAMBER
ID=16.2 SOU 		0-91510-816-0 04 1 1001-
69 JOINT; JAW 1-09768-106-1 02 1 1001-
70 NUT; LK,JAW JOINT
M18 		0-91111-518-0 02 1 1001-
86 NUT; FLANGE 1-09440-101-0 04 1 1001-
91 BOLT; CHAMBER
M5X10 W/LK WASHER 		0-36220-510-0 02 1 1001-
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-166-1 02 1 1001-
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-219-0 01 1 1001-
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-218-0 01 1 1001-
111 COVER; WHEEL CYL 1-47159-230-0 02 1 1001-
112 BOLT; WHEEL CYL SETTING 1-47159-112-0 14 1 1001-
129 PIN; SHOE HOLD 1-47162-044-0 04 1 1001-
136 GROMMET 1-09333-138-0 04 1 1001-
138 SCREW; LOCK PLATE
M5X10 W/LK WASHER 		0-36220-510-0 02 1 1001-
141 PROTECTOR; RR BRK PIPE 1-09332-133-0 02 1 1001-
142 CLAMP; OIL PIPE
(A) 		1-09701-322-0 02 1 1001-
142 CLAMP; OIL PIPE
(B) 		1-47619-189-0 02 1 1001-
143 BOLT; CLAMP,OIL PIPE
M6X10 		9-01900-610-0 02 1 1001-
157 BOLT; RR BRK SET
M14X43 		1-09060-003-0 12 1 1001-
159 WASHER; SHOE HOLD 1-47169-037-0 04 1 1001-
161 NUT; SHOE HOLD LOCK 1-47159-111-0 04 1 1001-
163 PIN; SPLIT,SHOE HOLD
OD=1.8 L=20 		0-81122-020-0 04 1 1001-
190 PLATE; LK,CONNECTOR 1-47619-032-0 04 1 1001-
200 BOLT
(C) 		1-47159-240-0 02 1 1001-
200 BOLT
(D) 		1-47159-241-0 02 1 1001-
200 BOLT
(A) 		1-47622-071-0 04 1 1001-
200 BOLT
(B) 		1-47622-072-0 02 1 1001-
226 BOLT; BRKT
M14X35 FLANGE 		0-28651-435-0 08 1 1001-
298 GASKET 1-47616-115-0 04 1 1001-
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 1001-
341 SPRING; ASSIST,BOOT
(A) 		1-47616-110-0 02 1 1001-
341 SPRING; ASSIST,BOOT
(B) 		1-47619-184-0 02 1 1001-
