◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#166124) — 80 parça

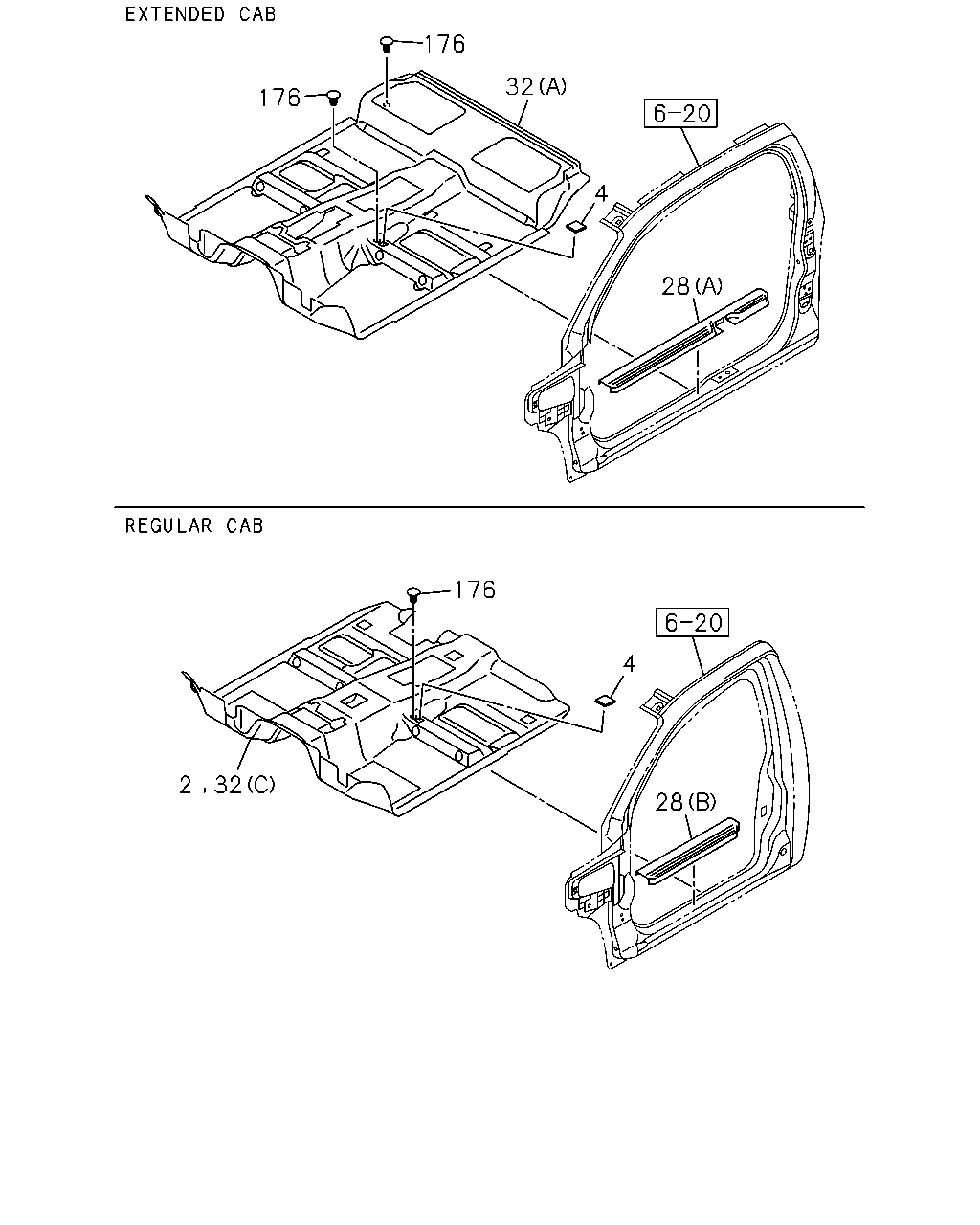

çizim 492820
176 176 32 28 176 2 32 4 28 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 MAT; FLOOR
FRONT SEAT SPLIT BENCH<AM6> COVERING FLOOR VINYL<B38> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97429-908-0 01 1 1510- ●
2 MAT; FLOOR
4JJ1-TCX ENG<LS0> COVERING FLOOR VINYL<B38> BLACK THA 		8-97429-908-0 01 1 1510- ●
2 MAT; FLOOR
FRONT SEAT SPLIT BENCH<AM6> COVERING FLOOR VINYL<B38> EXC. FLOOR CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55>,DRIVER SIDE FOOT REST<7NU> BLACK THA 		8-97429-913-0 01 1 1510- ●
2 MAT; FLOOR
FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FLOOR CONSOLE WO/LID<D54> EXC. DRIVER SIDE FOOT REST<7NU> BLACK THA 		8-97429-911-0 01 1 1510- ●
2 MAT; FLOOR
FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FLOOR CONSOLE W/LID<D55> DRIVER SIDE FOOT REST<7NU> BLACK THA 		8-97429-907-0 01 1 1510- ●
2 MAT; FLOOR
FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FLOOR CONSOLE W/LID<D55> EXC. DRIVER SIDE FOOT REST<7NU> BLACK THA 		8-97429-912-0 01 1 1510- ●
4 INSULATOR; FRT
THA 		8-98185-968-0 04 1 1510- ● ● ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-669-2 01 1 1510- ●
28 PLATE; SILL,FRT
(A) BLACK THA 		8-97416-669-2 01 1 1510- ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-671-2 01 1 1510- ●
28 PLATE; SILL,FRT
(A) BLACK THA 		8-97416-671-2 01 1 1510- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-670-2 01 1 1510- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-672-2 01 1 1510- ●
28 PLATE; SILL,FRT
(B) BLACK THA 		8-97416-944-3 01 1 1510- ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA 		8-97416-944-3 01 1 1510- ●
28 PLATE; SILL,FRT
(B) BLACK THA 		8-97416-946-3 01 1 1510- ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA 		8-97416-946-3 01 1 1510- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (B) BEIGE THA 		8-97416-945-3 01 1 1510- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (B) BEIGE THA 		8-97416-947-3 01 1 1510- ●
32 CARPET; FLOOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR DARK GRAY<117> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE WO/LID<D54> EXC. DRIVER SIDE FOOT REST<7NU> (A) BLACK THA 		8-97429-883-0 01 1 1510- ●
32 CARPET; FLOOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> DRIVER SIDE FOOT REST<7NU> (A) BLACK THA 		8-97429-881-0 01 1 1510- ●
32 CARPET; FLOOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> (A) BLACK THA 		8-97429-881-0 01 1 1510- ●
32 CARPET; FLOOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<120> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> DRIVER SIDE FOOT REST<7NU> (A) BEIGE THA 		8-97429-882-0 01 1 1510- ●
32 CARPET; FLOOR
M/T MVL 6 SPEED 6N<Y5Z> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> DRIVER SIDE FOOT REST<7NU> (A) BLACK THA 		8-97460-112-1 01 1 1510- ●
32 CARPET; FLOOR
M/T MVL 6 SPEED 6N<Y5Z> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> (A) BLACK THA 		8-97460-112-1 01 1 1510- ●
32 CARPET; FLOOR
M/T MVL 6 SPEED 6N<Y5Z> INTERIOR COLOR BEIGE<120> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> DRIVER SIDE FOOT REST<7NU> (A) BEIGE THA 		8-97460-113-1 01 1 1510- ●
32 CARPET; FLOOR
FRONT SEAT SPLIT BENCH<AM6> DRIVER SIDE FOOT REST<7NU> EXC. COVERING FLOOR VINYL<B38>,FLOOR CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55> (C) BLACK THA 		8-97429-916-0 01 1 1510- ●
32 CARPET; FLOOR
4JJ1-TCX ENG<LS0> EXC. COVERING FLOOR VINYL<B38> (C) BLACK THA 		8-97429-916-0 01 1 1510- ●
32 CARPET; FLOOR
FRONT SEAT SPLIT BENCH<AM6> EXC. COVERING FLOOR VINYL<B38>,FLOOR CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55>,DRIVER SIDE FOOT REST<7NU> (C) BLACK THA 		8-97429-917-0 01 1 1510- ●
32 CARPET; FLOOR
FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38>,DRIVER SIDE FOOT REST<7NU> (C) BLACK THA 		8-97429-918-0 01 1 1510- ●
32 CARPET; FLOOR
FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> DRIVER SIDE FOOT REST<7NU> EXC. COVERING FLOOR VINYL<B38> (C) BLACK THA 		8-97429-914-0 01 1 1510- ●
32 CARPET; FLOOR
FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38>,DRIVER SIDE FOOT REST<7NU> (C) BLACK THA 		8-97429-915-0 01 1 1510- ●
32 CARPET; FLOOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA 		8-97429-896-0 01 1 1510- ● ●
32 CARPET; FLOOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<120> (B) BEIGE THA 		8-97429-897-0 01 1 1510- ●
32 CARPET; FLOOR
M/T MVL 6 SPEED 6N<Y5Z> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA 		8-97460-114-1 01 1 1510- ● ●
32 CARPET; FLOOR
M/T MVL 6 SPEED 6N<Y5Z> INTERIOR COLOR BEIGE<120> (B) BEIGE THA 		8-97460-115-1 01 1 1510- ●
176 RETAINER; CARPET
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-667-0 10 1 1510- ● ●
176 RETAINER; CARPET
BLACK THA 		8-97416-667-0 10 1 1510- ● ●
176 RETAINER; CARPET
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-668-0 10 1 1510- ● ●
176 RETAINER; CARPET
BLACK THA 		8-97416-667-0 02 1 1510- ● ●

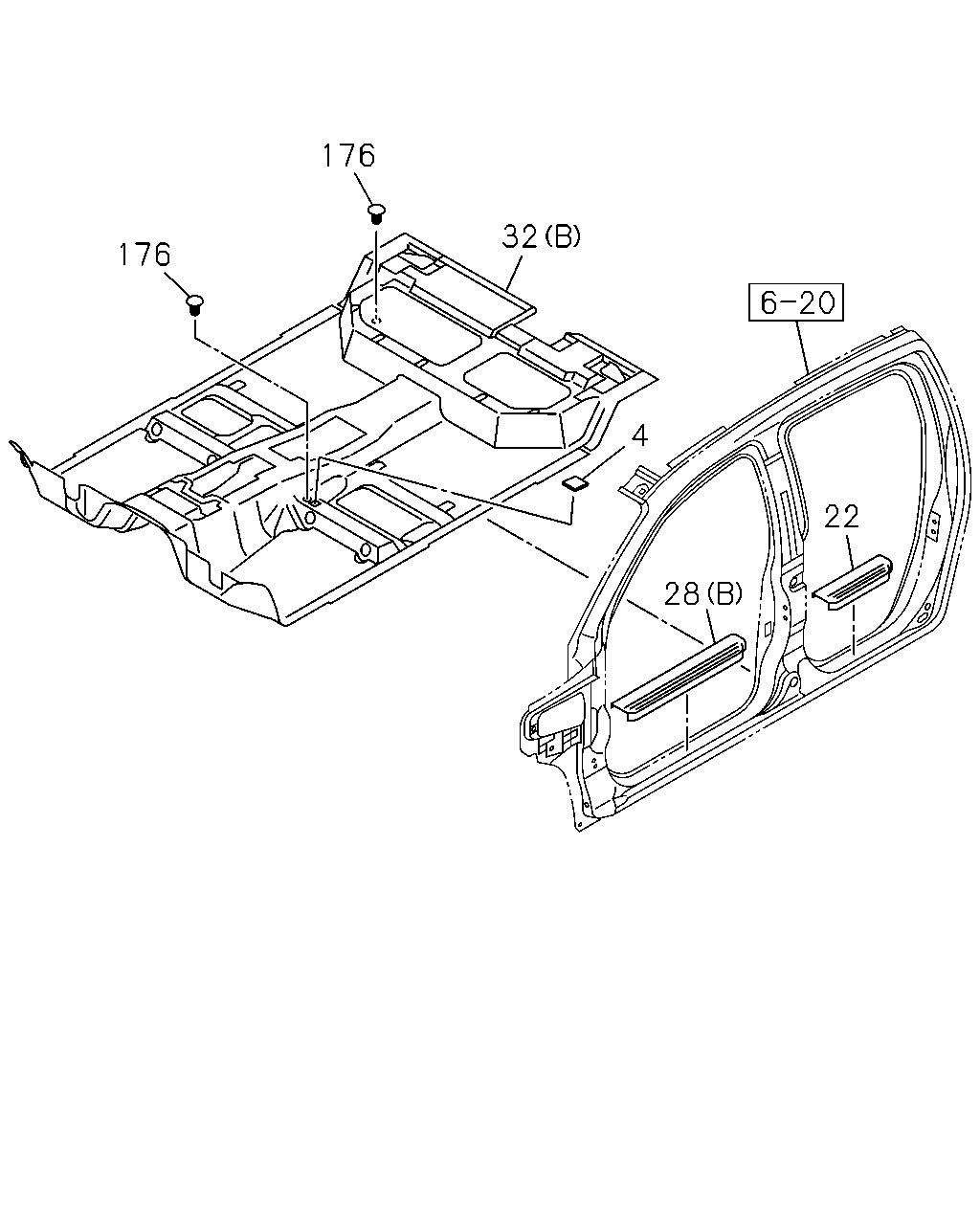

çizim 492834
176 176 32 4 28 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 INSULATOR; FRT
THA 		8-98185-968-0 04 1 1510- ● ● ● ● ● ●
22 PLATE; SILL,RR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-948-5 01 1 1510- ●
22 PLATE; SILL,RR
BLACK THA 		8-97416-948-5 01 1 1510- ●
22 PLATE; SILL,RR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-950-5 01 1 1510- ●
22 PLATE; SILL,RR
BLACK THA 		8-97416-950-5 01 1 1510- ●
22 PLATE; SILL,RR
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-949-5 01 1 1510- ●
22 PLATE; SILL,RR
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-951-5 01 1 1510- ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-669-2 01 1 1510- ●
28 PLATE; SILL,FRT
(A) BLACK THA 		8-97416-669-2 01 1 1510- ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA 		8-97416-671-2 01 1 1510- ●
28 PLATE; SILL,FRT
(A) BLACK THA 		8-97416-671-2 01 1 1510- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-670-2 01 1 1510- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (A) BEIGE THA 		8-97416-672-2 01 1 1510- ●
28 PLATE; SILL,FRT
(B) BLACK THA 		8-97416-944-3 01 1 1510- ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA 		8-97416-944-3 01 1 1510- ●
28 PLATE; SILL,FRT
(B) BLACK THA 		8-97416-946-3 01 1 1510- ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA 		8-97416-946-3 01 1 1510- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (B) BEIGE THA 		8-97416-945-3 01 1 1510- ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE<120> (B) BEIGE THA 		8-97416-947-3 01 1 1510- ●
32 CARPET; FLOOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR DARK GRAY<117> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE WO/LID<D54> EXC. DRIVER SIDE FOOT REST<7NU> (A) BLACK THA 		8-97429-883-0 01 1 1510- ●
32 CARPET; FLOOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> DRIVER SIDE FOOT REST<7NU> (A) BLACK THA 		8-97429-881-0 01 1 1510- ●
32 CARPET; FLOOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> (A) BLACK THA 		8-97429-881-0 01 1 1510- ●
32 CARPET; FLOOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<120> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> DRIVER SIDE FOOT REST<7NU> (A) BEIGE THA 		8-97429-882-0 01 1 1510- ●
32 CARPET; FLOOR
M/T MVL 6 SPEED 6N<Y5Z> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> DRIVER SIDE FOOT REST<7NU> (A) BLACK THA 		8-97460-112-1 01 1 1510- ●
32 CARPET; FLOOR
M/T MVL 6 SPEED 6N<Y5Z> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> (A) BLACK THA 		8-97460-112-1 01 1 1510- ●
32 CARPET; FLOOR
M/T MVL 6 SPEED 6N<Y5Z> INTERIOR COLOR BEIGE<120> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> DRIVER SIDE FOOT REST<7NU> (A) BEIGE THA 		8-97460-113-1 01 1 1510- ●
32 CARPET; FLOOR
FRONT SEAT SPLIT BENCH<AM6> DRIVER SIDE FOOT REST<7NU> EXC. COVERING FLOOR VINYL<B38>,FLOOR CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55> (C) BLACK THA 		8-97429-916-0 01 1 1510- ●
32 CARPET; FLOOR
4JJ1-TCX ENG<LS0> EXC. COVERING FLOOR VINYL<B38> (C) BLACK THA 		8-97429-916-0 01 1 1510- ●
32 CARPET; FLOOR
FRONT SEAT SPLIT BENCH<AM6> EXC. COVERING FLOOR VINYL<B38>,FLOOR CONSOLE WO/LID<D54>,FLOOR CONSOLE W/LID<D55>,DRIVER SIDE FOOT REST<7NU> (C) BLACK THA 		8-97429-917-0 01 1 1510- ●
32 CARPET; FLOOR
FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38>,DRIVER SIDE FOOT REST<7NU> (C) BLACK THA 		8-97429-918-0 01 1 1510- ●
32 CARPET; FLOOR
FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> DRIVER SIDE FOOT REST<7NU> EXC. COVERING FLOOR VINYL<B38> (C) BLACK THA 		8-97429-914-0 01 1 1510- ●
32 CARPET; FLOOR
FRONT SEAT BUCKET STANDARD<A50> FLOOR CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38>,DRIVER SIDE FOOT REST<7NU> (C) BLACK THA 		8-97429-915-0 01 1 1510- ●
32 CARPET; FLOOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA 		8-97429-896-0 01 1 1510- ● ●
32 CARPET; FLOOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<120> (B) BEIGE THA 		8-97429-897-0 01 1 1510- ●
32 CARPET; FLOOR
M/T MVL 6 SPEED 6N<Y5Z> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA 		8-97460-114-1 01 1 1510- ● ●
32 CARPET; FLOOR
M/T MVL 6 SPEED 6N<Y5Z> INTERIOR COLOR BEIGE<120> (B) BEIGE THA 		8-97460-115-1 01 1 1510- ●
176 RETAINER; CARPET
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-667-0 10 1 1510- ● ●
176 RETAINER; CARPET
BLACK THA 		8-97416-667-0 10 1 1510- ● ●
176 RETAINER; CARPET
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-668-0 10 1 1510- ● ●
176 RETAINER; CARPET
BLACK THA 		8-97416-667-0 02 1 1510- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
