6-60 — ROOF PANEL (#166121) — 45 parça

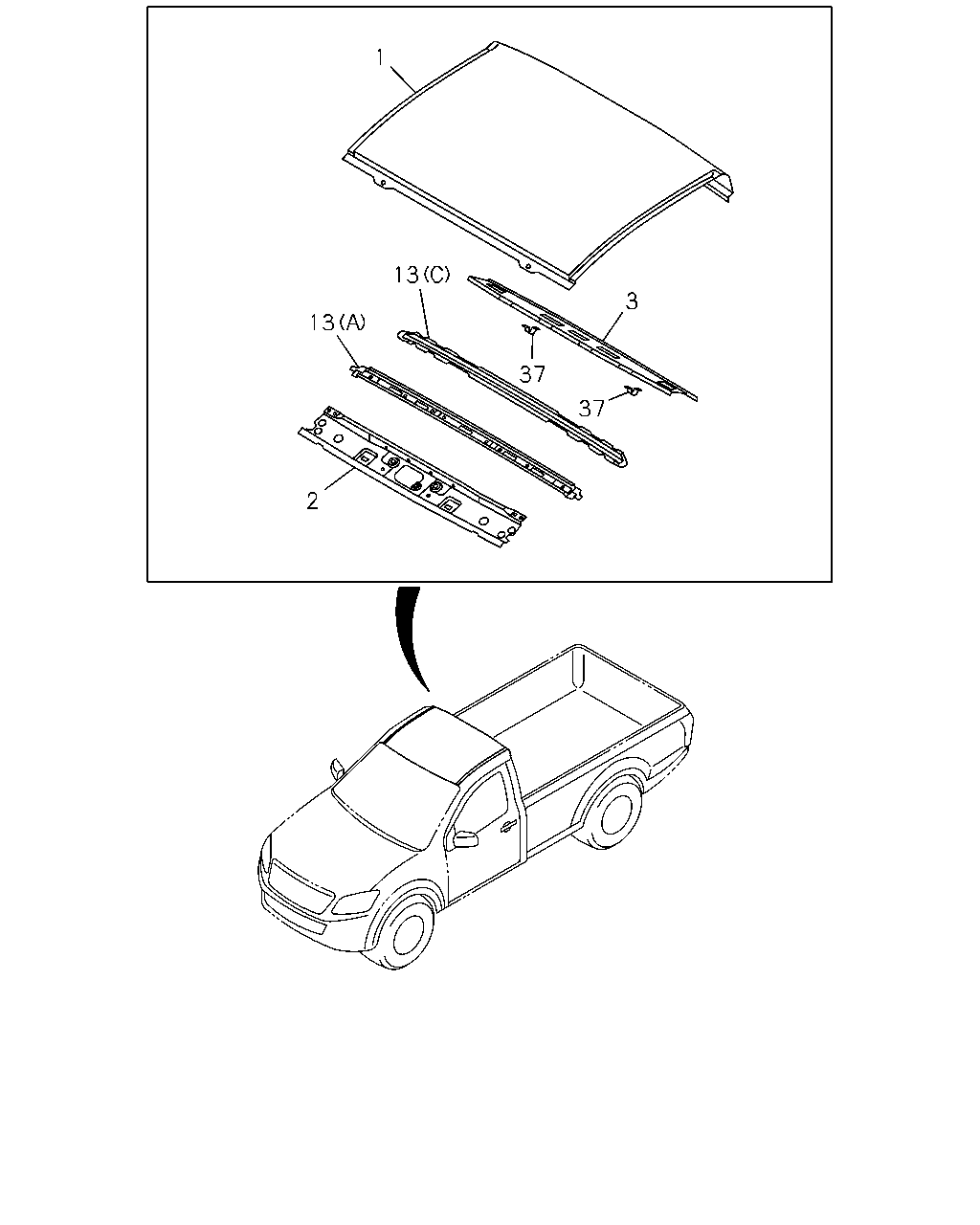

çizim 492913
1 13 13 3 37 2 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PANEL; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-954-3 01 1 1510- ● ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-323-1 01 1 1510- ● ●
1 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-953-3 01 1 1510- ● ●
1 PANEL; ROOF
THA 		8-98103-950-3 01 1 1510- ● ●
1 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-957-3 01 1 1510- ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-960-3 01 1 1510- ● ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-324-0 01 1 1510- ● ●
2 PANEL; ROOF,CENTER
THA 		8-98103-964-5 01 1 1510- ● ● ● ● ● ●
3 PANEL; ROOF,RR
THA 		8-98103-999-3 01 1 1510- ● ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(C) THA 		8-98150-942-0 01 1 1510- ● ●
13 PANEL; ROOF SUPPORT
(B) THA 		8-98103-982-0 01 1 1510- ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-98103-963-1 01 1 1510- ● ● ● ● ● ●
37 BRACKET; TRIM,ROOF BACK
THA 		8-98103-996-0 02 1 1510- ● ● ● ●

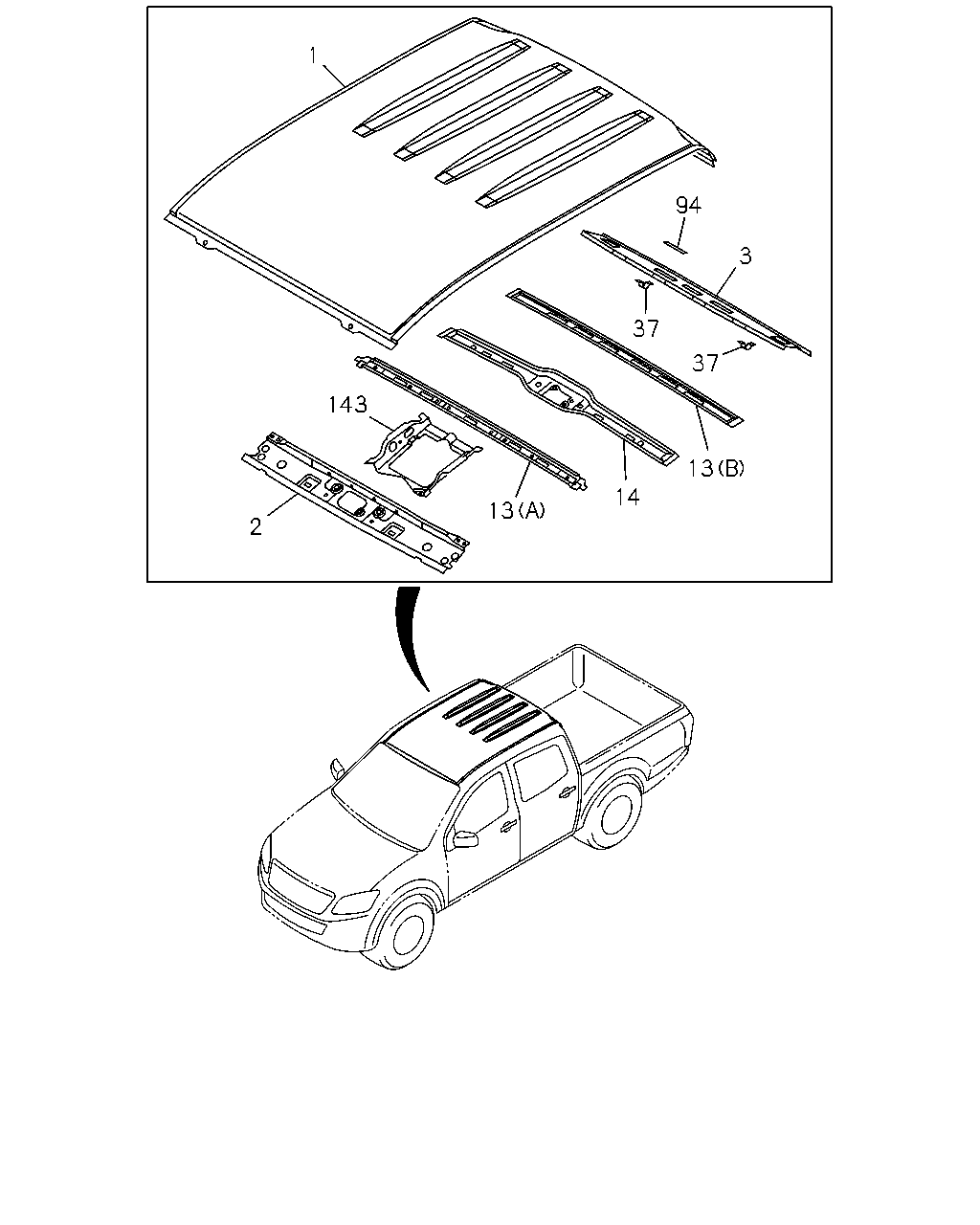

çizim 492914
1 94 3 37 37 13 14 13 143 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PANEL; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-954-3 01 1 1510- ● ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-323-1 01 1 1510- ● ●
1 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-953-3 01 1 1510- ● ●
1 PANEL; ROOF
THA 		8-98103-950-3 01 1 1510- ● ●
1 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-957-3 01 1 1510- ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-960-3 01 1 1510- ● ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-324-0 01 1 1510- ● ●
2 PANEL; ROOF,CENTER
THA 		8-98103-964-5 01 1 1510- ● ● ● ● ● ●
3 PANEL; ROOF,RR
THA 		8-98103-999-3 01 1 1510- ● ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(C) THA 		8-98150-942-0 01 1 1510- ● ●
13 PANEL; ROOF SUPPORT
(B) THA 		8-98103-982-0 01 1 1510- ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-98103-963-1 01 1 1510- ● ● ● ● ● ●
14 SUPPORT; ROOF
THA 		8-98103-976-1 01 1 1510- ● ●
14 SUPPORT; ROOF
THA 		8-98112-817-1 01 1 1510- ● ●
37 BRACKET; TRIM,ROOF BACK
THA 		8-98103-996-0 02 1 1510- ● ● ● ●
94 SEAL; REINFORCEMENT
THA 		8-98201-900-0 01 1 1510- ● ●
143 BRACKET; CONSOLE
HEADER CONSOLE<DK6> THA 		8-98103-962-1 01 1 1510- ● ● ● ●

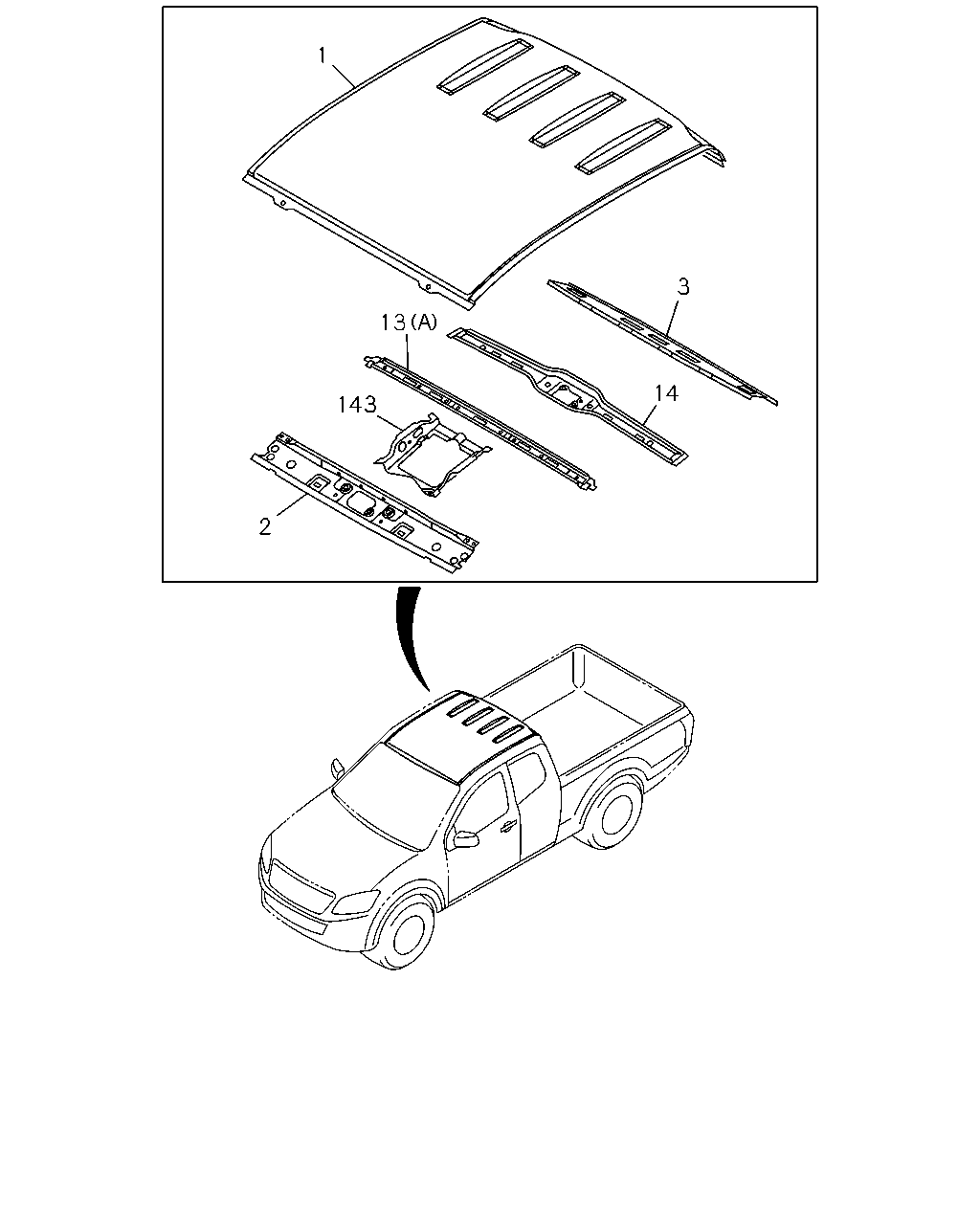

çizim 493286
1 3 14 13 143 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PANEL; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-954-3 01 1 1510- ● ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-323-1 01 1 1510- ● ●
1 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-953-3 01 1 1510- ● ●
1 PANEL; ROOF
THA 		8-98103-950-3 01 1 1510- ● ●
1 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> THA 		8-98103-957-3 01 1 1510- ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> THA 		8-98103-960-3 01 1 1510- ● ●
1 PANEL; ROOF
HEADER CONSOLE<DK6> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98209-324-0 01 1 1510- ● ●
2 PANEL; ROOF,CENTER
THA 		8-98103-964-5 01 1 1510- ● ● ● ● ● ●
3 PANEL; ROOF,RR
THA 		8-98103-999-3 01 1 1510- ● ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(C) THA 		8-98150-942-0 01 1 1510- ● ●
13 PANEL; ROOF SUPPORT
(B) THA 		8-98103-982-0 01 1 1510- ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-98103-963-1 01 1 1510- ● ● ● ● ● ●
14 SUPPORT; ROOF
THA 		8-98103-976-1 01 1 1510- ● ●
14 SUPPORT; ROOF
THA 		8-98112-817-1 01 1 1510- ● ●
143 BRACKET; CONSOLE
HEADER CONSOLE<DK6> THA 		8-98103-962-1 01 1 1510- ● ● ● ●
