Sayfa 6-55 - Isuzu EPC

6-55 — REAR DOOR TRIM (#166120) — 178 parça

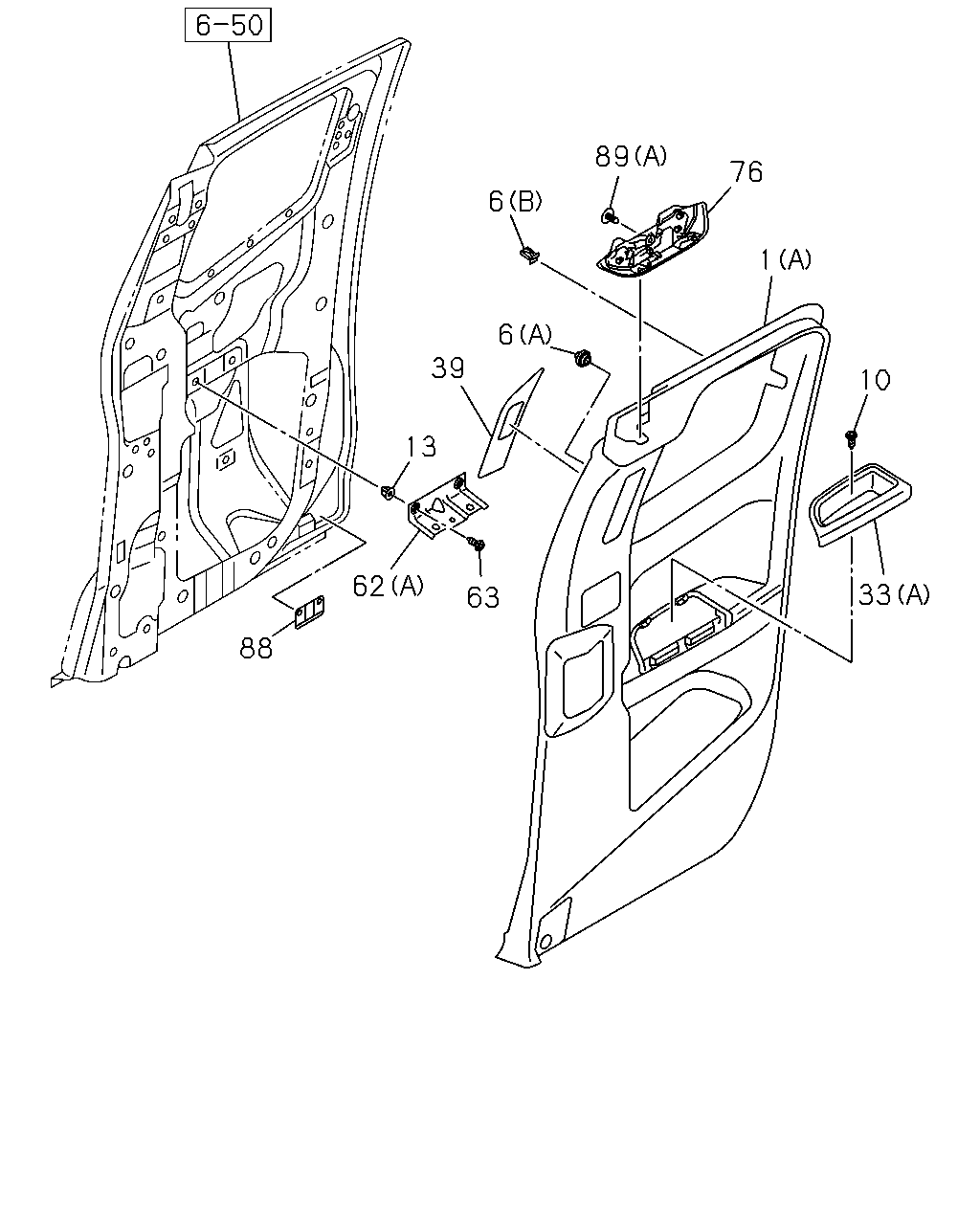

6 89 76 1 10 33 6 39 13 63 62 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PAD; TRIM,RR DOOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97419-924-8	01	1	1510-	●
1	PAD; TRIM,RR DOOR (A) BLACK THA	8-97419-924-8	01	1	1510-		●
1	PAD; TRIM,RR DOOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97419-928-8	01	1	1510-	●
1	PAD; TRIM,RR DOOR (A) BLACK THA	8-97419-928-8	01	1	1510-		●
1	PAD; TRIM,RR DOOR INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97419-926-8	01	1	1510-	●
1	PAD; TRIM,RR DOOR INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97419-930-8	01	1	1510-	●
1	PAD; TRIM,RR DOOR INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA	8-97417-005-5	01	1	1510-			●
1	PAD; TRIM,RR DOOR INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA	8-97417-006-5	01	1	1510-			●
1	PAD; TRIM,RR DOOR INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BEIGE THA	8-97427-649-0	01	1	1510-			●
1	PAD; TRIM,RR DOOR INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BEIGE THA	8-97427-650-0	01	1	1510-			●
1	PAD; TRIM,RR DOOR INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97466-324-0	01	1	1510-			●
1	PAD; TRIM,RR DOOR DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97466-324-0	01	1	1510-				●
1	PAD; TRIM,RR DOOR INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97466-326-0	01	1	1510-			●
1	PAD; TRIM,RR DOOR DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97466-326-0	01	1	1510-				●
1	PAD; TRIM,RR DOOR INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BEIGE THA	8-97466-325-0	01	1	1510-			●
1	PAD; TRIM,RR DOOR INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BEIGE THA	8-97466-327-0	01	1	1510-			●
1	PAD; TRIM,RR DOOR INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97427-645-0	01	1	1510-			●
1	PAD; TRIM,RR DOOR INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97427-648-0	01	1	1510-			●
6	CLIP; DOOR PAD (A) H=16.7 THA	8-97022-017-0	22	1	1510-	●	●
6	CLIP; DOOR PAD (B) THA	8-98164-026-0	04	1	1510-	●	●
6	CLIP; DOOR PAD (C) THA	8-98160-729-0	14	1	1510-			●	●
10	SCREW; ARM REST M5X14 TAPPING THA	8-98184-363-0	02	1	1510-	●	●	●	●
13	GROMMET; SCREW,ARM REST THA	8-94152-494-0	04	1	1510-	●	●	●	●
33	BOX; RR DOOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97416-762-5	01	1	1510-	●
33	BOX; RR DOOR (A) BLACK THA	8-97416-762-5	01	1	1510-		●
33	BOX; RR DOOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97416-764-5	01	1	1510-	●
33	BOX; RR DOOR (A) BLACK THA	8-97416-764-5	01	1	1510-		●
33	BOX; RR DOOR INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97416-763-5	01	1	1510-	●
33	BOX; RR DOOR INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97416-765-5	01	1	1510-	●
33	BOX; RR DOOR DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97416-989-3	01	1	1510-			●	●
33	BOX; RR DOOR DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97416-990-3	01	1	1510-			●	●
33	BOX; RR DOOR INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA	8-97416-752-5	01	1	1510-			●
33	BOX; RR DOOR EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA	8-97416-752-5	01	1	1510-				●
33	BOX; RR DOOR INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA	8-97416-753-5	01	1	1510-			●
33	BOX; RR DOOR EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA	8-97416-753-5	01	1	1510-				●
39	COVER; DOOR TRIM INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA	8-97419-925-2	01	1	1510-	●
39	COVER; DOOR TRIM BLACK THA	8-97419-925-2	01	1	1510-		●
39	COVER; DOOR TRIM INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA	8-97419-929-2	01	1	1510-	●
39	COVER; DOOR TRIM BLACK THA	8-97419-929-2	01	1	1510-		●
39	COVER; DOOR TRIM INTERIOR COLOR BEIGE<120> BEIGE THA	8-97419-927-2	01	1	1510-	●
39	COVER; DOOR TRIM INTERIOR COLOR BEIGE<120> BEIGE THA	8-97419-931-2	01	1	1510-	●
62	BRACKET (A) THA	8-98190-466-0	02	1	1510-	●	●
62	BRACKET (B) THA	8-98117-091-1	02	1	1510-			●	●
63	BOLT M5X14 TAPPING THA	8-98184-363-0	04	1	1510-	●	●	●	●
76	COVER; RR DOOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> GRAY THA	8-97416-766-3	01	1	1510-	●
76	COVER; RR DOOR GRAY THA	8-97416-766-3	01	1	1510-		●
76	COVER; RR DOOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> GRAY THA	8-97416-767-3	01	1	1510-	●
76	COVER; RR DOOR GRAY THA	8-97416-767-3	01	1	1510-		●
76	COVER; RR DOOR INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA	8-97423-957-3	01	1	1510-	●
76	COVER; RR DOOR INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA	8-97423-958-3	01	1	1510-	●
88	PLUG; DOOR THA	8-98197-448-0	02	1	1510-	●	●
88	PLUG; DOOR THA	8-98197-448-0	04	1	1510-			●	●
89	RETAINER; RR DOOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (A) GRAY THA	8-97416-768-1	02	1	1510-	●
89	RETAINER; RR DOOR (A) GRAY THA	8-97416-768-1	02	1	1510-		●
89	RETAINER; RR DOOR INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97423-959-1	02	1	1510-	●
89	RETAINER; RR DOOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA	8-97419-388-0	02	1	1510-			●
89	RETAINER; RR DOOR (B) BLACK THA	8-97419-388-0	02	1	1510-				●
89	RETAINER; RR DOOR INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97421-713-0	02	1	1510-			●

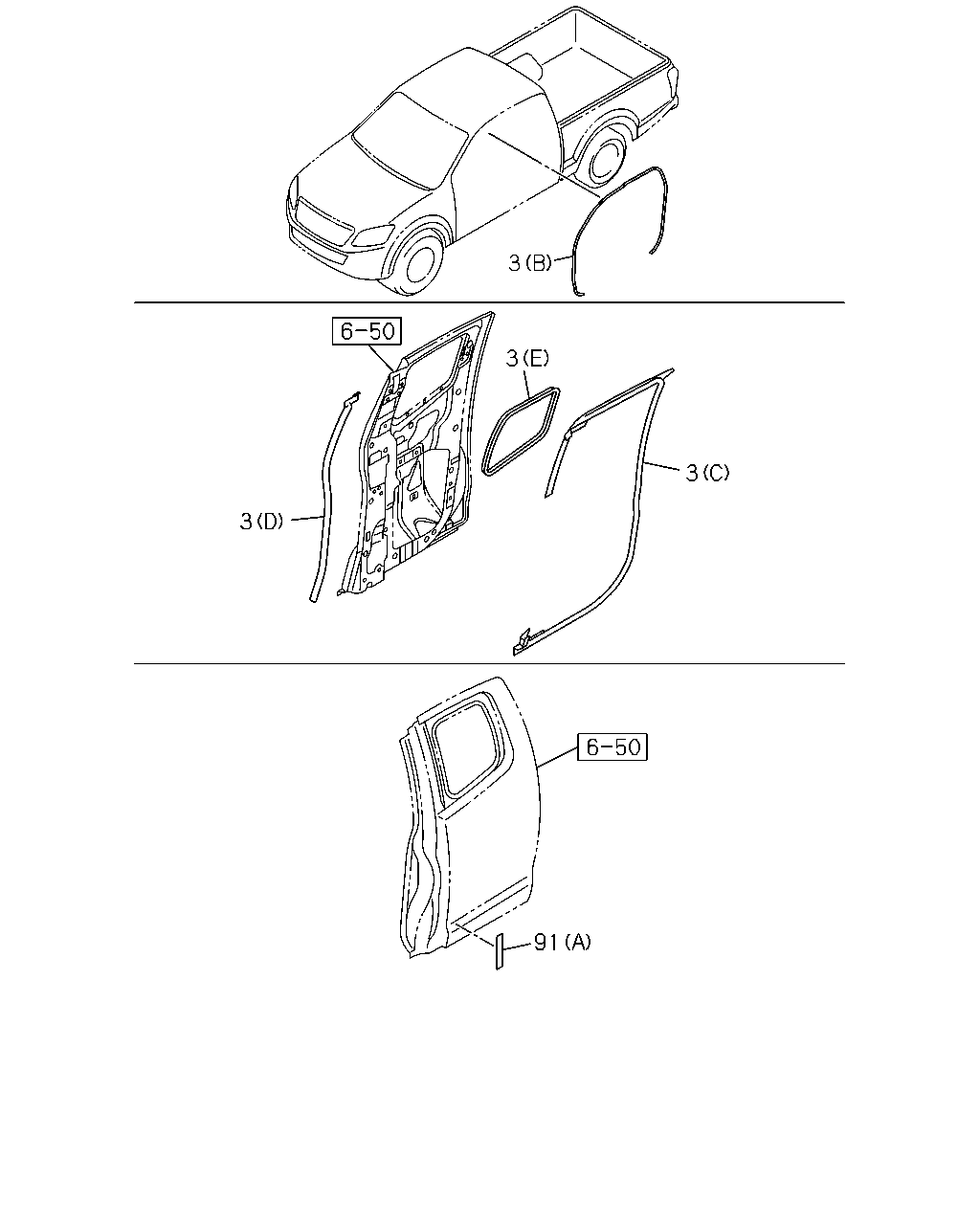

3 3 3 91 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	WEATHERSTRIP; RR DOOR (E) THA	8-98101-046-3	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (E) THA	8-98156-000-3	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (B) THA	8-98201-895-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (B) THA	8-98201-896-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (D) THA	8-98280-726-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (D) THA	8-98280-730-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (C) THA	8-98282-676-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (C) THA	8-98282-677-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (A) THA	8-98109-546-2	01	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (A) THA	8-98109-547-2	01	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (I) THA	8-98165-114-1	02	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (H) THA	8-98052-209-4	01	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (H) THA	8-98052-210-4	01	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (F) THA	8-98201-893-0	02	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (G) THA	8-98282-674-1	01	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (G) THA	8-98282-675-1	01	1	1510-			●	●
91	TAPE EXC. SIDE STEP FIXED ON BODY<6TC> (A) THA	8-98165-208-1	01	1	1510-	●	●
91	TAPE EXC. SIDE STEP FIXED ON BODY<6TC> (A) THA	8-98165-209-1	01	1	1510-	●	●
91	TAPE EXC. SIDE STEP FIXED ON BODY<6TC> (B) THA	8-98165-205-1	01	1	1510-			●
91	TAPE EXC. SIDE STEP FIXED ON BODY<6TC> (B) THA	8-98165-206-1	01	1	1510-			●

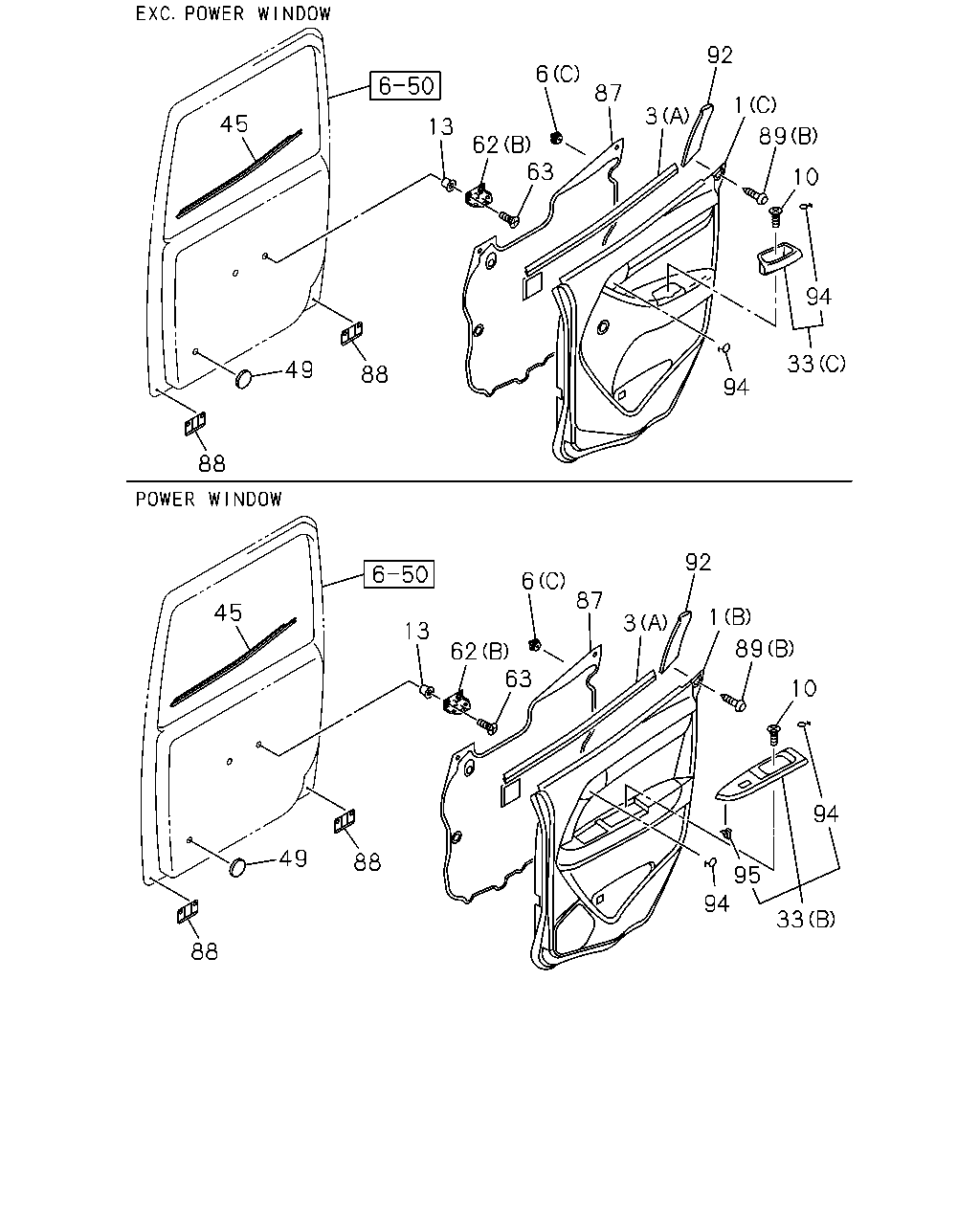

13 6 92 1 10 94 33 94 3 87 62 88 63 49 88 13 62 6 63 87 92 1 89 10 94 33 95 94 3 88 49 88 89 45 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PAD; TRIM,RR DOOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97419-924-8	01	1	1510-	●
1	PAD; TRIM,RR DOOR (A) BLACK THA	8-97419-924-8	01	1	1510-		●
1	PAD; TRIM,RR DOOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97419-928-8	01	1	1510-	●
1	PAD; TRIM,RR DOOR (A) BLACK THA	8-97419-928-8	01	1	1510-		●
1	PAD; TRIM,RR DOOR INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97419-926-8	01	1	1510-	●
1	PAD; TRIM,RR DOOR INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97419-930-8	01	1	1510-	●
1	PAD; TRIM,RR DOOR INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA	8-97417-005-5	01	1	1510-			●
1	PAD; TRIM,RR DOOR INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA	8-97417-006-5	01	1	1510-			●
1	PAD; TRIM,RR DOOR INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BEIGE THA	8-97427-649-0	01	1	1510-			●
1	PAD; TRIM,RR DOOR INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BEIGE THA	8-97427-650-0	01	1	1510-			●
1	PAD; TRIM,RR DOOR INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97466-324-0	01	1	1510-			●
1	PAD; TRIM,RR DOOR DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97466-324-0	01	1	1510-				●
1	PAD; TRIM,RR DOOR INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97466-326-0	01	1	1510-			●
1	PAD; TRIM,RR DOOR DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97466-326-0	01	1	1510-				●
1	PAD; TRIM,RR DOOR INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BEIGE THA	8-97466-325-0	01	1	1510-			●
1	PAD; TRIM,RR DOOR INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BEIGE THA	8-97466-327-0	01	1	1510-			●
1	PAD; TRIM,RR DOOR INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97427-645-0	01	1	1510-			●
1	PAD; TRIM,RR DOOR INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97427-648-0	01	1	1510-			●
3	WEATHERSTRIP; RR DOOR (E) THA	8-98101-046-3	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (E) THA	8-98156-000-3	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (B) THA	8-98201-895-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (B) THA	8-98201-896-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (D) THA	8-98280-726-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (D) THA	8-98280-730-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (C) THA	8-98282-676-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (C) THA	8-98282-677-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (A) THA	8-98109-546-2	01	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (A) THA	8-98109-547-2	01	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (I) THA	8-98165-114-1	02	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (H) THA	8-98052-209-4	01	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (H) THA	8-98052-210-4	01	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (F) THA	8-98201-893-0	02	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (G) THA	8-98282-674-1	01	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (G) THA	8-98282-675-1	01	1	1510-			●	●
6	CLIP; DOOR PAD (A) H=16.7 THA	8-97022-017-0	22	1	1510-	●	●
6	CLIP; DOOR PAD (B) THA	8-98164-026-0	04	1	1510-	●	●
6	CLIP; DOOR PAD (C) THA	8-98160-729-0	14	1	1510-			●	●
10	SCREW; ARM REST M5X14 TAPPING THA	8-98184-363-0	02	1	1510-	●	●	●	●
13	GROMMET; SCREW,ARM REST THA	8-94152-494-0	04	1	1510-	●	●	●	●
33	BOX; RR DOOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97416-762-5	01	1	1510-	●
33	BOX; RR DOOR (A) BLACK THA	8-97416-762-5	01	1	1510-		●
33	BOX; RR DOOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97416-764-5	01	1	1510-	●
33	BOX; RR DOOR (A) BLACK THA	8-97416-764-5	01	1	1510-		●
33	BOX; RR DOOR INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97416-763-5	01	1	1510-	●
33	BOX; RR DOOR INTERIOR COLOR BEIGE<120> (A) BEIGE THA	8-97416-765-5	01	1	1510-	●
33	BOX; RR DOOR DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97416-989-3	01	1	1510-			●	●
33	BOX; RR DOOR DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97416-990-3	01	1	1510-			●	●
33	BOX; RR DOOR INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA	8-97416-752-5	01	1	1510-			●
33	BOX; RR DOOR EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA	8-97416-752-5	01	1	1510-				●
33	BOX; RR DOOR INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA	8-97416-753-5	01	1	1510-			●
33	BOX; RR DOOR EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA	8-97416-753-5	01	1	1510-				●
45	FINISHER; RR DOOR THA	8-98052-207-2	01	1	1510-			●	●
45	FINISHER; RR DOOR THA	8-98052-208-2	01	1	1510-			●	●
49	SEAL; DOOR 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> OD=25 BLACK THA	1-76798-019-0	02	1	1510-			●	●
62	BRACKET (A) THA	8-98190-466-0	02	1	1510-	●	●
62	BRACKET (B) THA	8-98117-091-1	02	1	1510-			●	●
63	BOLT M5X14 TAPPING THA	8-98184-363-0	04	1	1510-	●	●	●	●
87	DEFLECTOR; RR DOOR 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98103-525-1	01	1	1510-			●	●
87	DEFLECTOR; RR DOOR 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98103-526-1	01	1	1510-			●	●
87	DEFLECTOR; RR DOOR 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> THA	8-98103-527-2	01	1	1510-			●
87	DEFLECTOR; RR DOOR 6-SPEAKER SYSTEM CUSTOM<UW6> THA	8-98103-527-2	01	1	1510-				●
87	DEFLECTOR; RR DOOR 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> THA	8-98103-528-2	01	1	1510-			●
87	DEFLECTOR; RR DOOR 6-SPEAKER SYSTEM CUSTOM<UW6> THA	8-98103-528-2	01	1	1510-				●
88	PLUG; DOOR THA	8-98197-448-0	02	1	1510-	●	●
88	PLUG; DOOR THA	8-98197-448-0	04	1	1510-			●	●
89	RETAINER; RR DOOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (A) GRAY THA	8-97416-768-1	02	1	1510-	●
89	RETAINER; RR DOOR (A) GRAY THA	8-97416-768-1	02	1	1510-		●
89	RETAINER; RR DOOR INTERIOR COLOR UPR & LWR DARK GRAY<154> (A) BLACK THA	8-97423-959-1	02	1	1510-	●
89	RETAINER; RR DOOR INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) BLACK THA	8-97419-388-0	02	1	1510-			●
89	RETAINER; RR DOOR (B) BLACK THA	8-97419-388-0	02	1	1510-				●
89	RETAINER; RR DOOR INTERIOR COLOR BEIGE<120> (B) BEIGE THA	8-97421-713-0	02	1	1510-			●
92	PANEL; RR DOOR BLACK THA	8-97416-987-0	01	1	1510-			●	●
92	PANEL; RR DOOR BLACK THA	8-97416-988-0	01	1	1510-			●	●
94	COVER; HOLDER,BOLT DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-610-0	02	1	1510-			●	●
94	COVER; HOLDER,BOLT INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-610-0	02	1	1510-			●
94	COVER; HOLDER,BOLT INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-610-0	02	1	1510-			●
94	COVER; HOLDER,BOLT INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-610-0	02	1	1510-			●
94	COVER; HOLDER,BOLT BLACK THA	8-97416-610-0	02	1	1510-				●
94	COVER; HOLDER,BOLT INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BEIGE THA	8-97416-723-0	02	1	1510-			●
95	CLIP; DOOR TRIM DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98164-677-0	02	1	1510-			●	●

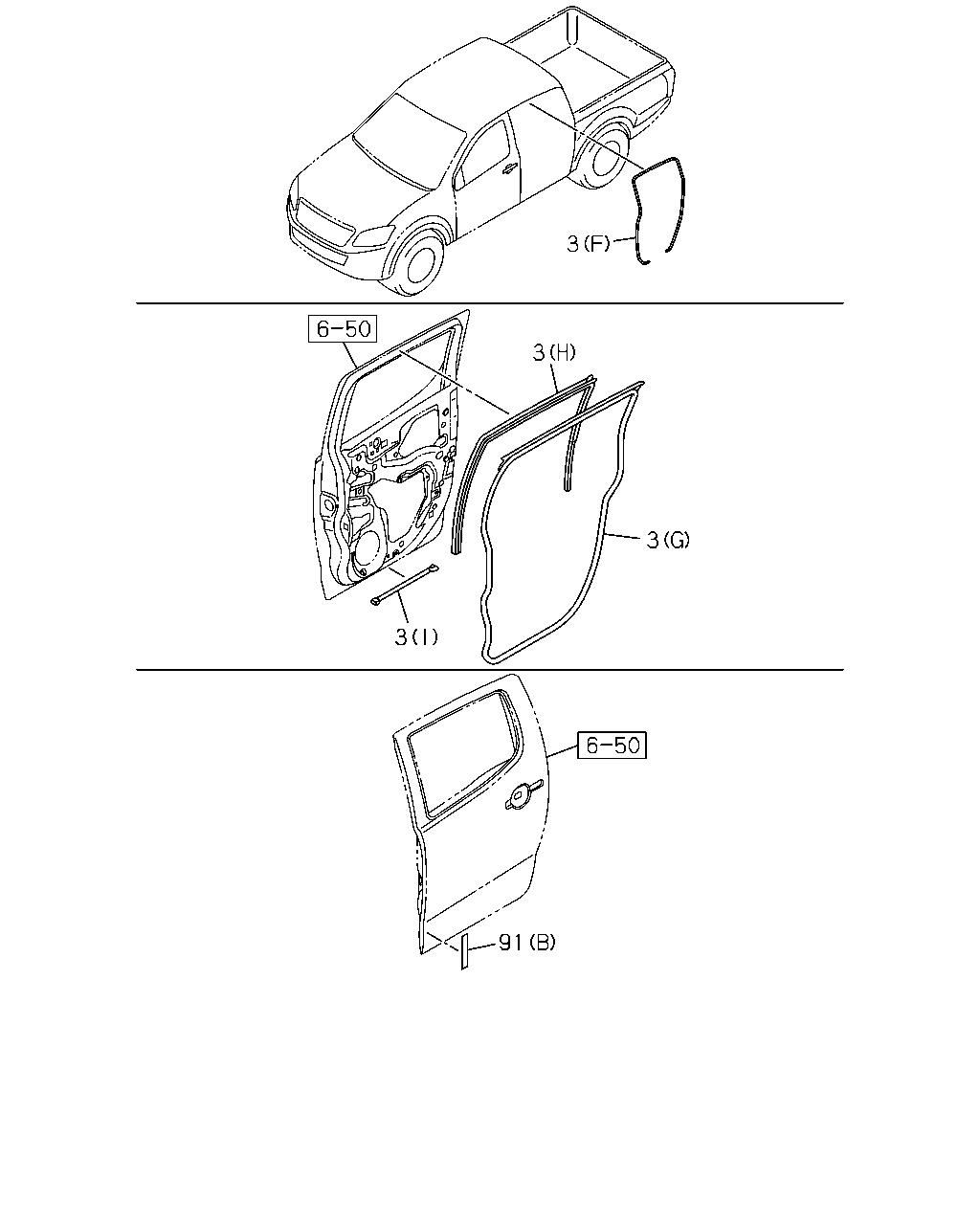

3 3 3 3 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	WEATHERSTRIP; RR DOOR (E) THA	8-98101-046-3	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (E) THA	8-98156-000-3	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (B) THA	8-98201-895-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (B) THA	8-98201-896-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (D) THA	8-98280-726-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (D) THA	8-98280-730-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (C) THA	8-98282-676-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (C) THA	8-98282-677-0	01	1	1510-	●	●
3	WEATHERSTRIP; RR DOOR (A) THA	8-98109-546-2	01	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (A) THA	8-98109-547-2	01	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (I) THA	8-98165-114-1	02	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (H) THA	8-98052-209-4	01	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (H) THA	8-98052-210-4	01	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (F) THA	8-98201-893-0	02	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (G) THA	8-98282-674-1	01	1	1510-			●	●
3	WEATHERSTRIP; RR DOOR (G) THA	8-98282-675-1	01	1	1510-			●	●
91	TAPE EXC. SIDE STEP FIXED ON BODY<6TC> (A) THA	8-98165-208-1	01	1	1510-	●	●
91	TAPE EXC. SIDE STEP FIXED ON BODY<6TC> (A) THA	8-98165-209-1	01	1	1510-	●	●
91	TAPE EXC. SIDE STEP FIXED ON BODY<6TC> (B) THA	8-98165-205-1	01	1	1510-			●
91	TAPE EXC. SIDE STEP FIXED ON BODY<6TC> (B) THA	8-98165-206-1	01	1	1510-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
