6-35 — FRONT DOOR TRIM (#166113) — 73 parça

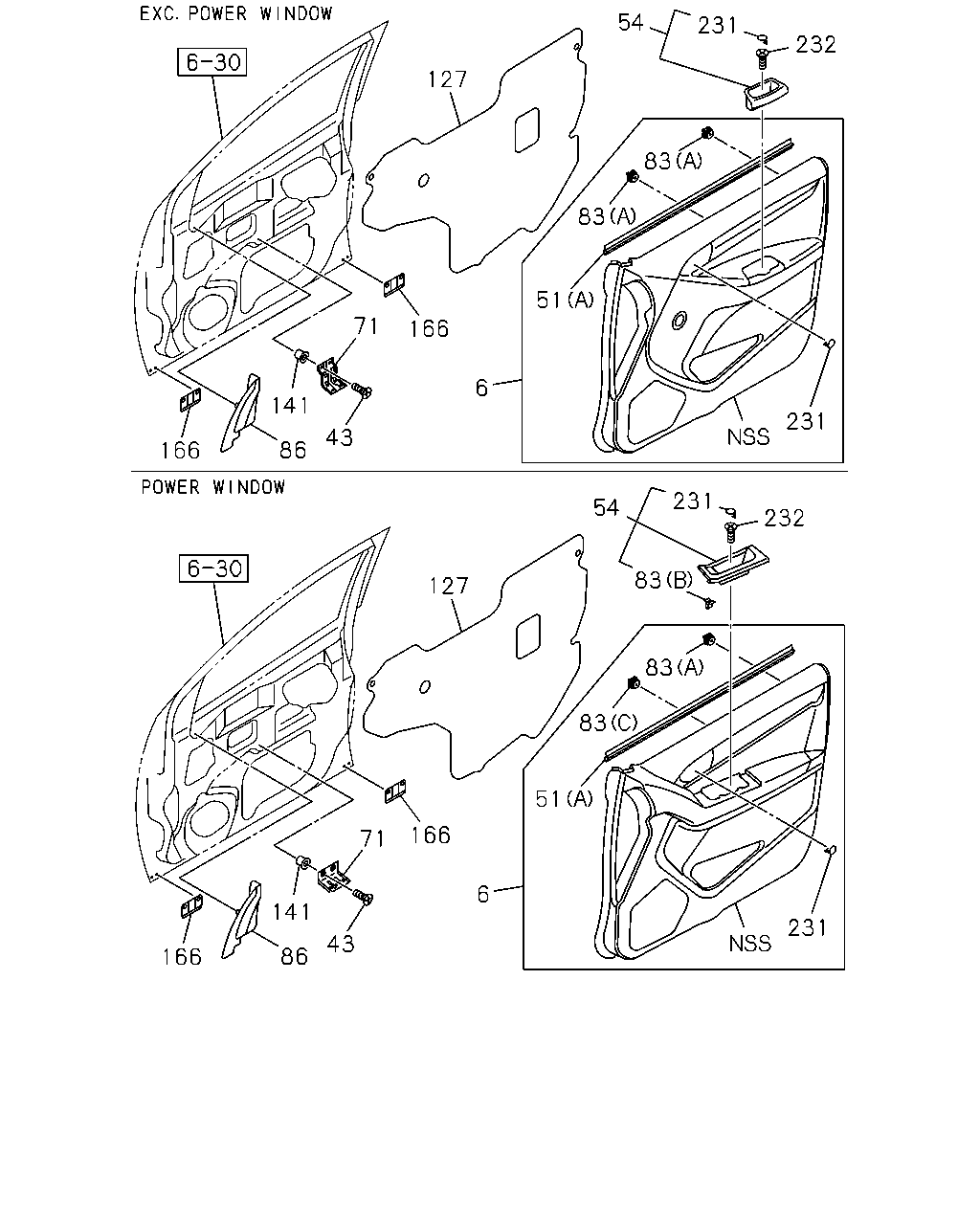

127 71 141 86 166 6 166 51 83 83 231 232 54 231 231 54 232 83 83 83 51 231 6 166 71 141 43 86 166 127 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	TRIM; DOOR,UPR INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> EXC. SALES PACKAGE SPORTY<XK0> BLACK THA	8-97425-710-1	01	1	1510-	●	●	●	●	●
6	TRIM; DOOR,UPR INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> EXC. SALES PACKAGE SPORTY<XK0> BLACK THA	8-97425-714-1	01	1	1510-	●	●	●	●	●
6	TRIM; DOOR,UPR INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-740-7	01	1	1510-	●	●	●	●
6	TRIM; DOOR,UPR INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-742-7	01	1	1510-	●	●	●	●
6	TRIM; DOOR,UPR INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> EXC. SALES PACKAGE SPORTY<XK0> BEIGE THA	8-97425-711-1	01	1	1510-	●		●
6	TRIM; DOOR,UPR INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> EXC. SALES PACKAGE SPORTY<XK0> BEIGE THA	8-97425-715-1	01	1	1510-	●		●
6	TRIM; DOOR,UPR INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> EXC. SALES PACKAGE SPORTY<XK0> BLACK THA	8-97465-582-1	01	1	1510-	●		●	●		●
6	TRIM; DOOR,UPR INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> EXC. SALES PACKAGE SPORTY<XK0> BLACK THA	8-97465-586-1	01	1	1510-	●		●	●		●
6	TRIM; DOOR,UPR INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> EXC. SALES PACKAGE SPORTY<XK0> BEIGE THA	8-97465-583-1	01	1	1510-	●		●
6	TRIM; DOOR,UPR INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> EXC. SALES PACKAGE SPORTY<XK0> BEIGE THA	8-97465-587-1	01	1	1510-	●		●
6	TRIM; DOOR,UPR INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> SALES PACKAGE SPORTY<XK0> HIGH RIDE SUSPENSION<7YC> BLACK THA	8-97429-728-0	01	1	1510-	●		●
6	TRIM; DOOR,UPR INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> SALES PACKAGE SPORTY<XK0> HIGH RIDE SUSPENSION<7YC> BLACK THA	8-97429-730-0	01	1	1510-	●		●
6	TRIM; DOOR,UPR INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> SALES PACKAGE SPORTY<XK0> EXC. HIGH RIDE SUSPENSION<7YC> BLACK THA	8-97429-729-0	01	1	1510-	●		●
6	TRIM; DOOR,UPR INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> SALES PACKAGE SPORTY<XK0> EXC. HIGH RIDE SUSPENSION<7YC> BLACK THA	8-97429-731-0	01	1	1510-	●		●
6	TRIM; DOOR,UPR INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> BLACK THA	8-97465-588-1	01	1	1510-	●		●
6	TRIM; DOOR,UPR INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> EXC. SALES PACKAGE SPORTY<XK0> BLACK THA	8-97425-717-1	01	1	1510-	●		●
6	TRIM; DOOR,UPR INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> BLACK THA	8-97425-716-1	01	1	1510-	●		●
43	SCREW; DOOR POCKET M5X14 TAPPING THA	8-98184-363-0	04	1	1510-	●	●	●	●	●	●

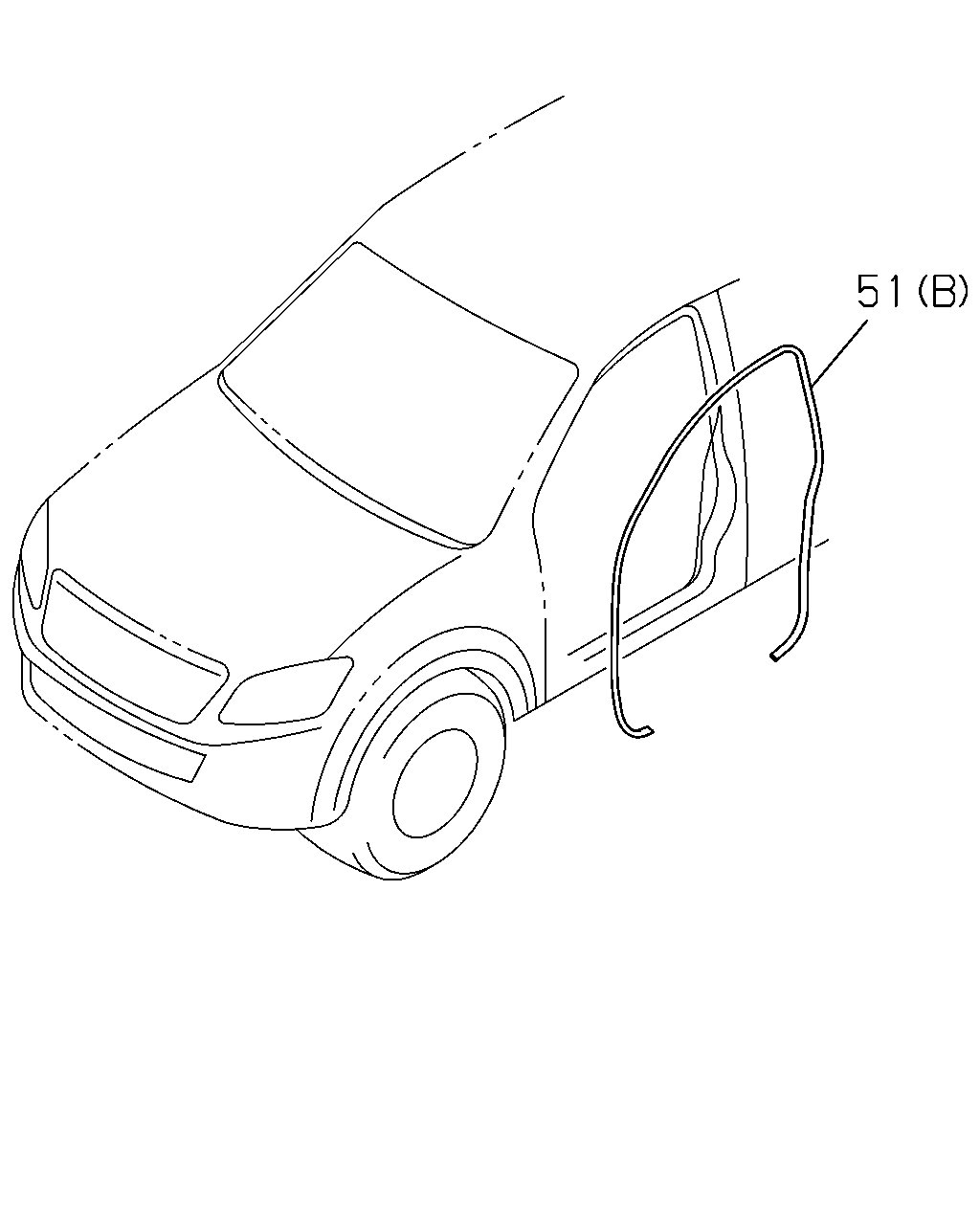

51	WEATHERSTRIP; FRONT DOOR (B) THA	8-98201-892-0	02	1	1510-		●	●		●	●
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-98109-544-3	01	1	1510-	●	●	●	●	●	●
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-98109-545-3	01	1	1510-	●	●	●	●	●	●
54	BOX; FRT DOOR DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-750-1	01	1	1510-	●		●	●		●
54	BOX; FRT DOOR DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-750-1	01	1	1510-		●
54	BOX; FRT DOOR BLACK THA	8-97416-750-1	01	1	1510-					●
54	BOX; FRT DOOR DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-751-1	01	1	1510-	●		●	●		●
54	BOX; FRT DOOR DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-751-1	01	1	1510-		●
54	BOX; FRT DOOR BLACK THA	8-97416-751-1	01	1	1510-					●
54	BOX; FRT DOOR INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-752-5	01	1	1510-	●		●
54	BOX; FRT DOOR EXC. DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-752-5	01	1	1510-		●
54	BOX; FRT DOOR EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-752-5	01	1	1510-				●		●
54	BOX; FRT DOOR INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-753-5	01	1	1510-	●		●
54	BOX; FRT DOOR EXC. DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-753-5	01	1	1510-		●
54	BOX; FRT DOOR EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA	8-97416-753-5	01	1	1510-				●		●
71	BRACKET; ARM REST DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98102-215-2	02	1	1510-	●		●	●		●
71	BRACKET; ARM REST DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98102-215-2	02	1	1510-		●
71	BRACKET; ARM REST THA	8-98102-215-2	02	1	1510-					●
71	BRACKET; ARM REST EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98102-216-4	02	1	1510-	●		●	●		●
71	BRACKET; ARM REST EXC. DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98102-216-4	02	1	1510-		●
83	CLIP; DOOR TRIM DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA	8-98164-677-0	02	1	1510-	●		●	●		●
83	CLIP; DOOR TRIM DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA	8-98164-677-0	02	1	1510-		●
83	CLIP; DOOR TRIM (B) THA	8-98164-677-0	02	1	1510-					●
83	CLIP; DOOR TRIM INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) THA	8-98160-729-0	18	1	1510-	●	●	●	●
83	CLIP; DOOR TRIM DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) THA	8-98160-729-0	16	1	1510-	●	●	●	●	●	●
83	CLIP; DOOR TRIM DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) THA	8-98166-326-0	02	1	1510-	●	●	●	●	●	●
83	CLIP; DOOR TRIM INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. SALES PACKAGE SPORTY<XK0> (A) THA	8-98160-729-0	08	1	1510-	●		●
83	CLIP; DOOR TRIM INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. SALES PACKAGE SPORTY<XK0> (A) THA	8-98160-729-0	08	1	1510-	●		●
83	CLIP; DOOR TRIM INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. SALES PACKAGE SPORTY<XK0> (C) THA	8-98166-326-0	01	1	1510-	●		●
83	CLIP; DOOR TRIM INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. SALES PACKAGE SPORTY<XK0> (C) THA	8-98166-326-0	01	1	1510-	●		●
86	COVER ASM; DOOR POCKET BLACK THA	8-97416-748-3	01	1	1510-	●	●	●	●	●	●
86	COVER ASM; DOOR POCKET BLACK THA	8-97416-749-3	01	1	1510-	●	●	●	●	●	●
127	SEAL; DOOR INNER DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98192-454-1	01	1	1510-	●		●	●		●
127	SEAL; DOOR INNER DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98192-454-1	01	1	1510-		●
127	SEAL; DOOR INNER THA	8-98192-454-1	01	1	1510-					●
127	SEAL; DOOR INNER DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98192-455-1	01	1	1510-	●		●	●		●
127	SEAL; DOOR INNER DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98192-455-1	01	1	1510-		●
127	SEAL; DOOR INNER THA	8-98192-455-1	01	1	1510-					●
127	SEAL; DOOR INNER EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98103-523-1	01	1	1510-	●		●	●		●
127	SEAL; DOOR INNER EXC. DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98103-523-1	01	1	1510-		●
127	SEAL; DOOR INNER EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98103-524-1	01	1	1510-	●		●	●		●
127	SEAL; DOOR INNER EXC. DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98103-524-1	01	1	1510-		●
141	GROMMET; SCREW,LWR COVER THA	8-94152-494-0	04	1	1510-	●	●	●	●	●	●
166	PLUG; HOLE THA	8-98197-448-0	04	1	1510-	●	●	●	●	●	●
231	COVER; HOLDER,BOLT INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. SALES PACKAGE SPORTY<XK0> BLACK THA	8-97416-610-0	01	1	1510-	●		●
231	COVER; HOLDER,BOLT INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. SALES PACKAGE SPORTY<XK0> BLACK THA	8-97416-610-0	01	1	1510-	●		●
231	COVER; HOLDER,BOLT INTERIOR COLOR BEIGE<120> BEIGE THA	8-97416-723-0	02	1	1510-	●		●
231	COVER; HOLDER,BOLT BLACK THA	8-97416-610-0	02	1	1510-	●	●	●	●	●	●
231	COVER; HOLDER,BOLT SALES PACKAGE SPORTY<XK0> BLACK THA	8-97416-610-0	02	1	1510-	●		●
231	COVER; HOLDER,BOLT INTERIOR COLOR DARK GRAY<117> BLACK THA	8-97416-610-0	02	1	1510-	●		●
231	COVER; HOLDER,BOLT BLACK THA	8-97416-610-0	02	1	1510-		●		●	●	●
232	BOLT; DOOR TRIM M5X14 TAPPING THA	8-98184-363-0	02	1	1510-	●	●	●	●	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
51	WEATHERSTRIP; FRONT DOOR (B) THA	8-98201-892-0	02	1	1510-		●	●		●	●
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-98109-544-3	01	1	1510-	●	●	●	●	●	●
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-98109-545-3	01	1	1510-	●	●	●	●	●	●
