◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#166112) — 293 parça

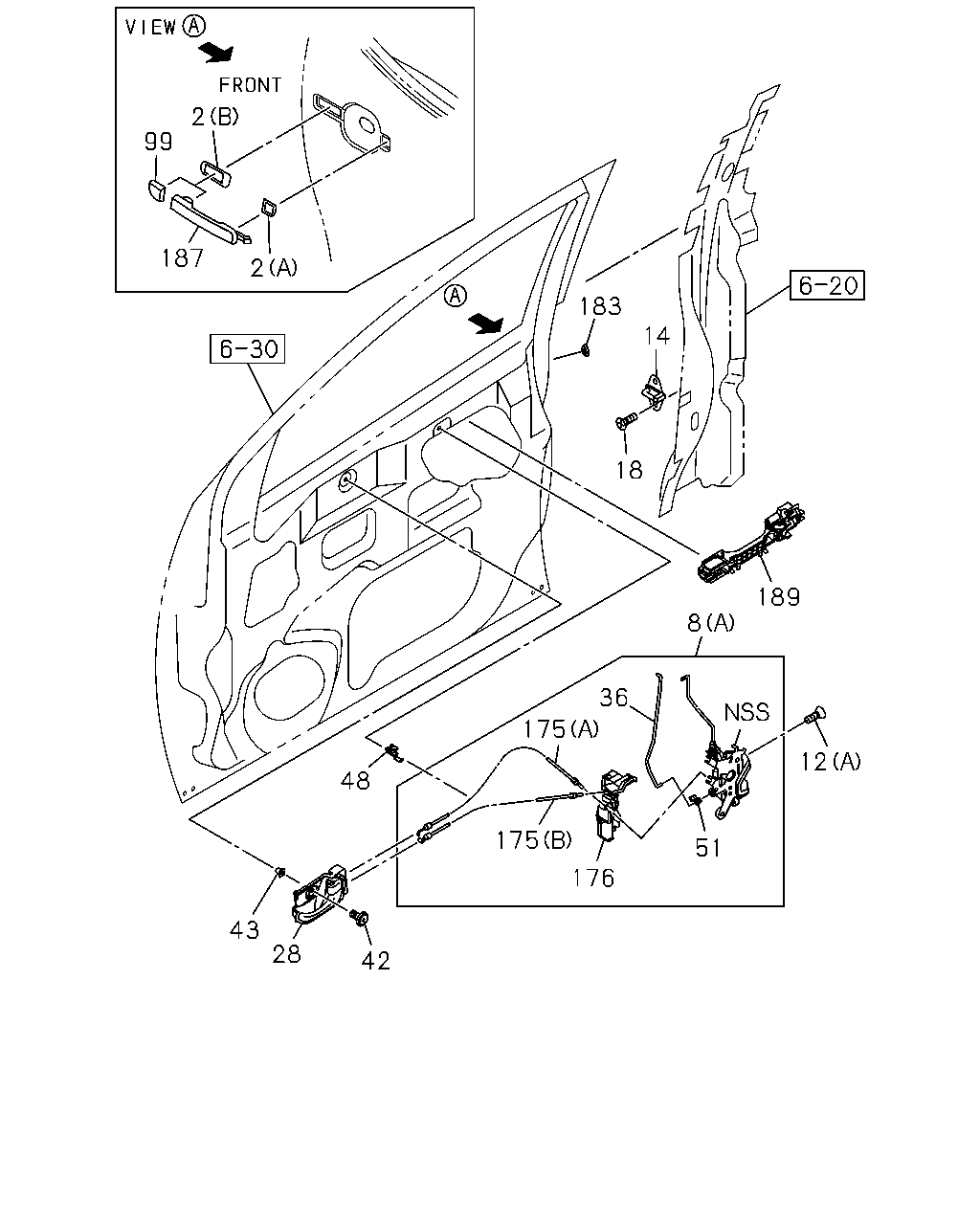

çizim 492851
99 2 187 2 183 14 18 8 189 175 175 48 43 28 42 176 36 51 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 GASKET; OUTSIDE HANDLE,DOOR
(A) THA 		8-98176-466-0 01 1 1510- ● ● ● ● ● ●
2 GASKET; OUTSIDE HANDLE,DOOR
(A) THA 		8-98176-466-0 01 1 1510- ● ● ● ● ● ●
2 GASKET; OUTSIDE HANDLE,DOOR
(B) THA 		8-98176-467-2 01 1 1510- ● ● ● ● ● ●
2 GASKET; OUTSIDE HANDLE,DOOR
(B) THA 		8-98176-467-2 01 1 1510- ● ● ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-98231-769-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-98231-769-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-98231-794-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-98231-794-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-98231-761-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-98231-763-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) THA 		8-98231-764-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> (B) THA 		8-98231-764-1 01 1 1510- ●
8 LOCK; DOOR,FRT DOOR
(B) THA 		8-98231-764-1 01 1 1510- ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) THA 		8-98231-765-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> (B) THA 		8-98231-765-1 01 1 1510- ●
8 LOCK; DOOR,FRT DOOR
(B) THA 		8-98231-765-1 01 1 1510- ●
8 LOCK; DOOR,FRT DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>, AUTO DOOR LOCK<AU4> (A) THA 		8-98231-760-0 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (A) THA 		8-98231-760-0 01 1 1510- ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (A) THA 		8-98231-759-0 01 1 1510- ● ● ● ● ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-997-0 04 1 1510- ● ● ● ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-997-0 04 1 1510- ● ● ● ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-997-0 02 1 1510- ● ● ● ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-997-0 02 1 1510- ● ● ● ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) THA 		8-97349-997-0 02 1 1510- ● ● ● ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) THA 		8-97349-997-0 02 1 1510- ● ● ● ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> (B) THA 		8-97349-997-0 02 1 1510- ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> (B) THA 		8-97349-997-0 02 1 1510- ●
12 SCREW; DOOR LK
(B) THA 		8-97349-997-0 02 1 1510- ●
12 SCREW; DOOR LK
(B) THA 		8-97349-997-0 02 1 1510- ●
12 SCREW; DOOR LK
(A) M6X14.5 THA 		8-98004-342-0 06 1 1510- ● ● ● ● ● ●
14 STRIKER; FRT DOOR
THA 		8-98012-203-0 02 1 1510- ● ● ● ● ● ●
18 SCREW; DOOR STRIKER
M8X35 THA 		8-98049-360-0 04 1 1510- ● ● ● ● ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-726-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> BLACK THA 		8-97416-726-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-726-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR DELUXE<RBB> BLACK THA 		8-97416-726-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK THA 		8-97416-726-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-728-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> BLACK THA 		8-97416-728-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-728-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR DELUXE<RBB> BLACK THA 		8-97416-728-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK THA 		8-97416-728-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-727-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-727-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-729-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-729-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97465-604-3 01 1 1510- ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM<RBD> BLACK THA 		8-97465-604-3 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK THA 		8-97465-604-3 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97465-606-3 01 1 1510- ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM<RBD> BLACK THA 		8-97465-606-3 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK THA 		8-97465-606-3 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97465-605-3 01 1 1510- ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97465-607-3 01 1 1510- ● ●
36 LINK; DOOR LOCK,OUTSIDE
THA 		8-98193-693-0 01 1 1510- ● ● ● ● ● ●
36 LINK; DOOR LOCK,OUTSIDE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98193-692-0 01 1 1510- ● ● ● ●
36 LINK; DOOR LOCK,OUTSIDE
THA 		8-98193-692-0 01 1 1510- ● ●
42 SCREW; TAPPING,INSIDE LEVER
M5X14 TAPPING THA 		8-98184-363-0 02 1 1510- ● ● ● ● ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
THA 		8-94152-494-0 02 1 1510- ● ● ● ● ● ●
48 ANTIRATTLER; DOOR LINK
THA 		8-97251-932-0 02 1 1510- ● ● ● ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
THA 		8-97349-986-0 01 1 1510- ● ● ● ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-97349-985-0 01 1 1510- ● ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
THA 		8-97349-985-0 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR CHROME<E20> PLATED THA 		8-98176-465-1 01 1 1510- ● ● ● ●
99 COVER; HOLE DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> BLACK THA 		8-98176-463-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. HANDLE O/S DOOR CHROME<E20> BLACK THA 		8-98176-463-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR NAUTILUS BLUE MICA<521> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE THA 		8-97422-452-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR COSMIC BLACK MICA<523> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97422-454-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR SPLASH WHITE<527> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97422-463-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR TITANIUM SILVER MET<529> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97422-456-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR SILKY WHITE PEARL<531> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97422-464-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE THA 		8-97422-451-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR ASH BEIGE MET<541> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE THA 		8-97422-460-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR FJORD BLUE MET<545> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE THA 		8-97424-512-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR VENETIAN RED MICA<546> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> RED THA 		8-97424-555-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR QUARTZ BLUE MET<553> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE THA 		8-97465-635-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR QUARTZ BLUE MET<553> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BLUE THA 		8-97465-640-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR OBSIDIAN GRAY MICA<554> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA 		8-97465-638-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR CHROME<E20> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> PLATED THA 		8-98176-462-1 01 1 1510- ● ● ● ●
99 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR CHROME<E20> PLATED THA 		8-98176-462-1 01 1 1510- ● ● ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> DARK BLUE THA 		8-97422-439-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> DARK BLUE THA 		8-97422-439-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> BLACK THA 		8-97422-441-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BLACK THA 		8-97422-441-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> WHITE THA 		8-97422-450-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE THA 		8-97422-450-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> SILVER THA 		8-97422-443-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> SILVER THA 		8-97422-443-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> LIGHT BEIGE THA 		8-97422-447-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BEIGE THA 		8-97422-447-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> LIGHT BLUE THA 		8-97424-508-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BLUE THA 		8-97424-508-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR VENETIAN RED MICA<546> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> RED THA 		8-97424-549-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR VENETIAN RED MICA<546> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> RED THA 		8-97424-549-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR OBSIDIAN GRAY MICA<554> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> DARK GRAY THA 		8-97465-642-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR OBSIDIAN GRAY MICA<554> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> DARK GRAY THA 		8-97465-642-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>, HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOORCHROME<E20> THA 		8-98176-460-1 01 1 1510- ● ● ● ●
99 COVER; HOLE DOOR LOCK
THA 		8-98176-460-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> THA 		8-98176-460-1 01 1 1510- ● ● ● ●
99 COVER; HOLE DOOR LOCK
THA 		8-98176-460-1 01 1 1510- ● ●
175 CABLE ASM; LOCK CONTROL
(A) THA 		8-98193-688-0 01 1 1510- ● ● ● ● ● ●
175 CABLE ASM; LOCK CONTROL
(B) THA 		8-98193-689-0 01 1 1510- ● ● ● ● ● ●
175 CABLE ASM; LOCK CONTROL
(A) THA 		8-98193-690-0 01 1 1510- ● ● ● ● ● ●
175 CABLE ASM; LOCK CONTROL
(B) THA 		8-98193-691-0 01 1 1510- ● ● ● ● ● ●
176 COVER; DOOR LOCK
THA 		8-97349-991-0 01 1 1510- ● ● ● ● ● ●
176 COVER; DOOR LOCK
THA 		8-97349-992-0 01 1 1510- ● ● ● ● ● ●
183 GROMMET
OD=26 THA 		8-94141-484-0 02 1 1510- ● ● ● ● ● ●
187 GRIP; FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> HANDLE O/S DOOR CHROME<E20> PLATED THA 		8-98211-441-0 01 1 1510- ● ● ● ●
187 GRIP; FRT DOOR
HANDLE O/S DOOR CHROME<E20> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> PLATED THA 		8-98176-458-0 01 1 1510- ● ● ● ●
187 GRIP; FRT DOOR
HANDLE O/S DOOR CHROME<E20> PLATED THA 		8-98176-458-0 01 1 1510- ● ● ● ●
187 GRIP; FRT DOOR
BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> DARK BLUE THA 		8-97422-425-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE THA 		8-97422-425-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BLACK THA 		8-97422-427-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97422-427-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE THA 		8-97422-436-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97422-436-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> SILVER THA 		8-97422-429-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97422-429-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR SILKY WHITE PEARL<531> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97422-437-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE THA 		8-97422-437-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BEIGE THA 		8-97422-433-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE THA 		8-97422-433-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BLUE THA 		8-97424-507-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE THA 		8-97424-507-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR VENETIAN RED MICA<546> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> RED THA 		8-97424-545-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR VENETIAN RED MICA<546> HANDLE O/S DOOR BODY COLOR<D75> RED THA 		8-97424-545-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR QUARTZ BLUE MET<553> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE THA 		8-97465-634-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR QUARTZ BLUE MET<553> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BLUE THA 		8-97465-634-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR OBSIDIAN GRAY MICA<554> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA 		8-97465-637-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR OBSIDIAN GRAY MICA<554> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> DARK GRAY THA 		8-97465-637-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> THA 		8-98176-456-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> THA 		8-98176-456-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
THA 		8-98176-456-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
THA 		8-98176-456-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, HANDLE O/S DOOR CHROME<E20> THA 		8-98176-456-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
EXC. HANDLE O/S DOOR CHROME<E20> THA 		8-98176-456-0 01 1 1510- ● ●
189 BRACKET; GRIP,DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> HANDLE O/S DOOR CHROME<E20> THA 		8-98176-469-4 01 1 1510- ● ● ● ●
189 BRACKET; GRIP,DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98176-469-4 01 1 1510- ● ● ● ●
189 BRACKET; GRIP,DOOR
THA 		8-98176-469-4 01 1 1510- ● ●
189 BRACKET; GRIP,DOOR
THA 		8-98176-471-4 01 1 1510- ● ● ● ● ● ●

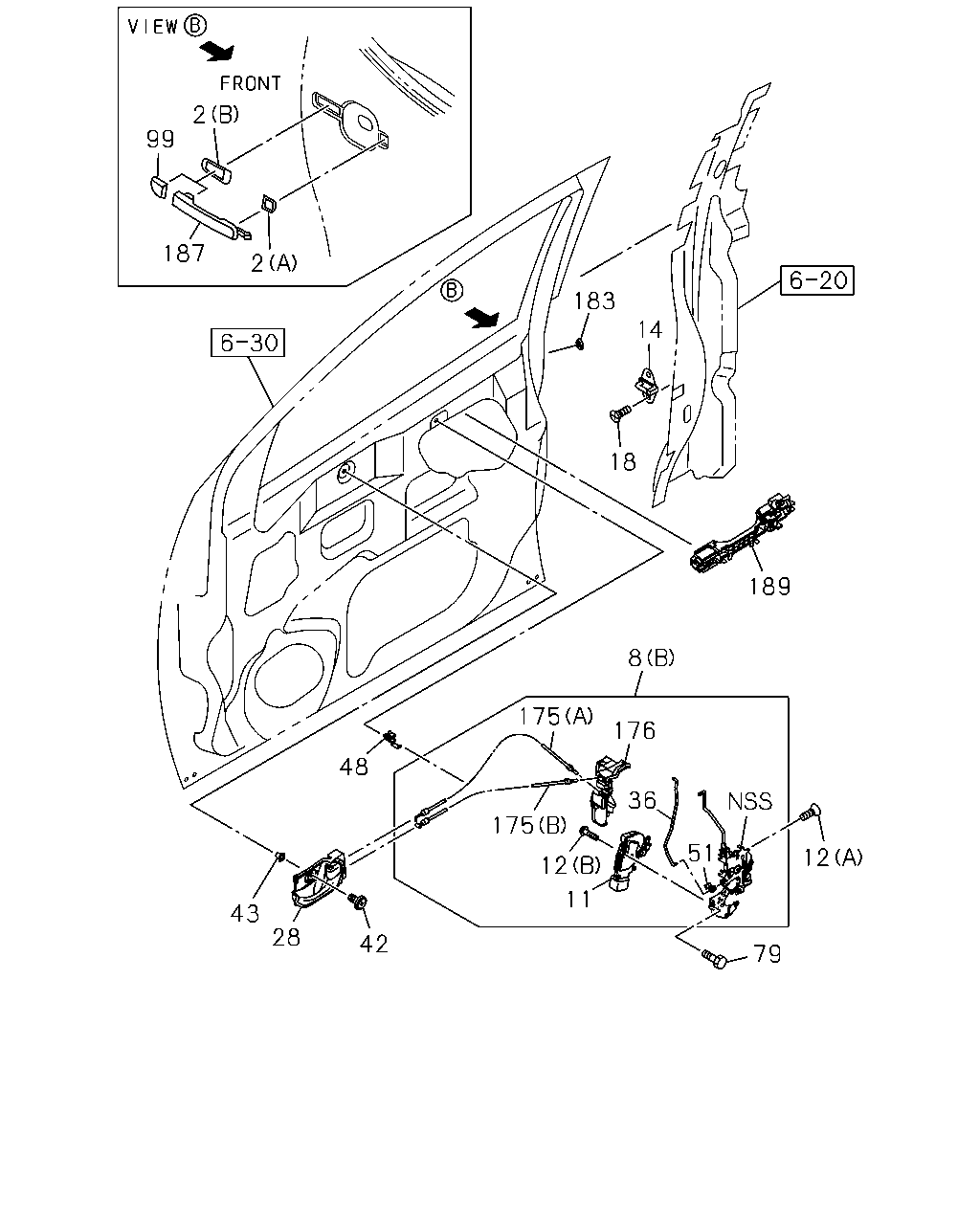

çizim 492894
2 99 187 183 14 18 189 8 176 175 175 12 11 79 12 51 36 43 28 42 48 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 GASKET; OUTSIDE HANDLE,DOOR
(A) THA 		8-98176-466-0 01 1 1510- ● ● ● ● ● ●
2 GASKET; OUTSIDE HANDLE,DOOR
(A) THA 		8-98176-466-0 01 1 1510- ● ● ● ● ● ●
2 GASKET; OUTSIDE HANDLE,DOOR
(B) THA 		8-98176-467-2 01 1 1510- ● ● ● ● ● ●
2 GASKET; OUTSIDE HANDLE,DOOR
(B) THA 		8-98176-467-2 01 1 1510- ● ● ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-98231-769-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-98231-769-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-98231-794-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-98231-794-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-98231-761-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-98231-763-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) THA 		8-98231-764-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> (B) THA 		8-98231-764-1 01 1 1510- ●
8 LOCK; DOOR,FRT DOOR
(B) THA 		8-98231-764-1 01 1 1510- ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) THA 		8-98231-765-1 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> (B) THA 		8-98231-765-1 01 1 1510- ●
8 LOCK; DOOR,FRT DOOR
(B) THA 		8-98231-765-1 01 1 1510- ●
8 LOCK; DOOR,FRT DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>, AUTO DOOR LOCK<AU4> (A) THA 		8-98231-760-0 01 1 1510- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (A) THA 		8-98231-760-0 01 1 1510- ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (A) THA 		8-98231-759-0 01 1 1510- ● ● ● ● ●
11 ACTUATOR; DOOR LK,FRT
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98292-021-0 01 1 1510- ● ● ● ●
11 ACTUATOR; DOOR LK,FRT
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98292-021-0 01 1 1510- ● ● ● ●
11 ACTUATOR; DOOR LK,FRT
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98292-022-0 01 1 1510- ● ● ● ●
11 ACTUATOR; DOOR LK,FRT
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98292-022-0 01 1 1510- ● ● ● ●
11 ACTUATOR; DOOR LK,FRT
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98292-012-0 01 1 1510- ● ● ● ●
11 ACTUATOR; DOOR LK,FRT
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98292-012-0 01 1 1510- ● ● ● ●
11 ACTUATOR; DOOR LK,FRT
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> THA 		8-98292-012-0 01 1 1510- ●
11 ACTUATOR; DOOR LK,FRT
THA 		8-98292-012-0 01 1 1510- ●
11 ACTUATOR; DOOR LK,FRT
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98292-011-0 01 1 1510- ● ● ● ●
11 ACTUATOR; DOOR LK,FRT
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98292-013-0 01 1 1510- ● ● ● ●
11 ACTUATOR; DOOR LK,FRT
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> THA 		8-98292-013-0 01 1 1510- ●
11 ACTUATOR; DOOR LK,FRT
THA 		8-98292-013-0 01 1 1510- ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-997-0 04 1 1510- ● ● ● ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-997-0 04 1 1510- ● ● ● ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-997-0 02 1 1510- ● ● ● ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-997-0 02 1 1510- ● ● ● ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) THA 		8-97349-997-0 02 1 1510- ● ● ● ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) THA 		8-97349-997-0 02 1 1510- ● ● ● ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> (B) THA 		8-97349-997-0 02 1 1510- ●
12 SCREW; DOOR LK
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> AUTO DOOR LOCK<AU4> (B) THA 		8-97349-997-0 02 1 1510- ●
12 SCREW; DOOR LK
(B) THA 		8-97349-997-0 02 1 1510- ●
12 SCREW; DOOR LK
(B) THA 		8-97349-997-0 02 1 1510- ●
12 SCREW; DOOR LK
(A) M6X14.5 THA 		8-98004-342-0 06 1 1510- ● ● ● ● ● ●
14 STRIKER; FRT DOOR
THA 		8-98012-203-0 02 1 1510- ● ● ● ● ● ●
18 SCREW; DOOR STRIKER
M8X35 THA 		8-98049-360-0 04 1 1510- ● ● ● ● ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-726-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> BLACK THA 		8-97416-726-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-726-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR DELUXE<RBB> BLACK THA 		8-97416-726-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK THA 		8-97416-726-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-728-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> BLACK THA 		8-97416-728-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-728-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR DELUXE<RBB> BLACK THA 		8-97416-728-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK THA 		8-97416-728-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-727-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-727-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-729-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR DELUXE<RBB> INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-729-4 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97465-604-3 01 1 1510- ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM<RBD> BLACK THA 		8-97465-604-3 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK THA 		8-97465-604-3 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97465-606-3 01 1 1510- ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM<RBD> BLACK THA 		8-97465-606-3 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK THA 		8-97465-606-3 01 1 1510- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97465-605-3 01 1 1510- ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM<RBD> INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97465-607-3 01 1 1510- ● ●
36 LINK; DOOR LOCK,OUTSIDE
THA 		8-98193-693-0 01 1 1510- ● ● ● ● ● ●
36 LINK; DOOR LOCK,OUTSIDE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98193-692-0 01 1 1510- ● ● ● ●
36 LINK; DOOR LOCK,OUTSIDE
THA 		8-98193-692-0 01 1 1510- ● ●
42 SCREW; TAPPING,INSIDE LEVER
M5X14 TAPPING THA 		8-98184-363-0 02 1 1510- ● ● ● ● ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
THA 		8-94152-494-0 02 1 1510- ● ● ● ● ● ●
48 ANTIRATTLER; DOOR LINK
THA 		8-97251-932-0 02 1 1510- ● ● ● ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
THA 		8-97349-986-0 01 1 1510- ● ● ● ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-97349-985-0 01 1 1510- ● ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
THA 		8-97349-985-0 01 1 1510- ● ●
79 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> M6X8 FLANGE THA 		8-98048-996-0 02 1 1510- ● ● ● ● ● ●
99 COVER; HOLE DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR CHROME<E20> PLATED THA 		8-98176-465-1 01 1 1510- ● ● ● ●
99 COVER; HOLE DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> BLACK THA 		8-98176-463-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. HANDLE O/S DOOR CHROME<E20> BLACK THA 		8-98176-463-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR NAUTILUS BLUE MICA<521> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE THA 		8-97422-452-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR COSMIC BLACK MICA<523> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97422-454-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR SPLASH WHITE<527> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97422-463-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR TITANIUM SILVER MET<529> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97422-456-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR SILKY WHITE PEARL<531> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97422-464-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE THA 		8-97422-451-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR ASH BEIGE MET<541> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE THA 		8-97422-460-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR FJORD BLUE MET<545> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE THA 		8-97424-512-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR VENETIAN RED MICA<546> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> RED THA 		8-97424-555-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR QUARTZ BLUE MET<553> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE THA 		8-97465-635-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR QUARTZ BLUE MET<553> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BLUE THA 		8-97465-640-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR OBSIDIAN GRAY MICA<554> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA 		8-97465-638-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR CHROME<E20> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> PLATED THA 		8-98176-462-1 01 1 1510- ● ● ● ●
99 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR CHROME<E20> PLATED THA 		8-98176-462-1 01 1 1510- ● ● ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> DARK BLUE THA 		8-97422-439-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> DARK BLUE THA 		8-97422-439-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> BLACK THA 		8-97422-441-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BLACK THA 		8-97422-441-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> WHITE THA 		8-97422-450-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE THA 		8-97422-450-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> SILVER THA 		8-97422-443-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> SILVER THA 		8-97422-443-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> LIGHT BEIGE THA 		8-97422-447-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BEIGE THA 		8-97422-447-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> LIGHT BLUE THA 		8-97424-508-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BLUE THA 		8-97424-508-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR VENETIAN RED MICA<546> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> RED THA 		8-97424-549-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR VENETIAN RED MICA<546> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> RED THA 		8-97424-549-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR OBSIDIAN GRAY MICA<554> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> DARK GRAY THA 		8-97465-642-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
BODY COLOR OBSIDIAN GRAY MICA<554> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> DARK GRAY THA 		8-97465-642-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>, HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOORCHROME<E20> THA 		8-98176-460-1 01 1 1510- ● ● ● ●
99 COVER; HOLE DOOR LOCK
THA 		8-98176-460-1 01 1 1510- ● ●
99 COVER; HOLE DOOR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> THA 		8-98176-460-1 01 1 1510- ● ● ● ●
99 COVER; HOLE DOOR LOCK
THA 		8-98176-460-1 01 1 1510- ● ●
175 CABLE ASM; LOCK CONTROL
(A) THA 		8-98193-688-0 01 1 1510- ● ● ● ● ● ●
175 CABLE ASM; LOCK CONTROL
(B) THA 		8-98193-689-0 01 1 1510- ● ● ● ● ● ●
175 CABLE ASM; LOCK CONTROL
(A) THA 		8-98193-690-0 01 1 1510- ● ● ● ● ● ●
175 CABLE ASM; LOCK CONTROL
(B) THA 		8-98193-691-0 01 1 1510- ● ● ● ● ● ●
176 COVER; DOOR LOCK
THA 		8-97349-991-0 01 1 1510- ● ● ● ● ● ●
176 COVER; DOOR LOCK
THA 		8-97349-992-0 01 1 1510- ● ● ● ● ● ●
183 GROMMET
OD=26 THA 		8-94141-484-0 02 1 1510- ● ● ● ● ● ●
187 GRIP; FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> HANDLE O/S DOOR CHROME<E20> PLATED THA 		8-98211-441-0 01 1 1510- ● ● ● ●
187 GRIP; FRT DOOR
HANDLE O/S DOOR CHROME<E20> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> PLATED THA 		8-98176-458-0 01 1 1510- ● ● ● ●
187 GRIP; FRT DOOR
HANDLE O/S DOOR CHROME<E20> PLATED THA 		8-98176-458-0 01 1 1510- ● ● ● ●
187 GRIP; FRT DOOR
BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> DARK BLUE THA 		8-97422-425-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE THA 		8-97422-425-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BLACK THA 		8-97422-427-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97422-427-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE THA 		8-97422-436-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97422-436-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> SILVER THA 		8-97422-429-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97422-429-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR SILKY WHITE PEARL<531> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97422-437-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE THA 		8-97422-437-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BEIGE THA 		8-97422-433-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE THA 		8-97422-433-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BLUE THA 		8-97424-507-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE THA 		8-97424-507-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR VENETIAN RED MICA<546> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> RED THA 		8-97424-545-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR VENETIAN RED MICA<546> HANDLE O/S DOOR BODY COLOR<D75> RED THA 		8-97424-545-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR QUARTZ BLUE MET<553> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE THA 		8-97465-634-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR QUARTZ BLUE MET<553> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BLUE THA 		8-97465-634-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR OBSIDIAN GRAY MICA<554> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA 		8-97465-637-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
BODY COLOR OBSIDIAN GRAY MICA<554> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> DARK GRAY THA 		8-97465-637-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> THA 		8-98176-456-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> THA 		8-98176-456-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
THA 		8-98176-456-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
THA 		8-98176-456-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, HANDLE O/S DOOR CHROME<E20> THA 		8-98176-456-0 01 1 1510- ● ●
187 GRIP; FRT DOOR
EXC. HANDLE O/S DOOR CHROME<E20> THA 		8-98176-456-0 01 1 1510- ● ●
189 BRACKET; GRIP,DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> HANDLE O/S DOOR CHROME<E20> THA 		8-98176-469-4 01 1 1510- ● ● ● ●
189 BRACKET; GRIP,DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98176-469-4 01 1 1510- ● ● ● ●
189 BRACKET; GRIP,DOOR
THA 		8-98176-469-4 01 1 1510- ● ●
189 BRACKET; GRIP,DOOR
THA 		8-98176-471-4 01 1 1510- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
