◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#166111) — 60 parça

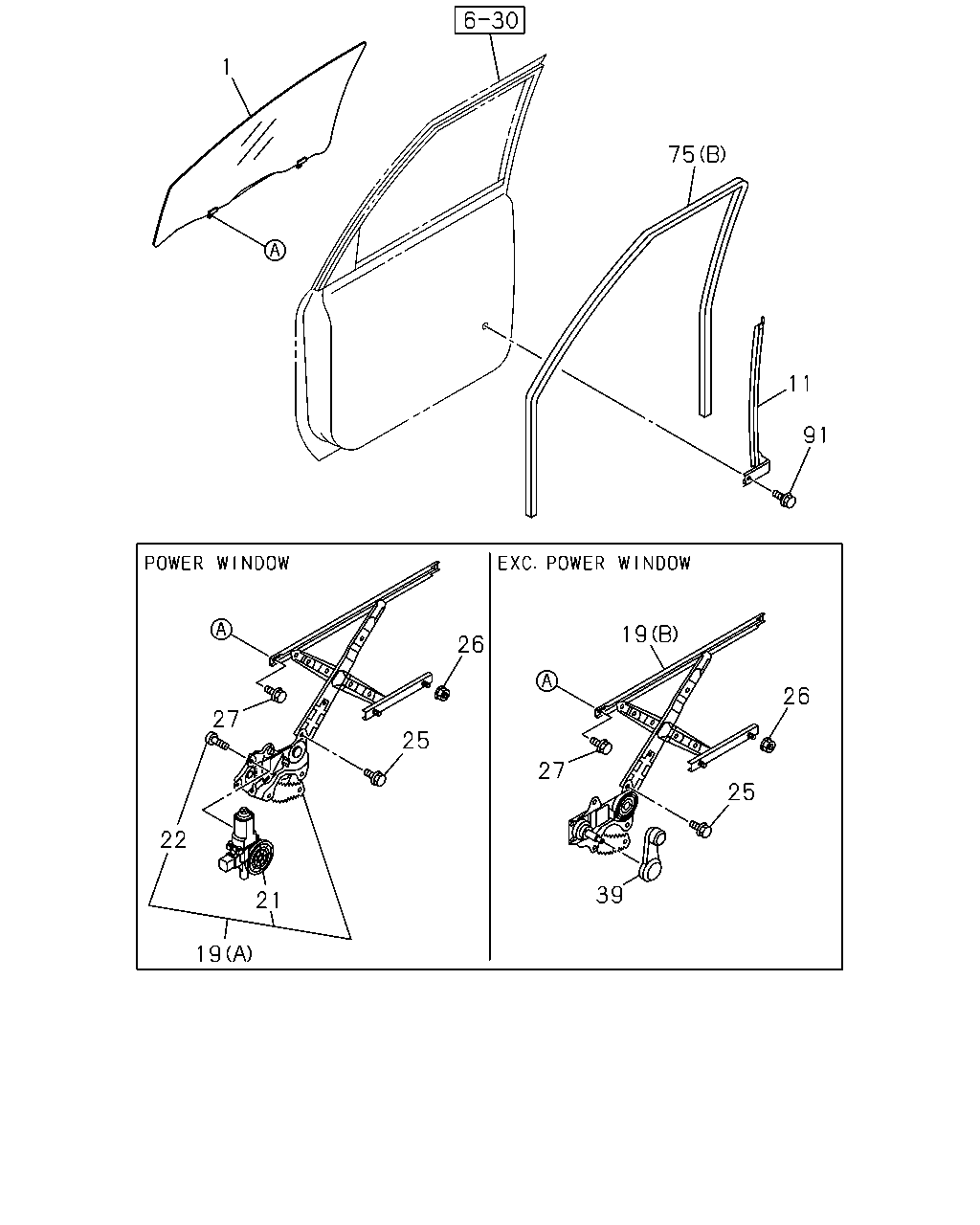

çizim 492802
1 75 11 91 26 19 27 25 39 21 19 22 27 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GLASS; FRT DOOR
THA 		8-98073-843-2 01 1 1510- ● ● ● ● ● ●
1 GLASS; FRT DOOR
THA 		8-98073-844-2 01 1 1510- ● ● ● ● ● ●
11 RAIL; RR GUIDE,FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98100-794-6 01 1 1510- ● ● ● ●
11 RAIL; RR GUIDE,FRT DOOR
THA 		8-98100-793-5 01 1 1510- ● ● ● ● ● ●
11 RAIL; RR GUIDE,FRT DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98100-792-5 01 1 1510- ● ● ● ●
11 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98100-792-5 01 1 1510- ● ● ● ●
11 RAIL; RR GUIDE,FRT DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>, AUTO DOOR LOCK<AU4> THA 		8-98100-792-5 01 1 1510- ● ● ● ●
11 RAIL; RR GUIDE,FRT DOOR
THA 		8-98100-792-5 01 1 1510- ● ●
19 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (A) THA 		8-98093-555-1 01 1 1510- ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) THA 		8-98093-554-1 01 1 1510- ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) THA 		8-98093-554-1 01 1 1510- ●
19 REGULATOR; WINDOW,FRT DOOR
(A) THA 		8-98093-554-1 01 1 1510- ●
19 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) THA 		8-98093-553-1 01 1 1510- ● ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
(A) THA 		8-98093-553-1 01 1 1510- ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA 		8-98093-551-1 01 1 1510- ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA 		8-98093-551-1 01 1 1510- ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA 		8-98093-552-1 01 1 1510- ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA 		8-98093-552-1 01 1 1510- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> THA 		8-98160-725-0 01 1 1510- ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98160-724-0 01 1 1510- ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98160-724-0 01 1 1510- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-98160-724-0 01 1 1510- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98160-723-0 01 1 1510- ● ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-98160-723-0 01 1 1510- ●
22 SCREW; POWER WINDOW MOTOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98195-236-0 03 1 1510- ● ● ● ●
22 SCREW; POWER WINDOW MOTOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98195-236-0 03 1 1510- ● ● ● ●
22 SCREW; POWER WINDOW MOTOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98195-236-0 03 1 1510- ●
22 SCREW; POWER WINDOW MOTOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98195-236-0 03 1 1510- ●
22 SCREW; POWER WINDOW MOTOR
THA 		8-98195-236-0 03 1 1510- ●
22 SCREW; POWER WINDOW MOTOR
THA 		8-98195-236-0 03 1 1510- ●
25 BOLT; WINDOW REG
M6X10 FLANGE THA 		8-98188-381-0 06 1 1510- ● ● ● ● ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE THA 		8-98049-362-0 04 1 1510- ● ● ● ● ● ●
27 BOLT; GLASS FIX
M6X10 FLANGE THA 		8-98188-381-0 04 1 1510- ● ● ● ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA 		8-97416-724-0 02 1 1510- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA 		8-97416-724-0 02 1 1510- ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA 		8-97416-724-0 02 1 1510- ● ●
75 WEATHERSTRIP; FRT DOOR
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> (C) THA 		8-98120-713-0 01 1 1510- ● ●
75 WEATHERSTRIP; FRT DOOR
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> (C) THA 		8-98120-714-0 01 1 1510- ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-199-9 01 1 1510- ● ● ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-200-9 01 1 1510- ● ● ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-672-0 01 1 1510- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-673-0 01 1 1510- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-670-1 01 1 1510- ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-671-1 01 1 1510- ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98165-107-0 01 1 1510- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98165-108-0 01 1 1510- ● ●
91 BOLT; GUIDE RAIL TO DOOR
M6X8 FLANGE THA 		8-98048-996-0 02 1 1510- ● ● ● ● ● ●

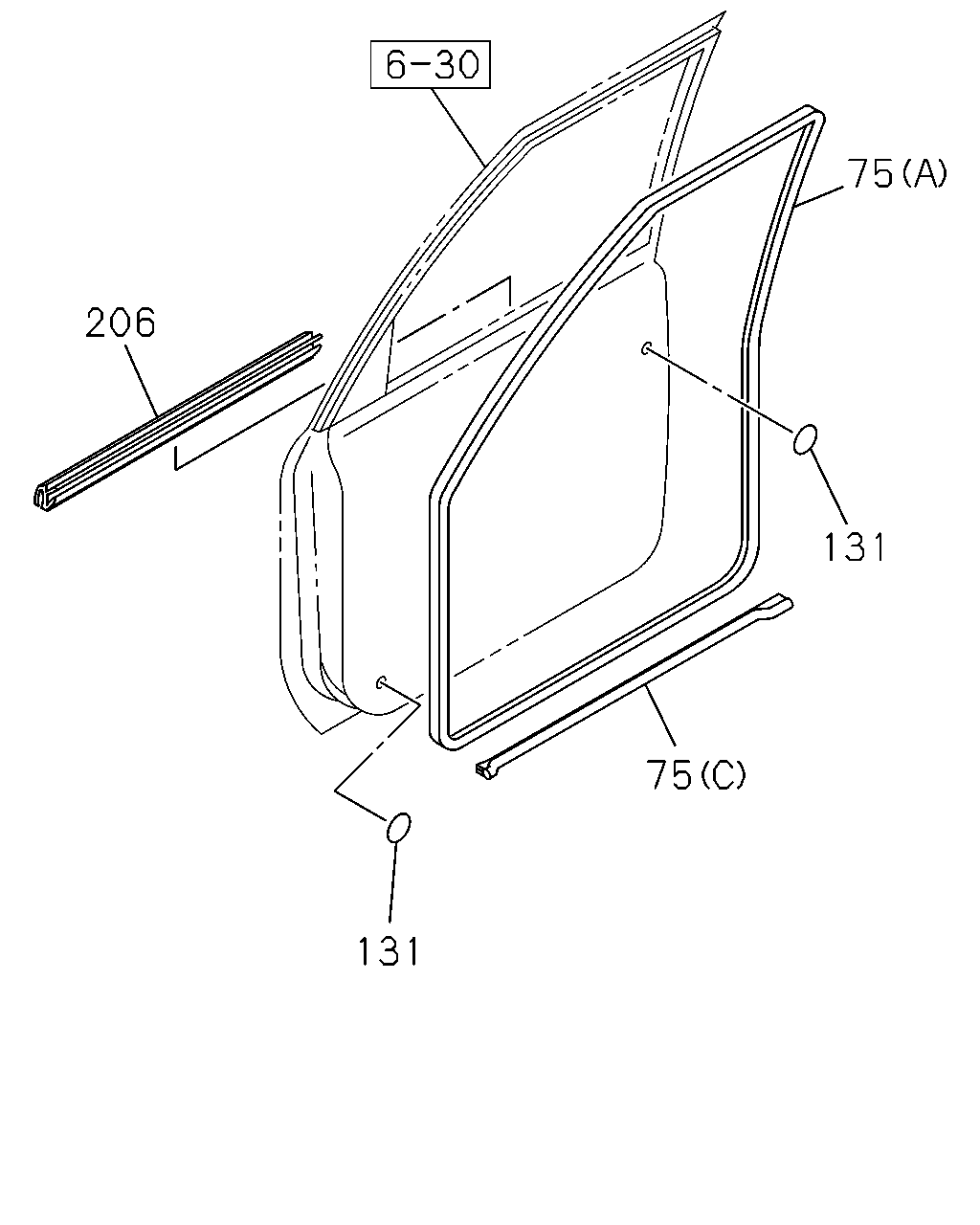

çizim 493405
206 131 75 75 131
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
75 WEATHERSTRIP; FRT DOOR
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> (C) THA 		8-98120-713-0 01 1 1510- ● ●
75 WEATHERSTRIP; FRT DOOR
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> (C) THA 		8-98120-714-0 01 1 1510- ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-199-9 01 1 1510- ● ● ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-200-9 01 1 1510- ● ● ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-672-0 01 1 1510- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-673-0 01 1 1510- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-670-1 01 1 1510- ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-671-1 01 1 1510- ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98165-107-0 01 1 1510- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98165-108-0 01 1 1510- ● ●
131 SEAL; FRT DOOR
OD=25 BLACK THA 		1-76798-019-0 04 1 1510- ● ● ● ● ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98052-197-2 01 1 1510- ● ● ● ● ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98052-198-2 01 1 1510- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
