6-20 — SIDE PANEL AND STEP (#166109) — 273 parça

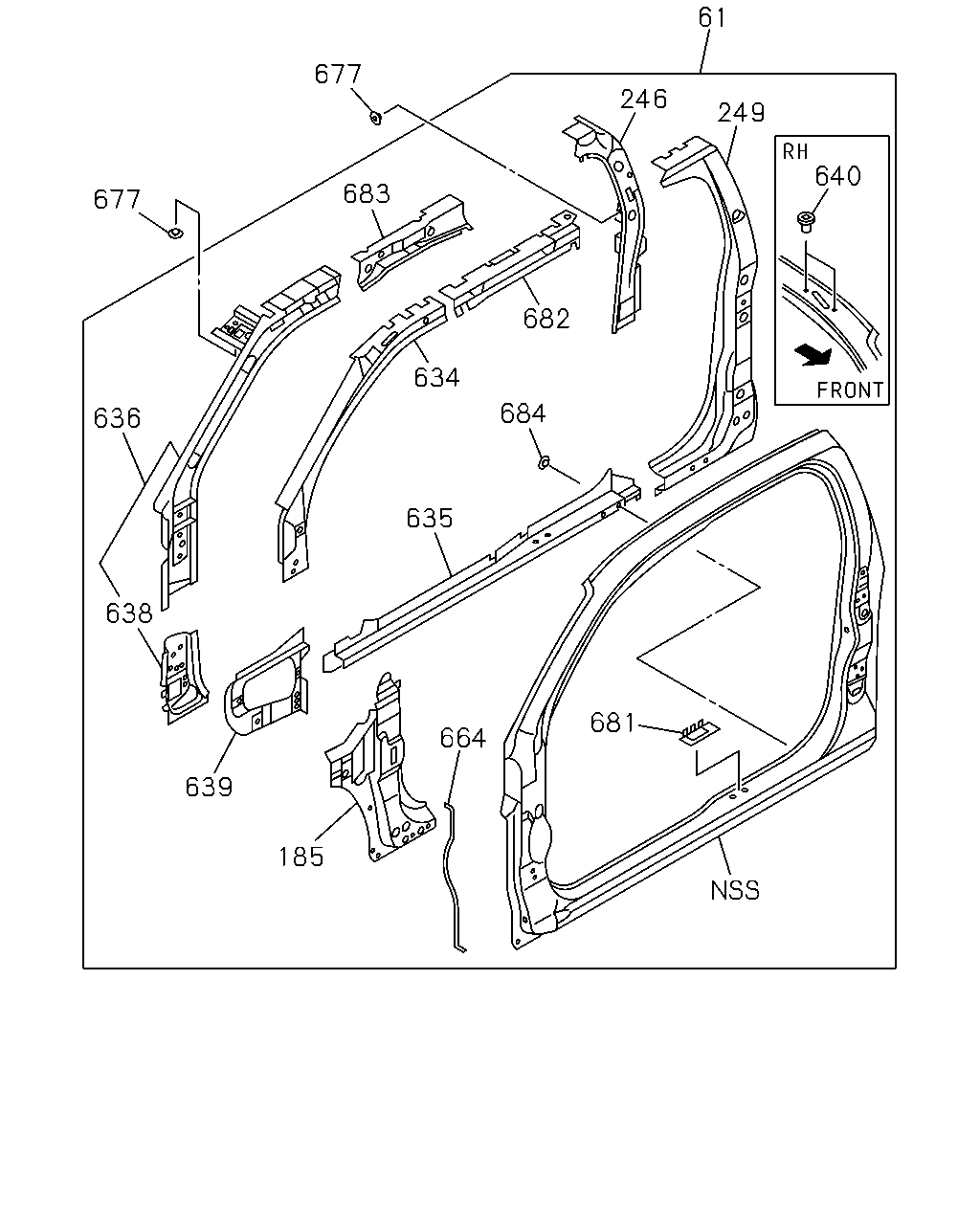

çizim 492925
61 246 677 683 677 636 638 639 635 684 634 682 249 640 664 681 185
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
61 PANEL; SIDE OUTER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98271-047-1 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98271-047-1 01 1 1510- ●
61 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98271-046-1 01 1 1510- ●
61 PANEL; SIDE OUTER
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98271-046-1 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> ROOF RADIO ANTENNA<U71> THA 		8-98271-046-1 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98271-046-1 01 1 1510- ●
61 PANEL; SIDE OUTER
THA 		8-98271-043-1 01 1 1510- ● ●
61 PANEL; SIDE OUTER
THA 		8-98103-242-6 01 1 1510- ● ●
61 PANEL; SIDE OUTER
THA 		8-98103-245-6 01 1 1510- ● ●
61 PANEL; SIDE OUTER
INTERIOR DELUXE<RBB> THA 		8-98156-759-6 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR DELUXE<RBB> THA 		8-98156-770-6 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM<RBD> THA 		8-98156-763-6 01 1 1510- ●
61 PANEL; SIDE OUTER
THA 		8-98156-763-6 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM<RBD> THA 		8-98156-771-6 01 1 1510- ●
61 PANEL; SIDE OUTER
THA 		8-98156-771-6 01 1 1510- ●
185 REINFORCEMENT; SIDE INNER LWR
THA 		8-98104-094-2 01 1 1510- ● ● ● ● ● ●
185 REINFORCEMENT; SIDE INNER LWR
THA 		8-98104-095-2 01 1 1510- ● ● ● ● ● ●
246 PANEL; RR PILLAR,INNER
THA 		8-98104-452-5 01 1 1510- ● ●
246 PANEL; RR PILLAR,INNER
THA 		8-98104-450-5 01 1 1510- ● ●
249 REINFORCEMENT; RR PILLAR
THA 		8-98104-221-5 01 1 1510- ● ●
249 REINFORCEMENT; RR PILLAR
THA 		8-98104-218-5 01 1 1510- ● ●
634 REINFORCEMENT; BODY SIDE INNER
THA 		8-98104-071-2 01 1 1510- ● ● ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
THA 		8-98104-072-2 01 1 1510- ● ● ● ● ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-131-2 01 1 1510- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-090-2 01 1 1510- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-503-2 01 1 1510- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-504-2 01 1 1510- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-794-4 01 1 1510- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-793-4 01 1 1510- ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-98161-090-7 01 1 1510- ● ● ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-98161-087-7 01 1 1510- ● ● ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-98297-963-0 01 1 1510- ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-98297-962-0 01 1 1510- ● ●
638 PANEL; DASH SIDE INNER
THA 		8-98104-640-5 01 1 1510- ● ● ● ● ● ●
638 PANEL; DASH SIDE INNER
THA 		8-98104-641-5 01 1 1510- ● ● ● ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-98185-421-0 01 1 1510- ● ● ● ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-98104-055-0 01 1 1510- ● ● ● ● ● ●
640 POP NUT
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA 		8-97249-574-0 02 1 1510- ● ● ●
640 POP NUT
M5 POP NUT THA 		8-97249-574-0 02 1 1510- ● ●
664 SEAL; TAPE
THA 		8-98193-408-2 01 1 1510- ● ● ● ● ● ●
664 SEAL; TAPE
THA 		8-98193-408-2 01 1 1510- ● ● ● ● ● ●
677 RIVET; PANEL
THA 		8-98057-864-0 16 1 1510- ● ● ● ● ● ●
681 REINFORCEMENT; STRIKER
THA 		8-98104-041-0 01 1 1510- ● ●
681 REINFORCEMENT; STRIKER
THA 		8-98104-040-0 01 1 1510- ● ●
682 REINFORCEMENT; ROOF SIDE
THA 		8-98104-563-2 01 1 1510- ● ●
682 REINFORCEMENT; ROOF SIDE
THA 		8-98104-559-2 01 1 1510- ● ●
683 PANEL; HEADER
THA 		8-98104-314-4 01 1 1510- ● ●
683 PANEL; HEADER
THA 		8-98104-310-4 01 1 1510- ● ●
683 PANEL; HEADER
INTERIOR DELUXE<RBB> THA 		8-98161-124-3 01 1 1510- ●
683 PANEL; HEADER
INTERIOR DELUXE<RBB> THA 		8-98161-128-3 01 1 1510- ●
683 PANEL; HEADER
INTERIOR CUSTOM<RBD> THA 		8-98161-125-3 01 1 1510- ●
683 PANEL; HEADER
THA 		8-98161-125-3 01 1 1510- ●
683 PANEL; HEADER
INTERIOR CUSTOM<RBD> THA 		8-98161-129-3 01 1 1510- ●
683 PANEL; HEADER
THA 		8-98161-129-3 01 1 1510- ●
684 FASTENER
THA 		8-98057-864-0 11 1 1510- ● ●
684 FASTENER
THA 		8-98057-864-0 11 1 1510- ● ●
684 FASTENER
THA 		8-98057-864-0 07 1 1510- ● ●
684 FASTENER
THA 		8-98057-864-0 07 1 1510- ● ●
684 FASTENER
THA 		8-98057-864-0 10 1 1510- ● ●
684 FASTENER
THA 		8-98057-864-0 10 1 1510- ● ●

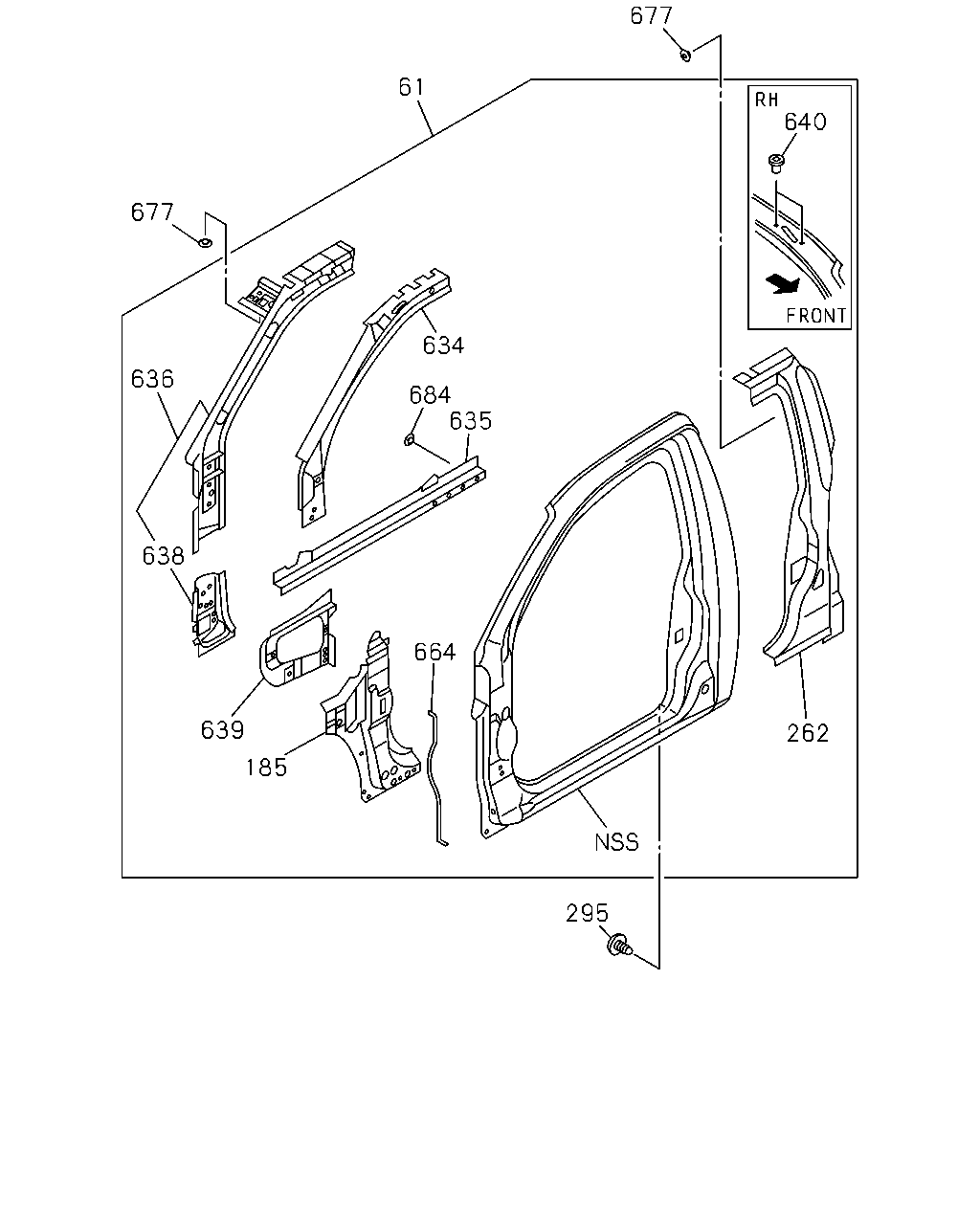

çizim 492966
677 640 634 684 677 636 635 638 639 185 664 295 262 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
61 PANEL; SIDE OUTER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98271-047-1 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98271-047-1 01 1 1510- ●
61 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98271-046-1 01 1 1510- ●
61 PANEL; SIDE OUTER
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98271-046-1 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> ROOF RADIO ANTENNA<U71> THA 		8-98271-046-1 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98271-046-1 01 1 1510- ●
61 PANEL; SIDE OUTER
THA 		8-98271-043-1 01 1 1510- ● ●
61 PANEL; SIDE OUTER
THA 		8-98103-242-6 01 1 1510- ● ●
61 PANEL; SIDE OUTER
THA 		8-98103-245-6 01 1 1510- ● ●
61 PANEL; SIDE OUTER
INTERIOR DELUXE<RBB> THA 		8-98156-759-6 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR DELUXE<RBB> THA 		8-98156-770-6 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM<RBD> THA 		8-98156-763-6 01 1 1510- ●
61 PANEL; SIDE OUTER
THA 		8-98156-763-6 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM<RBD> THA 		8-98156-771-6 01 1 1510- ●
61 PANEL; SIDE OUTER
THA 		8-98156-771-6 01 1 1510- ●
185 REINFORCEMENT; SIDE INNER LWR
THA 		8-98104-094-2 01 1 1510- ● ● ● ● ● ●
185 REINFORCEMENT; SIDE INNER LWR
THA 		8-98104-095-2 01 1 1510- ● ● ● ● ● ●
262 PANEL; PILLAR
THA 		8-98192-993-1 01 1 1510- ● ●
262 PANEL; PILLAR
THA 		8-98269-897-0 01 1 1510- ● ●
295 CLIP; BODY SIDE STEP
EXC. SIDE STEP FIXED ON BODY<6TC> OD=18 THA 		8-94269-290-0 06 1 1510- ● ● ●
295 CLIP; BODY SIDE STEP
OD=18 THA 		8-94269-290-0 04 1 1510- ● ●
634 REINFORCEMENT; BODY SIDE INNER
THA 		8-98104-071-2 01 1 1510- ● ● ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
THA 		8-98104-072-2 01 1 1510- ● ● ● ● ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-131-2 01 1 1510- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-090-2 01 1 1510- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-503-2 01 1 1510- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-504-2 01 1 1510- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-794-4 01 1 1510- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-793-4 01 1 1510- ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-98161-090-7 01 1 1510- ● ● ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-98161-087-7 01 1 1510- ● ● ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-98297-963-0 01 1 1510- ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-98297-962-0 01 1 1510- ● ●
638 PANEL; DASH SIDE INNER
THA 		8-98104-640-5 01 1 1510- ● ● ● ● ● ●
638 PANEL; DASH SIDE INNER
THA 		8-98104-641-5 01 1 1510- ● ● ● ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-98185-421-0 01 1 1510- ● ● ● ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-98104-055-0 01 1 1510- ● ● ● ● ● ●
640 POP NUT
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA 		8-97249-574-0 02 1 1510- ● ● ●
640 POP NUT
M5 POP NUT THA 		8-97249-574-0 02 1 1510- ● ●
664 SEAL; TAPE
THA 		8-98193-408-2 01 1 1510- ● ● ● ● ● ●
664 SEAL; TAPE
THA 		8-98193-408-2 01 1 1510- ● ● ● ● ● ●
677 RIVET; PANEL
THA 		8-98057-864-0 16 1 1510- ● ● ● ● ● ●
684 FASTENER
THA 		8-98057-864-0 11 1 1510- ● ●
684 FASTENER
THA 		8-98057-864-0 11 1 1510- ● ●
684 FASTENER
THA 		8-98057-864-0 07 1 1510- ● ●
684 FASTENER
THA 		8-98057-864-0 07 1 1510- ● ●
684 FASTENER
THA 		8-98057-864-0 10 1 1510- ● ●
684 FASTENER
THA 		8-98057-864-0 10 1 1510- ● ●

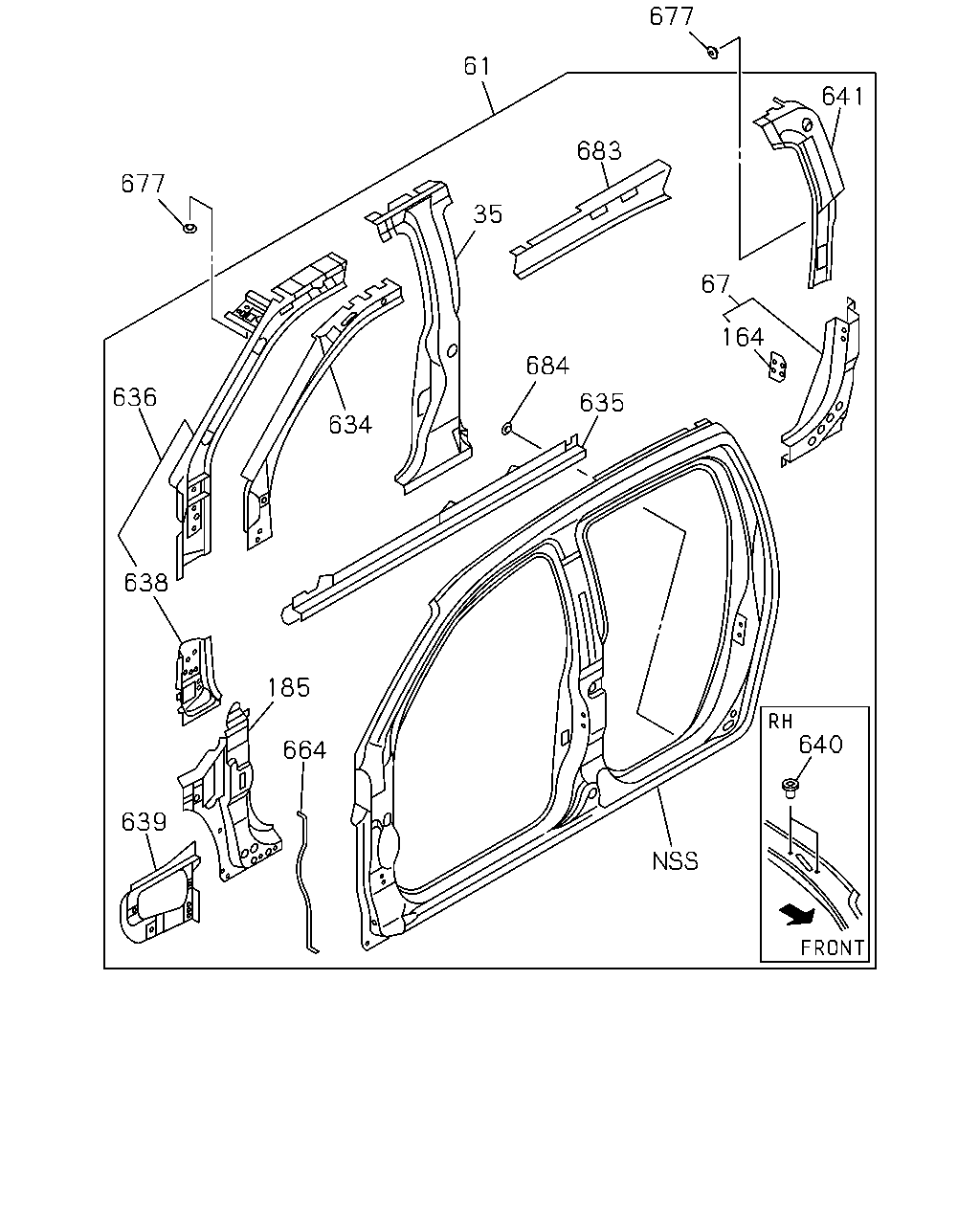

çizim 492980
640 164 67 641 677 61 683 35 684 634 635 677 636 638 185 664 639
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
35 PANEL; CENTER PILLAR,INNER
THA 		8-98104-767-8 01 1 1510- ● ●
35 PANEL; CENTER PILLAR,INNER
THA 		8-98104-766-7 01 1 1510- ● ●
61 PANEL; SIDE OUTER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98271-047-1 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98271-047-1 01 1 1510- ●
61 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98271-046-1 01 1 1510- ●
61 PANEL; SIDE OUTER
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98271-046-1 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> ROOF RADIO ANTENNA<U71> THA 		8-98271-046-1 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>, AM/FM,BLUE TOOTH,CD/DVD W/DISPLAY,SMART PHONE<8QK> EXC. ROOF RADIO ANTENNA<U71> THA 		8-98271-046-1 01 1 1510- ●
61 PANEL; SIDE OUTER
THA 		8-98271-043-1 01 1 1510- ● ●
61 PANEL; SIDE OUTER
THA 		8-98103-242-6 01 1 1510- ● ●
61 PANEL; SIDE OUTER
THA 		8-98103-245-6 01 1 1510- ● ●
61 PANEL; SIDE OUTER
INTERIOR DELUXE<RBB> THA 		8-98156-759-6 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR DELUXE<RBB> THA 		8-98156-770-6 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM<RBD> THA 		8-98156-763-6 01 1 1510- ●
61 PANEL; SIDE OUTER
THA 		8-98156-763-6 01 1 1510- ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM<RBD> THA 		8-98156-771-6 01 1 1510- ●
61 PANEL; SIDE OUTER
THA 		8-98156-771-6 01 1 1510- ●
67 PANEL; INNER,RR PILLAR LWR
THA 		8-98104-787-6 01 1 1510- ● ●
67 PANEL; INNER,RR PILLAR LWR
THA 		8-98104-786-6 01 1 1510- ● ●
164 PLATE; SIDE PNL OUTER
THA 		8-93297-532-1 01 1 1510- ● ●
164 PLATE; SIDE PNL OUTER
THA 		8-93297-532-1 01 1 1510- ● ●
185 REINFORCEMENT; SIDE INNER LWR
THA 		8-98104-094-2 01 1 1510- ● ● ● ● ● ●
185 REINFORCEMENT; SIDE INNER LWR
THA 		8-98104-095-2 01 1 1510- ● ● ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
THA 		8-98104-071-2 01 1 1510- ● ● ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
THA 		8-98104-072-2 01 1 1510- ● ● ● ● ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-131-2 01 1 1510- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-090-2 01 1 1510- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-503-2 01 1 1510- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-504-2 01 1 1510- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-794-4 01 1 1510- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-98104-793-4 01 1 1510- ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-98161-090-7 01 1 1510- ● ● ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-98161-087-7 01 1 1510- ● ● ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-98297-963-0 01 1 1510- ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-98297-962-0 01 1 1510- ● ●
638 PANEL; DASH SIDE INNER
THA 		8-98104-640-5 01 1 1510- ● ● ● ● ● ●
638 PANEL; DASH SIDE INNER
THA 		8-98104-641-5 01 1 1510- ● ● ● ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-98185-421-0 01 1 1510- ● ● ● ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-98104-055-0 01 1 1510- ● ● ● ● ● ●
640 POP NUT
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA 		8-97249-574-0 02 1 1510- ● ● ●
640 POP NUT
M5 POP NUT THA 		8-97249-574-0 02 1 1510- ● ●
641 PANEL; BACK BODY PILLER
THA 		8-98121-124-6 01 1 1510- ● ●
641 PANEL; BACK BODY PILLER
THA 		8-98121-123-6 01 1 1510- ● ●
664 SEAL; TAPE
THA 		8-98193-408-2 01 1 1510- ● ● ● ● ● ●
664 SEAL; TAPE
THA 		8-98193-408-2 01 1 1510- ● ● ● ● ● ●
677 RIVET; PANEL
THA 		8-98057-864-0 16 1 1510- ● ● ● ● ● ●
683 PANEL; HEADER
THA 		8-98104-314-4 01 1 1510- ● ●
683 PANEL; HEADER
THA 		8-98104-310-4 01 1 1510- ● ●
683 PANEL; HEADER
INTERIOR DELUXE<RBB> THA 		8-98161-124-3 01 1 1510- ●
683 PANEL; HEADER
INTERIOR DELUXE<RBB> THA 		8-98161-128-3 01 1 1510- ●
683 PANEL; HEADER
INTERIOR CUSTOM<RBD> THA 		8-98161-125-3 01 1 1510- ●
683 PANEL; HEADER
THA 		8-98161-125-3 01 1 1510- ●
683 PANEL; HEADER
INTERIOR CUSTOM<RBD> THA 		8-98161-129-3 01 1 1510- ●
683 PANEL; HEADER
THA 		8-98161-129-3 01 1 1510- ●
684 FASTENER
THA 		8-98057-864-0 11 1 1510- ● ●
684 FASTENER
THA 		8-98057-864-0 11 1 1510- ● ●
684 FASTENER
THA 		8-98057-864-0 07 1 1510- ● ●
684 FASTENER
THA 		8-98057-864-0 07 1 1510- ● ●
684 FASTENER
THA 		8-98057-864-0 10 1 1510- ● ●
684 FASTENER
THA 		8-98057-864-0 10 1 1510- ● ●

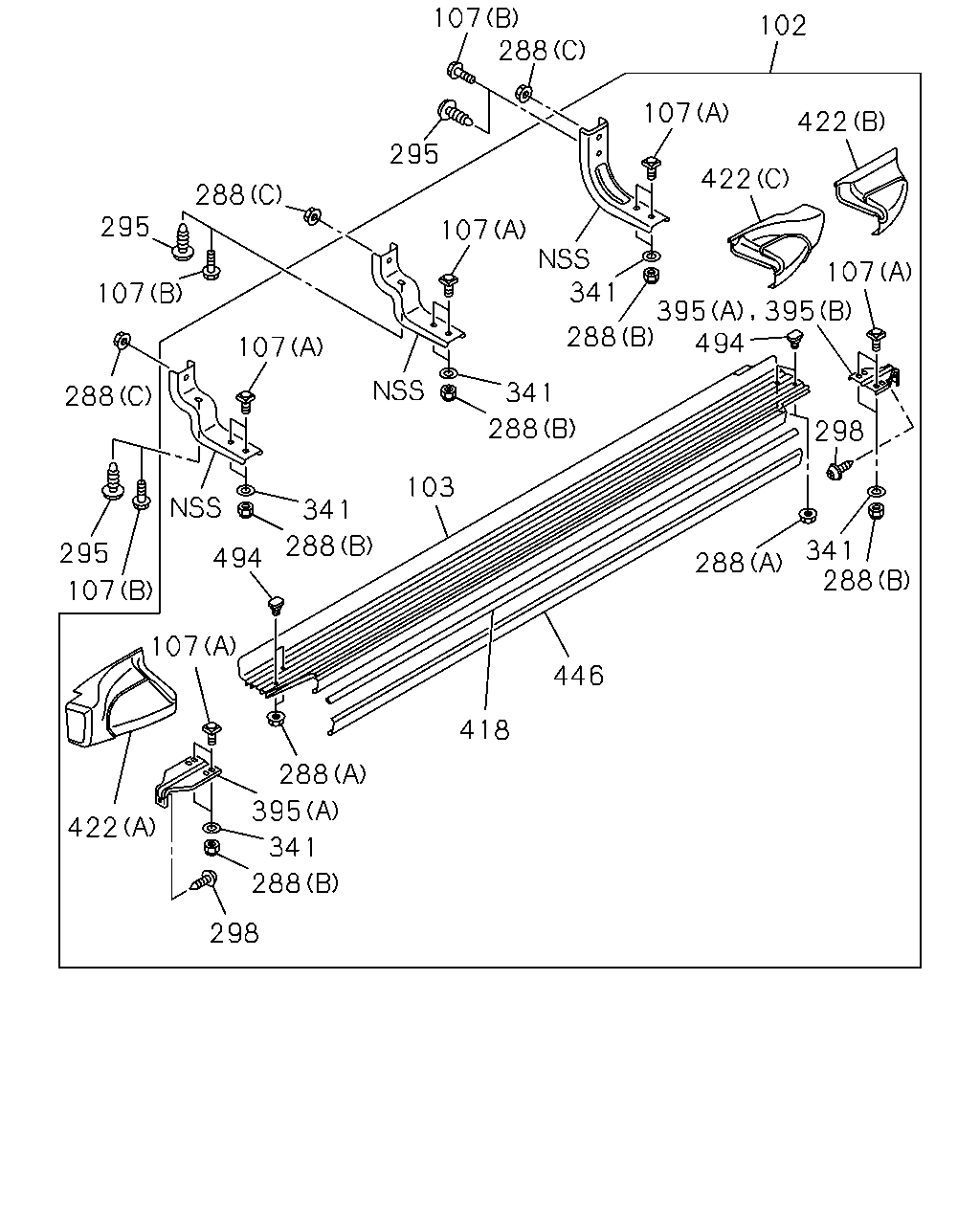

çizim 493004
288 288 298 341 494 395 288 341 107 295 107 107 102 288 422 422 107 395 341 107 107 295 288 341 494 295 107 107 288 103 288 288 288 395 341 288 298 422 418 446
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
102 STEP; BODY SIDE
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> GRAY THA 		8-97460-565-5 01 1 1510- ●
102 STEP; BODY SIDE
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> GRAY THA 		8-97460-566-5 01 1 1510- ●
102 STEP; BODY SIDE
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> GRAY THA 		8-97460-567-5 01 1 1510- ●
102 STEP; BODY SIDE
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> GRAY THA 		8-97460-568-5 01 1 1510- ●
102 STEP; BODY SIDE
SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> SILVER THA 		8-98101-301-4 01 1 1510- ●
102 STEP; BODY SIDE
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORSILKY WHITE PEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BODY COLOR QUARTZ BLUEMET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> SILVER THA 		8-98101-301-4 01 1 1510- ●
102 STEP; BODY SIDE
SIDE STEP FIXED ON BODY<6TC> SILVER THA 		8-98101-301-4 01 1 1510- ●
102 STEP; BODY SIDE
SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> SILVER THA 		8-98101-302-4 01 1 1510- ●
102 STEP; BODY SIDE
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORSILKY WHITE PEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BODY COLOR QUARTZ BLUEMET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> SILVER THA 		8-98101-302-4 01 1 1510- ●
102 STEP; BODY SIDE
SIDE STEP FIXED ON BODY<6TC> SILVER THA 		8-98101-302-4 01 1 1510- ●
102 STEP; BODY SIDE
SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> SILVER THA 		8-98101-321-4 01 1 1510- ●
102 STEP; BODY SIDE
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORSILKY WHITE PEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BODY COLOR QUARTZ BLUEMET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> SILVER THA 		8-98101-321-4 01 1 1510- ●
102 STEP; BODY SIDE
SILVER THA 		8-98101-321-4 01 1 1510- ●
102 STEP; BODY SIDE
SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> SILVER THA 		8-98101-322-4 01 1 1510- ●
102 STEP; BODY SIDE
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORSILKY WHITE PEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BODY COLOR QUARTZ BLUEMET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> SILVER THA 		8-98101-322-4 01 1 1510- ●
102 STEP; BODY SIDE
SILVER THA 		8-98101-322-4 01 1 1510- ●
103 PLATE; STEP
SIDE STEP FIXED ON BODY<6TC> THA 		8-98292-970-0 01 1 1510- ● ●
103 PLATE; STEP
SIDE STEP FIXED ON BODY<6TC> THA 		8-98292-971-0 01 1 1510- ● ●
103 PLATE; STEP
SIDE STEP FIXED ON BODY<6TC> THA 		8-98292-968-0 01 1 1510- ● ●
103 PLATE; STEP
SIDE STEP FIXED ON BODY<6TC> THA 		8-98292-969-0 01 1 1510- ● ●
107 BOLT; SIDE STEP
SIDE STEP FIXED ON BODY<6TC> (A) THA 		8-98251-460-0 20 1 1510- ● ● ●
107 BOLT; SIDE STEP
(A) THA 		8-98251-460-0 20 1 1510- ●
107 BOLT; SIDE STEP
SIDE STEP FIXED ON BODY<6TC> (B) M8X25 FLANGE THA 		8-98048-998-0 06 1 1510- ● ● ●
107 BOLT; SIDE STEP
(B) M8X25 FLANGE THA 		8-98048-998-0 06 1 1510- ●
288 NUT; STEP
SIDE STEP FIXED ON BODY<6TC> (A) M6 FLANGE THA 		0-91180-106-0 08 1 1510- ● ● ●
288 NUT; STEP
(A) M6 FLANGE THA 		0-91180-106-0 08 1 1510- ●
288 NUT; STEP
SIDE STEP FIXED ON BODY<6TC> (B) M8 FLANGE THA 		0-91180-108-0 20 1 1510- ● ● ●
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 20 1 1510- ●
288 NUT; STEP
SIDE STEP FIXED ON BODY<6TC> (C) M8 FLANGE THA 		0-91180-208-0 06 1 1510- ● ● ●
288 NUT; STEP
(C) M8 FLANGE THA 		0-91180-208-0 06 1 1510- ●
295 CLIP; BODY SIDE STEP
EXC. SIDE STEP FIXED ON BODY<6TC> OD=18 THA 		8-94269-290-0 06 1 1510- ● ● ●
295 CLIP; BODY SIDE STEP
OD=18 THA 		8-94269-290-0 04 1 1510- ● ●
298 SCREW; SIDE STEP
SIDE STEP FIXED ON BODY<6TC> M5X16 IMA 		8-98073-081-0 04 1 1510- ● ● ●
298 SCREW; SIDE STEP
M5X16 IMA 		8-98073-081-0 04 1 1510- ●
341 WASHER; PL,STEP
SIDE STEP FIXED ON BODY<6TC> ID=8.4 OD=18 IMA 		0-91614-608-0 20 1 1510- ● ● ●
341 WASHER; PL,STEP
ID=8.4 OD=18 IMA 		0-91614-608-0 20 1 1510- ●
395 BRACKET; SIDE STEP
SIDE STEP FIXED ON BODY<6TC> (A) FRONT THA 		8-98292-978-0 02 1 1510- ● ●
395 BRACKET; SIDE STEP
SIDE STEP FIXED ON BODY<6TC> (B) REAR THA 		8-98292-980-0 02 1 1510- ● ●
395 BRACKET; SIDE STEP
SIDE STEP FIXED ON BODY<6TC> (A) FRONT,REAR THA 		8-98292-978-0 04 1 1510- ● ●
418 RUBBER; STEP
SIDE STEP FIXED ON BODY<6TC> THA 		8-98293-009-0 02 1 1510- ● ●
418 RUBBER; STEP
SIDE STEP FIXED ON BODY<6TC> THA 		8-98293-008-0 02 1 1510- ● ●
422 COVER; SIDE STEP
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> (B) REAR GRAY THA 		8-97460-650-1 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> (B) REAR GRAY THA 		8-97460-653-1 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> (A) FRONT GRAY THA 		8-97460-649-1 01 1 1510- ● ●
422 COVER; SIDE STEP
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> (A) FRONT GRAY THA 		8-97460-652-1 01 1 1510- ● ●
422 COVER; SIDE STEP
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> (C) REAR GRAY THA 		8-97460-654-1 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> (C) REAR GRAY THA 		8-97460-656-1 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLU E MET<545>,BODY COLOR VENETIAN RED MICA<546>, BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> (A) FRONT SILVER THA 		8-97466-036-0 01 1 1510- ● ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORSILKY WHITE PEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BODY COLOR QUARTZ BLUEMET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> (A) FRONT SILVER THA 		8-97466-036-0 01 1 1510- ● ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLU E MET<545>,BODY COLOR VENETIAN RED MICA<546>, BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SIDE STEP FIXED ON BODY<6TC> (A) FRONT SILVER THA 		8-97466-036-0 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH B EIGE MET<541>,BODY COLOR FJORD BLUE MET<545>, BODY COLOR VENETIAN RED MICA<546>,BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> (A) FRONT SILVER THA 		8-97466-036-0 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLU E MET<545>,BODY COLOR VENETIAN RED MICA<546>, BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> (A) FRONT SILVER THA 		8-97466-042-0 01 1 1510- ● ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORSILKY WHITE PEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BODY COLOR QUARTZ BLUEMET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> (A) FRONT SILVER THA 		8-97466-042-0 01 1 1510- ● ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLU E MET<545>,BODY COLOR VENETIAN RED MICA<546>, BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SIDE STEP FIXED ON BODY<6TC> (A) FRONT SILVER THA 		8-97466-042-0 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH B EIGE MET<541>,BODY COLOR FJORD BLUE MET<545>, BODY COLOR VENETIAN RED MICA<546>,BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> (A) FRONT SILVER THA 		8-97466-042-0 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLU E MET<545>,BODY COLOR VENETIAN RED MICA<546>, BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> (B) REAR SILVER THA 		8-97466-038-0 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORSILKY WHITE PEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BODY COLOR QUARTZ BLUEMET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> (B) REAR SILVER THA 		8-97466-038-0 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLU E MET<545>,BODY COLOR VENETIAN RED MICA<546>, BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SIDE STEP FIXED ON BODY<6TC> (B) REAR SILVER THA 		8-97466-038-0 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLU E MET<545>,BODY COLOR VENETIAN RED MICA<546>, BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> (B) REAR SILVER THA 		8-97466-044-0 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORSILKY WHITE PEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BODY COLOR QUARTZ BLUEMET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> (B) REAR SILVER THA 		8-97466-044-0 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLU E MET<545>,BODY COLOR VENETIAN RED MICA<546>, BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SIDE STEP FIXED ON BODY<6TC> (B) REAR SILVER THA 		8-97466-044-0 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLU E MET<545>,BODY COLOR VENETIAN RED MICA<546>, BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> (C) REAR SILVER THA 		8-97466-046-0 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORSILKY WHITE PEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BODY COLOR QUARTZ BLUEMET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> (C) REAR SILVER THA 		8-97466-046-0 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH B EIGE MET<541>,BODY COLOR FJORD BLUE MET<545>, BODY COLOR VENETIAN RED MICA<546>,BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> (C) REAR SILVER THA 		8-97466-046-0 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLU E MET<545>,BODY COLOR VENETIAN RED MICA<546>, BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> (C) REAR SILVER THA 		8-97466-050-0 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORSILKY WHITE PEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BODY COLOR QUARTZ BLUEMET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> (C) REAR SILVER THA 		8-97466-050-0 01 1 1510- ●
422 COVER; SIDE STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH B EIGE MET<541>,BODY COLOR FJORD BLUE MET<545>, BODY COLOR VENETIAN RED MICA<546>,BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> (C) REAR SILVER THA 		8-97466-050-0 01 1 1510- ●
446 FINISHER; STEP
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> GRAY THA 		8-97460-651-0 02 1 1510- ●
446 FINISHER; STEP
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> GRAY THA 		8-97460-655-0 02 1 1510- ●
446 FINISHER; STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLU E MET<545>,BODY COLOR VENETIAN RED MICA<546>, BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> SILVER THA 		8-97466-040-0 02 1 1510- ●
446 FINISHER; STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORSILKY WHITE PEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BODY COLOR QUARTZ BLUEMET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> SILVER THA 		8-97466-040-0 02 1 1510- ●
446 FINISHER; STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLU E MET<545>,BODY COLOR VENETIAN RED MICA<546>, BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SIDE STEP FIXED ON BODY<6TC> SILVER THA 		8-97466-040-0 02 1 1510- ●
446 FINISHER; STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLU E MET<545>,BODY COLOR VENETIAN RED MICA<546>, BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> SILVER THA 		8-97466-048-0 02 1 1510- ●
446 FINISHER; STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORSILKY WHITE PEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BODY COLOR QUARTZ BLUEMET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> SILVER THA 		8-97466-048-0 02 1 1510- ●
446 FINISHER; STEP
BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH B EIGE MET<541>,BODY COLOR FJORD BLUE MET<545>, BODY COLOR VENETIAN RED MICA<546>,BODY COLOR QUARTZ BLUE MET<553>,BODY COLOR OBSIDIAN GRAY MICA<554> SILVER THA 		8-97466-048-0 02 1 1510- ●
494 STUD; BRKT
SIDE STEP FIXED ON BODY<6TC> THA 		8-98056-035-0 08 1 1510- ● ● ●
494 STUD; BRKT
THA 		8-98056-035-0 08 1 1510- ●

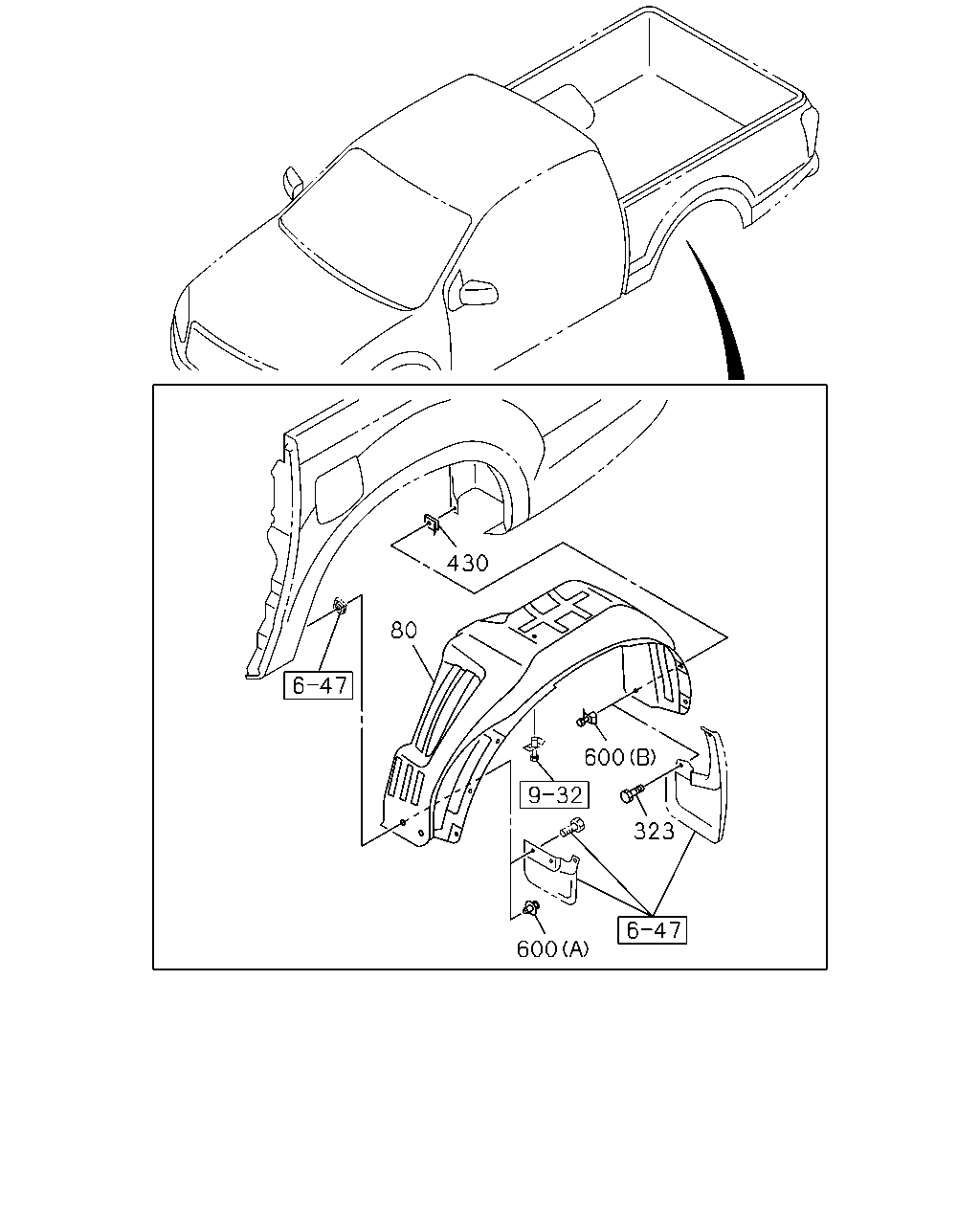

çizim 493050
430 80 600 323 600
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
80 PANEL; WHEEL HOUSE,INNER
HIGH RIDE SUSPENSION<7YC> THA 		8-98148-032-4 01 1 1510- ● ●
80 PANEL; WHEEL HOUSE,INNER
THA 		8-98148-032-4 01 1 1510- ● ●
80 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98148-032-4 01 1 1510- ●
80 PANEL; WHEEL HOUSE,INNER
HIGH RIDE SUSPENSION<7YC> THA 		8-98148-034-4 01 1 1510- ● ●
80 PANEL; WHEEL HOUSE,INNER
THA 		8-98148-034-4 01 1 1510- ● ●
80 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98148-034-4 01 1 1510- ●
80 PANEL; WHEEL HOUSE,INNER
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98148-027-2 01 1 1510- ● ●
80 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98148-027-2 01 1 1510- ●
80 PANEL; WHEEL HOUSE,INNER
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98148-028-2 01 1 1510- ● ●
80 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98148-028-2 01 1 1510- ●
323 SCREW; SET
EXC. SALES PACKAGE SPORTY<XK0> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1510- ● ●
323 SCREW; SET
REAR BODY DBL WALL CTR PULL<E63> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1510- ● ●
323 SCREW; SET
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1510- ● ●
323 SCREW; SET
HIGH RIDE SUSPENSION<7YC> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 02 1 1510- ● ●
323 SCREW; SET
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 02 1 1510- ● ●
323 SCREW; SET
REAR BODY DBL WALL CTR PULL<E63> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 02 1 1510- ●
430 NUT; PANEL
EXC. SALES PACKAGE SPORTY<XK0> THA 		8-97125-519-0 06 1 1510- ● ●
430 NUT; PANEL
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97125-519-0 06 1 1510- ● ●
430 NUT; PANEL
THA 		8-97125-519-0 06 1 1510- ● ●
430 NUT; PANEL
HIGH RIDE SUSPENSION<7YC> THA 		8-97125-519-0 02 1 1510- ● ●
430 NUT; PANEL
THA 		8-97125-519-0 02 1 1510- ● ●
430 NUT; PANEL
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97125-519-0 02 1 1510- ●
600 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL<E63> EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J>,SALES PACKAGE SPORTY<XK0> (B) THA 		8-94221-150-0 06 1 1510- ● ● ● ● ● ●
600 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL<E63> SALES PACKAGE SPORTY<XK0> (B) THA 		8-94221-150-0 06 1 1510- ● ●
600 RIVET; EXTENSION
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98186-355-0 04 1 1510- ● ●
600 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98186-355-0 04 1 1510- ● ●
600 RIVET; EXTENSION
(A) THA 		8-98186-355-0 04 1 1510- ● ●
600 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-94221-150-0 02 1 1510- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
