◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-10 - ENGINE HOOD AND LOCK ▶
6-10 — ENGINE HOOD AND LOCK (#166107) — 25 parça

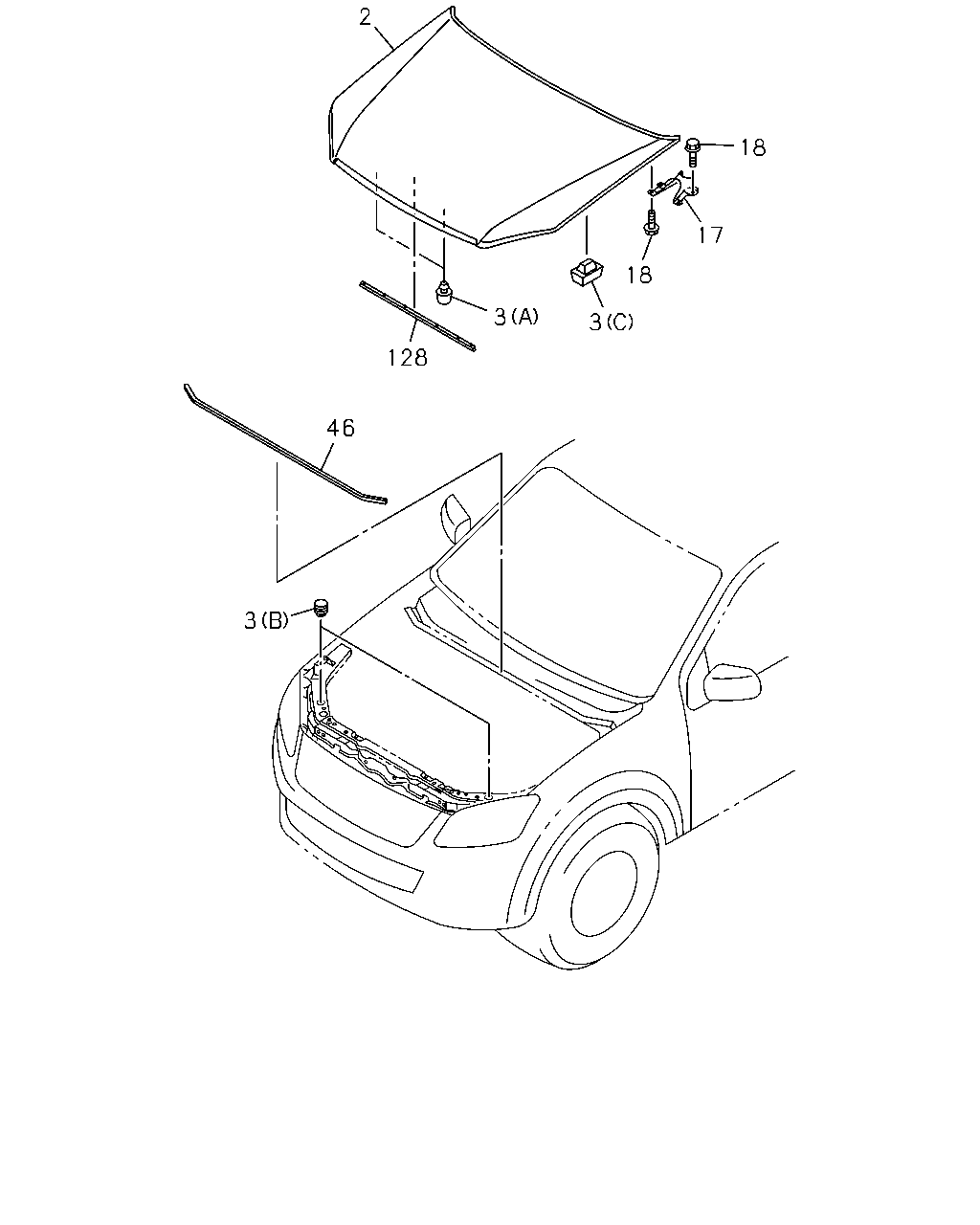

çizim 492850
18 17 18 3 3 128 2 46 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 PANEL; ENG HOOD
THA 		8-98272-738-2 01 1 1510- ● ● ● ● ● ●
3 BUFFER; ENG HOOD,FRT
(C) THA 		8-98312-732-0 02 1 1510- ● ● ● ● ● ●
3 BUFFER; ENG HOOD,FRT
(A) THA 		8-97948-266-0 02 1 1510- ● ● ● ● ● ●
3 BUFFER; ENG HOOD,FRT
(B) THA 		8-98195-454-0 02 1 1510- ● ● ● ● ● ●
17 HINGE; ENG HOOD
THA 		8-98104-099-2 01 1 1510- ● ● ● ● ● ●
17 HINGE; ENG HOOD
THA 		8-98104-100-2 01 1 1510- ● ● ● ● ● ●
18 BOLT; HINGE
M8X16 THA 		8-98056-122-0 04 1 1510- ● ● ● ● ● ●
18 BOLT; HINGE
M8X16 THA 		8-98056-122-0 04 1 1510- ● ● ● ● ● ●
46 SEAL; ENG HOOD
THA 		8-98065-805-1 01 1 1510- ● ● ● ● ● ●
128 SEAL; PLATFORM
THA 		8-98102-230-0 01 1 1510- ● ● ● ● ● ●

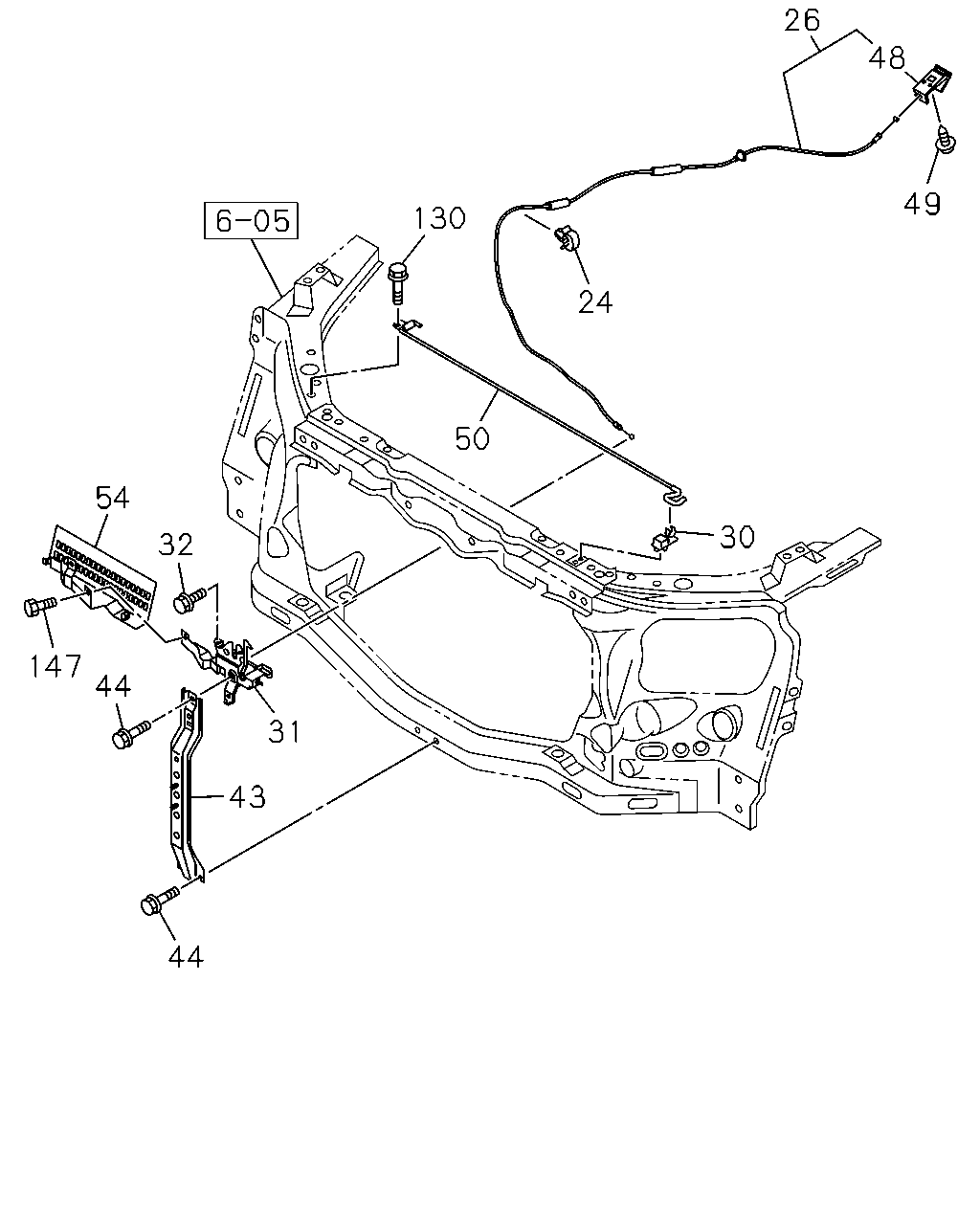

çizim 492880
44 43 31 32 54 44 147 50 130 24 49 48 26 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 CLIP; CONT CABLE
THA 		8-97182-405-0 03 1 1510- ● ● ● ● ● ●
26 CABLE; ENG HOOD CONT
THA 		8-98071-759-1 01 1 1510- ● ● ● ● ● ●
30 CLIP; SUPPORT ROD,HOOD
THA 		8-97301-356-0 01 1 1510- ● ● ● ● ● ●
31 LOCK; ENG HOOD
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98243-803-1 01 1 1510- ● ● ● ●
31 LOCK; ENG HOOD
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98243-805-1 01 1 1510- ● ● ● ●
31 LOCK; ENG HOOD
THA 		8-98243-805-1 01 1 1510- ● ●
32 BOLT; HOOD LK
M6X20 W/PL WASHER THA 		8-97370-668-0 02 1 1510- ● ● ● ● ● ●
43 STAY; ENG HOOD,FRT END
THA 		8-98165-341-0 01 1 1510- ● ● ● ● ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER THA 		8-97370-668-0 04 1 1510- ● ● ● ● ● ●
48 LEVER; ENG HOOD
THA 		8-98204-979-0 01 1 1510- ● ● ● ● ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING THA 		8-98167-449-0 02 1 1510- ● ● ● ● ● ●
50 ROD; SUPPORT,ENG HOOD
THA 		8-98101-948-1 01 1 1510- ● ● ● ● ● ●
54 PROTECTOR; ENG HOOD CABLE
THA 		8-98160-811-2 01 1 1510- ● ● ● ● ● ●
130 BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE THA 		0-28650-625-0 01 1 1510- ● ● ● ● ● ●
147 CLIP; COVER
THA 		8-94221-150-0 02 1 1510- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
