Isuzu WW
▶
PICKUP
▶
TFR
▶
51632 - TFR/TFS THAILAND
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

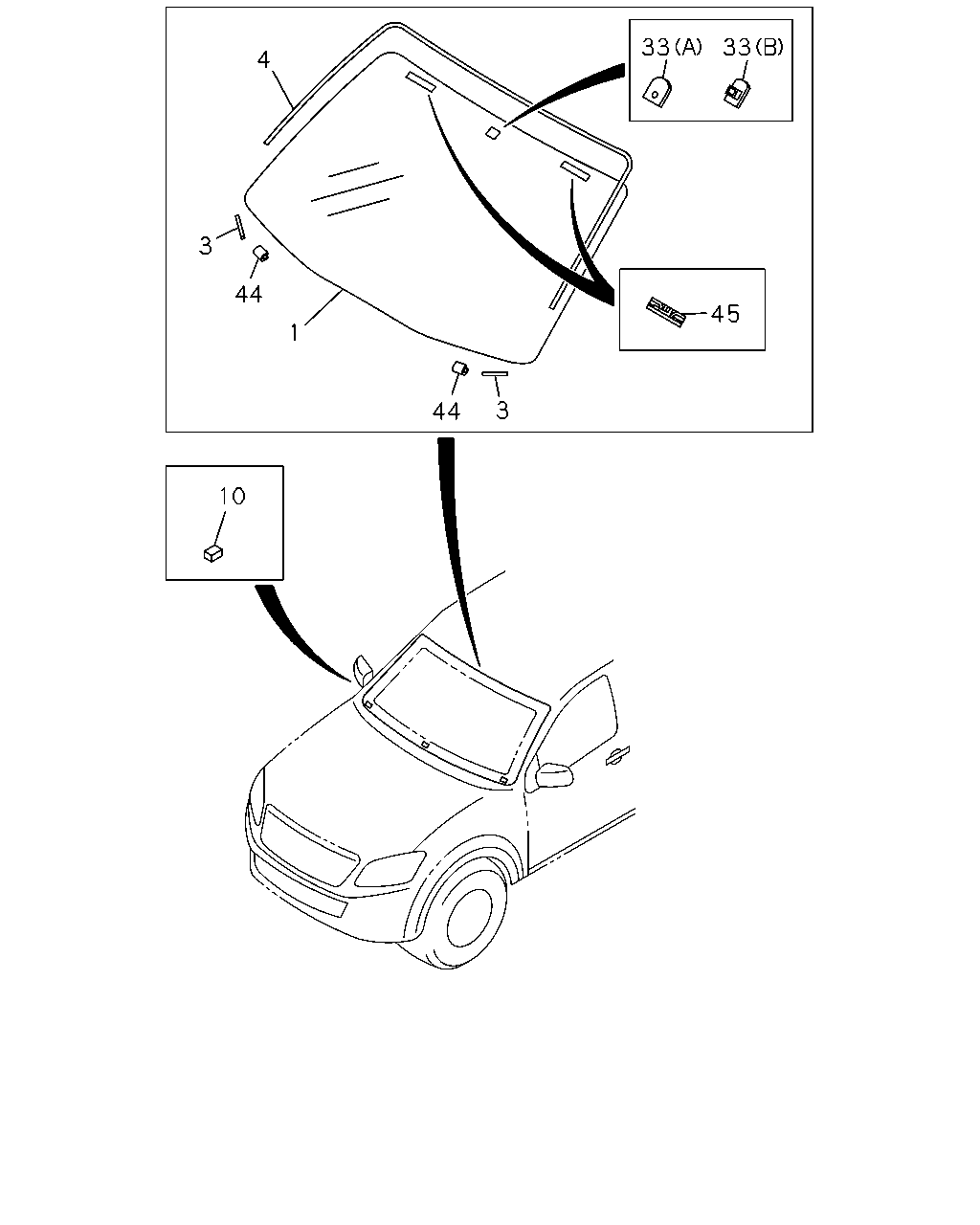

6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#166106) — 14 parça
Tümü
A - TFB5CF
B - TFB5WF
C - TFS5CF
D - TFS5WF
E - TFB5SF
F - TFS5SF
3
44
10
1
45
33
33
4
3
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> THA
8-98298-879-0
01
1
1510-
●
●
●
1
GLASS; WINDSHIELD
THA
8-98298-879-0
01
1
1510-
●
1
GLASS; WINDSHIELD
EXC. RR VIEW MIRROR DAY & NIGHT<D31> THA
8-98140-682-3
01
1
1510-
●
●
●
1
GLASS; WINDSHIELD
THA
8-98140-682-3
01
1
1510-
●
●
3
MOLDING; WINDSHIELD
THA
8-98194-205-0
01
1
1510-
●
●
●
●
●
●
3
MOLDING; WINDSHIELD
THA
8-98194-206-0
01
1
1510-
●
●
●
●
●
●
4
MOLDING; WINDSHIELD,UPR
THA
8-98140-685-0
01
1
1510-
●
●
●
●
●
●
10
SPACER; WINDSHIELD GLASS
THA
8-94434-770-0
03
1
1510-
●
●
●
●
●
●
33
SUPPORT; WINDSHIELD,LWR
RR VIEW MIRROR DAY & NIGHT<D31> (A) THA
8-98298-881-0
01
1
1510-
●
●
●
33
SUPPORT; WINDSHIELD,LWR
(A) THA
8-98298-881-0
01
1
1510-
●
33
SUPPORT; WINDSHIELD,LWR
EXC. RR VIEW MIRROR DAY & NIGHT<D31> (B) THA
8-97331-592-0
01
1
1510-
●
●
●
33
SUPPORT; WINDSHIELD,LWR
(B) THA
8-97331-592-0
01
1
1510-
●
●
44
SPONGE
THA
8-98194-202-0
02
1
1510-
●
●
●
●
●
●
45
SUPPORT; WINDSHIELD
THA
8-98140-687-0
02
1
1510-
●
●
●
●
●
●
