6-03 — RADIATOR GRILLE (#166104) — 32 parça

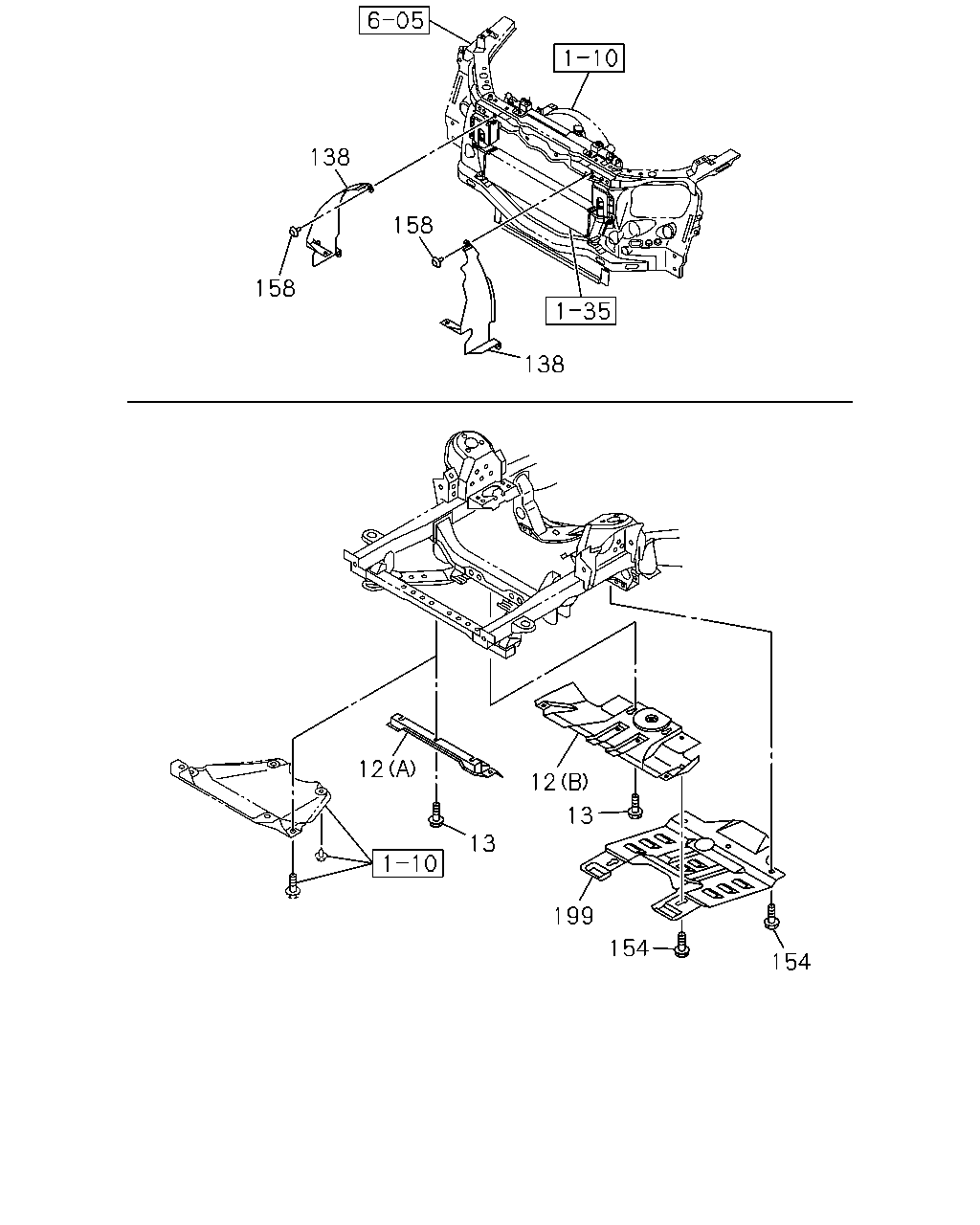

çizim 492924
158 138 158 138 12 13 12 13 199 154 154
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 PLATE; SKID,RAD
UNDER FRT GUARD<6RJ> (B) THA 		8-98229-406-0 01 1 1510- ● ● ●
12 PLATE; SKID,RAD
(A) THA 		8-98102-129-1 01 1 1510- ● ● ●
12 PLATE; SKID,RAD
EXC. UNDER FRT GUARD<6RJ> (B) THA 		8-98102-131-2 01 1 1510- ● ● ●
13 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER THA 		8-97945-706-0 09 1 1510- ● ● ●
138 GUIDE; AIR
THA 		8-98137-586-1 01 1 1510- ● ● ● ● ● ●
138 GUIDE; AIR
THA 		8-98137-587-1 01 1 1510- ● ● ● ● ● ●
154 BOLT; COVER
UNDER FRT GUARD<6RJ> M12X25 FLANGE THA 		8-98230-015-0 04 1 1510- ● ● ●
158 CLIP; PROTECTOR
OD=22 L=10.7 THA 		8-94215-211-0 06 1 1510- ● ● ● ● ● ●
199 PLATE; OIL PAN
UNDER FRT GUARD<6RJ> THA 		8-98229-404-0 01 1 1510- ● ● ●

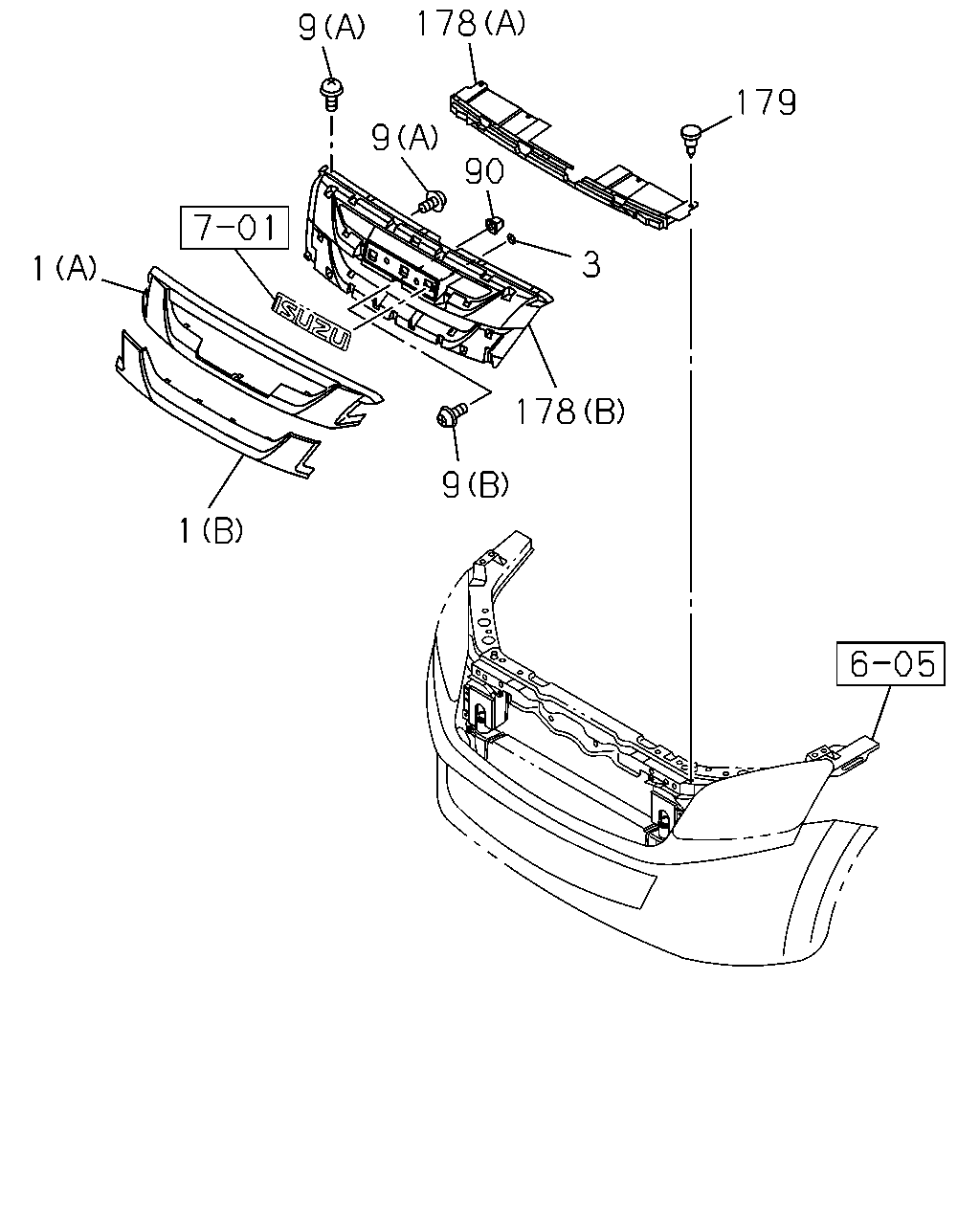

çizim 493006
1 1 9 9 178 179 3 9 90 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. SALES PACKAGE SPORTY<XK0> (A) PLATED THA 		8-98284-521-0 01 1 1510- ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (A) PLATED THA 		8-98284-521-0 01 1 1510- ●
1 GRILLE; RAD
(A) PLATED THA 		8-98284-521-0 01 1 1510- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. SALES PACKAGE SPORTY<XK0> (B) PLATED THA 		8-98284-522-0 01 1 1510- ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) PLATED THA 		8-98284-522-0 01 1 1510- ●
1 GRILLE; RAD
(B) PLATED THA 		8-98284-522-0 01 1 1510- ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0> (A) THA 		8-98284-517-0 01 1 1510- ● ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1> (A) THA 		8-98284-517-0 01 1 1510- ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> (A) THA 		8-98284-517-0 01 1 1510- ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0> (B) THA 		8-98284-518-0 01 1 1510- ● ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1> (B) THA 		8-98284-518-0 01 1 1510- ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> (B) THA 		8-98284-518-0 01 1 1510- ●
1 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> (A) PLEASE PAINT TO MATCH BODY COLOR THA 		8-98327-738-0 01 1 1510- ● ● ● ●
1 GRILLE; RAD
(A) PLEASE PAINT TO MATCH BODY COLOR THA 		8-98327-738-0 01 1 1510- ●
1 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> (B) PLEASE PAINT TO MATCH BODY COLOR THA 		8-98327-739-0 01 1 1510- ● ● ● ●
1 GRILLE; RAD
(B) PLEASE PAINT TO MATCH BODY COLOR THA 		8-98327-739-0 01 1 1510- ●
3 CLIP; GRILLE
THA 		8-98211-687-0 03 1 1510- ● ● ● ● ● ●
9 SCREW; RAD GRILLE
(B) M5X16 THA 		8-98167-352-0 01 1 1510- ● ● ● ● ● ●
9 SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER THA 		8-98193-872-0 20 1 1510- ● ● ● ● ● ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 THA 		8-94291-927-0 01 1 1510- ● ● ● ● ● ●
178 GRILLE; INNER,RAD
(A) THA 		8-98284-523-1 01 1 1510- ● ● ● ● ● ●
178 GRILLE; INNER,RAD
(B) THA 		8-98284-524-2 01 1 1510- ● ● ● ● ● ●
179 RETAINER; GRILLE,RAD
THA 		8-97301-188-0 04 1 1510- ● ● ● ● ● ●
