◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#166103) — 66 parça

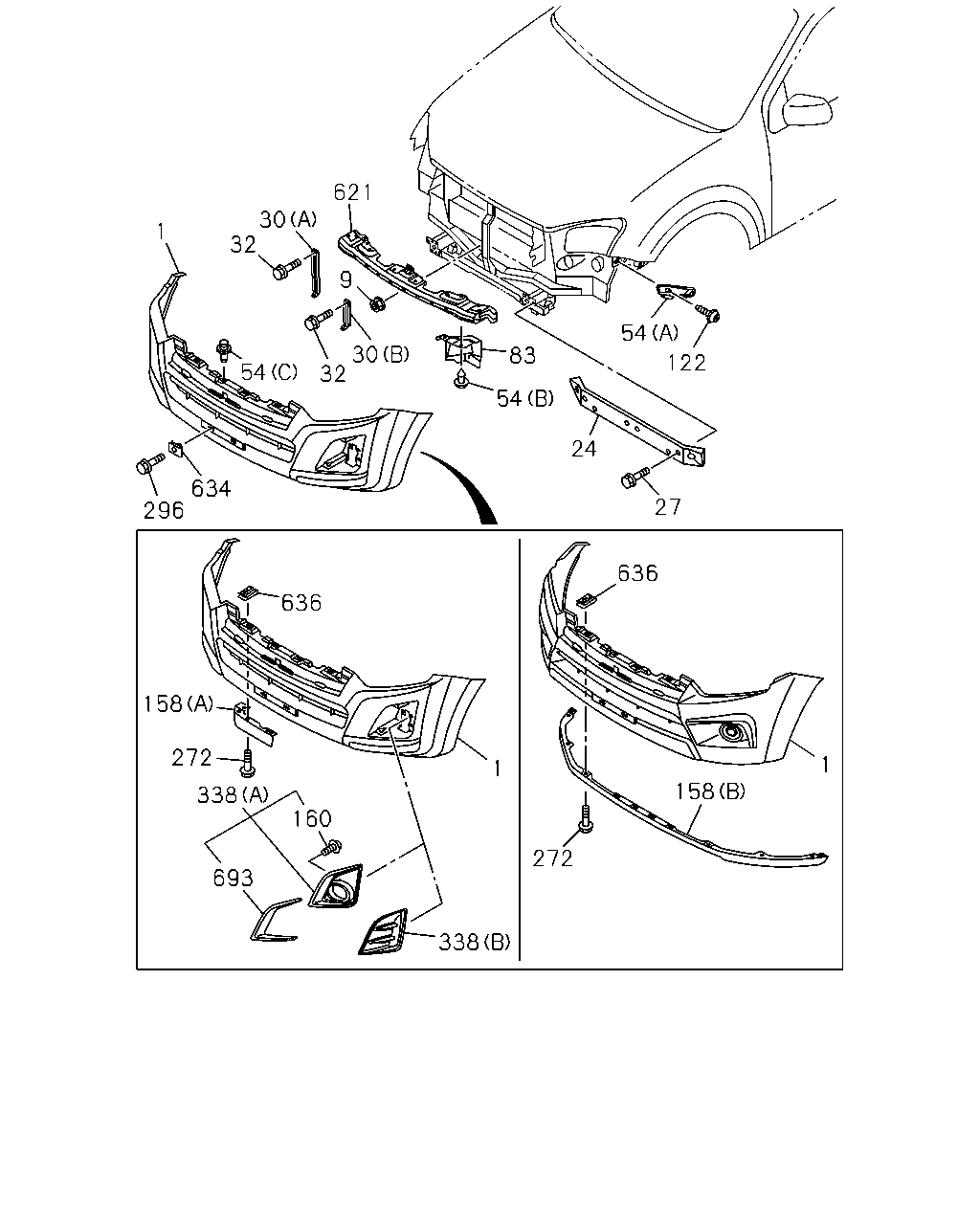

çizim 492849
1 32 30 621 9 296 634 54 30 32 83 24 54 27 122 54 636 158 272 338 160 693 338 272 1 158 636 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BUMPER ASM; FRT
FOG LAMP<T96> EXC. COLOR KEYED BUMPER<VT4>,HIGH RIDE SUSPENSION<7YC> THA 		8-98236-267-1 01 1 1510- ●
1 BUMPER ASM; FRT
HIGH RIDE SUSPENSION<7YC> EXC. COLOR KEYED BUMPER<VT4> THA 		8-98280-690-1 01 1 1510- ●
1 BUMPER ASM; FRT
EXC. FOG LAMP<T96>,COLOR KEYED BUMPER<VT4>, HIGH RIDE SUSPENSION<7YC> THA 		8-98236-266-1 01 1 1510- ●
1 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER<VT4> THA 		8-98236-266-1 01 1 1510- ●
1 BUMPER ASM; FRT
COLOR KEYED BUMPER<VT4> EXC. FOG LAMP<T96>,HIGH RIDE SUSPENSION<7YC> PRIMER THA 		8-98330-146-0 01 1 1510- ● ●
1 BUMPER ASM; FRT
COLOR KEYED BUMPER<VT4> PRIMER THA 		8-98330-146-0 01 1 1510- ●
1 BUMPER ASM; FRT
FOG LAMP<T96> COLOR KEYED BUMPER<VT4> EXC. HIGH RIDE SUSPENSION<7YC> PRIMER THA 		8-98330-147-0 01 1 1510- ● ●
1 BUMPER ASM; FRT
COLOR KEYED BUMPER<VT4> HIGH RIDE SUSPENSION<7YC> PRIMER THA 		8-98330-328-0 01 1 1510- ● ●
1 BUMPER ASM; FRT
PRIMER THA 		8-98330-328-0 01 1 1510- ● ● ●
9 NUT; REINF,FRT BUMPER
M6 FLANGE THA 		0-91180-106-0 06 1 1510- ● ● ● ● ● ●
24 BAR; FRT BUMPER
THA 		8-98165-112-1 01 1 1510- ● ● ● ● ● ●
27 BOLT; BUMPER TO BACK BAR
M10X25 FLANGE THA 		0-28661-025-0 04 1 1510- ● ● ● ● ● ●
30 BRACKET; FRT BUMPER
(A) THA 		8-98087-391-2 02 1 1510- ● ● ● ● ● ●
30 BRACKET; FRT BUMPER
(B) THA 		8-98087-392-0 02 1 1510- ● ● ● ● ● ●
32 BOLT; BRKT,BUMPER
M6X16 FLANGE THA 		0-28650-616-0 06 1 1510- ● ● ● ● ● ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98248-821-0 01 1 1510- ● ●
54 RETAINER; FRT BUMPER
(A) THA 		8-98248-821-0 01 1 1510- ● ● ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98248-822-0 01 1 1510- ● ●
54 RETAINER; FRT BUMPER
(A) THA 		8-98248-822-0 01 1 1510- ● ● ●
54 RETAINER; FRT BUMPER
(C) THA 		8-97301-188-0 10 1 1510- ● ● ● ● ● ●
54 RETAINER; FRT BUMPER
(B) THA 		8-98050-462-0 06 1 1510- ● ● ● ● ● ●
54 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98248-819-0 01 1 1510- ● ●
54 RETAINER; FRT BUMPER
(A) THA 		8-98248-819-0 01 1 1510- ●
54 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98248-820-0 01 1 1510- ● ●
54 RETAINER; FRT BUMPER
(A) THA 		8-98248-820-0 01 1 1510- ●
83 GUIDE; AIR,FRT BUMPER
THA 		8-98139-694-0 01 1 1510- ● ● ● ● ● ●
83 GUIDE; AIR,FRT BUMPER
THA 		8-98139-695-0 01 1 1510- ● ● ● ● ● ●
122 BOLT; RET,FRT BUMPER
SCREW M6X16 TAPPING W/PL WASHER THA 		0-74160-616-0 02 1 1510- ● ● ● ● ● ●
158 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98101-950-0 01 1 1510- ● ●
158 EXTENSION; FRT BUMPER
(A) THA 		8-98101-950-0 01 1 1510- ● ● ●
158 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98101-951-0 01 1 1510- ● ●
158 EXTENSION; FRT BUMPER
(A) THA 		8-98101-951-0 01 1 1510- ● ● ●
158 EXTENSION; FRT BUMPER
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98099-823-1 01 1 1510- ● ●
158 EXTENSION; FRT BUMPER
(B) THA 		8-98099-823-1 01 1 1510- ●
160 SCREW
FOG LAMP<T96> HIGH RIDE SUSPENSION<7YC> M5X16 TAPPING W/PL WASHER THA 		8-98193-872-0 02 1 1510- ● ●
160 SCREW
FOG LAMP<T96> M5X16 TAPPING W/PL WASHER THA 		8-98193-872-0 02 1 1510- ●
160 SCREW
M5X16 TAPPING W/PL WASHER THA 		8-98193-872-0 02 1 1510- ●
272 BOLT; BUMPER TO EXT
HIGH RIDE SUSPENSION<7YC> M6X15 TAPPING W/PL WASHER THA 		8-98164-799-0 04 1 1510- ● ●
272 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER THA 		8-98164-799-0 04 1 1510- ● ● ●
272 BOLT; BUMPER TO EXT
EXC. HIGH RIDE SUSPENSION<7YC> M6X15 TAPPING W/PL WASHER THA 		8-98164-799-0 10 1 1510- ● ●
272 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER THA 		8-98164-799-0 10 1 1510- ●
296 BOLT; LICENSE PLATE,FRT
M6X16 FLANGE THA 		0-28050-616-0 02 1 1510- ● ● ● ● ● ●
338 BEZEL; FOG LAMP
FOG LAMP<T96> HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98236-270-1 01 1 1510- ● ●
338 BEZEL; FOG LAMP
FOG LAMP<T96> (A) THA 		8-98236-270-1 01 1 1510- ●
338 BEZEL; FOG LAMP
(A) THA 		8-98236-270-1 01 1 1510- ●
338 BEZEL; FOG LAMP
FOG LAMP<T96> HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98236-271-1 01 1 1510- ● ●
338 BEZEL; FOG LAMP
FOG LAMP<T96> (A) THA 		8-98236-271-1 01 1 1510- ●
338 BEZEL; FOG LAMP
(A) THA 		8-98236-271-1 01 1 1510- ●
338 BEZEL; FOG LAMP
HIGH RIDE SUSPENSION<7YC> EXC. FOG LAMP<T96> (B) THA 		8-98236-272-0 01 1 1510- ● ●
338 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> (B) THA 		8-98236-272-0 01 1 1510- ●
338 BEZEL; FOG LAMP
(B) THA 		8-98236-272-0 01 1 1510- ●
338 BEZEL; FOG LAMP
HIGH RIDE SUSPENSION<7YC> EXC. FOG LAMP<T96> (B) THA 		8-98236-273-0 01 1 1510- ● ●
338 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> (B) THA 		8-98236-273-0 01 1 1510- ●
338 BEZEL; FOG LAMP
(B) THA 		8-98236-273-0 01 1 1510- ●
621 SUPPORT; FRT BUMPER
THA 		8-98087-390-1 01 1 1510- ● ● ● ● ● ●
634 NUT; LICENCE PLATE
THA 		8-98054-813-0 02 1 1510- ● ● ● ● ● ●
636 NUT; EXT,FRT BUMPER
HIGH RIDE SUSPENSION<7YC> THA 		8-98072-786-0 04 1 1510- ● ●
636 NUT; EXT,FRT BUMPER
THA 		8-98072-786-0 04 1 1510- ● ● ●
636 NUT; EXT,FRT BUMPER
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98072-786-0 10 1 1510- ● ●
636 NUT; EXT,FRT BUMPER
THA 		8-98072-786-0 10 1 1510- ●
693 MOLDING; BEZEL
FOG LAMP<T96> HIGH RIDE SUSPENSION<7YC> 		8-98330-177-0 01 1 1510- ● ●
693 MOLDING; BEZEL
FOG LAMP<T96> 		8-98330-177-0 01 1 1510- ●
693 MOLDING; BEZEL 8-98330-177-0 01 1 1510- ●
693 MOLDING; BEZEL
FOG LAMP<T96> HIGH RIDE SUSPENSION<7YC> 		8-98330-178-0 01 1 1510- ● ●
693 MOLDING; BEZEL
FOG LAMP<T96> 		8-98330-178-0 01 1 1510- ●
693 MOLDING; BEZEL 8-98330-178-0 01 1 1510- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
