◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#166102) — 9 parça

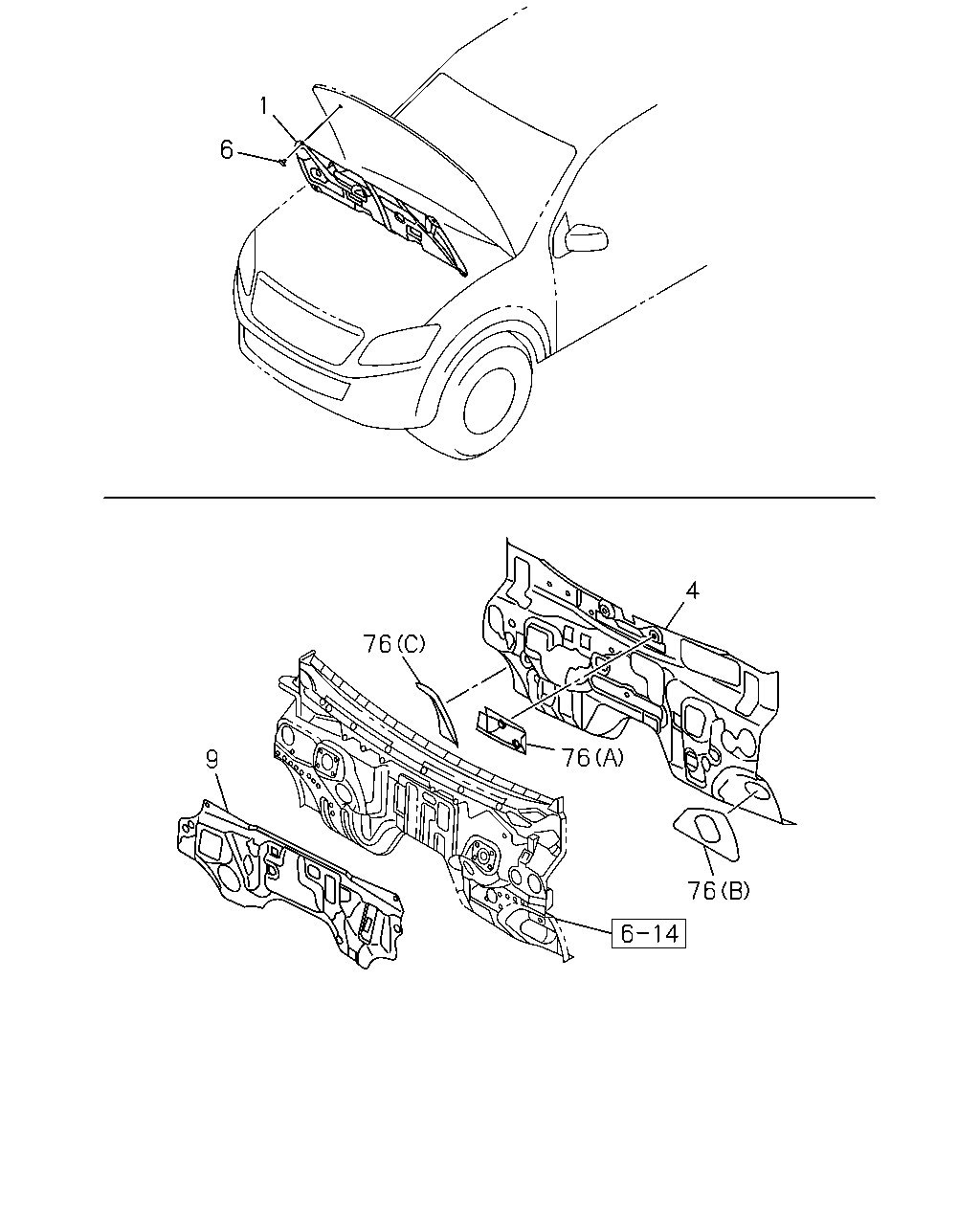

çizim 492986
76 76 76 4 9 6 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 INSULATION; ENG HOOD
THA 		8-98074-100-1 01 1 1510- ● ● ● ● ●
1 INSULATION; ENG HOOD
EXC. REFRIGERATION KIT<7FH> THA 		8-98074-100-1 01 1 1510- ●
1 INSULATION; ENG HOOD
REFRIGERATION KIT<7FH> THA 		8-98202-596-0 01 1 1510- ●
4 INSULATION; DASH PNL,INNER
THA 		8-98276-090-0 01 1 1510- ● ● ● ● ● ●
6 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 THA 		8-97808-623-0 09 1 1510- ● ● ● ● ● ●
9 INSULATION; DASH ENG ROOM
THA 		8-98074-008-0 01 1 1510- ● ● ● ● ● ●
76 DEADENER; DASH ENG ROOM
(A) THA 		8-98104-578-2 01 1 1510- ● ● ● ● ● ●
76 DEADENER; DASH ENG ROOM
(B) THA 		8-98161-052-0 01 1 1510- ● ● ● ● ● ●
76 DEADENER; DASH ENG ROOM
(C) THA 		8-98161-053-0 01 1 1510- ● ● ● ● ● ●
