Sayfa 5-01 - Isuzu EPC

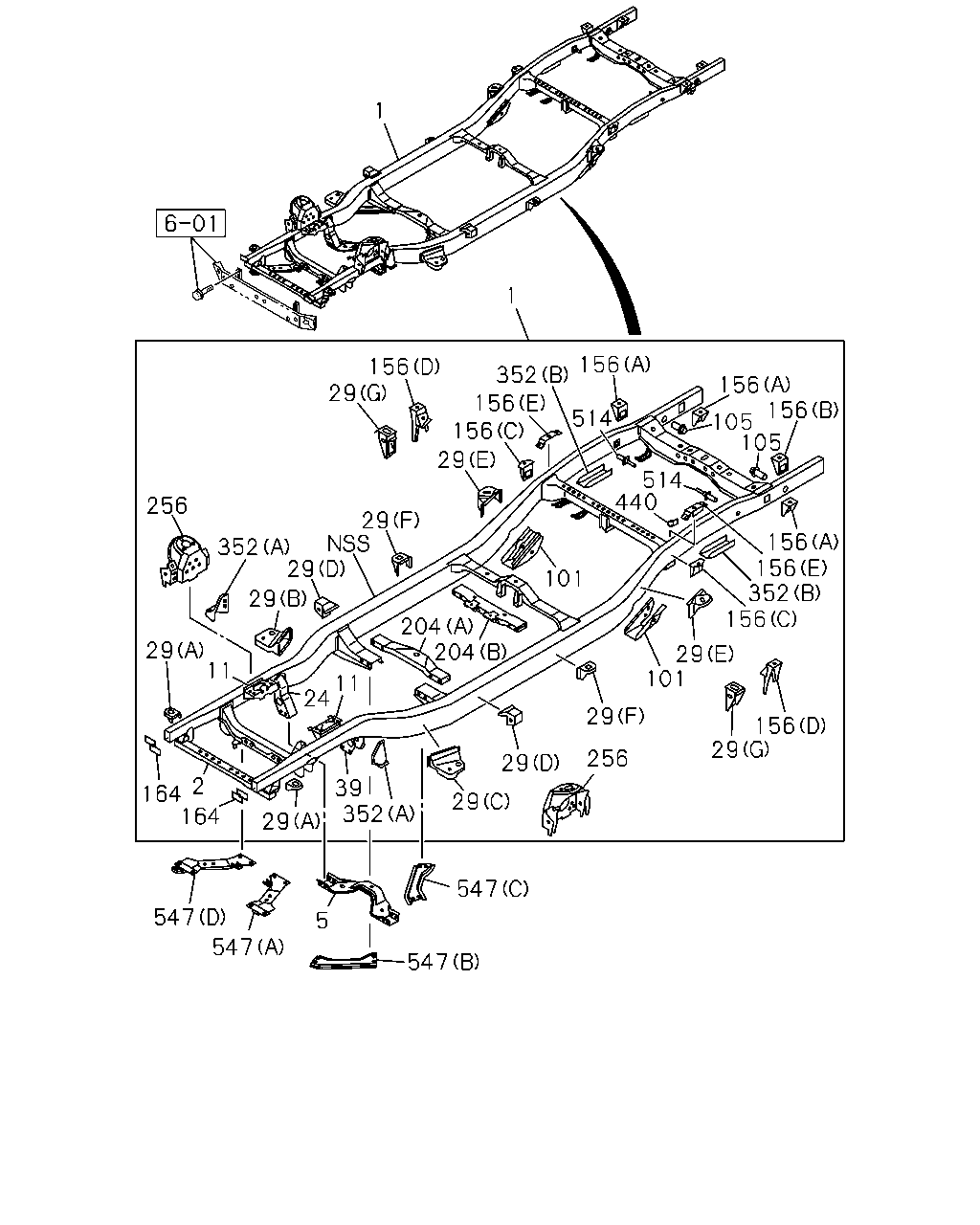

5-01 — FRAME AND OTHER PARTS (#166097) — 264 parça

497 497 497 497 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
485	NUT; TRANS MTG MBR,FRAME M10 FLANGE THA	0-91180-210-0	04	1	1510-	●	●	●	●	●	●
497	BOLT; C/MBR HIGH RIDE SUSPENSION<7YC> (B) M10X35 FLANGE THA	0-28661-035-0	06	1	1510-	●		●
497	BOLT; C/MBR (B) M10X35 FLANGE THA	0-28661-035-0	06	1	1510-				●	●	●
497	BOLT; C/MBR (A) M10X28 W/LK&PL WASHER THA	8-97945-706-0	02	1	1510-	●	●	●
497	BOLT; C/MBR (D) M12X30 FLANGE THA	0-28651-230-0	08	1	1510-	●	●	●	●	●	●
497	BOLT; C/MBR EXC. HIGH RIDE SUSPENSION<7YC> (B) M10X35 FLANGE THA	0-28661-035-0	04	1	1510-	●		●
497	BOLT; C/MBR (B) M10X35 FLANGE THA	0-28661-035-0	04	1	1510-		●
497	BOLT; C/MBR (C) M10X120 FLANGE THA	0-28066-012-0	04	1	1510-	●	●	●	●	●	●

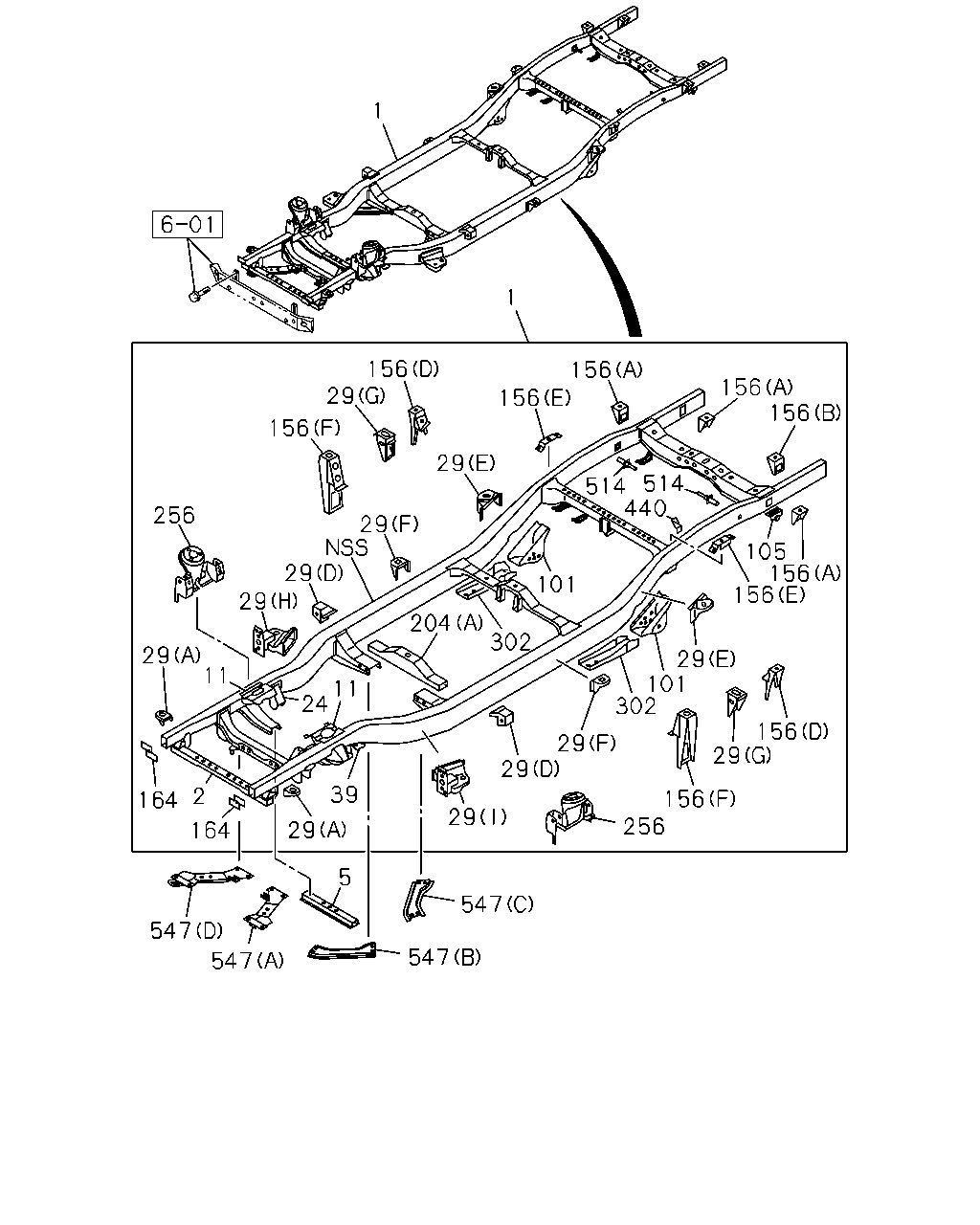

1 1 156 29 352 156 156 156 29 29 29 352 256 29 11 29 164 164 29 2 391 352 29 547 29 29 256 101 29 29 352 156 156 156 105 156 156 105 514 440 514 24 204 204 11 101 156 5 547 547 547

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98325-709-0	01	1	1510-	●
1	FRAME ASM 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA	8-98275-086-0	01	1	1510-					●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> THA	8-98275-091-0	01	1	1510-	●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98275-088-0	01	1	1510-	●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> THA	8-98275-092-0	01	1	1510-	●
1	FRAME ASM RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> HIGH RIDE SUSPENSION<7YC> THA	8-98278-826-0	01	1	1510-	●
1	FRAME ASM RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98278-825-0	01	1	1510-	●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ> THA	8-98275-083-0	01	1	1510-		●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA	8-98275-084-0	01	1	1510-		●
1	FRAME ASM RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> THA	8-98278-828-0	01	1	1510-		●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> THA	8-98275-100-0	01	1	1510-			●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98275-097-0	01	1	1510-			●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> THA	8-98275-101-0	01	1	1510-			●
1	FRAME ASM RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> HIGH RIDE SUSPENSION<7YC> THA	8-98278-830-0	01	1	1510-			●
1	FRAME ASM RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98278-829-0	01	1	1510-			●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98275-094-0	01	1	1510-				●
1	FRAME ASM RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> THA	8-98278-832-0	01	1	1510-				●
1	FRAME ASM 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA	8-98275-104-0	01	1	1510-						●
1	FRAME ASM RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> THA	8-98278-834-0	01	1	1510-						●
2	MEMBER; CROSS,1ST THA	8-98106-701-1	01	1	1510-	●	●	●	●	●	●
5	MEMBER; CROSS,SUSPENSION HIGH RIDE SUSPENSION<7YC> THA	8-98173-915-1	01	1	1510-	●		●
5	MEMBER; CROSS,SUSPENSION EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-736-2	01	1	1510-	●		●
5	MEMBER; CROSS,SUSPENSION THA	8-98106-736-2	01	1	1510-		●
5	MEMBER; CROSS,SUSPENSION THA	8-98229-450-0	01	1	1510-				●	●	●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-793-2	01	1	1510-	●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-793-2	01	1	1510-		●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-793-2	01	1	1510-			●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-795-1	01	1	1510-	●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-795-1	01	1	1510-		●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-795-1	01	1	1510-			●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> THA	8-98106-794-2	01	1	1510-	●		●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-794-2	01	1	1510-				●
11	BRACKET; ENG MTG 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-794-2	01	1	1510-					●	●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> THA	8-98106-796-2	01	1	1510-	●		●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-796-2	01	1	1510-				●
11	BRACKET; ENG MTG 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-796-2	01	1	1510-					●	●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> HIGH RIDE SUSPENSION<7YC> THA	8-98249-581-0	01	1	1510-	●		●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> THA	8-98249-581-0	01	1	1510-				●		●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> HIGH RIDE SUSPENSION<7YC> THA	8-98249-583-0	01	1	1510-	●		●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> THA	8-98249-583-0	01	1	1510-				●		●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98249-582-2	01	1	1510-	●		●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> THA	8-98249-582-2	01	1	1510-		●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98249-584-2	01	1	1510-	●		●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> THA	8-98249-584-2	01	1	1510-		●
24	BRACKET; FRT SPR,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-806-3	01	1	1510-	●		●
24	BRACKET; FRT SPR,FRT THA	8-98106-806-3	01	1	1510-		●
24	BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-807-1	01	1	1510-	●		●
24	BRACKET; FRT SPR,FRT THA	8-98106-807-1	01	1	1510-				●	●	●
29	BRACKET; CAB MTG (G) THA	8-98106-842-2	01	1	1510-	●			●
29	BRACKET; CAB MTG (G) THA	8-98106-843-2	01	1	1510-	●			●
29	BRACKET; CAB MTG EXC. HIGH RIDE SUSPENSION<7YC> (H) THA	8-98186-495-1	01	1	1510-	●		●
29	BRACKET; CAB MTG (H) THA	8-98186-495-1	01	1	1510-		●
29	BRACKET; CAB MTG EXC. HIGH RIDE SUSPENSION<7YC> (I) THA	8-98186-496-1	01	1	1510-	●		●
29	BRACKET; CAB MTG (I) THA	8-98186-496-1	01	1	1510-		●
29	BRACKET; CAB MTG HIGH RIDE SUSPENSION<7YC> (B) THA	8-98106-784-3	01	1	1510-	●		●
29	BRACKET; CAB MTG (B) THA	8-98106-784-3	01	1	1510-				●	●	●
29	BRACKET; CAB MTG HIGH RIDE SUSPENSION<7YC> (C) THA	8-98106-791-3	01	1	1510-	●		●
29	BRACKET; CAB MTG (C) THA	8-98106-791-3	01	1	1510-				●	●	●
29	BRACKET; CAB MTG (F) THA	8-98173-497-0	02	1	1510-		●	●		●	●
29	BRACKET; CAB MTG HIGH RIDE SUSPENSION<7YC> (E) THA	8-98106-844-2	01	1	1510-			●
29	BRACKET; CAB MTG (E) THA	8-98106-844-2	01	1	1510-						●
29	BRACKET; CAB MTG HIGH RIDE SUSPENSION<7YC> (E) THA	8-98106-845-2	01	1	1510-			●
29	BRACKET; CAB MTG (E) THA	8-98106-845-2	01	1	1510-						●
29	BRACKET; CAB MTG (A) THA	8-97942-341-3	02	1	1510-	●	●	●	●	●	●
29	BRACKET; CAB MTG (D) THA	8-98107-534-0	02	1	1510-	●	●	●	●	●	●
101	BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-866-0	01	1	1510-	●		●
101	BRACKET; RR SPR,FRT THA	8-98106-866-0	01	1	1510-		●
101	BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-867-0	01	1	1510-	●		●
101	BRACKET; RR SPR,FRT THA	8-98106-867-0	01	1	1510-		●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-868-0	01	1	1510-	●		●
101	BRACKET; RR SPR,FRT THA	8-98106-868-0	01	1	1510-				●	●	●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-869-0	01	1	1510-	●		●
101	BRACKET; RR SPR,FRT THA	8-98106-869-0	01	1	1510-				●	●	●
105	BRACKET; RR SPR,RR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97942-294-0	02	1	1510-	●		●
105	BRACKET; RR SPR,RR THA	8-97942-294-0	02	1	1510-		●
105	BRACKET; RR SPR,RR HIGH RIDE SUSPENSION<7YC> THA	8-98106-870-0	02	1	1510-	●		●
105	BRACKET; RR SPR,RR THA	8-98106-870-0	02	1	1510-				●	●	●
156	BRACKET; RR BODY MTG (E) THA	8-98106-864-0	01	1	1510-	●	●		●	●
156	BRACKET; RR BODY MTG (E) THA	8-98106-865-0	01	1	1510-	●	●		●	●
156	BRACKET; RR BODY MTG (D) THA	8-98213-872-0	01	1	1510-	●	●		●	●
156	BRACKET; RR BODY MTG (D) THA	8-98213-873-0	01	1	1510-	●	●		●	●
156	BRACKET; RR BODY MTG (F) THA	8-98213-870-0	01	1	1510-		●			●
156	BRACKET; RR BODY MTG (F) THA	8-98213-871-0	01	1	1510-		●			●
156	BRACKET; RR BODY MTG HIGH RIDE SUSPENSION<7YC> (C) THA	8-98214-084-0	02	1	1510-			●
156	BRACKET; RR BODY MTG (C) THA	8-98214-084-0	02	1	1510-						●
156	BRACKET; RR BODY MTG (A) THA	8-98213-874-0	03	1	1510-	●	●	●	●	●	●
156	BRACKET; RR BODY MTG (B) THA	8-98213-875-0	01	1	1510-	●	●	●	●	●	●
164	PLATE; FRT THA	8-98106-814-0	01	1	1510-	●	●	●	●	●	●
164	PLATE; FRT THA	8-98106-815-0	01	1	1510-	●	●	●	●	●	●
204	MEMBER; CROSS,TRANS MTG 4JK1-TCS ENG<LKZ> (A) THA	8-98106-759-4	01	1	1510-	●	●	●
204	MEMBER; CROSS,TRANS MTG 4JJ1-TCX ENG<LS0> (A) THA	8-98106-758-5	01	1	1510-	●	●
204	MEMBER; CROSS,TRANS MTG 4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> (A) THA	8-98106-758-5	01	1	1510-			●
204	MEMBER; CROSS,TRANS MTG RZ4E-TC ENG<RDZ> (A) THA	8-98249-577-0	01	1	1510-	●	●	●
204	MEMBER; CROSS,TRANS MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) THA	8-98106-761-4	01	1	1510-				●		●
204	MEMBER; CROSS,TRANS MTG (A) THA	8-98106-761-4	01	1	1510-					●
204	MEMBER; CROSS,TRANS MTG RZ4E-TC ENG<RDZ> (B) THA	8-98249-575-1	01	1	1510-				●		●
256	BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-800-2	01	1	1510-	●		●
256	BRACKET; S/ABS THA	8-98106-800-2	01	1	1510-		●
256	BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-802-1	01	1	1510-	●		●
256	BRACKET; S/ABS THA	8-98106-802-1	01	1	1510-		●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION<7YC> THA	8-98106-801-6	01	1	1510-	●		●
256	BRACKET; S/ABS THA	8-98106-801-6	01	1	1510-				●	●	●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION<7YC> THA	8-98106-803-4	01	1	1510-	●		●
256	BRACKET; S/ABS THA	8-98106-803-4	01	1	1510-				●	●	●
352	BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION<7YC> (A) THA	8-98106-835-3	01	1	1510-	●		●
352	BRACKET; BUMPER RUBBER (A) THA	8-98106-835-3	01	1	1510-				●	●	●
352	BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION<7YC> (A) THA	8-98106-836-3	01	1	1510-	●		●
352	BRACKET; BUMPER RUBBER (A) THA	8-98106-836-3	01	1	1510-				●	●	●
352	BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION<7YC> (B) THA	8-98106-871-1	02	1	1510-	●		●
352	BRACKET; BUMPER RUBBER (B) THA	8-98106-871-1	02	1	1510-				●	●	●
440	BRACKET; HOSE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-872-1	01	1	1510-	●		●
440	BRACKET; HOSE THA	8-98106-872-1	01	1	1510-		●
440	BRACKET; HOSE HIGH RIDE SUSPENSION<7YC> THA	8-98106-873-1	01	1	1510-	●		●
440	BRACKET; HOSE THA	8-98106-873-1	01	1	1510-				●	●	●
514	PIN; S/ABS THA	8-97942-395-1	02	1	1510-	●	●	●	●	●	●
547	BRACE; C/MBR HIGH RIDE SUSPENSION<7YC> (A) THA	8-98173-910-1	01	1	1510-	●		●
547	BRACE; C/MBR HIGH RIDE SUSPENSION<7YC> (D) THA	8-98177-568-3	01	1	1510-	●		●
547	BRACE; C/MBR (B) THA	8-98173-913-0	01	1	1510-	●	●	●
547	BRACE; C/MBR (C) THA	8-98173-914-0	01	1	1510-	●	●	●
547	BRACE; C/MBR EXC. HIGH RIDE SUSPENSION<7YC> (D) THA	8-98173-909-3	01	1	1510-	●		●
547	BRACE; C/MBR (D) THA	8-98173-909-3	01	1	1510-		●
547	BRACE; C/MBR EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98177-569-1	01	1	1510-	●		●
547	BRACE; C/MBR (A) THA	8-98177-569-1	01	1	1510-		●
547	BRACE; C/MBR (D) THA	8-98229-465-0	01	1	1510-				●	●	●
547	BRACE; C/MBR (A) THA	8-98229-466-0	01	1	1510-				●	●	●
547	BRACE; C/MBR (B) THA	8-98173-911-0	01	1	1510-				●	●	●
547	BRACE; C/MBR (C) THA	8-98173-912-0	01	1	1510-				●	●	●

1 1 156 29 156 29 29 29 256 156 156 156 514 514 105 156 29 101 302 29 29 29 256 29 156 156 156 156 29 29 11 24 39 11 204 302 101 164 164 2 29 5 547 547 547 547 440

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98325-709-0	01	1	1510-	●
1	FRAME ASM 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA	8-98275-086-0	01	1	1510-					●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> THA	8-98275-091-0	01	1	1510-	●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98275-088-0	01	1	1510-	●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> THA	8-98275-092-0	01	1	1510-	●
1	FRAME ASM RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> HIGH RIDE SUSPENSION<7YC> THA	8-98278-826-0	01	1	1510-	●
1	FRAME ASM RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98278-825-0	01	1	1510-	●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ> THA	8-98275-083-0	01	1	1510-		●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA	8-98275-084-0	01	1	1510-		●
1	FRAME ASM RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> THA	8-98278-828-0	01	1	1510-		●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> THA	8-98275-100-0	01	1	1510-			●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98275-097-0	01	1	1510-			●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> THA	8-98275-101-0	01	1	1510-			●
1	FRAME ASM RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> HIGH RIDE SUSPENSION<7YC> THA	8-98278-830-0	01	1	1510-			●
1	FRAME ASM RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98278-829-0	01	1	1510-			●
1	FRAME ASM 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98275-094-0	01	1	1510-				●
1	FRAME ASM RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> THA	8-98278-832-0	01	1	1510-				●
1	FRAME ASM 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA	8-98275-104-0	01	1	1510-						●
1	FRAME ASM RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> THA	8-98278-834-0	01	1	1510-						●
2	MEMBER; CROSS,1ST THA	8-98106-701-1	01	1	1510-	●	●	●	●	●	●
5	MEMBER; CROSS,SUSPENSION HIGH RIDE SUSPENSION<7YC> THA	8-98173-915-1	01	1	1510-	●		●
5	MEMBER; CROSS,SUSPENSION EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-736-2	01	1	1510-	●		●
5	MEMBER; CROSS,SUSPENSION THA	8-98106-736-2	01	1	1510-		●
5	MEMBER; CROSS,SUSPENSION THA	8-98229-450-0	01	1	1510-				●	●	●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-793-2	01	1	1510-	●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-793-2	01	1	1510-		●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-793-2	01	1	1510-			●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-795-1	01	1	1510-	●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-795-1	01	1	1510-		●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-795-1	01	1	1510-			●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> THA	8-98106-794-2	01	1	1510-	●		●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-794-2	01	1	1510-				●
11	BRACKET; ENG MTG 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-794-2	01	1	1510-					●	●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> THA	8-98106-796-2	01	1	1510-	●		●
11	BRACKET; ENG MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-796-2	01	1	1510-				●
11	BRACKET; ENG MTG 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA	8-98106-796-2	01	1	1510-					●	●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> HIGH RIDE SUSPENSION<7YC> THA	8-98249-581-0	01	1	1510-	●		●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> THA	8-98249-581-0	01	1	1510-				●		●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> HIGH RIDE SUSPENSION<7YC> THA	8-98249-583-0	01	1	1510-	●		●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> THA	8-98249-583-0	01	1	1510-				●		●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98249-582-2	01	1	1510-	●		●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> THA	8-98249-582-2	01	1	1510-		●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98249-584-2	01	1	1510-	●		●
11	BRACKET; ENG MTG RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> THA	8-98249-584-2	01	1	1510-		●
24	BRACKET; FRT SPR,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-806-3	01	1	1510-	●		●
24	BRACKET; FRT SPR,FRT THA	8-98106-806-3	01	1	1510-		●
24	BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-807-1	01	1	1510-	●		●
24	BRACKET; FRT SPR,FRT THA	8-98106-807-1	01	1	1510-				●	●	●
29	BRACKET; CAB MTG (G) THA	8-98106-842-2	01	1	1510-	●			●
29	BRACKET; CAB MTG (G) THA	8-98106-843-2	01	1	1510-	●			●
29	BRACKET; CAB MTG EXC. HIGH RIDE SUSPENSION<7YC> (H) THA	8-98186-495-1	01	1	1510-	●		●
29	BRACKET; CAB MTG (H) THA	8-98186-495-1	01	1	1510-		●
29	BRACKET; CAB MTG EXC. HIGH RIDE SUSPENSION<7YC> (I) THA	8-98186-496-1	01	1	1510-	●		●
29	BRACKET; CAB MTG (I) THA	8-98186-496-1	01	1	1510-		●
29	BRACKET; CAB MTG HIGH RIDE SUSPENSION<7YC> (B) THA	8-98106-784-3	01	1	1510-	●		●
29	BRACKET; CAB MTG (B) THA	8-98106-784-3	01	1	1510-				●	●	●
29	BRACKET; CAB MTG HIGH RIDE SUSPENSION<7YC> (C) THA	8-98106-791-3	01	1	1510-	●		●
29	BRACKET; CAB MTG (C) THA	8-98106-791-3	01	1	1510-				●	●	●
29	BRACKET; CAB MTG (F) THA	8-98173-497-0	02	1	1510-		●	●		●	●
29	BRACKET; CAB MTG HIGH RIDE SUSPENSION<7YC> (E) THA	8-98106-844-2	01	1	1510-			●
29	BRACKET; CAB MTG (E) THA	8-98106-844-2	01	1	1510-						●
29	BRACKET; CAB MTG HIGH RIDE SUSPENSION<7YC> (E) THA	8-98106-845-2	01	1	1510-			●
29	BRACKET; CAB MTG (E) THA	8-98106-845-2	01	1	1510-						●
29	BRACKET; CAB MTG (A) THA	8-97942-341-3	02	1	1510-	●	●	●	●	●	●
29	BRACKET; CAB MTG (D) THA	8-98107-534-0	02	1	1510-	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-808-3	01	1	1510-	●		●
39	BRACKET; FRT SPR,RR THA	8-98106-808-3	01	1	1510-		●
39	BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION<7YC> THA	8-98106-809-1	01	1	1510-	●		●
39	BRACKET; FRT SPR,RR THA	8-98106-809-1	01	1	1510-				●	●	●
101	BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-866-0	01	1	1510-	●		●
101	BRACKET; RR SPR,FRT THA	8-98106-866-0	01	1	1510-		●
101	BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-867-0	01	1	1510-	●		●
101	BRACKET; RR SPR,FRT THA	8-98106-867-0	01	1	1510-		●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-868-0	01	1	1510-	●		●
101	BRACKET; RR SPR,FRT THA	8-98106-868-0	01	1	1510-				●	●	●
101	BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98106-869-0	01	1	1510-	●		●
101	BRACKET; RR SPR,FRT THA	8-98106-869-0	01	1	1510-				●	●	●
105	BRACKET; RR SPR,RR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97942-294-0	02	1	1510-	●		●
105	BRACKET; RR SPR,RR THA	8-97942-294-0	02	1	1510-		●
105	BRACKET; RR SPR,RR HIGH RIDE SUSPENSION<7YC> THA	8-98106-870-0	02	1	1510-	●		●
105	BRACKET; RR SPR,RR THA	8-98106-870-0	02	1	1510-				●	●	●
156	BRACKET; RR BODY MTG (E) THA	8-98106-864-0	01	1	1510-	●	●		●	●
156	BRACKET; RR BODY MTG (E) THA	8-98106-865-0	01	1	1510-	●	●		●	●
156	BRACKET; RR BODY MTG (D) THA	8-98213-872-0	01	1	1510-	●	●		●	●
156	BRACKET; RR BODY MTG (D) THA	8-98213-873-0	01	1	1510-	●	●		●	●
156	BRACKET; RR BODY MTG (F) THA	8-98213-870-0	01	1	1510-		●			●
156	BRACKET; RR BODY MTG (F) THA	8-98213-871-0	01	1	1510-		●			●
156	BRACKET; RR BODY MTG HIGH RIDE SUSPENSION<7YC> (C) THA	8-98214-084-0	02	1	1510-			●
156	BRACKET; RR BODY MTG (C) THA	8-98214-084-0	02	1	1510-						●
156	BRACKET; RR BODY MTG (A) THA	8-98213-874-0	03	1	1510-	●	●	●	●	●	●
156	BRACKET; RR BODY MTG (B) THA	8-98213-875-0	01	1	1510-	●	●	●	●	●	●
164	PLATE; FRT THA	8-98106-814-0	01	1	1510-	●	●	●	●	●	●
164	PLATE; FRT THA	8-98106-815-0	01	1	1510-	●	●	●	●	●	●
204	MEMBER; CROSS,TRANS MTG 4JK1-TCS ENG<LKZ> (A) THA	8-98106-759-4	01	1	1510-	●	●	●
204	MEMBER; CROSS,TRANS MTG 4JJ1-TCX ENG<LS0> (A) THA	8-98106-758-5	01	1	1510-	●	●
204	MEMBER; CROSS,TRANS MTG 4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> (A) THA	8-98106-758-5	01	1	1510-			●
204	MEMBER; CROSS,TRANS MTG RZ4E-TC ENG<RDZ> (A) THA	8-98249-577-0	01	1	1510-	●	●	●
204	MEMBER; CROSS,TRANS MTG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) THA	8-98106-761-4	01	1	1510-				●		●
204	MEMBER; CROSS,TRANS MTG (A) THA	8-98106-761-4	01	1	1510-					●
204	MEMBER; CROSS,TRANS MTG RZ4E-TC ENG<RDZ> (B) THA	8-98249-575-1	01	1	1510-				●		●
256	BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-800-2	01	1	1510-	●		●
256	BRACKET; S/ABS THA	8-98106-800-2	01	1	1510-		●
256	BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-802-1	01	1	1510-	●		●
256	BRACKET; S/ABS THA	8-98106-802-1	01	1	1510-		●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION<7YC> THA	8-98106-801-6	01	1	1510-	●		●
256	BRACKET; S/ABS THA	8-98106-801-6	01	1	1510-				●	●	●
256	BRACKET; S/ABS HIGH RIDE SUSPENSION<7YC> THA	8-98106-803-4	01	1	1510-	●		●
256	BRACKET; S/ABS THA	8-98106-803-4	01	1	1510-				●	●	●
302	REINFORCEMENT; S/MBR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98125-713-0	01	1	1510-	●
302	REINFORCEMENT; S/MBR THA	8-98125-713-0	01	1	1510-		●
302	REINFORCEMENT; S/MBR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98125-714-0	01	1	1510-	●
302	REINFORCEMENT; S/MBR THA	8-98125-714-0	01	1	1510-		●
440	BRACKET; HOSE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98106-872-1	01	1	1510-	●		●
440	BRACKET; HOSE THA	8-98106-872-1	01	1	1510-		●
440	BRACKET; HOSE HIGH RIDE SUSPENSION<7YC> THA	8-98106-873-1	01	1	1510-	●		●
440	BRACKET; HOSE THA	8-98106-873-1	01	1	1510-				●	●	●
514	PIN; S/ABS THA	8-97942-395-1	02	1	1510-	●	●	●	●	●	●
547	BRACE; C/MBR HIGH RIDE SUSPENSION<7YC> (A) THA	8-98173-910-1	01	1	1510-	●		●
547	BRACE; C/MBR HIGH RIDE SUSPENSION<7YC> (D) THA	8-98177-568-3	01	1	1510-	●		●
547	BRACE; C/MBR (B) THA	8-98173-913-0	01	1	1510-	●	●	●
547	BRACE; C/MBR (C) THA	8-98173-914-0	01	1	1510-	●	●	●
547	BRACE; C/MBR EXC. HIGH RIDE SUSPENSION<7YC> (D) THA	8-98173-909-3	01	1	1510-	●		●
547	BRACE; C/MBR (D) THA	8-98173-909-3	01	1	1510-		●
547	BRACE; C/MBR EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98177-569-1	01	1	1510-	●		●
547	BRACE; C/MBR (A) THA	8-98177-569-1	01	1	1510-		●
547	BRACE; C/MBR (D) THA	8-98229-465-0	01	1	1510-				●	●	●
547	BRACE; C/MBR (A) THA	8-98229-466-0	01	1	1510-				●	●	●
547	BRACE; C/MBR (B) THA	8-98173-911-0	01	1	1510-				●	●	●
547	BRACE; C/MBR (C) THA	8-98173-912-0	01	1	1510-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
